Results

Light output
Materials
Conditions
Back-up lighting
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Resistance to overvoltage and surges

Cugnot Xtrem

Cugnot-001
Cugnot Xtrem

Product page

-20 °C to +50°C

1,850 lm to 11100 lm

70,000h L80/B10 at max

ambient temperature

8 years when used 24/7 at max

temperature

Diameters: 100 mm and 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 0/50/60 Hz

Electronic gear unit for DALI dimming

EN 60598-1

CE marking

7 m and 1

85 m

3,000K, 3,000 K and 5,000 K

109 to 129 lm/W

Resistance to overload: 320 V AC, 48 h – Supports voltage surges <4 kV

N/A
Display more

Niepce FV

Niepce-FV-001
Niepce FV

Product page

-20 °C to +35°C

1700 to 4300lm

70,000h L80/B50 at max

ambient temperature

8 years when used 24/7 at max

temperature

Diameter: 70 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

IP66, IP68, IP69K & IK10

220-240 V 0/50/60 Hz

Dimming function based on DALI protocol

Switch-off warning function (for sensor/timer)

Built-in motion sensor

EN 60598-1

CE marking

0,72m to 1,28m

3,000K, 3,000 K and 5,000 K

119 to 121 lm/W

Résistance à la surtension : 320 V AC, 48 h

N/A
Display more

Crookes

Crookes-001
Crookes

Product page

-20 °C to +35°C

1,850  to 9,250 lm

70,000h L80/B10 at max

ambient temperature

8 years when used 24/7 at max

temperature

Diameter: 100 mm and 133 mm

Borosilicate glass diffuser (nonflammable)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK07

220-240 V 0/50/60 Hz

Electronic gear unit for DALI dimming

EN 60598-1

CE marking

7 m and 1

6 m

3,000K, 3,000 K and 5,000 K

123 to 136 lm/W

N/A
N/A
Display more

Napier Xtrem

Napier-001
Napier Xtrem

Product page

-20 °C to +50°C

1,850  to 9,250 lm

70,000h L80/B10 at max

ambient temperature

8 years when used 24/7 at max

temperature

Diameter: 100 mm and 133 mm

Borosilicate glass diffuser (nonflammable)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK07

220-240 V 0/50/60 Hz

Electronic gear unit for DALI dimming

EN 60598-1

CE marking

7 m and 1

6 m

3,000K, 3,000 K and 5,000 K

116 to 138 lm/W

Resistance to overload: 320 V AC, 48 h – Supports voltage surges <4 kV

N/A
Display more

Foucault 24V DC

Foucault-002
Foucault 24V DC

Product page

-20 °C to +40°C

400 to 1600lm

50,000h L80/B10 at max

ambient temperature

5 years when used 24/7 at max

temperature

Diameter: 70 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

IP66, IP68, IP69K & IK10

24 V DC

N/A

EN 60598-1

CE marking

0,43m to 1,28m

3,000 K and 4,000 K

109 to 160 lm/W

N/A
N/A
Display more
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Resistance to overvoltage and surges

Foucault

Foucault-001
Foucault

Product page

-20 °C to +40°C

800 to 4800lm

70,000h L80/B10 at max

ambient temperature

8 years when used 24/7 at max

temperature

Diameter: 70 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Switch-off warning function (for sensor/timer)

Built-in motion sensor

EN 60598-1

CE marking

0,43m to 1,84m

3,000 K and 4,000 K

80 to 129 lm/W

N/A
N/A
Display more

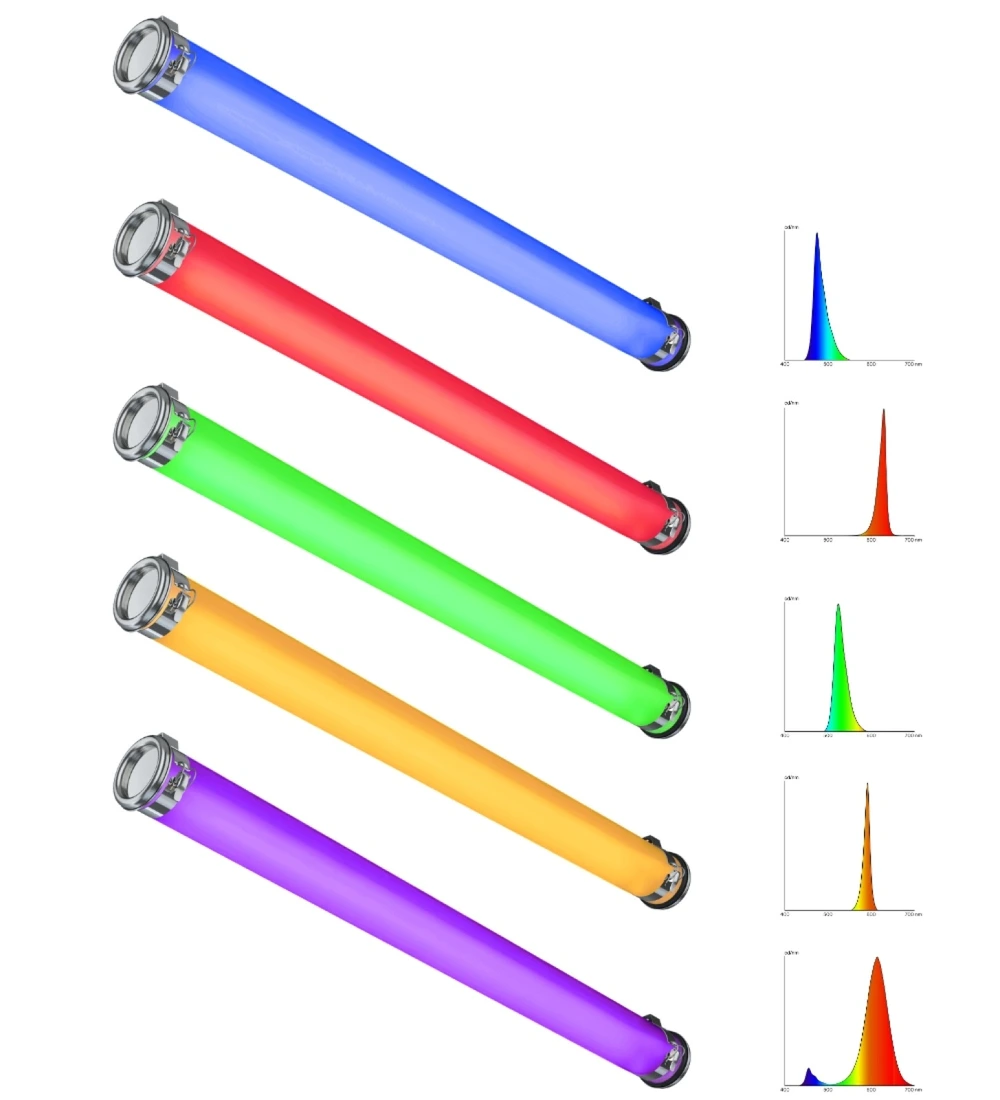

Pascal

Pascal-001
Pascal

Product page

-20°C to +35°C (excluding battery-operated versions)

1,850 lm to 11100 lm

70,000h L80/B10 at max

ambient temperature

8 years when used 24/7 at max

temperature (excluding batteries)

Diameters: 100 mm and 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 0/50/60 Hz (excluding battery-operated versions)

Dimming function based on DALI protocol

Push-button dimming function

Switch-off warning function (for sensor/timer)

Built-in motion sensor

Built-in 3h emergency unit – Long-lasting LiFe PO4 battery

EN 60598-1

EN 60598-2-22 (battery-operated versions)

CE marking

7 m and 1

85 m

3,000K, 3,000 K and 5,000 K

109 to 123 lm/W (excluding battery-operated versions)

N/A
N/A
Display more

Results

Materials
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Resistance to overvoltage and surges

Joule X-Heat

Joule-001
Joule X-Heat

Product page

-20°C to +85°C

1,850 lm to 4,625 lm

50,000h L80/B50 at max

ambient temperature

5 years when used 24/7 at max

temperature

Diameter: 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Silicone seals

IP66, IP68, IP69K & IK10

220-240 V 0/50/60 Hz

N/A

EN 60598-1

CE marking

7 m and 1

6 m

4,000 K

115 to 126 lm/W

Resistance to overload: 320 V AC, 48 h – Supports voltage surges <4 kV

N/A
Display more

Pauli HT200 X-Heat

Pauli-HT200-001
Pauli HT200 X-Heat

Product page

-20 °C to +200°C

Function of the lamp used

N/A

5 years when used 24/7 at max

temperature

Diameter: 133 mm

Borosilicate glass diffuser (nonflammable)

304 L or 316 L stainless steel

Silicone seals

IP66, IP68, IP69K & IK07

230V 50Hz

N/A

EN 60598-1

CE marking

0,46m to 0,68m

Function of the lamp used

N/A
N/A
N/A
Display more

Rankine X-Heat

Rankine-001
Rankine X-Heat

Product page

-20 °C to +70°C

1650 to 2475 lm

50,000h L80/B50 at max

ambient temperature

5 years when used 24/7 at max

temperature

Diameter: 70 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

N/A

EN 60598-1

CE marking

0,68m to 0,96m

3,000K, 3,000 K and 5,000 K

127 to 130 lm/W

Resistance to overload: 320 V AC, 48 h – Supports voltage surges <4 kV

N/A
Display more

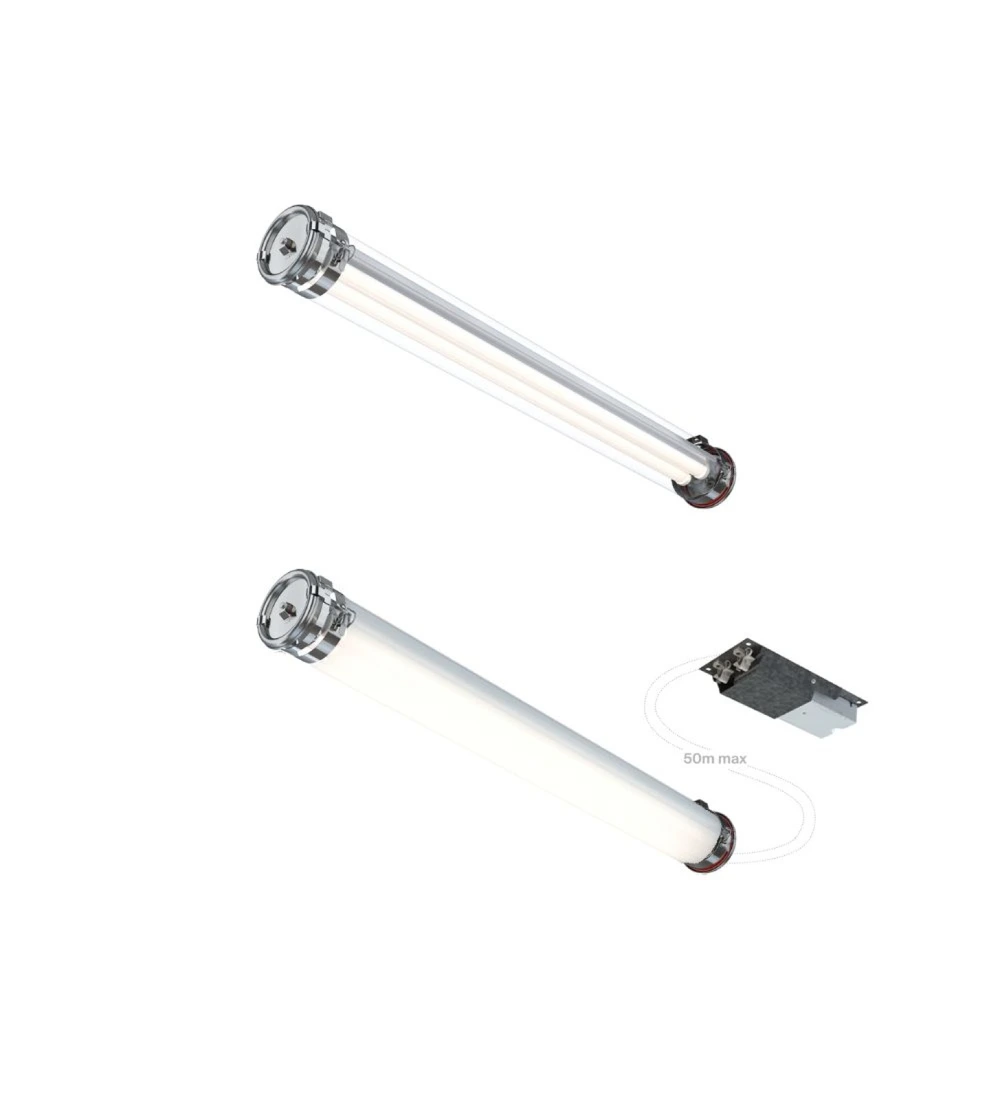

Leslie X-Heat

Leslie-001
Leslie X-Heat

Product page

-20°C to +105°C

1,850 lm to 4,625 lm

50,000h L80/B50 at max

ambient temperature

5 years when used 24/7 at max

temperature

Diameter: 133 mm

Borosilicate glass diffuser (nonflammable)

304 L or 316 L stainless steel

Silicone seals

IP66, IP68, IP69K & IK07 (glass)

IP66, IP68, IP69K & IK04 (sandblasted glass)

220-240 V 0/50/60 Hz

N/A

EN 60598-1

CE marking

7 m and 1

6 m

3,000K, 3,000 K and 5,000 K

105 to 133lm/W

Resistance to overload: 320 V AC, 48 h – Supports voltage surges <4 kV

N/A
Display more

Results

Classification zone
Light output
Conditions
Materials
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Resistance to overvoltage and surges

Sabatier Xtrem

Sabatier-001
Sabatier Xtrem

Product page

-20 °C to +50°C

2000 to 7700lm

50,000h L80/B10 at max

ambient temperature

5 years when used 24/7 at max

temperature

Diameter: 133 mm

Borosilicate glass diffuser (nonflammable)

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

IP66, IP68, IP69K & IK07 (glass)

220-240 V 0/50/60 Hz

N/A

ATEX/IECEx: IEC 60079-0, IEC 60079-7, IEC 60079-18, IEC 60079-31

Markings: II 2G Ex eb mb IIC T4 Gb – II 2D Ex tb IIIC T65°C Db IP66/IP68

0,75 to 1,6m

4,000 K

95 to 124lm/W

N/A
N/A
Display more

Alder

Alder-001
Alder

Product page

-20 °C to +35°C

2000 to 7700lm

50,000h L80/B10 at max

ambient temperature

8 years when used 24/7 at max

temperature

Diameter: 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 0/50/60 Hz

N/A

ATEX/IECEx: IEC 60079-0, IEC 60079-7, IEC 60079-18, IEC 60079-31

Markings: II 2G Ex eb mb IIC T4 Gb – II 2D Ex tb IIIC T65°C Db IP66/IP68

0,75 to 1,6m

4,000 K

95 to 124lm/W

N/A
N/A
Display more

Fumat

Fumat-001
Fumat

Product page

-20 °C to +50°C

11,100 lm

70,000h L80/B10 at max

ambient temperature

8 years when used 24/7 at max

temperature

Diameter: 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 0/50/60 Hz

Electronic gear unit for DALI dimming

ATEX/IECEx: IEC 60079-0, IEC 60079-15, IEC 60079-31 Markings: II 3G Ex ec IIC T4 Gc – II 2D Ex tb IIIC T70°C Db IP66/IP68

85 m

3,000 K and 4,000 K

148 lm/W

Resistance to overload: 320 V AC, 48 h – Supports voltage surges <4 kV

N/A
Display more

Jamin

Jamin-001
Jamin

Product page

-20°C to +35°C (excluding battery-operated versions)

1,850  to 9,250 lm

70,000h L80/B10 at max

ambient temperature

8 years when used 24/7 at max

temperature (excluding batteries)

Diameters: 100 mm and 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 0/50/60 Hz (excluding battery-operated versions)

Dimming function based on DALI protocol

Built-in 1h emergency unit – Long-lasting LiFe PO4 battery

ATEX/IECEx: IEC 60079-0, IEC 60079-15, IEC 60079-31 Markings: II 3G Ex ec IIC T4 Gc – II 2D Ex tb IIIC T70°C Db IP66/IP68

7 m and 1

6 m

3,000 K and 4,000 K

116 to 136 lm/W (excluding battery-operated versions)

N/A
N/A
Display more

Boyle Xtrem

Boyle-001
Boyle Xtrem

Product page

-20 °C to +50°C

1,850  to 9,250 lm

70,000h L80/B10 at max

ambient temperature

8 years when used 24/7 at max

temperature (excluding batteries)

Diameters: 100 mm and 133 mm

Borosilicate glass diffuser (nonflammable)

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

IP66, IP68, IP69K & IK07 (glass)

220-240 V 0/50/60 Hz (excluding battery-operated versions)

Dimming function based on DALI protocol

Built-in 1h emergency unit – Long-lasting LiFe PO4 battery

ATEX/IECEx: IEC 60079-0, IEC 60079-15, IEC 60079-31 Markings: II 3G Ex ec IIC T4 Gc – II 2D Ex tb IIIC T70°C Db IP66/IP68

7 m and 1

6 m

3,000 K and 4,000 K

116 to 136 lm/W (excluding battery-operated versions)

Resistance to overload: 320 V AC, 48 h – Supports voltage surges <4 kV

N/A
Display more

Results

Light output
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Resistance to overvoltage and surges

Sill 48 Xtrem

Sill-48-001
Sill 48 Xtrem

Product page

-40°C to +50°C (except 28W : -25°C to +50°C and 160W : -40°C to +45°C)

1170 to 20440lm

100,000h L80/B10 at max

ambient temperature

5 years when used 24/7 at max

temperature

Tempered safety glass or translucent pc-cover, thickness 4mm, UV coated

High pressure die cast aluminium one piece housing (AlSi12, with low copper rate)

Special pretreatment for increased and long-lasting corrosion protection in chlorinated and saline environments

IP65 - IK08 (48M), IK09 (48S and 48L)

220-240 V 0/50/60 Hz

Electronic gear unit for DALI dimming

DIN VDE 0711 - EN 60598

CE marking

N/A

4000K, 5700K, 2700K, 3000K, amber

63 to 139lm/W

Supports voltage surges < 8 kV (except 48S : 2kV and 48M : 6kV)

N/A
Display more

Fresnel

Fresnel-001
Fresnel

Product page

-20 °C to +50°C

11,100 lm

N/A

8 years when used 24/7 at max

temperature

Diameters: 100 mm and 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 0/50/60 Hz

Electronic gear unit for DALI dimming

EN 60598-1

CE marking

85 m

3,000K, 3,000 K and 5,000 K

148 lm/W

Resistance to overload: 320 V AC, 48 h – Supports voltage surges <4 kV

N/A
Display more

Results

Lighting type
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Resistance to overvoltage and surges

Coulomb Industry

Coulomb-001
Coulomb Industry

Product page

0°C to +30°C

45 to 330lm

N/A

5 years

Diameter: 100 mm

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

230V 50Hz

Type: permanent mode

SATI performance

EN 60598-1

EN 60598-2-22

NF C71-820

UTE C71-806

EVAC version: NF C71-800

AMB version: NF C71-801

Markings: CE

0,36m

4,000 K

N/A
N/A
N/A
Display more

Maxwell X-Cold

Maxwell-002
Maxwell X-Cold

Product page

-60 °C to +25°C

400lm

N/A

5 years

Diameter: 100 mm

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Silicone seals

IP66, IP68, IP69K & IK10

24 V DC

Type: permanent and temporary

EN 60598-1

EN 60598-2-22

NF C71-802

Markings: CE, NF-AEAS

0,38m

4,000 K

N/A
N/A
N/A
Display more

Maxwell

Maxwell-001
Maxwell

Product page

LSC versions: -20°C to +30°C

SXH versions: 0°C to +30°C

45 to 440lm

N/A

5 years

Diameter: 100 mm

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

LSC EVAC version: 220-240 V 0/50/60 Hz

LSC AMB version: 180-254V 0/50/60 Hz

SXH versions: 220-240 V 50/60 Hz

Type: permanent and temporary

EN 60598-1

EN 60598-2-22

LSC versions: NF C71-802

Markings: CE

0,36m

4,000 K

N/A
N/A
N/A
Display more

Results

Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Resistance to overvoltage and surges

Calmette

Calmette-001
Calmette

Product page

-20 °C to +40°C

3600 to 9000lm

70,000h L80/B10 at max

ambient temperature

8 years when used 24/7 at max

temperature

PMMA IK09 protective plate (650°C)

Polycarbonate IK10 protective plate (850°C)

304 L stainless steel frame

316 L stainless steel frame

Lower surface (clean room side): IP66, IP68

Upper side (maintenance side): IP65

220-240 V 0/50/60 Hz

Electronic gear unit for DALI dimming

EN 60598-1

CE marking

0,68m to 1,58m

3,000K, 3,000 K and 5,000 K

112 to 118 lm/W

Resistance to overload: 320 V AC, 48 h – Supports voltage surges <4 kV

N/A
Display more

Results

Materials
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Resistance to overvoltage and surges

Celsius X-Cold

Celsius-001
Celsius X-Cold

Product page

-60 °C to +25°C

750 to 2500 lm

50,000h L80/B50

5 years

Diameter: 70 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

304 L or 316 L stainless steel

IP66, IP68, IP69K & IK10

24 V DC

N/A

EN 60598-1

CE marking

0,61m to 1,61m

4,000 K

40 to 47 lm/W

N/A
N/A
Display more

Bering X-Cold

Bering-001
Bering X-Cold

Product page

-40 °C to +35°C

1,850 lm to 11100 lm

70,000h L80/B10

8 years when used 24/7 at max

temperature

Diameters: 100 to 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

304 L or 316 L stainless steel

Silicone seals

IP66, IP68, IP69K & IK10

220-240 V 0/50/60 Hz

Dimming function based on DALI protocol

Switch-off warning function (for sensor/timer)

Built-in motion sensor

EN 60598-1

CE marking

7 m and 1

85 m

3,000K, 3,000 K and 5,000 K

108 to 138 lm/W

Resistance to overload: 320 V AC, 48 h – Supports voltage surges <4 kV

N/A
Display more

Barents X-Cold

Barents-001
Barents X-Cold

Product page

-40 °C to +25°C

13700 lm

70,000h L80/B10

8 years when used 24/7 at max

temperature

Diameter: 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

304 L or 316 L stainless steel

Silicone seals

IP66, IP68, IP69K & IK10

220-240 V 0/50/60 Hz

Dimming function based on DALI protocol

Switch-off warning function (for sensor/timer)

Built-in motion sensor

EN 60598-1

CE marking

85 m

3,000K, 3,000 K and 5,000 K

116 to 119 lm/W

Resistance to overload: 320 V AC, 48 h – Supports voltage surges <4 kV

N/A
Display more
  • The emblematic Sammode tubular light
  • 1950s reissues
  • Contemporary designs
  • Emergency lighting
  • The emblematic Sammode tubular light
  • 1950s reissues
  • Contemporary designs
  • Emergency lighting

Results

Designer
Type
Light output
Materials
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

Bendz

Bendz-001
Bendz

Product page

-20 °C to +30°C

Function of the lamp used

N/A

5 years

Diameter: 70 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

N/A

EN 60598-1

CE marking

27 m

Function of the lamp used

N/A
N/A
N/A
Display more

Bendz

Bendz-001
Bendz

Product page

-20 °C to +30°C

Function of the lamp used

N/A

5 years

Diameter: 70 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

N/A

EN 60598-1

CE marking

27 m

Function of the lamp used

N/A
N/A
N/A
Display more

Vouet Sensor

vouet-sensor-001
Vouet Sensor

Product page

-25°C to +35°C

800 to 1154 lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 100 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Switch-off warning function (for sensor/timer)

Permanent standby mode 10% function

EN 60598-1

CE marking

42 m

2,700 K, 3,000 K and 4,000 K

100 to 104 lm/W

N/A
N/A
Display more

Gounod

Gounod-001
Gounod

Product page

-20 °C to +35°C

2700 to 4500 lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Switch-off warning function (for sensor/timer)

EN 60598-1

CE marking

1 m to 1

6 m

2,700 K, 3,000 K and 4,000 K

61 to 96 lm/W

N/A

Reflector with reversible louvre

Display more

Mondrian

Mondrian-001
Mondrian

Product page

-20 °C to +30°C

350 to 2000lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 40 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Switch-off warning function (for sensor/timer)

Permanent standby mode 10% function

Bluetooth Casambi control system

EN 60598-1

CE marking

0,63m to 1,27m

2,700 K, 3,000 K and 4,000 K

47 to 111lm/W

N/A
N/A
Display more
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

Elgar Push

ElgarPush-001
Elgar Push

Product page

-20 °C to +35°C

275 to 550lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 70 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

304 L or 316 L stainless steel

IP65 & IK10

220-240 V 50/60 Hz

Built-in dimming button

EN 60598-1

CE marking

0,43m to 0,7m

2,700 K, 3,000 K and 4,000 K

55 to 69lm/W

N/A

Reflector with reversible louvre

Display more

Rimbaud

Rimbaud-001
Rimbaud

Product page

-20 °C to +30°C

Function of the lamp used

N/A

5 years

Diameter: 133 mm

Borosilicate glass diffuser (nonflammable)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK07

220-240 V 50/60 Hz

N/A

EN 60598-1

CE marking

0,69m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more

Musset

Musset-001
Musset

Product page

-20 °C to +30°C

Function of the lamp used

N/A

5 years

Diameter: 100 mm

Borosilicate glass diffuser (nonflammable)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK07

220-240 V 50/60 Hz

N/A

EN 60598-1

CE marking

0,52m

Function of the lamp used

Function of the lamp used

N/A

Flux-breaker grid

Display more

Werefkin

Werefkin-001
Werefkin

Product page

-25°C to +35°C

3450 to 7500 lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Switch-off warning function (for sensor/timer)

EN 60598-1

CE marking

1 m to 1

6 m

2,700 K, 3,000 K and 4,000 K

96 to 106 lm/W

N/A
N/A
Display more

Pissarro

Pissarro-001
Pissarro

Product page

-20 °C to +35°C

2100 to 3500 lm

70,000h/L80/B10 at 25°C

8 years

Diameter: 100 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Bluetooth Casambi control system

EN 60598-1

CE marking

02 m to 1

62 m

2,700 K, 3,000 K and 4,000 K

65 to 97 lm/W

N/A

Reflector with slatted louvre

Display more
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

Géricault

Gericault-001
Géricault

Product page

-25°C to +35°C

800 to 12500 lm

70,000h/L80/B10 at 25°C

5 years

Diameters: 100 mm and 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Switch-off warning function (for sensor/timer)

Built-in motion sensor

EN 60598-1

CE marking

39 m to 1

85 m

2,700 K, 3,000 K and 4,000 K

89 to 136 lm/W

N/A
N/A
Display more

Benson

Benson-001
Benson

Product page

-25°C to +35°C

1600 to 8000 lm

70,000h/L80/B10 at 25°C

5 years

Diameters: 100 mm and 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Switch-off warning function (for sensor/timer)

Bluetooth Casambi control system

Built-in motion sensor

EN 60598-1

CE marking

71 m to 1

62 m

2,700 K, 3,000 K and 4,000 K

94 to 123 lm/W

N/A

High-gloss aluminium extensive reflector

Display more

Brueghel Direct / Indirect

Brueghel-DI-001
Brueghel Direct / Indirect

Product page

-20 °C to +35°C

2,100/1,100 to 4,000/2,000 lm

50,000h L80/B10 at max

ambient temperature

5 years

Diameters: 100 mm and 133 mm

Borosilicate glass diffuser (nonflammable)

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

IP66, IP68, IP69K & IK07 (glass)

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Bluetooth Casambi control system

EN 60598-1

CE marking

1 m to 1

6 m

2,700 K, 3,000 K and 4,000 K

N/A
N/A

Low-glare louvre with reflector and louvres in high-performance aluminium

Display more

Turner

Turner-001
Turner

Product page

-25°C to +35°C

750 to 4,200 lm

70,000h/L80/B10 at 25°C

8 years

Diameter: 70 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Switch-off warning function (for sensor/timer)

Built-in motion sensor

EN 60598-1

CE marking

58 m to 1

84 m

2,700 K, 3,000 K and 4,000 K

5 to 135

5lm/W

N/A
N/A
Display more

Brueghel

Brueghel-001
Brueghel

Product page

-20 °C to +35°C

2100 to 4000 lm

70,000h/L80/B10 at 25°C

8 years

Diameters: 100 mm and 133 mm

Borosilicate glass diffuser (nonflammable)

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

IP66, IP68, IP69K & IK07 (glass)

220-240 V 50/60 Hz

Switch-off warning function (for sensor/timer)

EN 60598-1

CE marking

1 m to 1

6 m

2700K, 3000K, 4000K, 2700-6500K

91 to 128 lm/W

N/A

Low-glare louvre with reflector and louvres in high-performance aluminium

Display more
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

Scorel

Scorel-001
Scorel

Product page

-20 °C to +35°C

1000 to 2500 lm

70,000h/L80/B10 at 25°C

8 years

Diameter: 70 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Switch-off warning function (for sensor/timer)

Bluetooth Casambi control system

Built-in motion sensor

EN 60598-1

CE marking

72 m to 1

56 m

2,700 K, 3,000 K and 4,000 K

91 to 119 lm/W

N/A

High-gloss aluminium extensive reflector

Display more

Purcell

Purcell-001
Purcell

Product page

-25°C to +35°C

1500 to 2500 lm

70,000h/L80/B10 at 25°C

8 years

Diameter: 70 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Bluetooth Casambi control system

EN 60598-1

CE marking

1 m to 1

6 m

2,700 K, 3,000 K and 4,000 K

77 to 119 lm/W

N/A

Reflector with slatted louvre

Display more

Elgar

Elgar-001
Elgar

Product page

-20 °C to +35°C

700 to 1400 lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 70 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Bluetooth Casambi control system

EN 60598-1

CE marking

7 m to 1

3 m

2,700 K, 3,000 K and 4,000 K

37 to 58 lm/W

N/A

Reflector with reversible louvre

Display more

Results

Designer
Type
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

G25 Suspension

G25-Suspension-001
G25 Suspension

Product page

-5°C to +30°C

Function of the lamp used

N/A

5 years

Reflector   : Steel sheet

Deflector : Perforated steel sheet

Structure : Metal

Arm : Satin-varnished brass

IP20

220-240 V 50/60 Hz

N/A

EN 60598-1

CE marking

0,85m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more

G1 Suspension

G1-Suspension-001
G1 Suspension

Product page

-5°C to +30°C

Function of the lamp used

N/A

5 years

Lampshade : Aluminium

Lampshade : Aluminium

Structure : Metal

Arm : Satin-varnished brass

IP20

220-240 V 50/60 Hz

N/A

EN 60598-1

CE marking

1m

Function of the lamp used

Function of the lamp used

N/A

Slats

Display more

G25 Wall

G25-001
G25 Wall

Product page

-5°C to +30°C

Function of the lamp used

N/A

5 years

Reflector   : Steel sheet

Deflector : Perforated steel sheet

Structure : Metal

Arm : Satin-varnished brass

IP20

220-240 V 50/60 Hz

Cable-mounted dimmer switch

EN 60598-1

CE marking

0,83m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more

G1 Wall

G1-Wall-001
G1 Wall

Product page

-5°C to +30°C

Function of the lamp used

N/A

5 years

Lampshade : Aluminium

Lampshade : Aluminium

Structure : Metal

Arm : Satin-varnished brass

IP20

220-240 V 50/60 Hz

Cable-mounted dimmer switch

EN 60598-1

CE marking

1,02m

Function of the lamp used

Function of the lamp used

N/A

Slats

Display more

M3

M3-001
M3

Product page

-5°C to +30°C

Function of the lamp used

N/A

5 years

Lampshade : Steel sheet

Body : Bent steel

IP20

220-240 V 50/60 Hz

N/A

EN 60598-1

CE marking

0,34m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

G50

G50-001
G50

Product page

-5°C to +30°C

Function of the lamp used

N/A

5 years

Body : Perforated metal

Cover : Diffusing PMMA

Feet : Satin-varnished brass

IP20

220-240 V 50/60 Hz

Cable-mounted dimmer switch

EN 60598-1

CE marking

0,18m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more

G24

G24-001
G24

Product page

-5°C to +30°C

Function of the lamp used

N/A

5 years

Reflector   : Steel sheet

Lampshade : Aluminium

Base : Satin-varnished brass

IP20

220-240 V 50/60 Hz

N/A

EN 60598-1

CE marking

42 m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more

G60 & G61

G60_G61-001
G60 & G61

Product page

-5°C to +30°C

Function of the lamp used

N/A

5 years

G60

Side panels : Steel sheet

Cover : Diffusing PMMA

Feet : Satin-varnished brass

G61

Side panels : Diffusing PMMA

Cover : Perforated steel sheet

Feet : Satin-varnished brass

IP20

220-240 V 50/60 Hz

Cable-mounted dimmer switch

EN 60598-1

CE marking

0,2m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more

G30

G30-001
G30

Product page

-5°C to +30°C

Function of the lamp used

N/A

5 years

Reflector   : Steel sheet

Deflector : Perforated steel sheet

Mast : Satin-varnished brass

Base : Metal

IP20

220-240 V 50/60 Hz

Cable-mounted dimmer switch

EN 60598-1

CE marking

1,53m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more

G21

G21-001
G21

Product page

-5°C to +30°C

Function of the lamp used

N/A

5 years

Lampshade : Aluminium

Mast : Satin-varnished brass

Base : Metal

IP20

220-240 V 50/60 Hz

Cable-mounted dimmer switch

EN 60598-1

CE marking

1,63m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

G3 & G3T

G3_G3T-001
G3 & G3T

Product page

-5°C to +30°C

G3 : 1250lm, G3 Triple : 3750lm

50,000h/L80/B10 at 25°C

5 years

Deflector : Perforated steel sheet

IP20

220-240 V 50/60 Hz

Bluetooth Casambi control system

EN 60598-1

CE marking

0,2m

2700K

G3 : 166lm/W - G3T : 134lm/W

N/A
N/A
Display more

G13A

G13A-001
G13A

Product page

-5°C to +30°C

Function of the lamp used

N/A

5 years

Fresnel lens : Pressed glass

Body : Perforated metal

Structure : Metal

IP20

220-240 V 50/60 Hz

N/A

EN 60598-1

CE marking

0,65m

Function of the lamp used

Function of the lamp used

N/A

Fresnel lens

Display more

G13

G13-001
G13

Product page

-5°C to +30°C

Function of the lamp used

N/A

5 years

Fresnel lens : Pressed glass

Body : Perforated metal

IP20

220-240 V 50/60 Hz

N/A

EN 60598-1

CE marking

0,15m

Function of the lamp used

Function of the lamp used

N/A

Fresnel lens

Display more

G1 Floor

G1-Floor-001
G1 Floor

Product page

-5°C to +30°C

Function of the lamp used

N/A

5 years

Lampshade : Aluminium

Lampshade : Aluminium

Structure : Metal

Arm : Satin-varnished brass

Base : Metal

IP20

220-240 V 50/60 Hz

Cable-mounted dimmer switch

EN 60598-1

CE marking

1,55m to 2,10m

Function of the lamp used

Function of the lamp used

N/A

Slats

Display more

Results

Designer
Type
Light output
Materials
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

MOD on Track

MOD-Track-001
MOD on Track

Product page

-5 °C to +35°C

900 to 2000 lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 100 mm

Aluminium with colour anodising

Nickel-plated copper circular bar

Tempered glass

850°C

IP20

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Bluetooth Casambi control system

EN 60598-1

CE marking

N/A

2,700 K, 3,000 K and 4,000 K

65 to 75lm/W

N/A

Spotlight beam: 20°

Medium Beam: 30°

Wide beam: 50°

Display more

AIRMOD Trio

AIRMOD-Trio-001
AIRMOD Trio

Product page

-5 °C to +35°C

3x900 to 3x2000 lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 100 mm

Aluminium with colour anodising

Nickel-plated copper circular bar

Tempered glass

850°C

IP20

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Bluetooth Casambi control system

EN 60598-1

CE marking

N/A

2,700 K, 3,000 K and 4,000 K

65 to 75lm/W

N/A

Spotlight beam: 20°

Medium Beam: 30°

Wide beam: 50°

Display more

AIRMOD Duo

AIRMOD-Duo-001
AIRMOD Duo

Product page

-5 °C to +35°C

2x900 to 2x2000 lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 100 mm

Aluminium with colour anodising

Nickel-plated copper circular bar

Tempered glass

850°C

IP20

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Bluetooth Casambi control system

EN 60598-1

CE marking

N/A

2,700 K, 3,000 K and 4,000 K

65 to 75lm/W

N/A

Spotlight beam: 20°

Medium Beam: 30°

Wide beam: 50°

Display more

AIRMOD Mono

AIRMOD-Mono-001
AIRMOD Mono

Product page

-5 °C to +35°C

900 to 2000 lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 100 mm

Aluminium with colour anodising

Nickel-plated copper circular bar

Tempered glass

850°C

IP20

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Bluetooth Casambi control system

EN 60598-1

CE marking

N/A

2,700 K, 3,000 K and 4,000 K

65 to 75lm/W

N/A

Spotlight beam: 20°

Medium Beam: 30°

Wide beam: 50°

Display more

AIRMOD Recessed

AIRMOD-Recessed-001
AIRMOD Recessed

Product page

-5 °C to +35°C

900 to 2000 lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 100 mm

Aluminium with colour anodising

Nickel-plated copper circular bar

Tempered glass

850°C

IP20

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Bluetooth Casambi control system

EN 60598-1

CE marking

N/A

2,700 K, 3,000 K and 4,000 K

65 to 75lm/W

N/A

Spotlight beam: 20°

Medium Beam: 30°

Wide beam: 50°

Display more
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

MOD Duo

MOD-Duo-001
MOD Duo

Product page

-5 °C to +35°C

2x900 to 2x2000 lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 100 mm

Aluminium with colour anodising

Nickel-plated copper circular bar

Tempered glass

850°C

IP20

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Bluetooth Casambi control system

EN 60598-1

CE marking

N/A

2,700 K, 3,000 K and 4,000 K

65 to 75lm/W

N/A

Spotlight beam: 20°

Medium Beam: 30°

Wide beam: 50°

Display more

MOD Mono

MOD-Mono-001
MOD Mono

Product page

-5 °C to +35°C

900 to 2000 lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 100 mm

Aluminium with colour anodising

Nickel-plated copper circular bar

Tempered glass

850°C

IP20

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Bluetooth Casambi control system

EN 60598-1

CE marking

N/A

2,700 K, 3,000 K and 4,000 K

65 to 75lm/W

N/A

Spotlight beam: 20°

Medium Beam: 30°

Wide beam: 50°

Display more

MOD Recessed

MOD-Recessed-001
MOD Recessed

Product page

-5 °C to +35°C

900 to 2000 lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 100 mm

Aluminium with colour anodising

Nickel-plated copper circular bar

Tempered glass

850°C

IP20

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Bluetooth Casambi control system

EN 60598-1

CE marking

N/A

2,700 K, 3,000 K and 4,000 K

65 to 75lm/W

N/A

Spotlight beam: 20°

Medium Beam: 30°

Wide beam: 50°

Display more

Quadratube W4

Quadratube-W4-001
Quadratube W4

Product page

0°C to +35°C

1010 to 1620lm

70,000h/L80/B10 at 35°C

8 years

Borosilicate glass body with a rectangular 86 x 57 mm section

Frosted polycarbonate end cap

Metal fixing structure

IP20

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Switch-off warning function (for sensor/timer)

Permanent standby mode 10% function

Bluetooth Casambi control system

EN 60598-1

CE marking

0,68m

2,700 K, 3,000 K and 4,000 K

50 to 81lm/W

N/A

Louvre with inclined lamina

Display more

Quadratube W3

Quadratube-W3-001
Quadratube W3

Product page

0°C to +35°C

820lm

70,000h/L80/B10 at 35°C

8 years

Borosilicate glass body with a rectangular 86 x 57 mm section

Frosted polycarbonate end cap

Metal fixing structure

IP20

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Switch-off warning function (for sensor/timer)

Permanent standby mode 10% function

Bluetooth Casambi control system

EN 60598-1

CE marking

0,68m

2,700 K, 3,000 K and 4,000 K

41lm/W

N/A

Flux-breaker grid

Display more
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

Quadratube P2

Quadratube-P2-001
Quadratube P2

Product page

0°C to +35°C

1860 to 4340lm

70,000h/L80/B10 at 35°C

8 years

Aluminum end caps & straps

Steel gear cover

Crystal quality PMMA body with a rectangular 135 x 85 mm section

IP20

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Switch-off warning function (for sensor/timer)

Permanent standby mode 10% function

Bluetooth Casambi control system

EN 60598-1

CE marking

1,32 to 1,62m

2,700 K, 3,000 K and 4,000 K

46 to 86lm/W

N/A

Inclined slats louvre, "Couture" perforations

Display more

Quadratube P1

Quadratube-P1-001
Quadratube P1

Product page

0°C to +35°C

3500 to 5680lm

70,000h/L80/B10 at 35°C

8 years

Aluminum end caps & straps

Steel gear cover

Crystal quality PMMA body with a rectangular 135 x 85 mm section

IP20

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Push-button dimming function

Switch-off warning function (for sensor/timer)

Permanent standby mode 10% function

Bluetooth Casambi control system

EN 60598-1

CE marking

1,32 to 1,62m

2,700 K, 3,000 K and 4,000 K

87 to 114lm/W

N/A

Extensive reflector and rectangular slots, type "Persienne"

Display more

Quadratube W2

Quadratube-W2-001
Quadratube W2

Product page

0°C to +35°C

275 to 340lm

N/A

8 years

Crystal quality PMMA body with a rectangular 86 x 57 mm section

Metal fixing structure and end caps

IP20

220-240 V 50/60 Hz

N/A

EN 60598-1

CE marking

0,3m

2700K

55 to 68lm/W

N/A
N/A
Display more

Quadratube W1

Quadratube-W1-001
Quadratube W1

Product page

0°C to +35°C

95lm

N/A

8 years

Crystal quality PMMA body with a rectangular 86 x 57 mm section

Metal fixing structure and end caps

IP20

220-240 V 50/60 Hz

N/A

EN 60598-1

CE marking

0,3m

2700K

19lm/W

N/A

Flux-breaker grid

Display more

Nilak, Qinu & Qanik

Lo-001
Nilak, Qinu & Qanik

Product page

-20 °C to +30°C

800 to 3200lm

50,000h/L80/B10 at 25°C

5 years

Qanik : diameter 70mm

Nilak : diameter 100mm

Qinu : diameter 133mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Electronic gear unit for DALI dimming

EN 60598-1

CE marking

0,40m to 1,22m

2700K

40 to 45lm/W

N/A

Use of an internal film for a homogeneous light distribution

Display more
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

Balke

Balke-001
Balke

Product page

-20 °C to +30°C

Function of the lamp used

N/A

5 years

Housing : Borosilicate glass (nonflammable)

End caps and fixing straps : 316 L stainless steel

Structure : Aluminium

IP66, IP68 & IK07

220-240 V 50/60 Hz

Built-in dimming button

EN 60598-1

CE marking

0,66m

Function of the lamp used

Function of the lamp used

N/A

Flux-breaker grid

Display more

Bodom

Bodom-001
Bodom

Product page

-20 °C to +30°C

700lm

50,000h/L80/B10 at 25°C

5 years

Housing : Co-extruded polycarbonate/PMMA (650°C)

End caps and fixing straps : 316 L stainless steel

Structure : Aluminium

IP66, IP68 & IK10

220-240 V 50/60 Hz

Dim switch on cable

EN 60598-1

CE marking

2,05m

2,700 K, 3,000 K and 4,000 K

35 to 58lm/W

N/A

Reflector with reversible louvre

Display more

Astrup

Astrup-001
Astrup

Product page

-20 °C to +30°C

700lm

50,000h/L80/B10 at 25°C

5 years

Housing : Co-extruded polycarbonate/PMMA (650°C)

End caps and fixing straps : 316 L stainless steel

Structure : Aluminium

IP66, IP68 & IK10

220-240 V 50/60 Hz

Built-in dimming button

EN 60598-1

CE marking

0,58m

2700K

54lm/W

N/A
N/A
Display more

Monceau & Vendôme

Vendome-Monceau-001
Monceau & Vendôme

Product page

-20 °C to +35°C

Function of the lamp used

N/A

5 years

Diameter: 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Bluetooth Casambi control system

EN 60598-1

CE marking

1,34m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more

Monceau & Vendôme Mini

Mini-001
Monceau & Vendôme Mini

Product page

-20 °C to +35°C

Function of the lamp used

N/A

5 years

Diameter: 100 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Bluetooth Casambi control system

EN 60598-1

CE marking

0,52m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

Rivoli

Rivoli-001
Rivoli

Product page

-20 °C to +30°C

1500lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 100 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Dimming function based on DALI protocol

Bluetooth Casambi control system

EN 60598-1

CE marking

1,32m

2700K

60lm/W

N/A
N/A
Display more

Kyhn

Kyhn-001
Kyhn

Product page

-20 °C to +30°C

800 to 2000lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Switch-off warning function (for sensor/timer)

EN 60598-1

CE marking

0,69 to 1,6m

2,700 K, 3,000 K and 4,000 K

36 to 38,5lm/W

N/A
N/A
Display more

Belleville, Monceau & Vendôme Nano

Nano-001
Belleville, Monceau & Vendôme Nano

Product page

-20 °C to +30°C

Function of the lamp used

N/A

5 years

Diameter: 70 mm

Borosilicate glass diffuser (nonflammable)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK07

220-240 V 50/60 Hz

Bluetooth Casambi control system

EN 60598-1

CE marking

27 m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more

Belleville Mini

Belleville-Mini-001
Belleville Mini

Product page

-20 °C to +35°C

Function of the lamp used

N/A

5 years

Diameter: 100 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Bluetooth Casambi control system

EN 60598-1

CE marking

0,36m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more

Gude

Gude-001
Gude

Product page

-20 °C to +35°C

Function of the lamp used

N/A

5 years

Diameter: 100 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Bluetooth Casambi control system

EN 60598-1

CE marking

0,36m

Function of the lamp used

Function of the lamp used

N/A
N/A
Display more
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

Belleville

Belleville-001
Belleville

Product page

-20 °C to +30°C

1875 to 5750lm

50,000h/L80/B10 at 25°C

5 years

Diameter: 133 mm

Co-extruded polycarbonate/PMMA diffuser (650°C)

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

220-240 V 50/60 Hz

Switch-off warning function (for sensor/timer)

EN 60598-1

CE marking

1 m to 1

6 m

2,700 K, 3,000 K and 4,000 K

58 à 65lm/W

N/A
N/A
Display more

Results

Emergency lighting
Operating temperature
Luminous flux
Service life
Warranty
Materials and diameter
Leaktightness & Resistance to IK shocks
Power supply (DC)
Lighting level management
Standards
Length
Colour temperature
Lighting efficiency
Optics & visual comfort

Coulomb

Coulomb-002
Coulomb

Product page

BAES and BAEH versions: 0°C to +30°C

LSC versions: -20°C to +30°C

15 to 330 lm

N/A

5 years

Diameter: 100 mm

Polycarbonate diffuser (960°C)

304 L or 316 L stainless steel

Peroxide-cured EPDM seals

IP66, IP68, IP69K & IK10

BAES and BAEH versions: 230 V 50 Hz LSC EVAC version: 220-240 V 0/50/60 Hz

LSC AMB version: 180-254 V 0/50/60 Hz

BAES and BAEH versions: Temporary type

LSC versions: Permanent and temporary type

EN 60598-1

EN 60598-2-22

BAES and BAEH versions: NF C71-820, UTE C71-806

BAES EVAC and BAES-BAEH versions: NF C71-800

BAES AMB version: NF C71-801

BAEH and BAES-BAEH versions: NF C71-805

BAES-BAEH version: NF C71-803

LSC versions: NF C71-802

NF AEAS

0,36m

4,000 K

N/A
N/A
N/A
Display more
Sammode

24 rue des Amandiers
75020 Paris, France

[email protected]

+33 (0)1 43 14 84 90

Applications

Industry & Agri-foodInfrastructure & TransportIndustryArchitecture & DesignAgri-foodDesignersUtilities / EnergyOperating AreasReception AreasSitesTechnologies, Variants

About us

    Research & DevelopmentOur historyCSRPartnersOur values
E-shopGTCContactWarranty

Keep up to date – Newsletter

"*" indicates required fields. By submitting this form, I agree that the data entered may be processed in order to respond to my request.

d*
This field is for validation purposes and should be left unchanged.
  • © 2025 Sammode  |
  • Legal notice  |
  • Personal data protection  |
  • Credits  |
Sammode respects your privacy

In order to provide you with the best possible experience, Sammode uses cookies to improve your browsing experience, personalise your content and analyse site performance.

Your choice will be retained for 6 months. You can change your mind at any time by clicking on the "Cookie policy" link at the bottom of the page.

Continue without acceptingConfigure cookiesAccept and close
Manage consent

Privacy Overview

This website uses cookies to improve your experience while you navigate through the website. Out of these cookies, the cookies that are categorized as necessary are stored on your browser as they are essential for the working of basic functionalities of the website. We also use third-party cookies that help us analyze and understand how you use this website. These cookies will be stored in your browser only with your consent. You also have the option to opt-out of these cookies. But opting out of some of these cookies may have an effect on your browsing experience.
Save & Accept
Powered by CookieYes Logo
