Borosilicate glass LED tubular light ø 100 & 133 for extreme or highly corrosive ATEX environments

The Crookes industrial LED luminaire is designed to illuminate areas with high humidity levels, acid vapours, extreme grime and fine/abrasive dust. It can durably withstand the most corrosive and highly contaminated environments.

The Crookes luminaire can withstand highly corrosive environments.

Chemical and sealing conditions

Highly corrosive or abrasive environments

Splashes of very hot liquids

Flame-resistant, inflammable

Oils & hydrocarbons

UV radiation and bad weather

Dust and extreme grime

All types of humidity

Washing with a high-pressure jet

Thermal, mechanical and electrical stresses

Permanent use at temperatures of up to 35°C

Repeated turning on and off

Mechanical impacts

100% stainless steel and glass, guaranteeing unfailing chemical resistance

Benefit from outstanding durability and sturdiness, no matter how tough the conditions, thanks to a corrosion- and abrasion-proof housing in IK07 borosilicate glass, and reinforced stainless steel (304 or 316L) mechanical parts, including a cable gland as an option!

Our lighting solutions are exceptional by design

Products that do not need replacing have the lowest impact on the environment. Sammode has long been aware of this and thus designs its products to last. This range takes the approach a step further with a high-quality glass body that is extremely hard-wearing, drastically cutting down on plastic components.

Ultimate sealing and durability

Forget fine dust, high-pressure jets, corrosive substances and the like. Thanks to its 3-seal system and uniform tightening with a central screw, the housing remains firmly sealed, even when the temperature varies significantly. IP68, IP69K, everywhere and well into the future!

Resistant to impacts and vibrations

Solid, smooth materials with no mating surfaces, combined with a locking system based on axial tightening (the Screw© system): simple principles for exceptional mechanical strength and a vibration-proof single-piece design, no matter how intense things get.

Guaranteed peace of mind and energy savings

High-performance LED components, designed to be compatible with any lighting environment, no matter how tough. Installing the right lighting with durable components is still the most effective possible way to cut your operating costs.

Applications of luminaires by the name Crookes

  • Aeronautical industry: lighting in machining workshops
  • Automotive industry: lighting in sand blasting booths

  • Tunnel: general lighting
  • Rail: graffiti clean-up track lighting

Product shown in situ

Our services

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

8-year warranty, no matter how tough the conditions

Valid even for 24/7 use at the maximum operating temperature for the product. 8-year warranty you will not find anywhere else on the market, reflecting our unfailing commitment to our customers!

100% Removable and repairable on site

Even after 15 or 20 years’ use, every single part we supply can be easily replaced, with no need to send it back to us. No one else offers a guarantee of lifelong lighting solutions!

Références principales et téléchargements

Plaquette produit

Eulumdat

Notice

Certificat
Tout télécharger

Disconnectable quick-lock plug version

CRI80, 4000K

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 1850 697 CRO100 12H840 PY PS3 BRS 31060020 14 Data sheet Plan STEP DS .TXT Download all
100 2775 1007 CRO100 13H840 PY PS3 BRS 31060040 22 Data sheet Plan STEP DS .TXT Download all
100 3700 1307 CRO100 14H840 PY PS3 BRS 31065040 28 Data sheet Plan STEP DS .TXT Download all
100 4625 1607 CRO100 15H840 PY PS3 BRS 31060060 34 Data sheet Plan STEP DS .TXT Download all
133 5550 987 CRO133 23H840 PY PS3 BRS 32060020 43 Data sheet Plan STEP DS .TXT Download all
133 7325 1287 CRO133 24H840 PY PS3 BRS 32065045 57 Data sheet Plan STEP DS .TXT Download all
133 9250 1587 CRO133 25H840 PY PS3 BRS 32060040 70 Data sheet Plan STEP DS .TXT Download all

All 316L stainless steel version, ultimate chemical resistance

CRI80, 4000K

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 1850 697 CRO100 12H840 PY 113INOX MR BRS 31065059 14 Data sheet Plan STEP DS .TXT Download all
100 2775 1007 CRO100 13H840 PY 113INOX MR BRS 31065056 22 Data sheet Plan STEP DS .TXT Download all
100 3700 1307 CRO100 14H840 PY 113INOX MR BRS 31065057 28 Data sheet Plan STEP DS .TXT Download all
100 4625 1607 CRO100 15H840 PY 113INOX MR BRS 31065060 34 Data sheet Plan STEP DS .TXT Download all
133 5550 987 CRO133 23H840 PY 113INOX MR BRS 32065064 43 Data sheet Plan STEP DS .TXT Download all
133 7325 1287 CRO133 24H840 PY 113INOX MR BRS 32065066 57 Data sheet Plan STEP DS .TXT Download all
133 9250 1587 CRO133 25H840 PY 113INOX MR BRS 32065067 70 Data sheet Plan STEP DS .TXT Download all

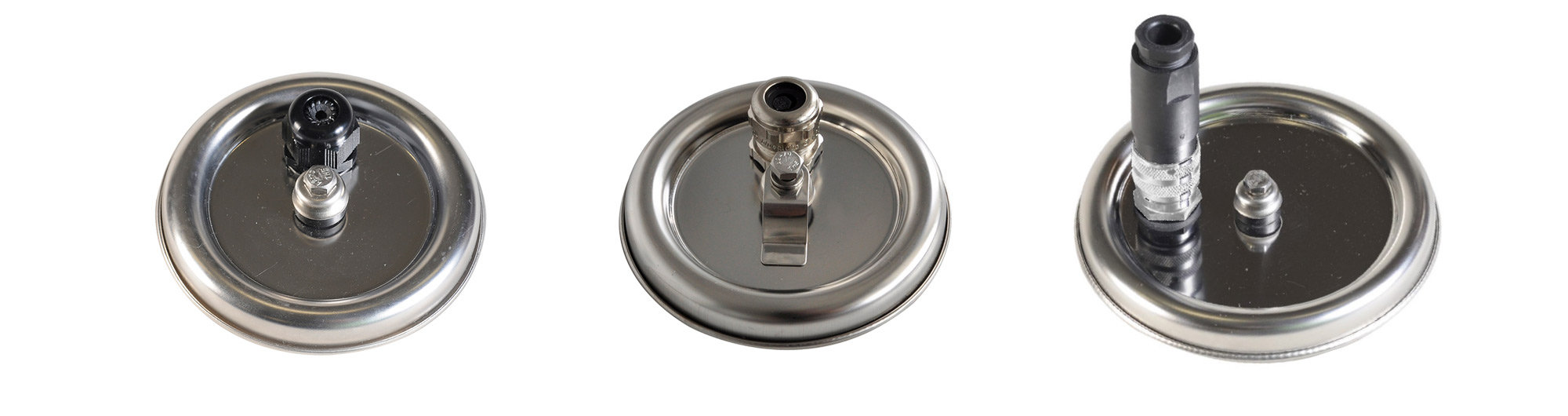

Cable entry

Cable gland

Polyamide capacity Ø5-12mm 113
Polyamide capacity Ø7-14mm 116
Nickel-coated brass capacity Ø5-14 mm 113LN

Disconnectable plugs

IP68/69K quick-lock plug with threaded ring (capacity: Ø8 to 10 mm) PS3

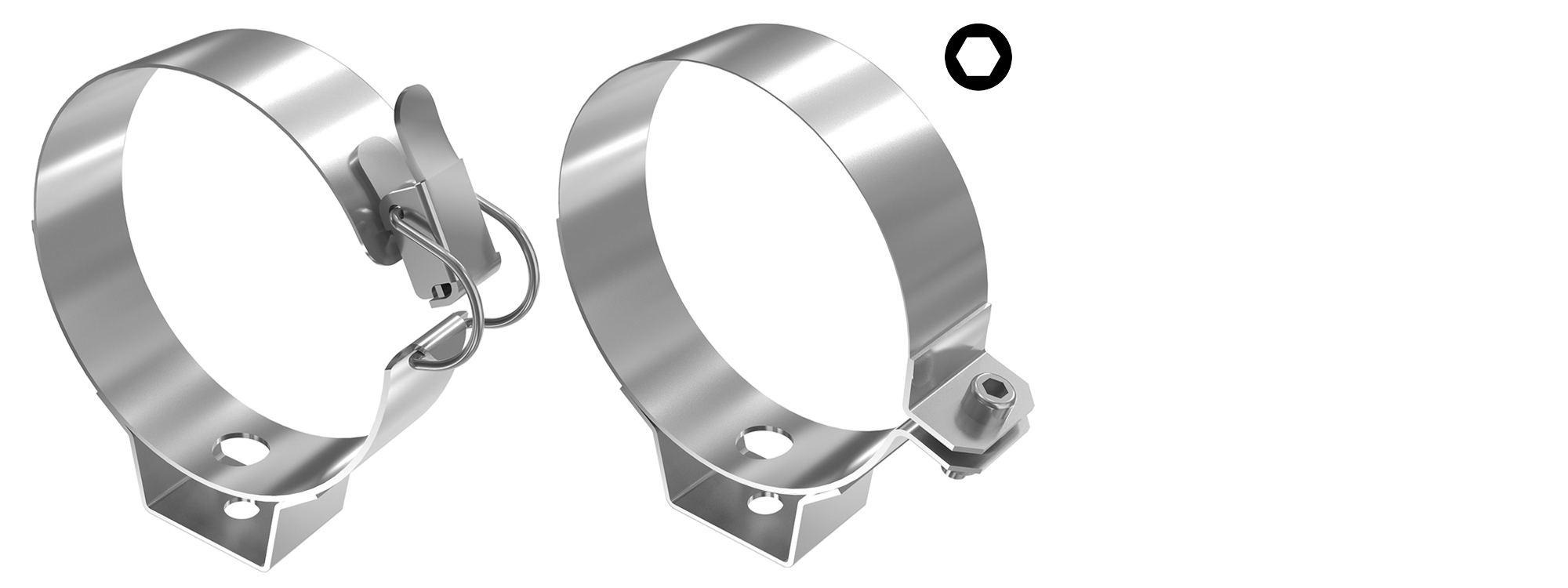

Fixing straps

Reinforced fixing straps BRS
Reinforced fixing straps with HSHC screw BRV

Materials

End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

3000K 830
4000K 840
5000K 850

Lighting management

Electronic gear unit for DALI dimming RD
1m HO7-RNF pre-wired cable 3G1,5²
Stripped free end CAB0080
Wieland® plug IP68/IP69K (capacity : Ø10-14mm) CAB0095
Wieland® plug and Y spliter for loop-in/out CAB0145
Folded 316L stainless steel protective cover
Length 800mm CP00565
Length 1100mm CP00596
Length 1400mm CP00566
Length 1700mm CP00567
316L stainless steel column mounting fixing strap
Adapter ø1"1/4 (=42mm) CP01239
Adapter ø1"1/2 (=49mm) CP01238
Adapter ø2" (=60mm) CP01237

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 70 000 h L80/B10 at max. operating temperature
  • Photobiological hazard : None (RG0)
Optics
  • Specific satin-finish primary diffuser optics
Heat management
  • Aluminium heat sink
Control gear
  • Constant current driver
  • Electronic compatible with central source
Supply voltage
  • 220-240V ±10% 0/50/60Hz
Electrical class
  • Class I
Operating temperature
  • -20°C to +35°C

Connection
  • Version with 3-pole plug : disconnectable plug for Ø 8 to 10 mm cable (3 × 1.5 mm²)
  • 113INOX version : 316L stainless steel cable gland for cable Ø 7-13 mm, to a 3 x 2,5 mm² disconnectable terminal block
Mounting
  • Attachement with 2 bolt-fitted stainless steel straps with variable center distance and 360° orientation
LED engine maintenance
  • Easily removable LED modules and driver
  • Opening by releasing the 2 closing screws, removing the end cap and extracting the gear tray

Housing
  • Borosilicate-glass
End caps and fixing straps
  • 304L stainless steel (except MR version in 316L stainless steel)
Gaskets
  • Peroxide-cured EPDM
Method of construction
  • Housing in one piece with high mechanical and chemical resistance
  • Long-lasting imperviousness by axial screw fitting

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK07
Fire resistance
  • Non-flammable
Vibration resistance
  • Meets the severe application requirements of standard EN 60598-1 (tested according to IEC 60068-2-6)

Diameter 100
Diameter 133
