MOD Recessed

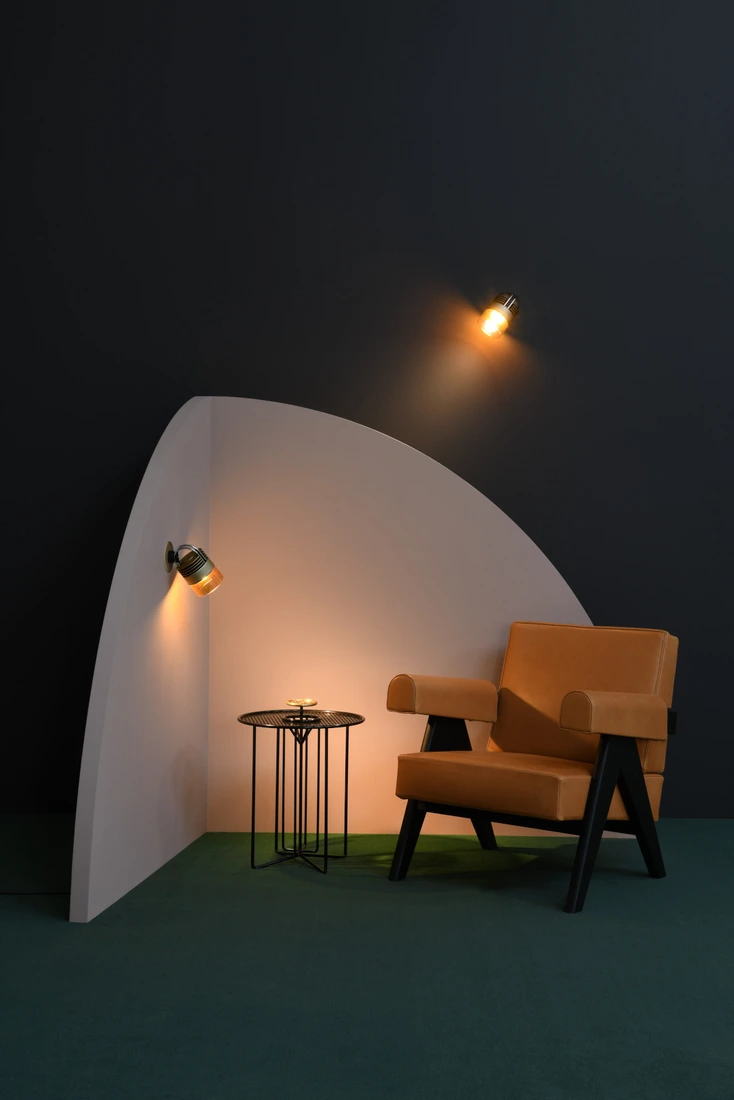

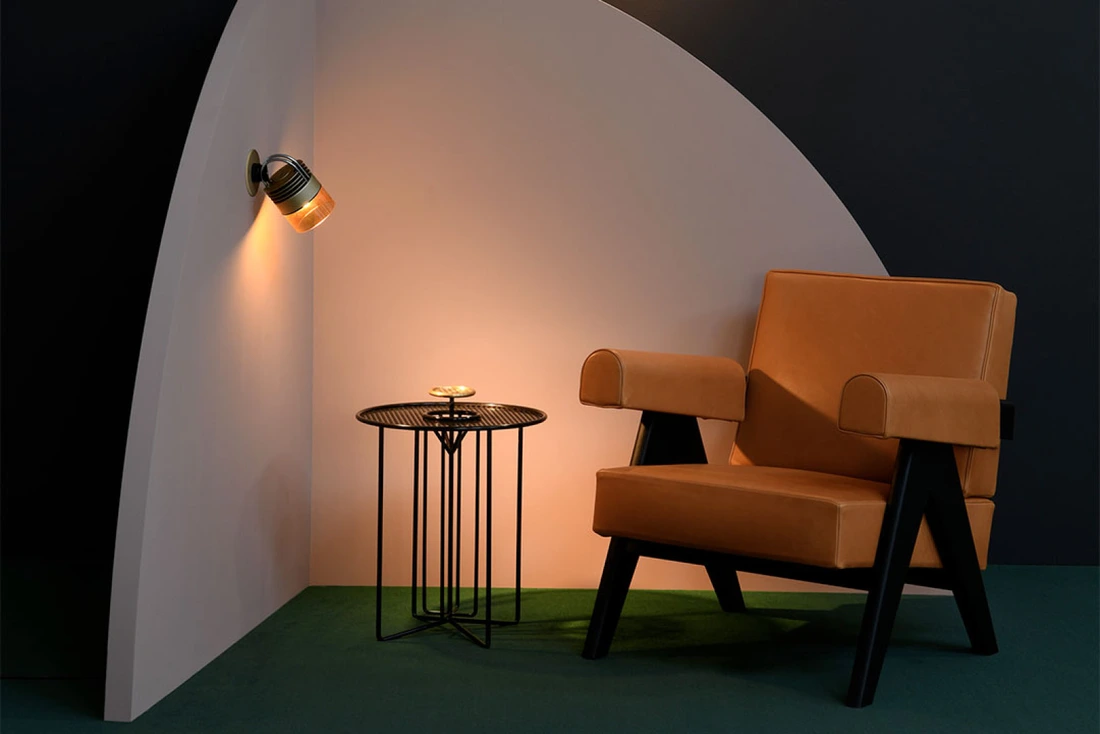

Mounted on a wall or ceiling, the MOD Recessed luminaire will light up a hotel’s reception desk, a company’s lounge area, a restaurant’s tables, a library’s reading corner, a concept store’s counter, or even the headboard in your bedroom...

Wall or ceiling fixture with embedded control gear

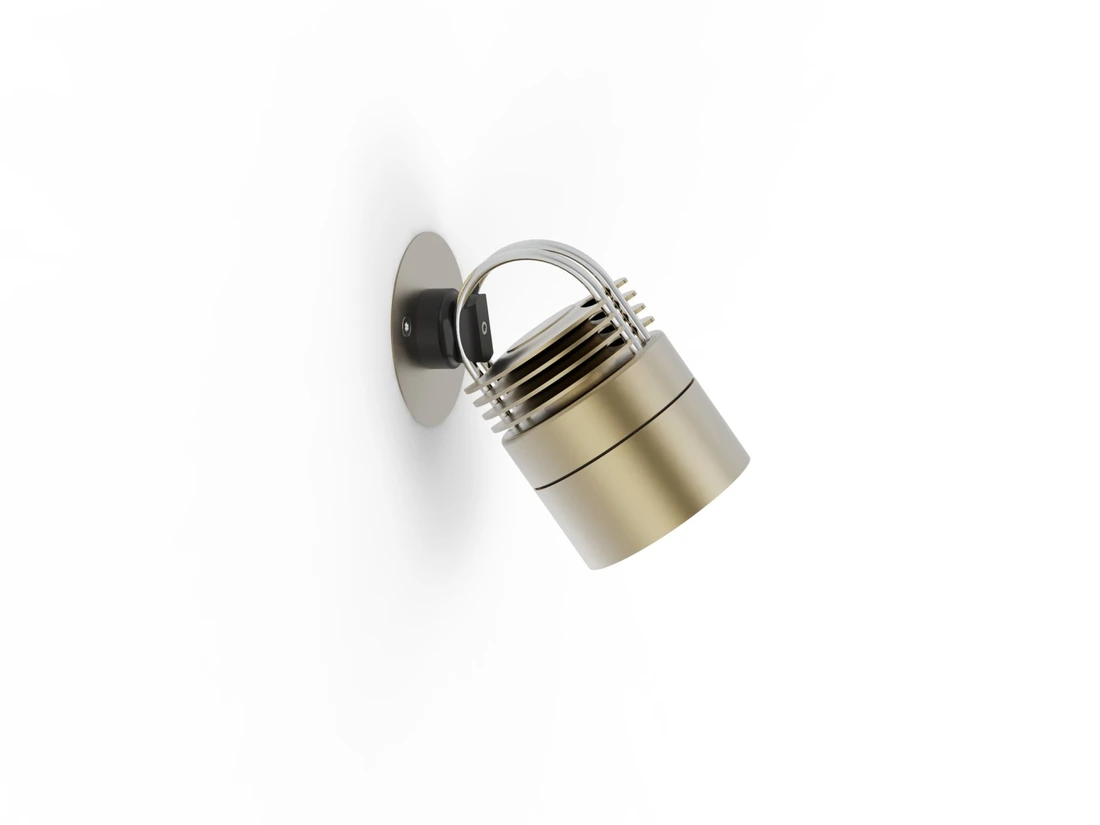

The MOD Recessed wall light was created by German designer Stefan Diez, specifically for Sammode. The design and proportions of this 100% anodised aluminium model, including the decorative wall disk, may take you by surprise! It is suitable for a wide range of applications, as both a wall or ceiling light.

Access to product information

A unique design

How can you direct light, control its perspective and create an endless range of atmospheres? Designer Stefan Diez focuses on these aspects, incorporating them in the technical bricks that comprise this unique model. With the adjustable supports in the form of circular bars, interchangeable lenses and a wide range of decorative rims, architects have almost boundless possibilities for adapting the fixture to their design.

A fully modular lighting system

Stefan Diez designed this collection of modular luminaires to reflect Sammode’s long and rich heritage, producing an innovative system with widely adaptable architecture and state-of-the-art technology, or what he calls “The Universal Tool Box. The result? A luminaire that can incorporate a range of lenses and decorative rims that you can change at will.

Made-to-measure luminaires for a never-ending choice of atmosphere

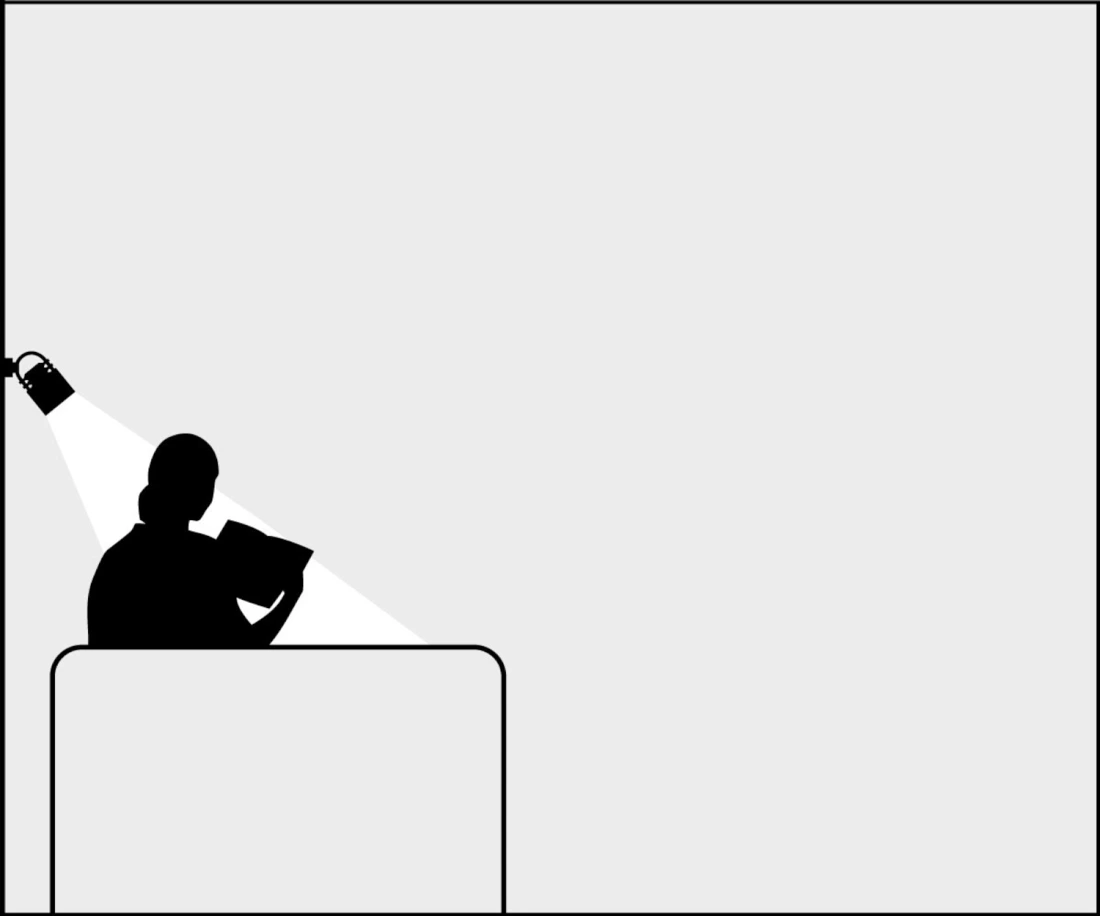

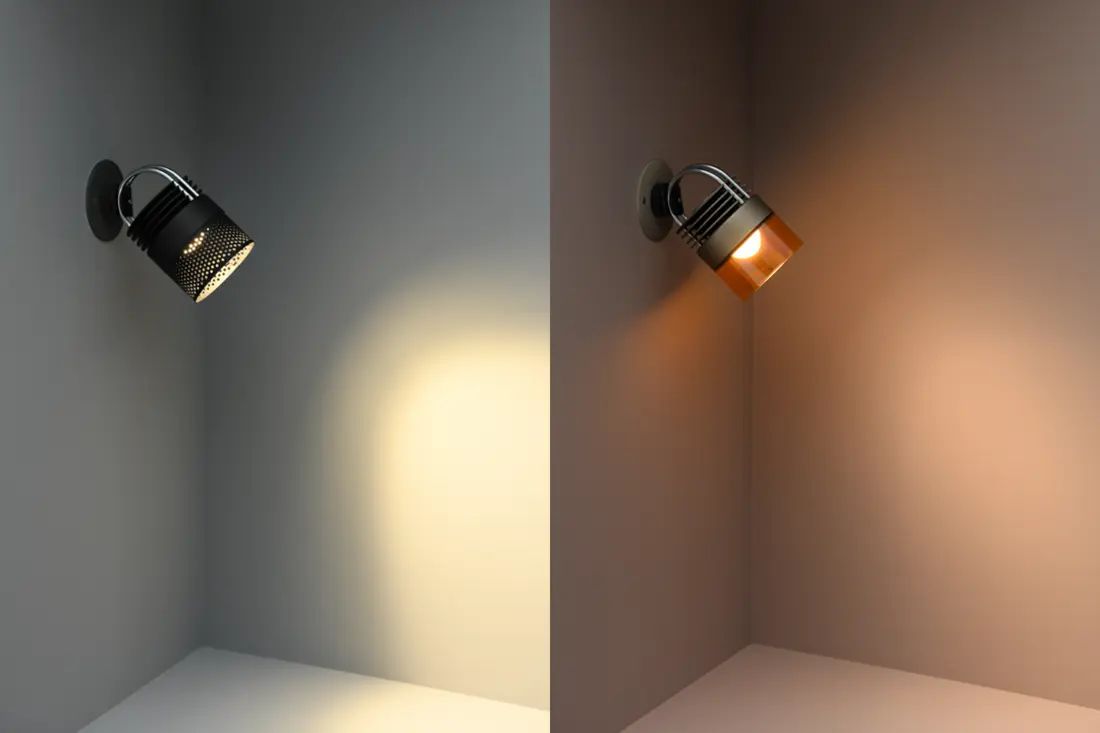

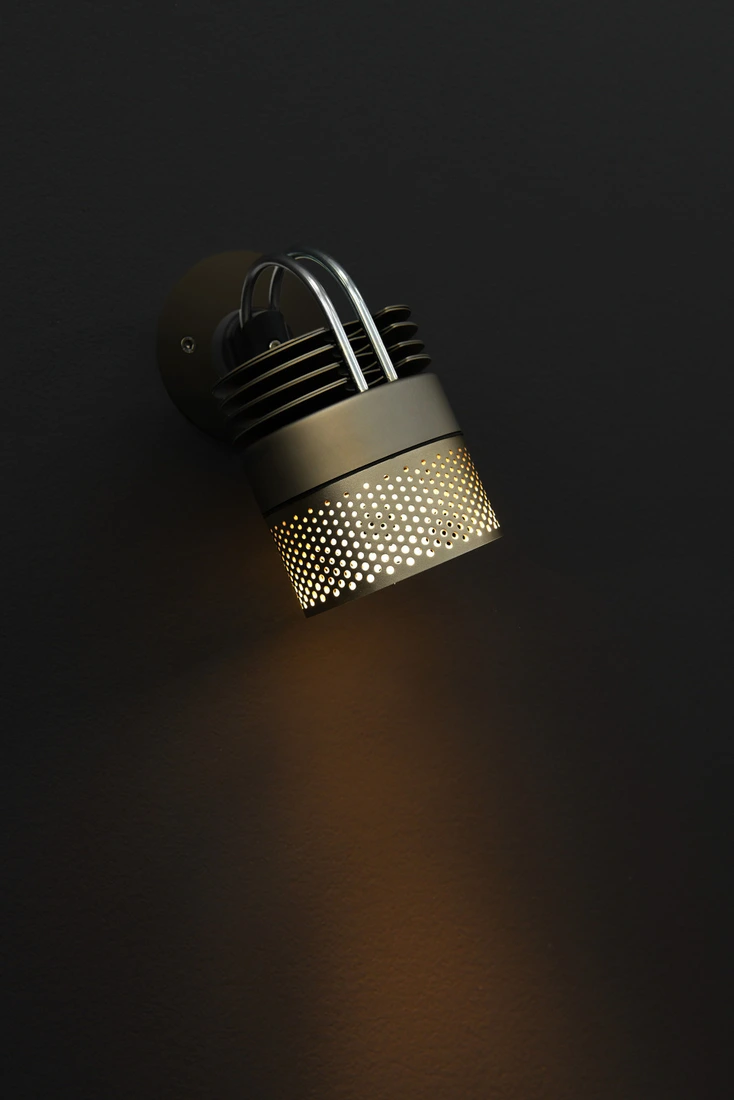

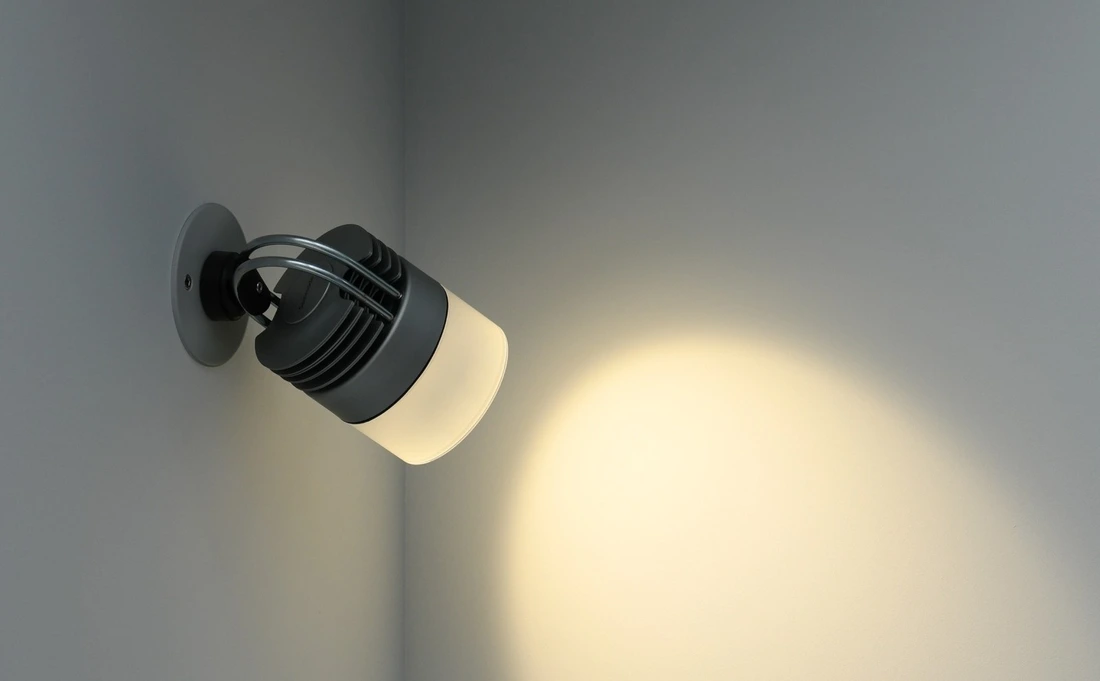

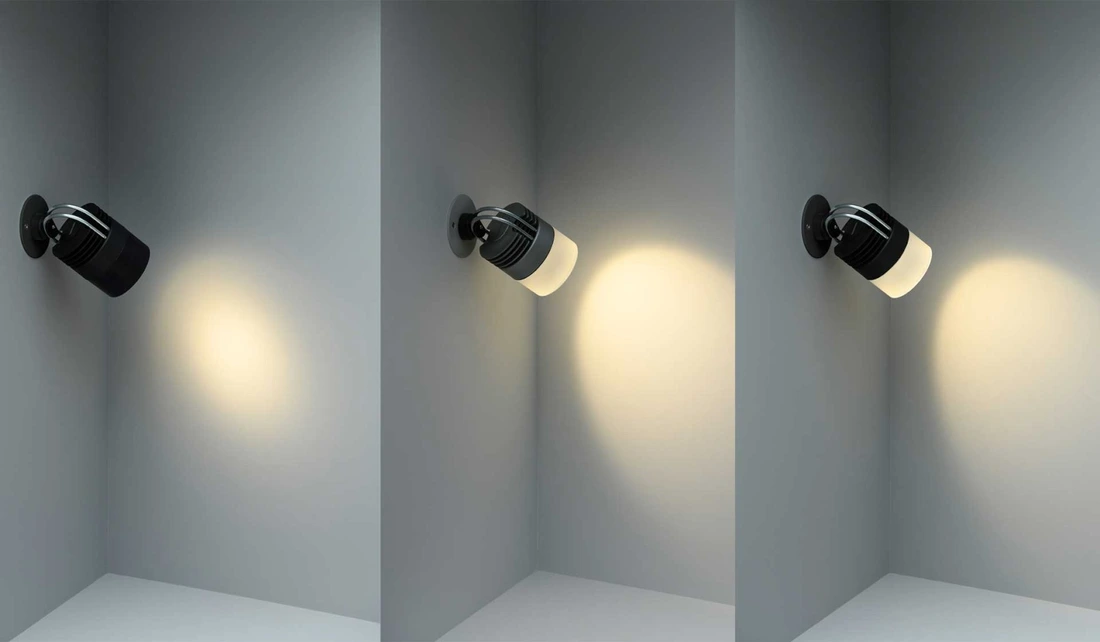

Mix and match your lenses and rims to create your preferred ambient light setting. The MOD Recessed spotlight comes with a perforated collimator or a tinted glass shade, ideal for use as a reading lamp or headboard light, bringing refined, comfortable light to your room. When installed as a ceiling fixture, match up the Bronze finish with a smoked glass shade to give a room a resolutely contemporary feel.

Designed to fit ideally into your architectural design

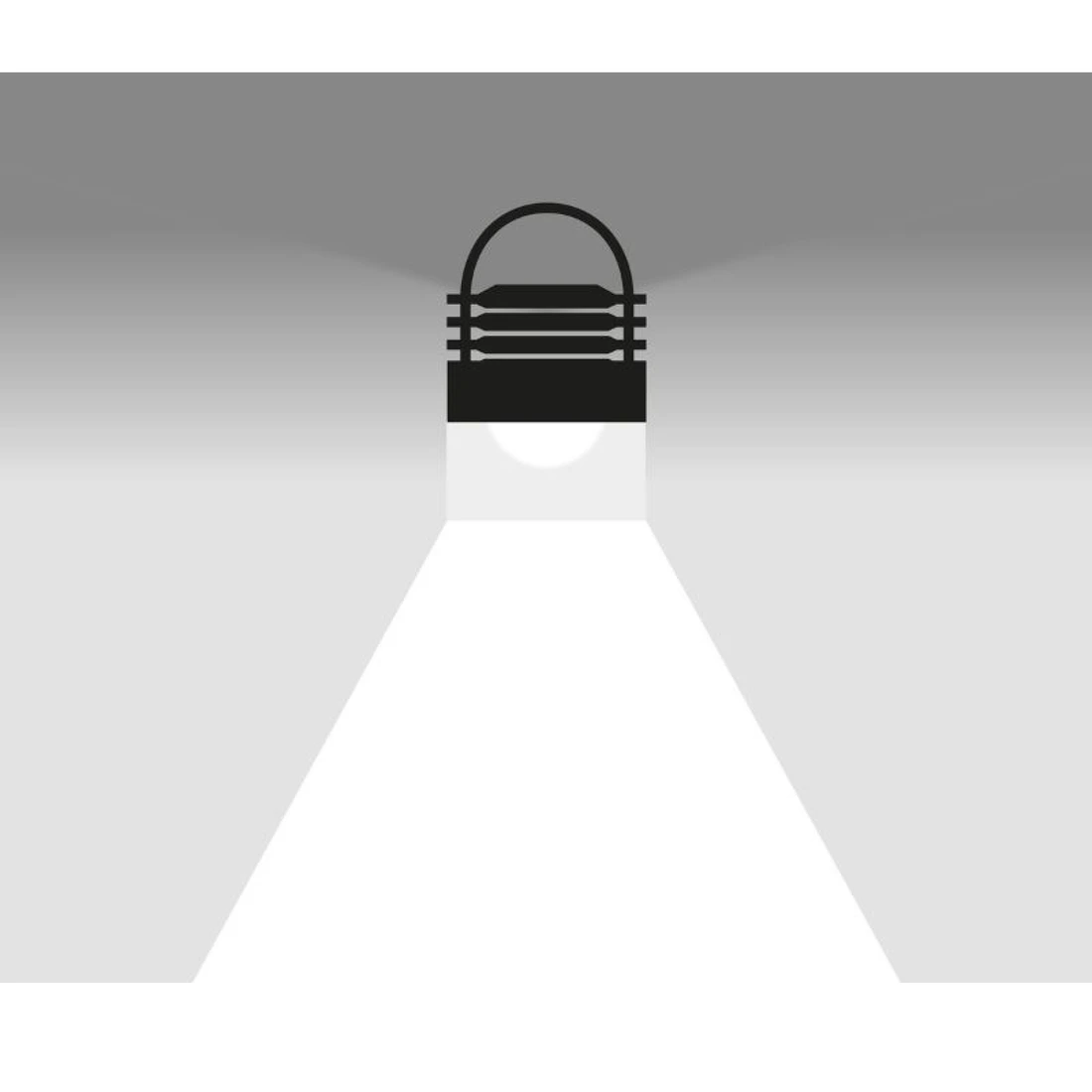

Install the luminaire on the wall or ceiling, simply conceal the driver in the suspended ceiling or in the wall. Only the head will be visible, and you can use the two circular bars to adjust the angle of the light over a full 360°. The MOD Recessed blends perfectly into the area to be lit, contributing to the site’s architectural design.

Sammode expertise

Designed in Germany with French expertise

Designed and manufactured in France and Germany, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year warranty

Our products are designed to be upgraded along with your set-up, which means that they come with a 5-year warranty and guaranteed availability for the accessories you need, today and into the future.

Designed to change as your building evolves

Have your preferences changed? MOD can change with you! Thanks to our interchangeable accessories, adjusting your atmosphere or set-up is child’s play. Sammode undertakes to supply the necessary parts over the long term. The MOD Recessed luminaire is specifically built to last and to adapt to changing tastes and trends.

Références principales et téléchargements

Plaquette produit

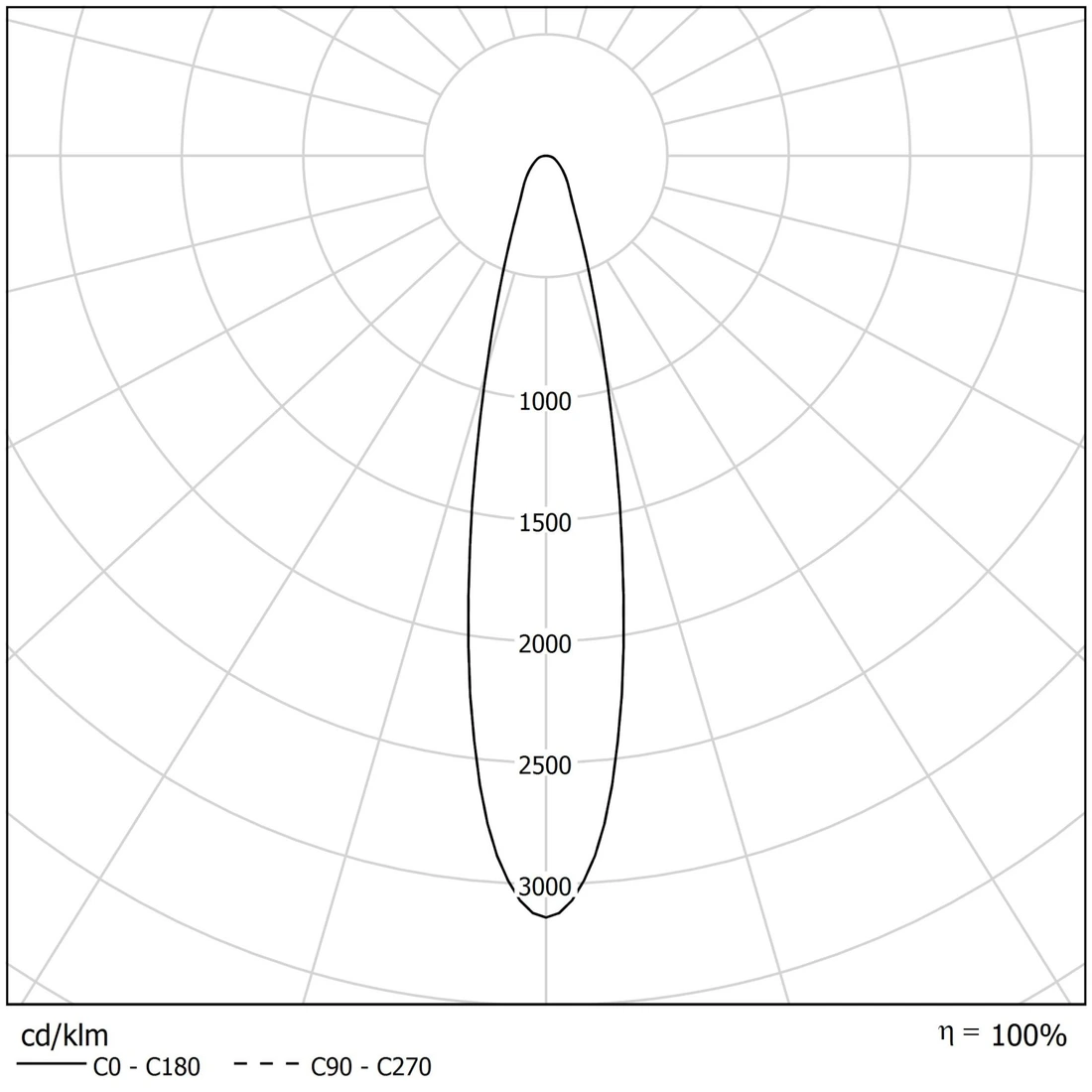

Eulumdat

Notice

Certificat

Tout télécharger

Collimator version

900 lm, 2700 K

Finishing	Endcap	Designation	Code	Watt	Data sheet	Plan	STEP DS	.TXT	Download all
Silver	Silver	MOD RCSD S 900-927 BL-S SB	88100110	13	Data sheet	Plan	STEP DS	.TXT	Download all
Black	Black	MOD RCSD BK 900-927 BL-BK SB	88100113	13	Data sheet	Plan	STEP DS	.TXT	Download all
Champagne	Champagne	MOD RCSD CH 900-927 BL-CH SB	88100004	13	Data sheet	Plan	STEP DS	.TXT	Download all
Bronze	Bronze	MOD RCSD BZ 900-927 BL-BZ SB	88100005	13	Data sheet	Plan	STEP DS	.TXT	Download all

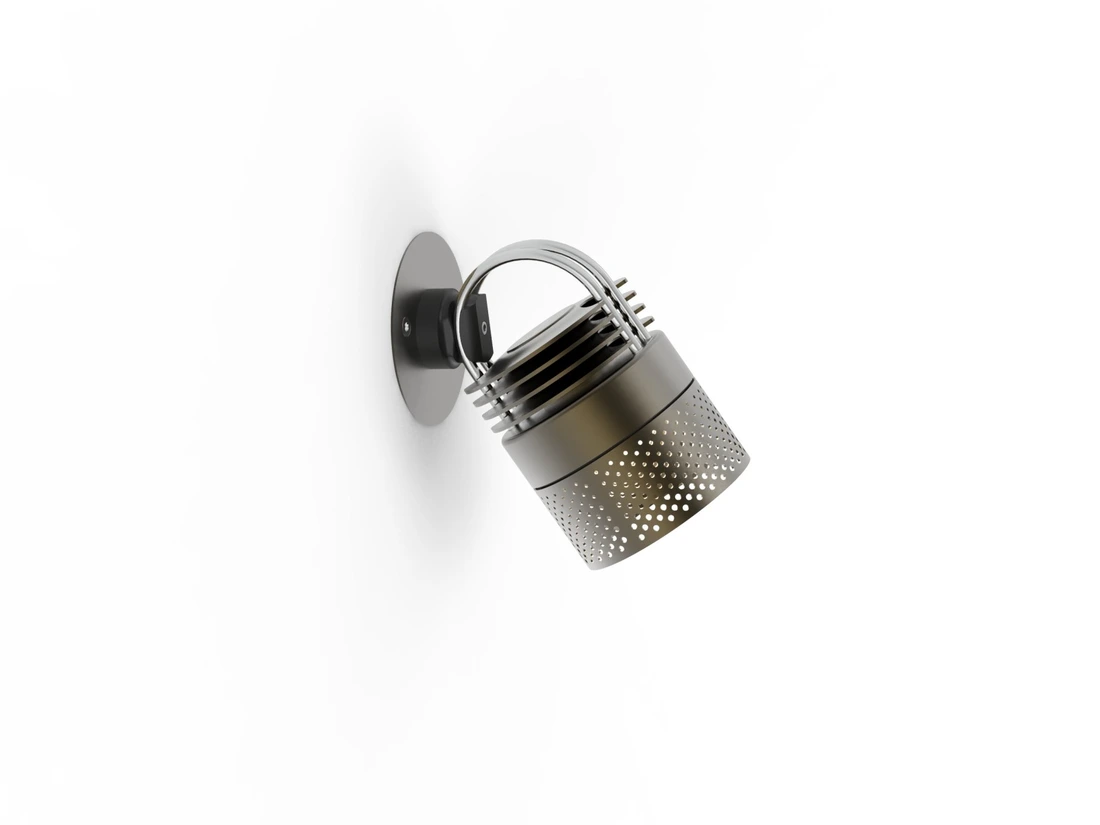

Perforated collimator version

900 lm, 2700 K

Finishing	Endcap	Designation	Code	Watt	Data sheet	Plan	STEP DS	.TXT	Download all
Silver	Silver	MOD RCSD S 900-927 GR-S WB	88100111	13	Data sheet	Plan	STEP DS	.TXT	Download all
Black	Black	MOD RCSD BK 900-927 GR-BK WB	88100114	13	Data sheet	Plan	STEP DS	.TXT	Download all
Champagne	Champagne	MOD RCSD CH 900-927 GR-CH WB	88100008	13	Data sheet	Plan	STEP DS	.TXT	Download all
Bronze	Bronze	MOD RCSD BZ 900-927 GR-BZ WB	88100009	13	Data sheet	Plan	STEP DS	.TXT	Download all

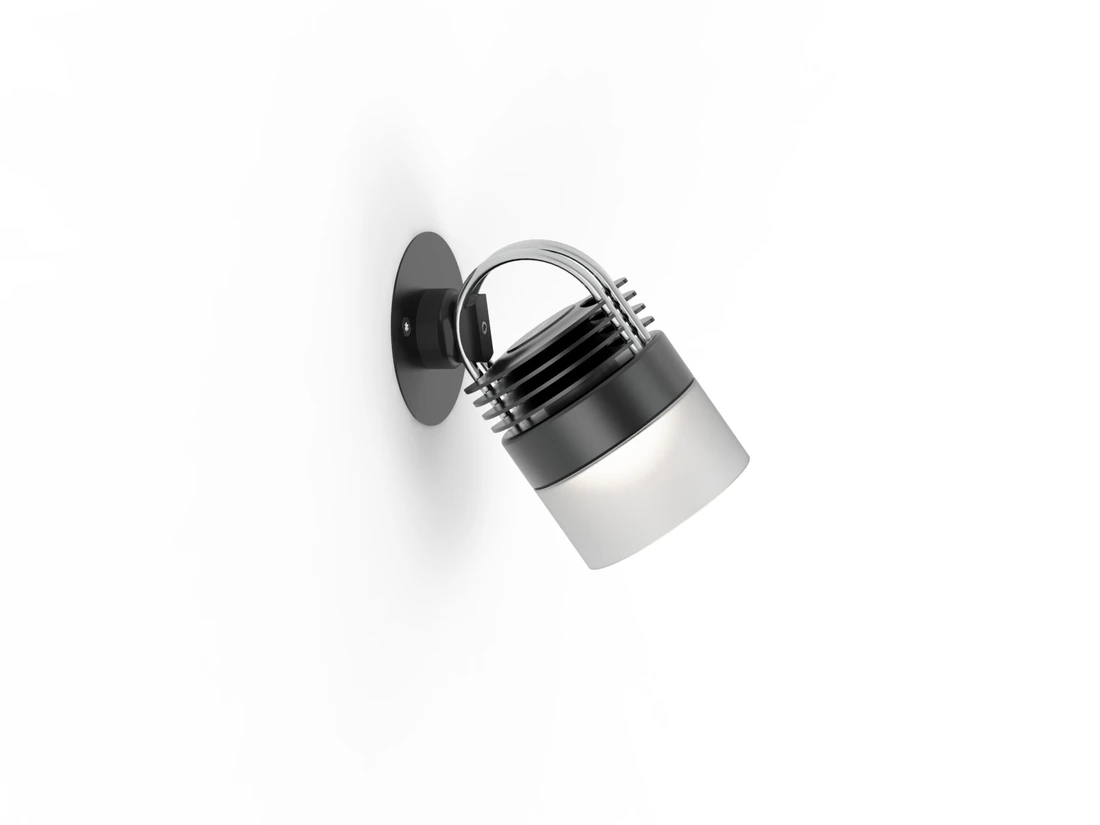

Glass version

900 lm, 2700 K

Finishing	Endcap	Designation	Code	Watt	Data sheet	Plan	STEP DS	.TXT	Download all
Silver	Clear	MOD RCSD S 900-927 GL-CL	88100112	13	Data sheet	Plan	STEP DS	.TXT	Download all
Black	Green	MOD RCSD BK 900-927 GL-GN	88100115	13	Data sheet	Plan	STEP DS	.TXT	Download all
Champagne	Amber	MOD RCSD CH 900-927 GL-AM	88100012	13	Data sheet	Plan	STEP DS	.TXT	Download all
Bronze	Smoked	MOD RCSD BZ 900-927 GL-SM	88100013	13	Data sheet	Plan	STEP DS	.TXT	Download all

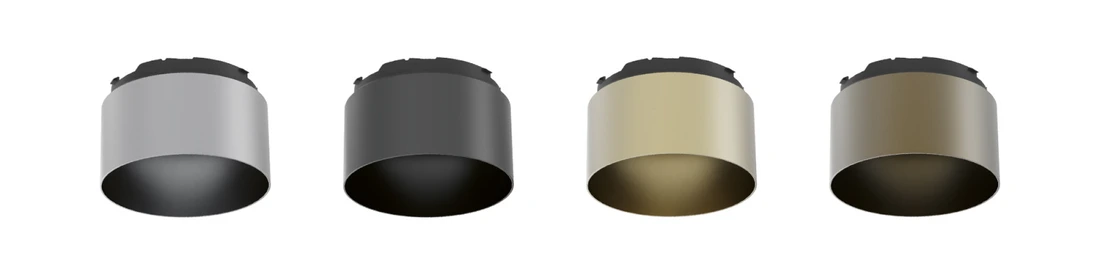

Collimator in anodised aluminium

Silver	BL-S
Black	BL-BK
Champagne	BL-CH
Bronze	BL-BZ

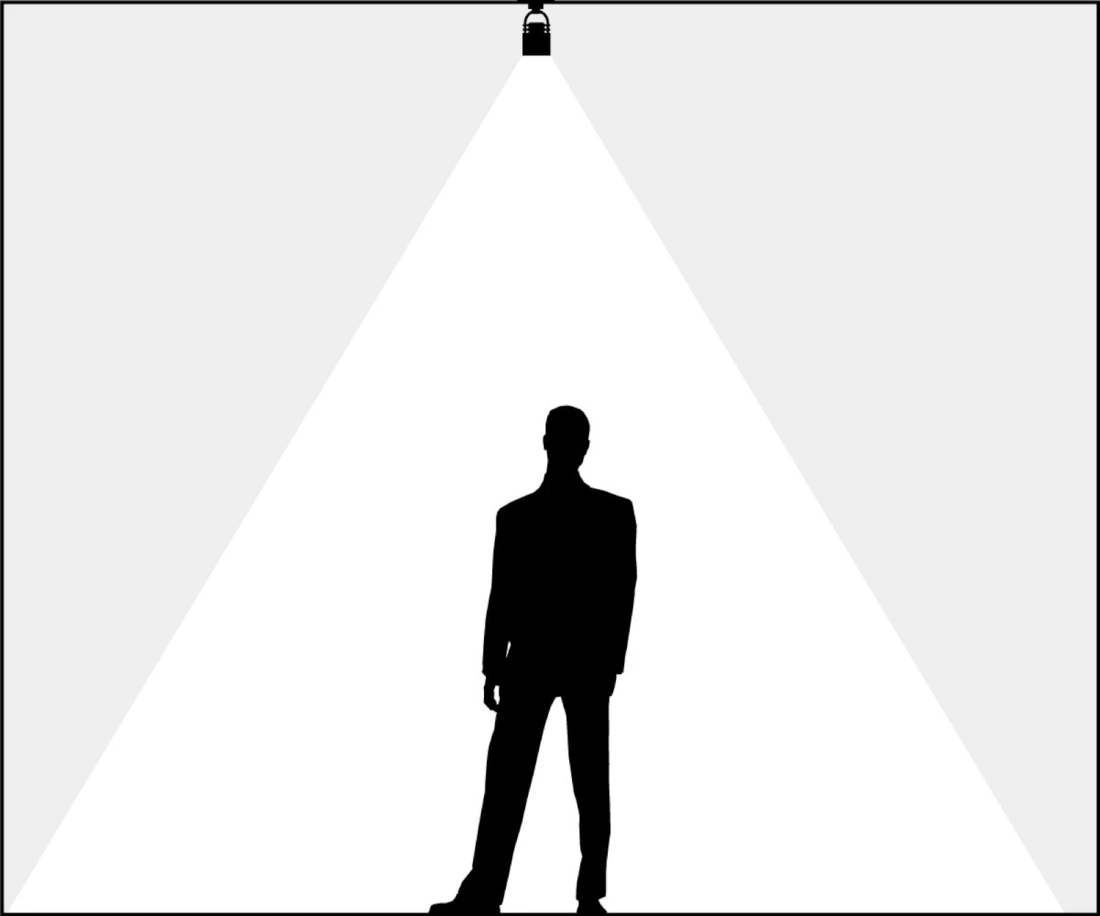

Lenses

Spot Beam 20°	SB
Medium Beam 30°	MB
Wide Beam 50°	WB

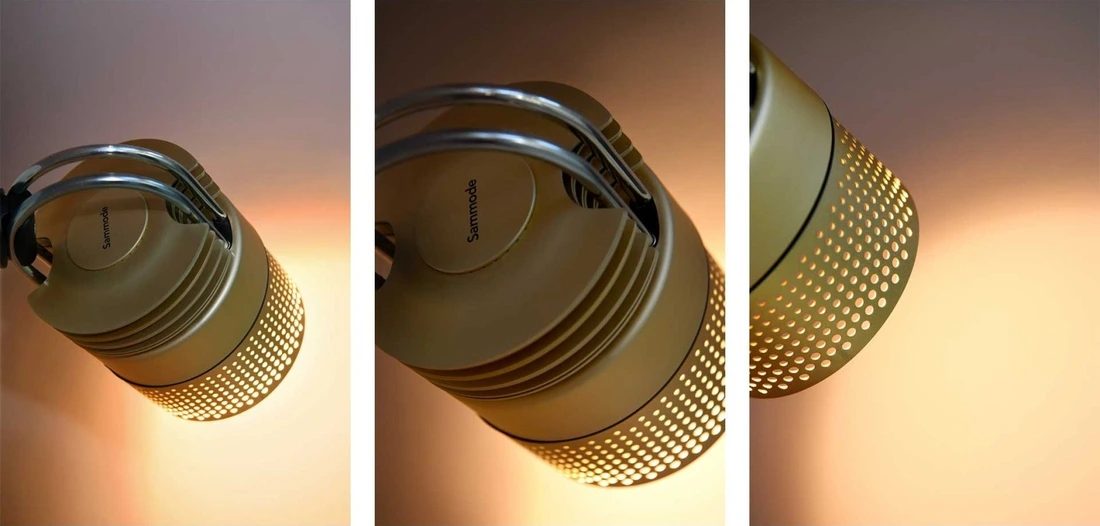

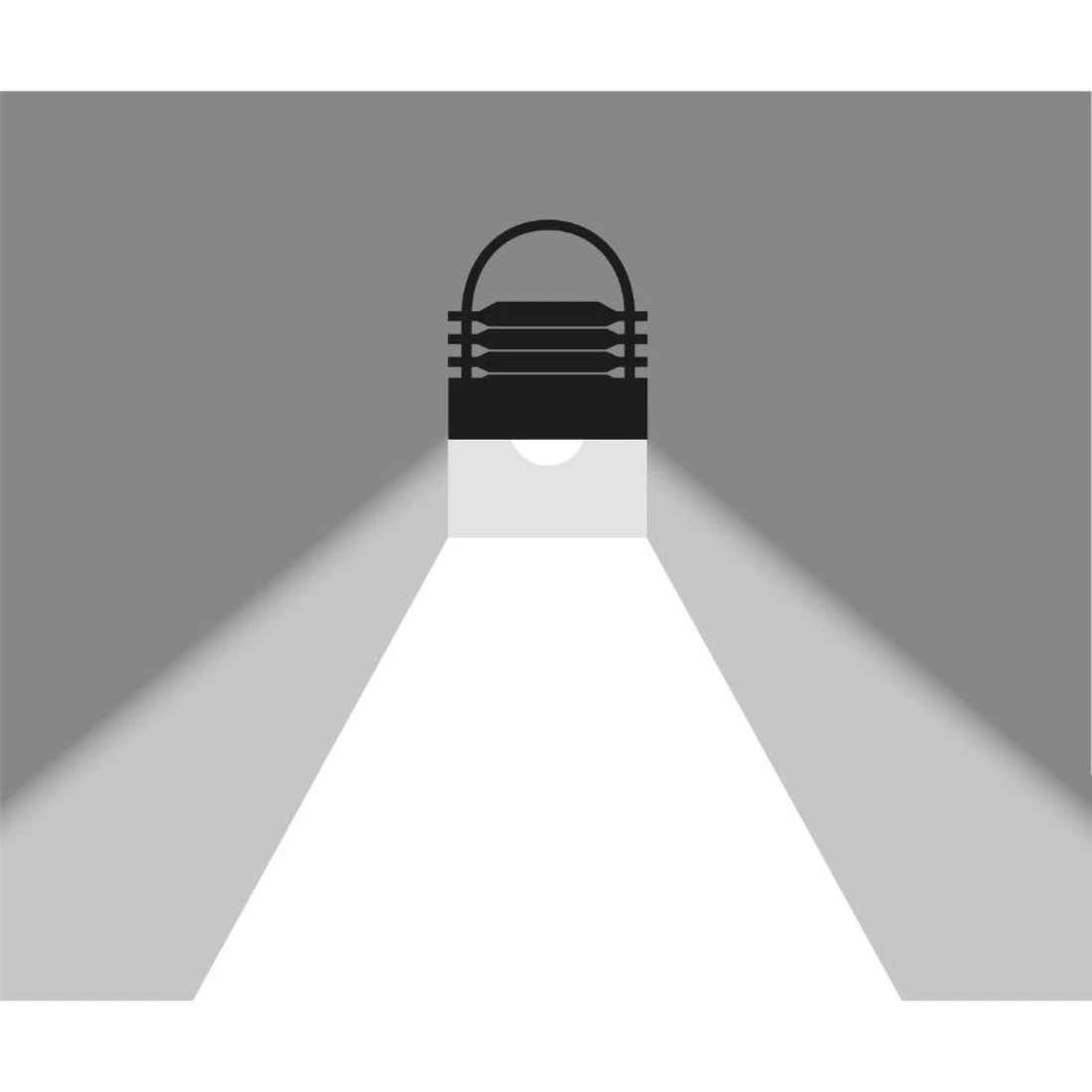

Perforated collimator in anodised aluminium

Silver	GR-S
Black	GR-BK
Champagne	GR-CH
Bronze	GR-BZ

Color temperature

2700K	927
3000K	930
4000K	940

Lighting management

Electronic gear unit for DALI dimming	RD
Casambi Bluetooth control	RB

Tempered glass shade

Frosted	GL-FR
Clear	GL-CL
Green	GL-GN
Amber	GL-AM
Smoked	GL-SM

Technical specifications

Designer

Stefan Diez

Light source

CoB LED Module 900 lm (without endcap, IRC>90, 3SDCM)
50 000 h L80/B10 at 25°C
Photobiological hazard : Group 1

Control gear

Constant current driver (non-dimmable)

Supply voltage

220-240V 50/60Hz

Electrical class

Class I

Operating temperature

-5 °C to +35 °C

Connection

Prewired driver, fitted with a male-female Wieland coupling

Mounting

Hollow wall attachment for tightening, wall thickness : 30 mm max

Installation hole

diameter : 83 mm

Empty plenum space

200 x 300 mm, height : 100 mm

Head and covering plate

Color anodizing Aluminium, nickel-plated copper hoop

Endcap

Full or perforated collimator : Color anodizing Aluminium
Glass : tinted or clear tempered glass, according to versions

Lens	Tempered glass

Waterproofness

IP20 (indoor use)

Fire resistance

850°C
