LED tubular light ø100 & 133 for extreme industrial environments

The Cugnot Xtrem LED tubular light was designed for the toughest environments. It remains reliable and robust over time. Forget dust and humidity, forget impacts and vibrations: this fixture can handle it. It is also compatible with temperature variations or at-risk electrical networks.

The Cugnot Xtrem luminaire can withstand the most extreme industrial processing conditions.

Chemical and sealing conditions

Dust and extreme grime

All types of humidity

Washing with a high-pressure jet

Health and safety requirements according to IFS, BRC and HACCP texts

Corrosive substances, acid vapours

Oils & hydrocarbons

Saline atmosphere, sea spray

UV radiation and bad weather

Thermal, mechanical and electrical stresses

Permanent use at temperatures of up to 50°C

Extreme variation in temperature

Voltage surges up to 4 kV, power surges

Heavy mechanical impacts

Intense and repetitive vibrations

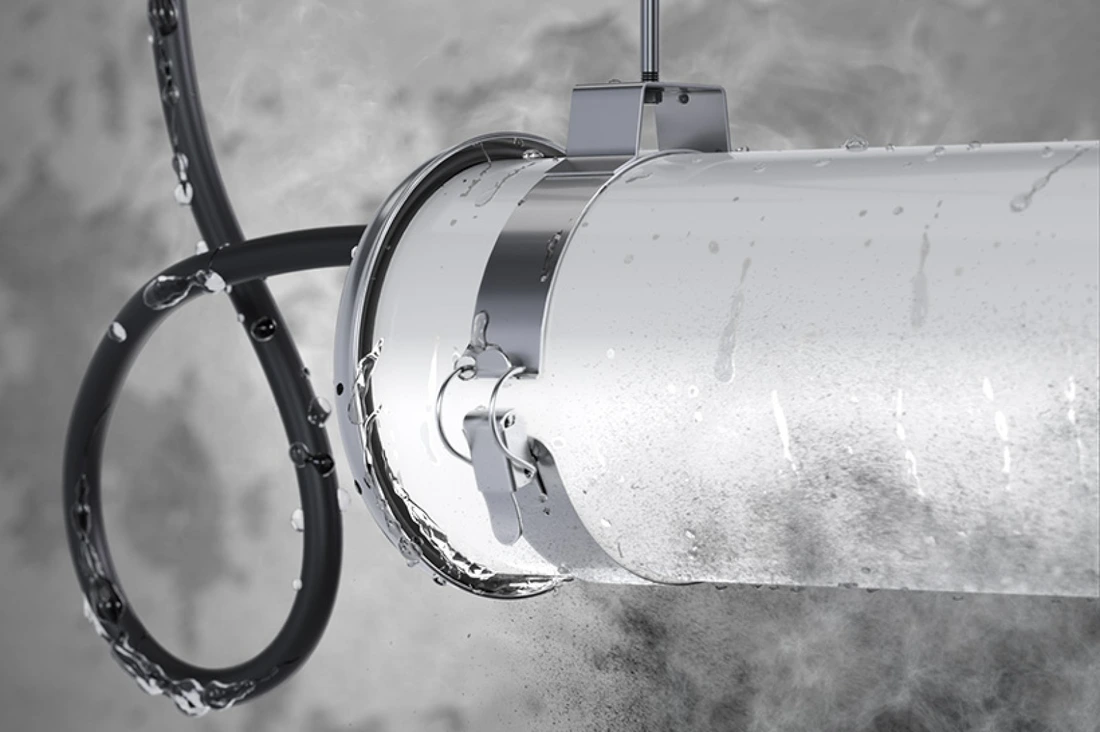

Optimal sealing and durability, even with intensive use at 50°C

Forget fine dust, high-pressure jets, corrosive substances and the like. Thanks to its 3-seal system and uniform tightening with a central screw, the housing remains firmly sealed, even when the temperature varies significantly. IP68, IP69K, everywhere and well into the future!

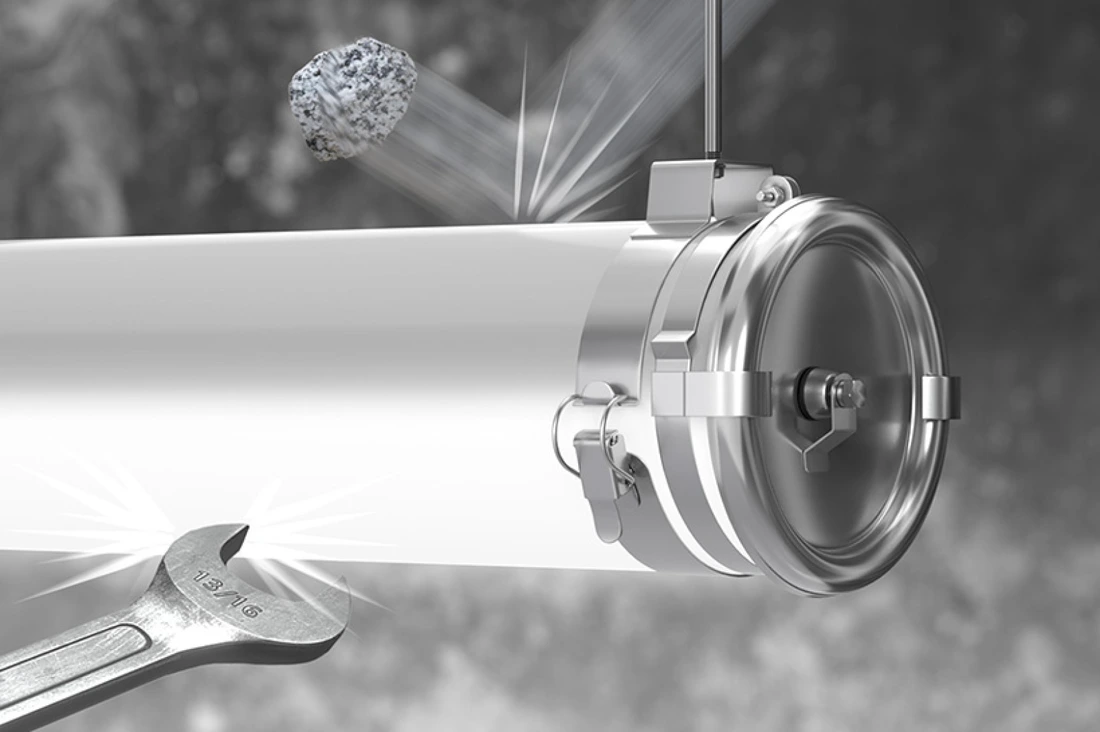

Resistant to impacts and vibrations

Solid, smooth materials with no mating surfaces, combined with a locking system based on axial tightening (the Screw© system): simple principles for exceptional mechanical strength and a vibration-proof single-piece design, no matter how intense things get.

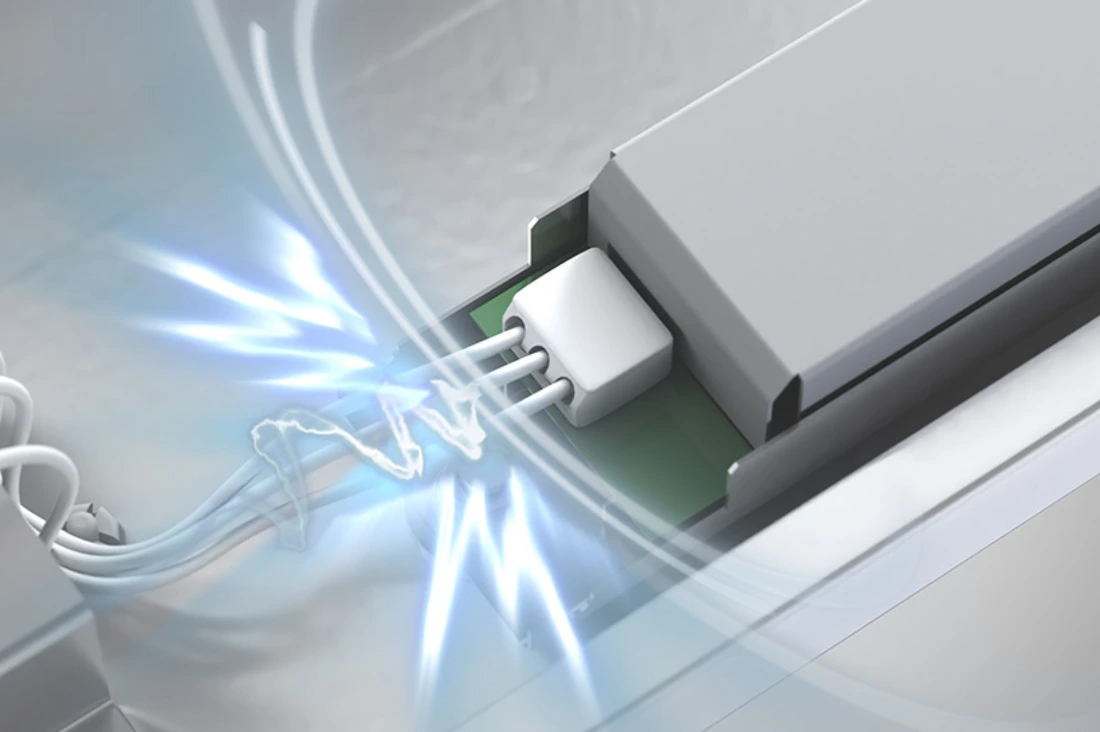

Reinforced industrial electronics

Even the very best housing cannot stand up to the potential effects of an at-risk network. With this in mind, Sammode has opted for the most reliable components available, designed to withstand electrical disturbance, voltage surges, extensive temperature variation and vibrations.

Robust materials

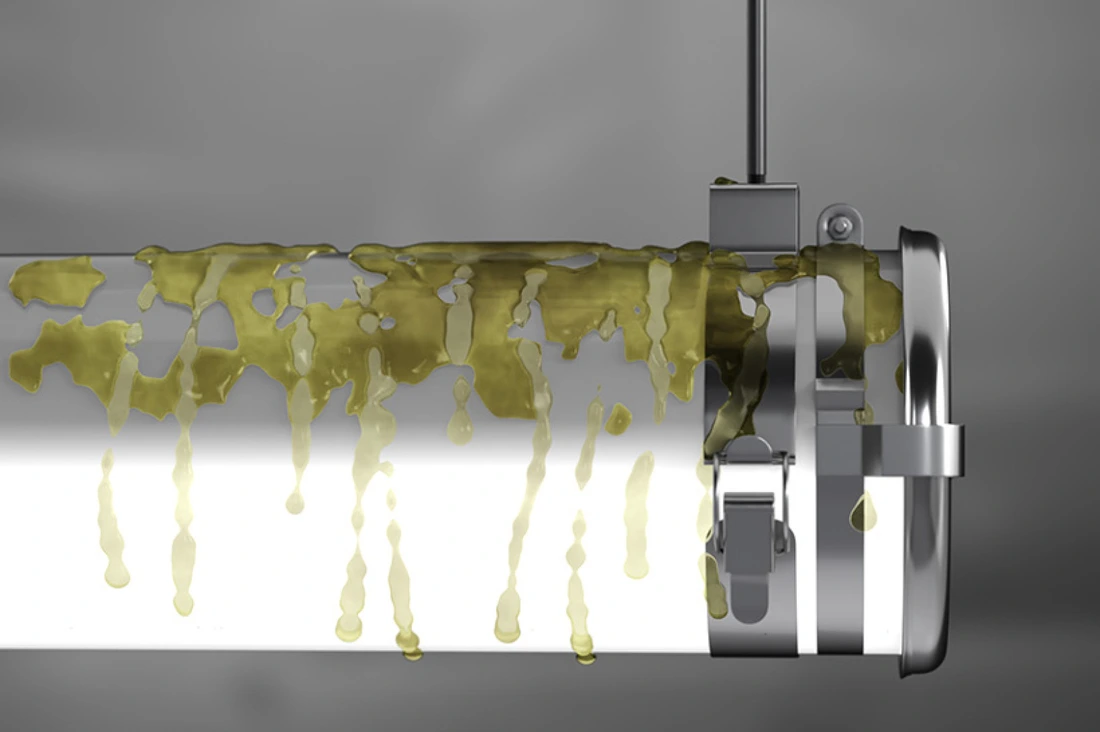

External 100% stainless steel parts, combined with a composite diffuser in co-extruded polycarbonate-PMMA, offering exceptional resistance to detergents, acid vapours, IK10 mechanical impacts and UV radiation.

Plug & Play, zero maintenance

Thanks to its ultra-solid pluggable connector with a quick locking system and clamps secured with toggles, this fixture can be installed in no time. The LEDs were selected for their durable performance and will considerably reduce your energy and maintenance bills.

Applications of luminaires by the name Cugnot Xtrem

  • Steelworks: lighting for grinding units
  • Mines: excavator and conveyor belt lighting
  • Paper mills: general lighting
  • Cement works: lighting around conveyor belts

  • Wastewater treatment unit: tank lighting
  • Thermal power station: lighting in underground tunnels
  • Viaduct: lighting for pedestrian walkways

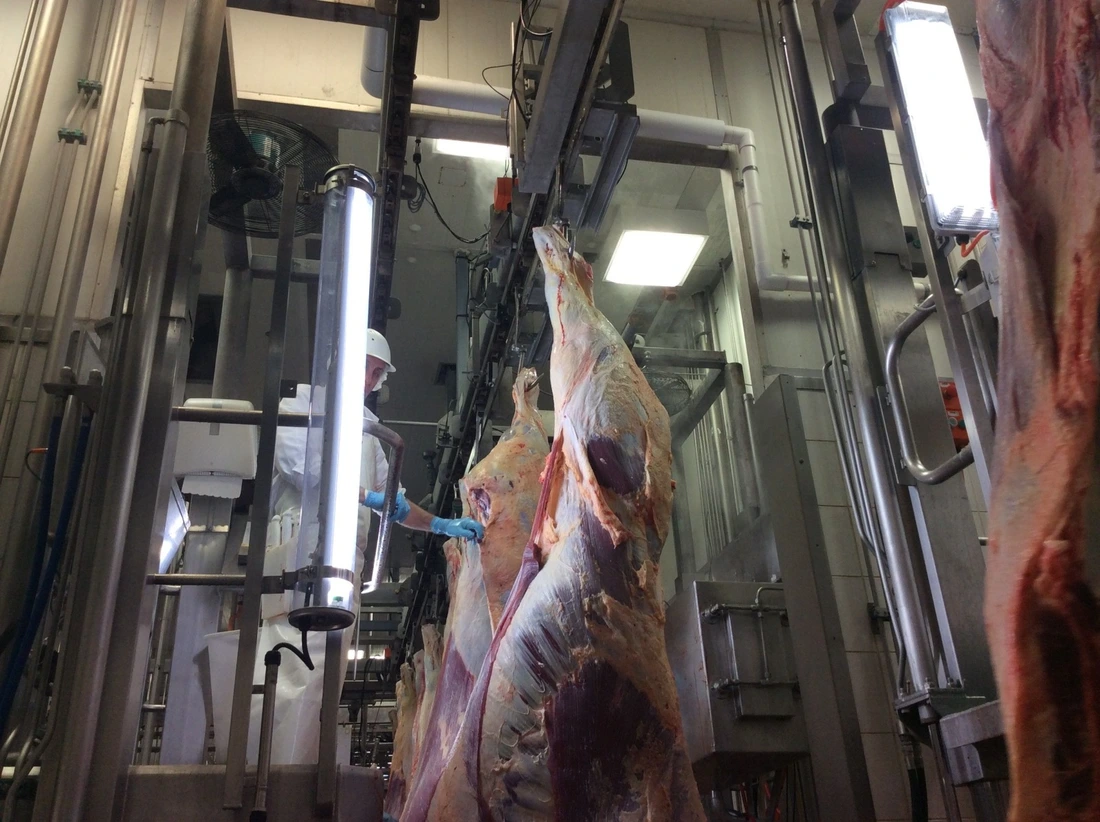

  • Slaughterhouse: lighting around conveyor belts, sweating areas
  • Dairy: lighting around drying towers
  • Brewery: steeping silo and malting room lighting

  • Rail maintenance: train lighting during works, on-board equipment
  • Tunnels: general lighting
  • Port terminal: loading crane lighting, walkway lighting
  • Container terminal: gantry lighting

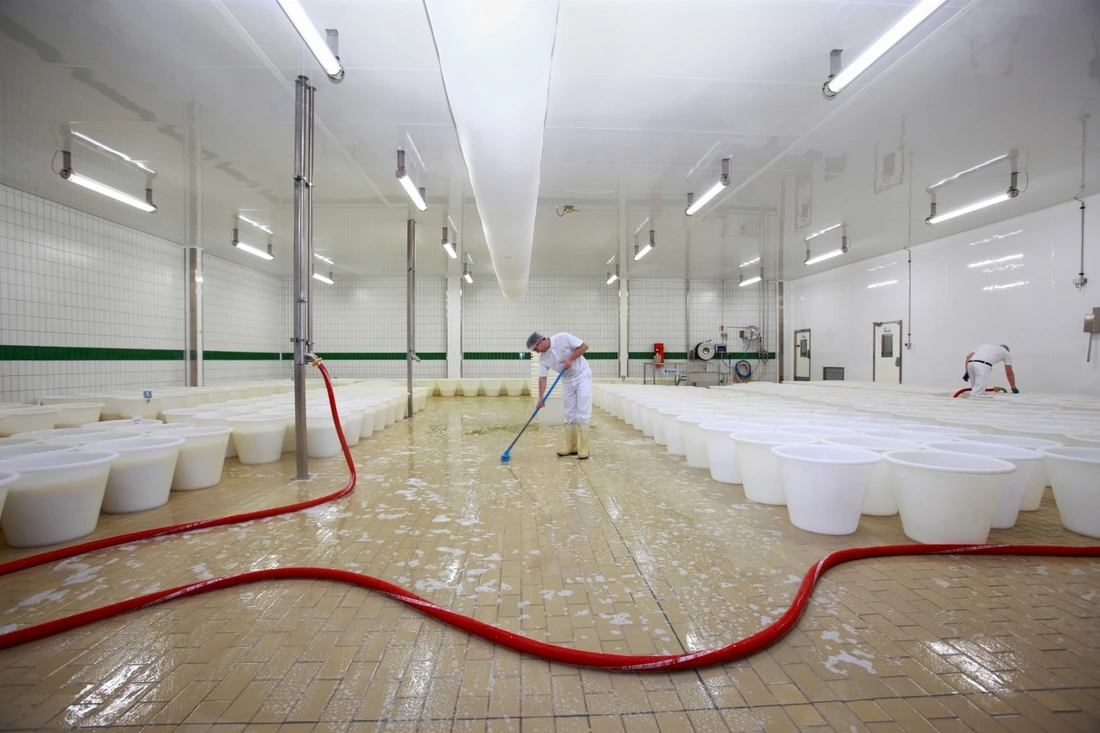

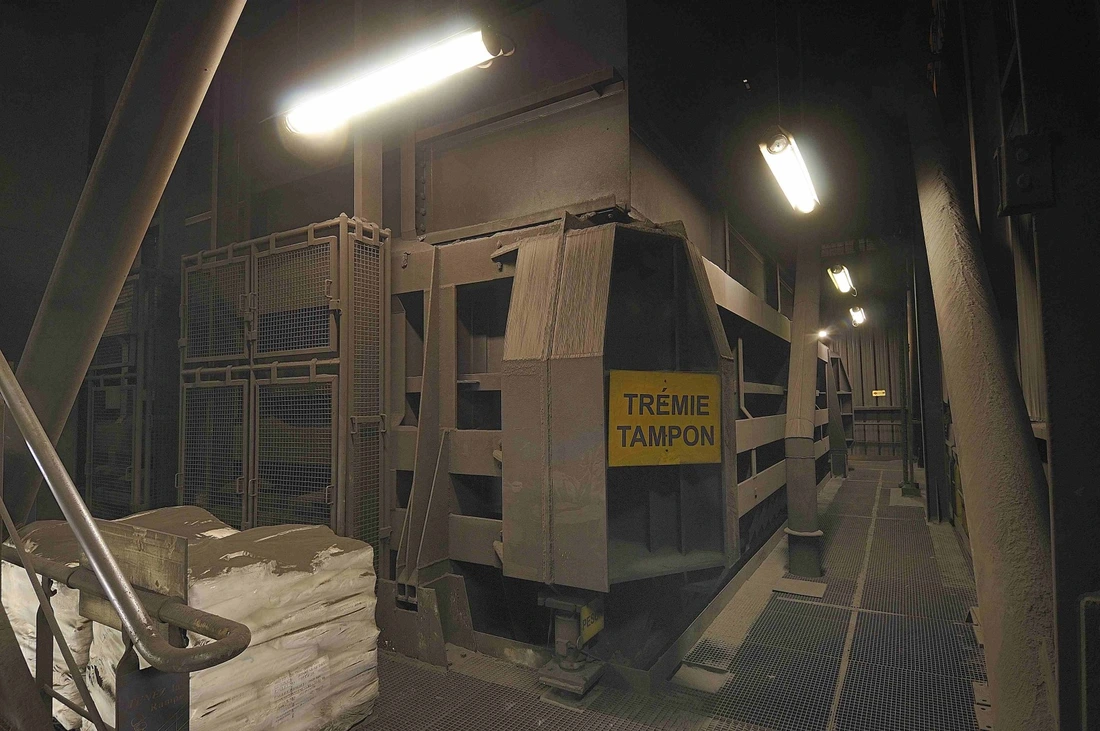

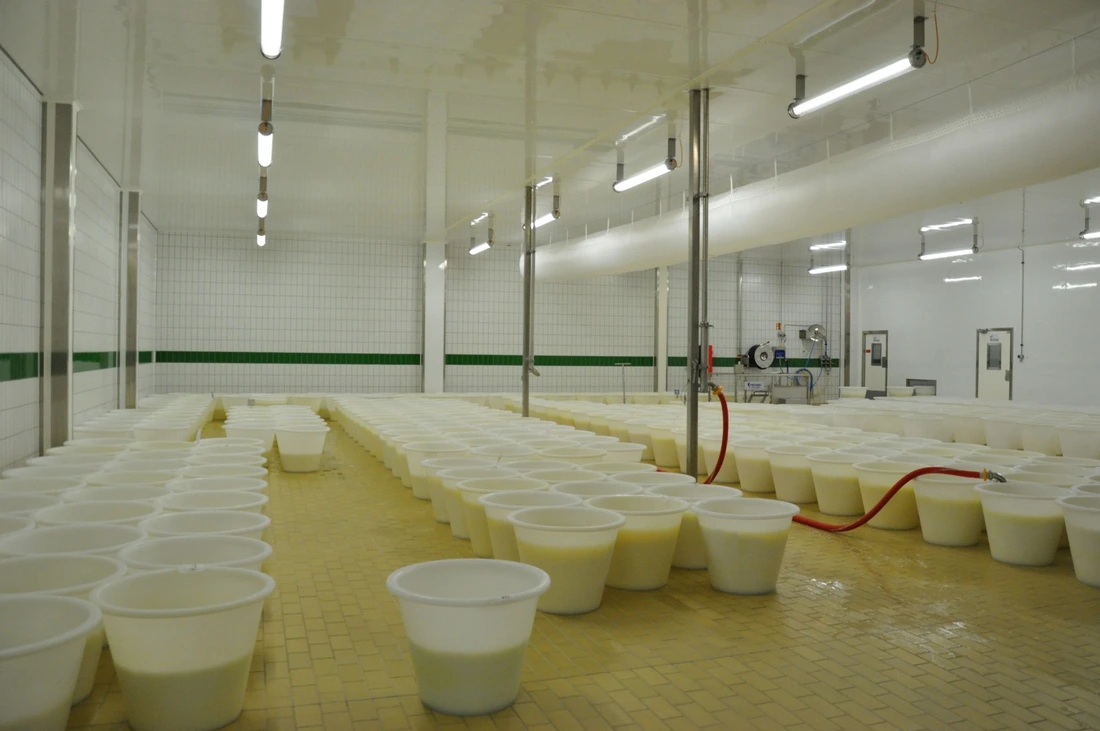

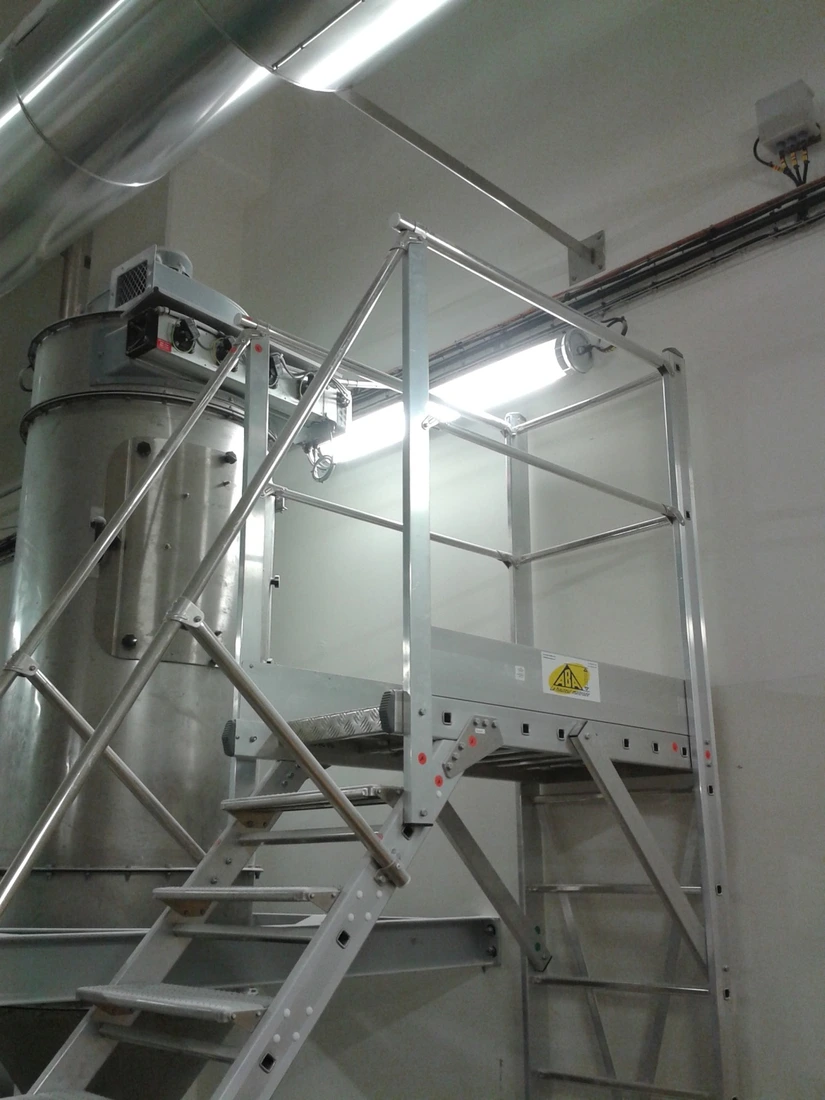

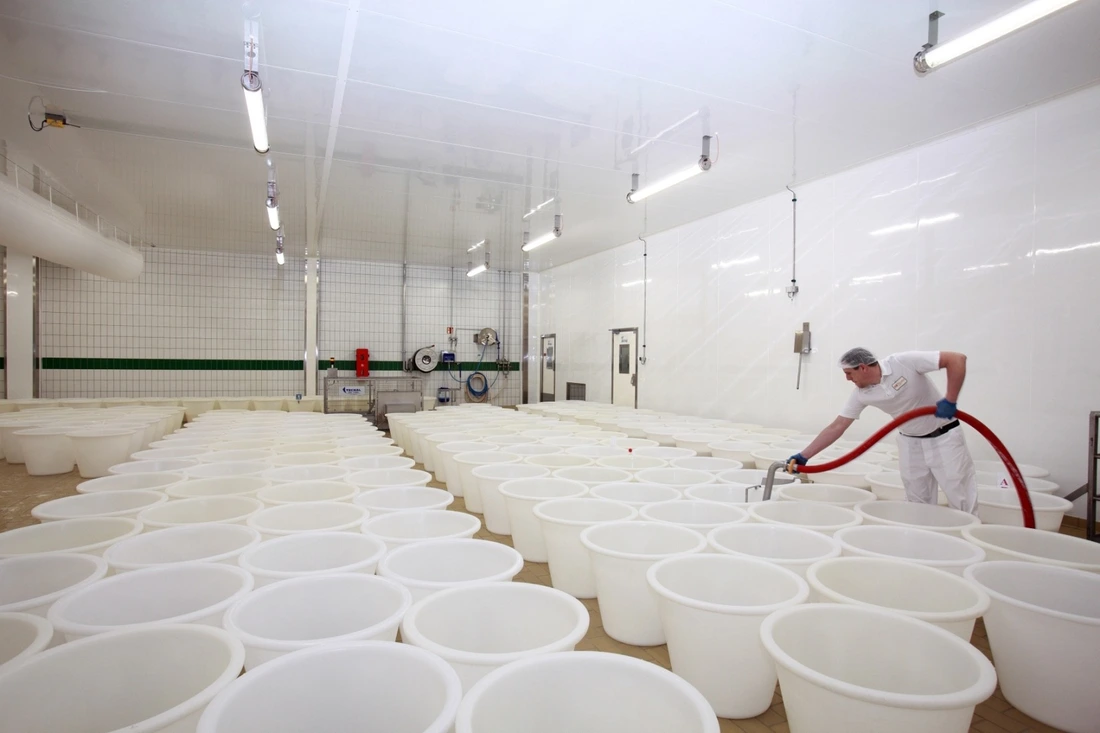

Product shown in situ

Our services

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

8-year warranty, no matter how tough the conditions

Valid even for 24/7 use at the maximum operating temperature for the product. 8-year warranty you will not find anywhere else on the market, reflecting our unfailing commitment to our customers!

100% Removable and repairable on site

Even after 15 or 20 years’ use, every single part we supply can be easily replaced, with no need to send it back to us. No one else offers a guarantee of lifelong lighting solutions!

Références principales et téléchargements

Plaquette produit

Eulumdat

Notice

Certificat
Tout télécharger

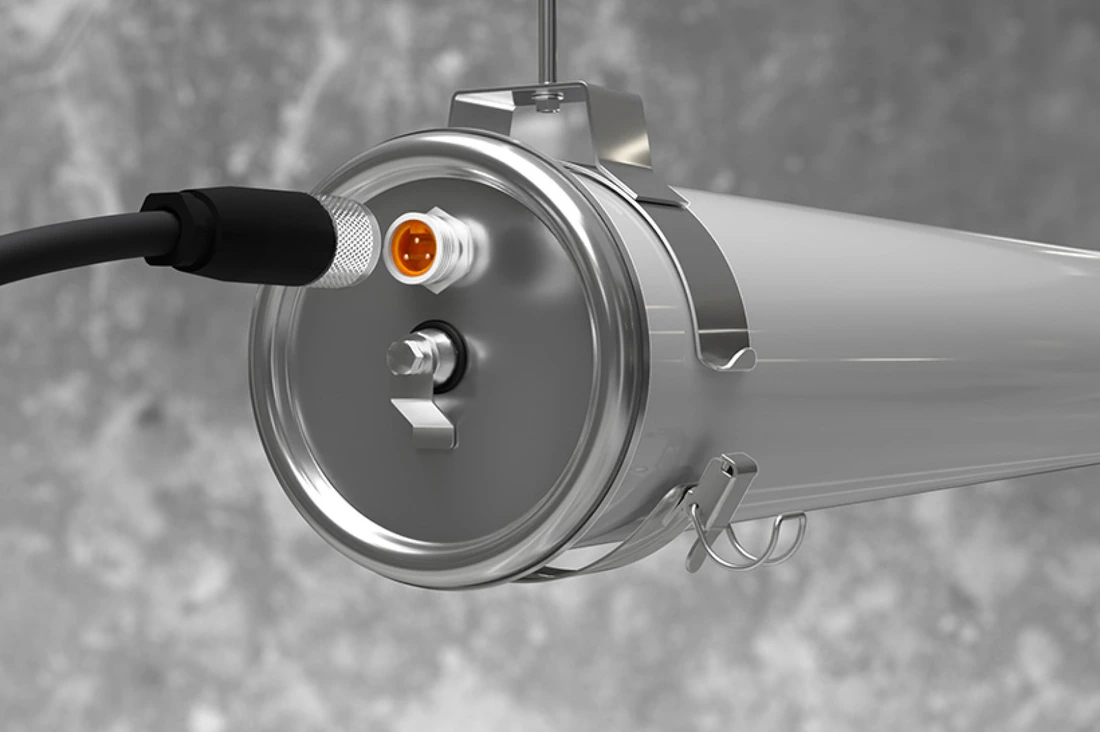

Disconnectable quick-lock plug version

CRI80, 4000K

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 1850 697 CUG100 12H840 POME PS3 SA BRS 31030020 16 Data sheet Plan STEP DS .TXT Download all
100 2775 1007 CUG100 13H840 POME PS3 SA BRS 31030040 24 Data sheet Plan STEP DS .TXT Download all
100 3700 1307 CUG100 14H840 POME PS3 SA BRS 31030060 32 Data sheet Plan STEP DS .TXT Download all
100 4625 1607 CUG100 15H840 POME PS3 SA BRS 31030080 39 Data sheet Plan STEP DS .TXT Download all
100 5550 1850 CUG100 16H840 POME PS3 SA BRS 31030100 46 Data sheet Plan STEP DS .TXT Download all
133 5550 987 CUG133 23H840 POME PS3 SA BRS 32030020 44 Data sheet Plan STEP DS .TXT Download all
133 7400 1287 CUG133 24H840 POME PS3 SA BRS 32030040 58 Data sheet Plan STEP DS .TXT Download all
133 9250 1587 CUG133 25H840 POME PS3 SA BRS 32030060 72 Data sheet Plan STEP DS .TXT Download all
133 11100 1850 CUG133 26H840 POME PS3 SA BRS 32030080 86 Data sheet Plan STEP DS .TXT Download all

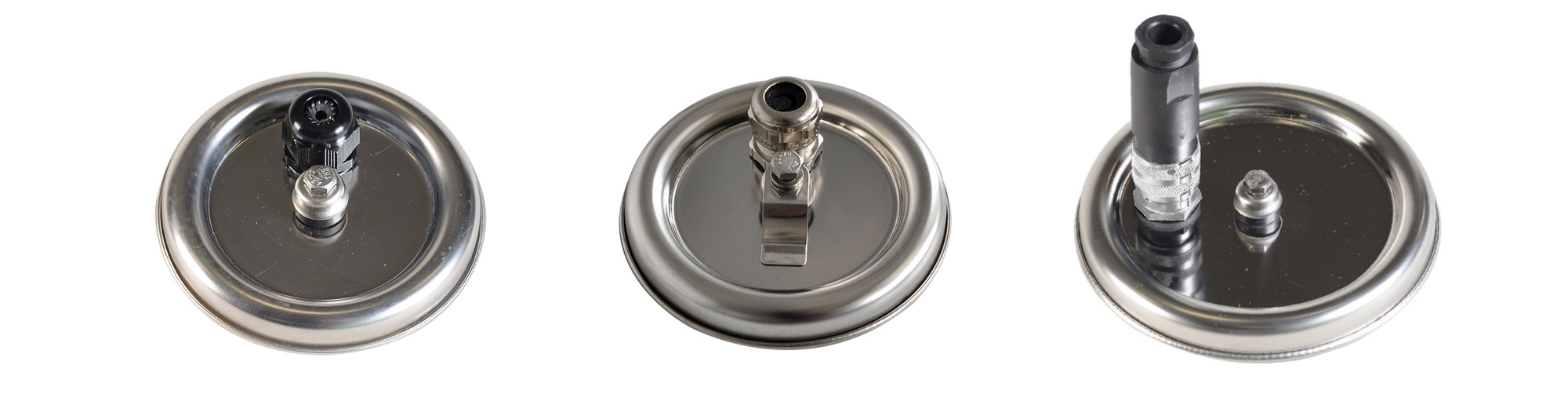

Cable entry

Cable gland

Polyamide capacity Ø5-12mm 113
Polyamide capacity Ø7-14mm 116
Nickel-coated brass capacity Ø5-14 mm 113LN
Stainless steel 316L capacity Ø7-13mm 113INOX

Disconnectable plugs

IP68/69K quick-lock plug with threaded ring (capacity: Ø8 to 10 mm) PS3

Fixing straps

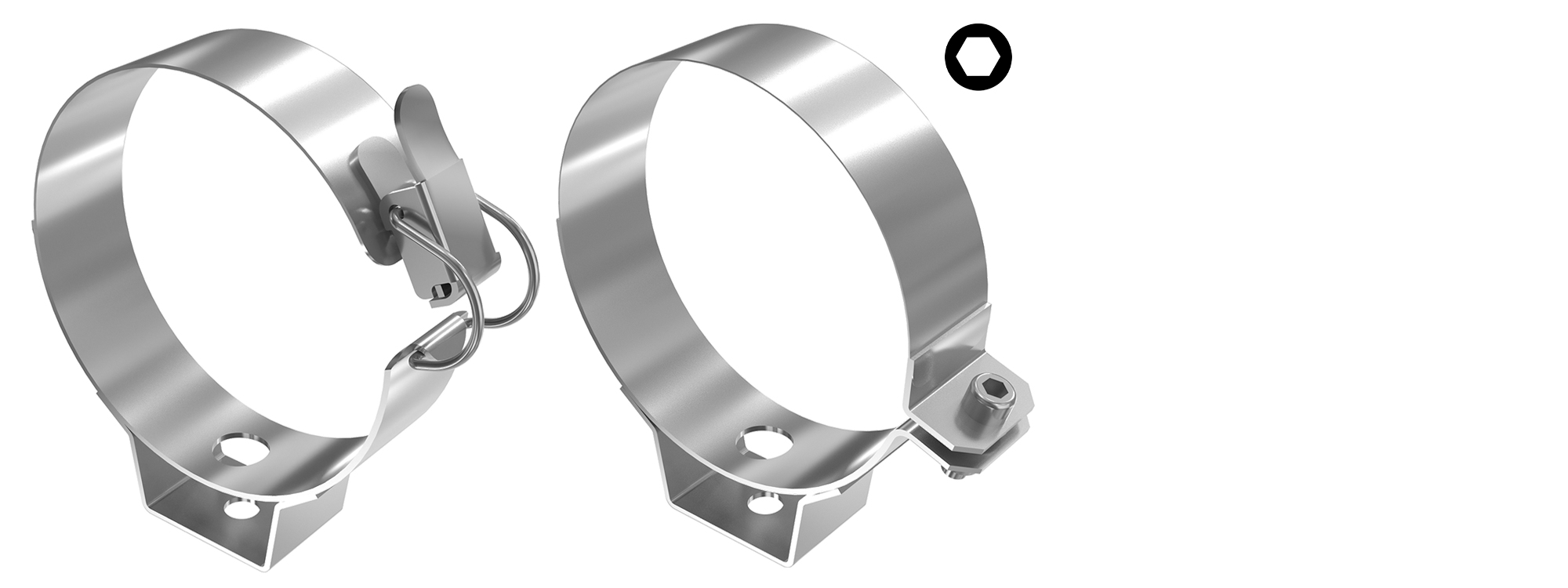

Reinforced fixing straps BRS
Reinforced fixing straps with HSHC screw BRV

Materials

Polycarbonate housing PO
Coextruded polycarbonate/ PMMA housing with high chemical resistance POME
End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

3000K 830
4000K 840
5000K 850

Lighting management

Electronic gear unit for DALI dimming RD

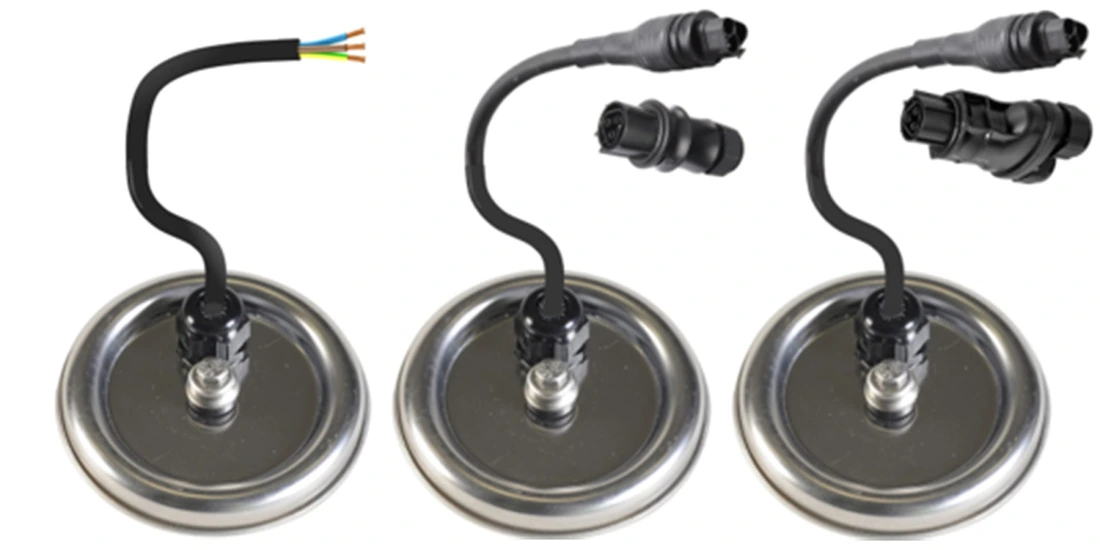

1m HO7-RNF pre-wired cable 3G1,5²
Stripped free end CAB0080
Wieland® plug IP68/IP69K (capacity : Ø10-14mm) CAB0095
Wieland® plug and Y spliter for loop-in/out CAB0145

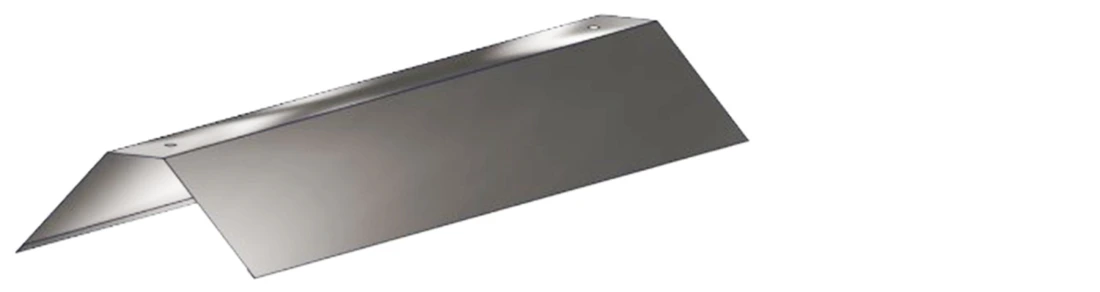

Folded 304L stainless steel protective cover
Length 800mm PU6362
Length 1100mm CP00595
Length 1400mm PU6286
Length 1700mm PU6363
Length 1950mm CP00597
304L stainless steel column mounting fixing strap
Adapter ø1"1/4 (=42mm) PU4321
Adapter ø1"1/2 (=49mm) PU4083
Adapter ø2" (=60mm) PU4082

Technical specifications

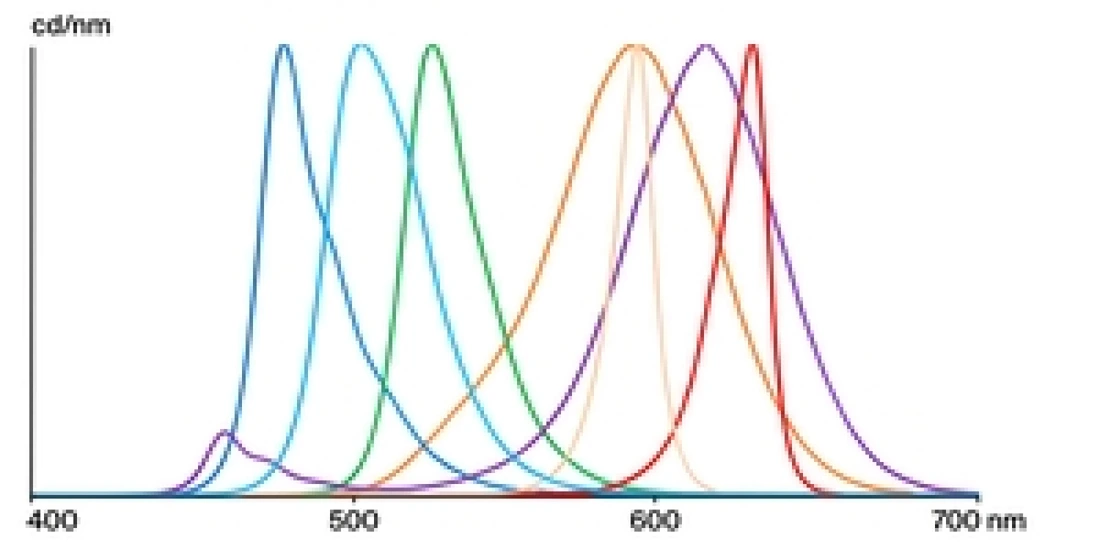

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 70 000 h L80/B10 at max. operating temperature
Optics
  • Special satin-finish housing for LED
  • Light mixing chamber
Lighting comfort
  • UGR ≤ 25
Heat management
  • Aluminium heat sink
Control gear
  • High reliability constant current output driver, mechanically and thermally reinforced.
  • Resistance to overload: 320 V AC, 48 h
  • Supports voltage spikes < 4 kV
  • Electronic compatible with central source
  • Compatible with neutral TN, TT and IT arrangements with no limitations
Supply voltage
  • 198-264V 0/50/60Hz
Electrical class
  • Class I
Operating temperature
  • -20°C to +50°C

Connection
  • With disconnectable plug Ø 8 to 10 mm cable (3 × 1,5 mm²)
Mounting
  • Attachement with 2 bolt-fitted stainless steel straps with variable center distance and 360° orientation
LED engine maintenance
  • Easily removable LED modules and driver
  • Opening by releasing the 2 closing screws, removing the end cap and extracting the gear tray

Housing
  • Special polycarbonate housing protected from UV, solvents, hydrocarbons and cleaning agents by a coextrusion of PMMA
End caps and fixing straps
  • 304L stainless steel
Gaskets
  • Peroxide-cured EPDM
Method of construction
  • Housing in one piece with high mechanical and chemical resistance
  • Long-lasting imperviousness by axial screw fitting

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C
Vibration resistance
  • Meets the severe application requirements of standard EN 60598-1 (tested according to IEC 60068-2-6)

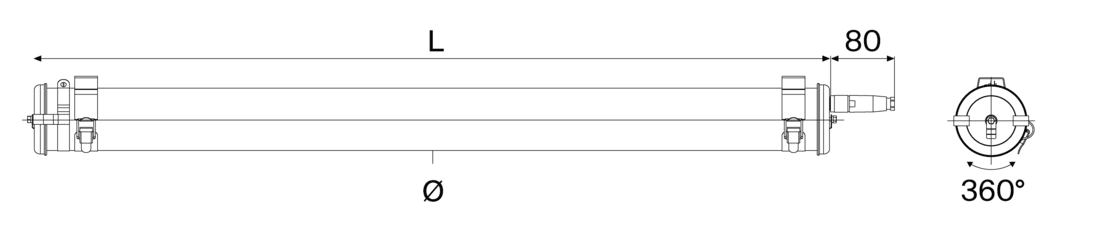

Diameter 100
Diameter 133
