ø100 and ø133 tube light for extreme industrial atmospheres
A reliable multipurpose emergency light for all industrial applications
Meets the European emergency luminaire standard NF EN 60598-2-22
Emergency lighting for central or standalone temporary or permanent light sources, in industrial environments
Two versions of the Maxwell emergency light are available as a central source (NF AEAS/LSC) or standalone 1-hour or 3-hour light (Standard IEC 62034), designed for demanding industrial environments. Evacuation and ambient lighting versions are available. Sealed for the duration and consisting of robust materials, this version is compatible with the DALI smart management system.
Chemical and sealing conditions
Corrosive substances, acid vapours
Saline atmosphere, sea spray
Dust and humidity
Washing with a high-pressure jet
Health and safety requirements according to IFS, BRC and HACCP texts
Thermal, mechanical and electrical stresses
Permanent use at temperatures of up to 40°C
Repeated turning on and off
Heavy mechanical impacts
Forget fine dust, high-pressure jets, corrosive substances and the like. Thanks to its 3-seal system and uniform tightening with a central screw, the housing remains firmly sealed, even when the temperature varies significantly. IP68, IP69K, everywhere and well into the future!

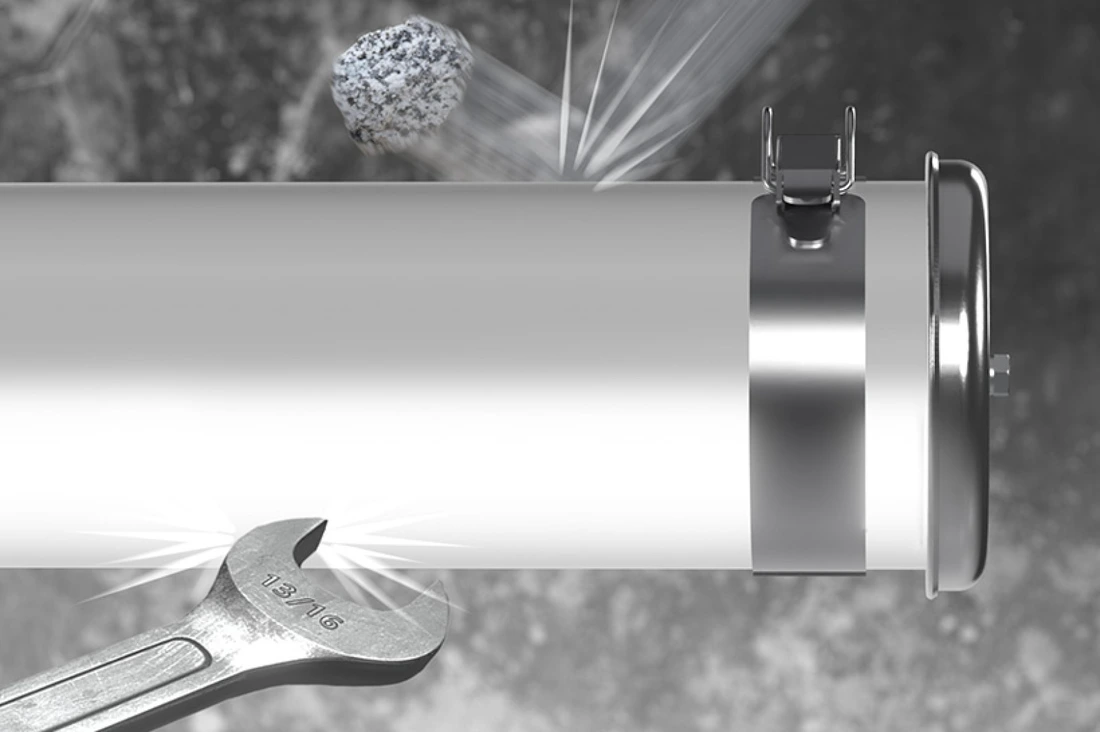

Exceptional mechanical strength, thanks to an impact- and vibration-proof single-piece design housing (IK10). The emergency lighting, with its stainless steel end-caps and fixing straps and its homogeneous polycarbonate diffuser without mating surfaces is ideal for food sites, as no parts can be lost or broken.

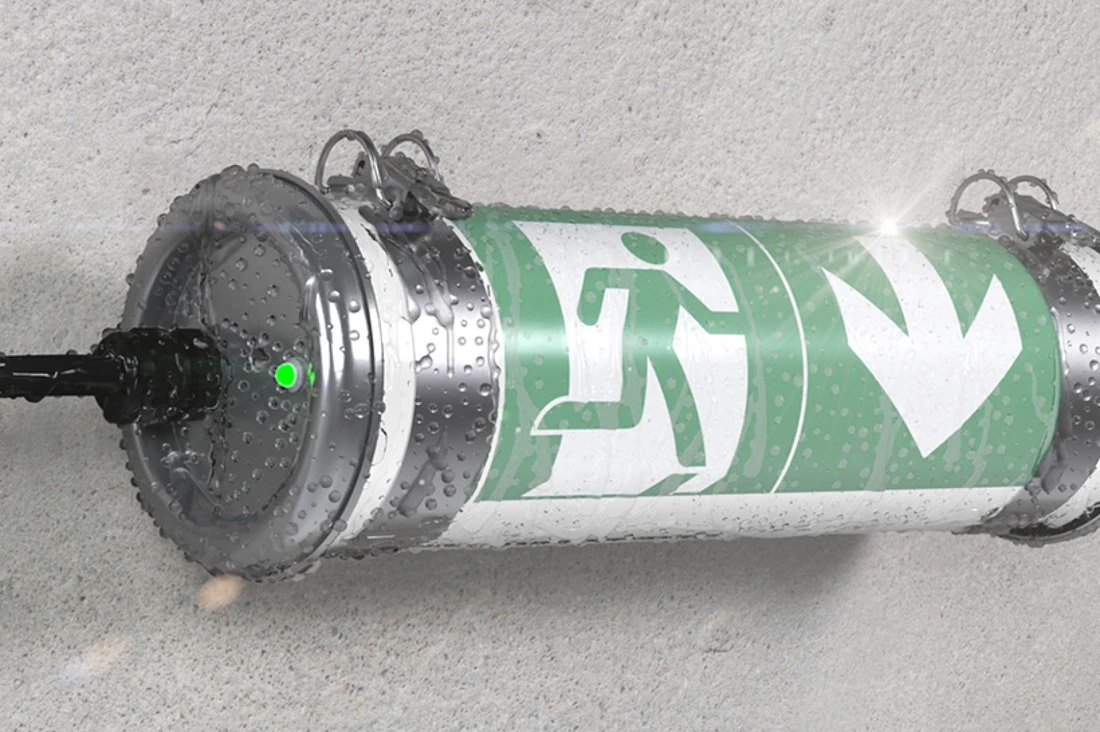

The emergency versions of the MAXWELL luminaire meet NF EN 60598-2-22, and regularly run automatic functional and battery life tests, with a bi-colour LED indicator on the power unit end-cap. DALI versions are also available for decentralised lighting management.
To avoid the need to select between several models depending on the required direction of evacuation, our EVAC version is supplied with a set of 3 standard-compliant adhesive labels. These labels can be located as required, directly at the site, depending on the layout of the premises. Benefit from total freedom!

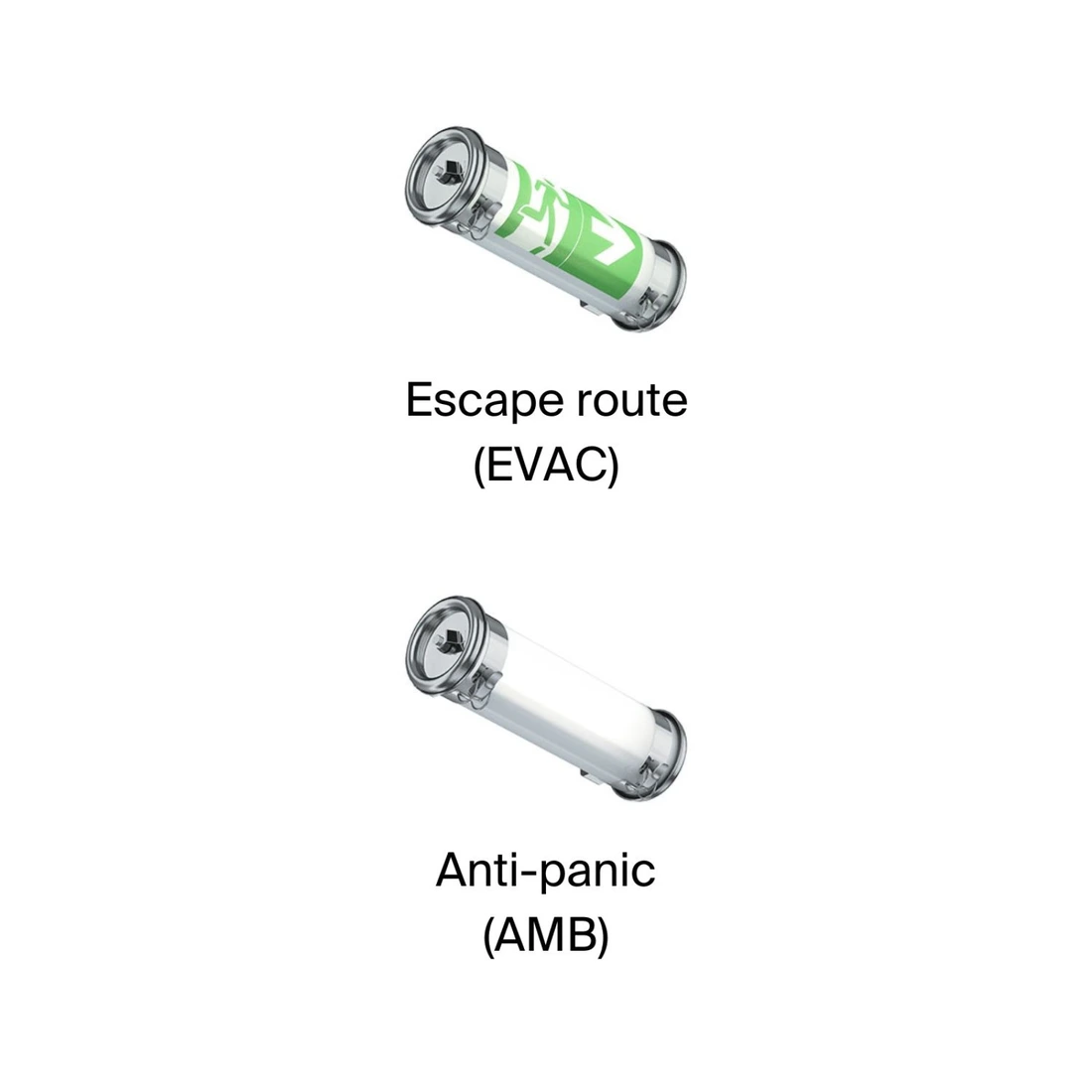

Need even more versatility? Our EVAC and AMB emergency lights can switch between temporary and permanent mode as preferred or required. Simply shunt the internal terminal block during installation – and that’s it! Sammode has everything covered, and your needs come first!
Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.
Valid even for 24/7 use at the product’s maximum operating temperature, reflecting our unfailing commitment to our customers!
Even after 15 or 20 years’ use, every single part we supply can be easily replaced, with no need to send it back to us. No one else offers a guarantee of lifelong lighting solutions!

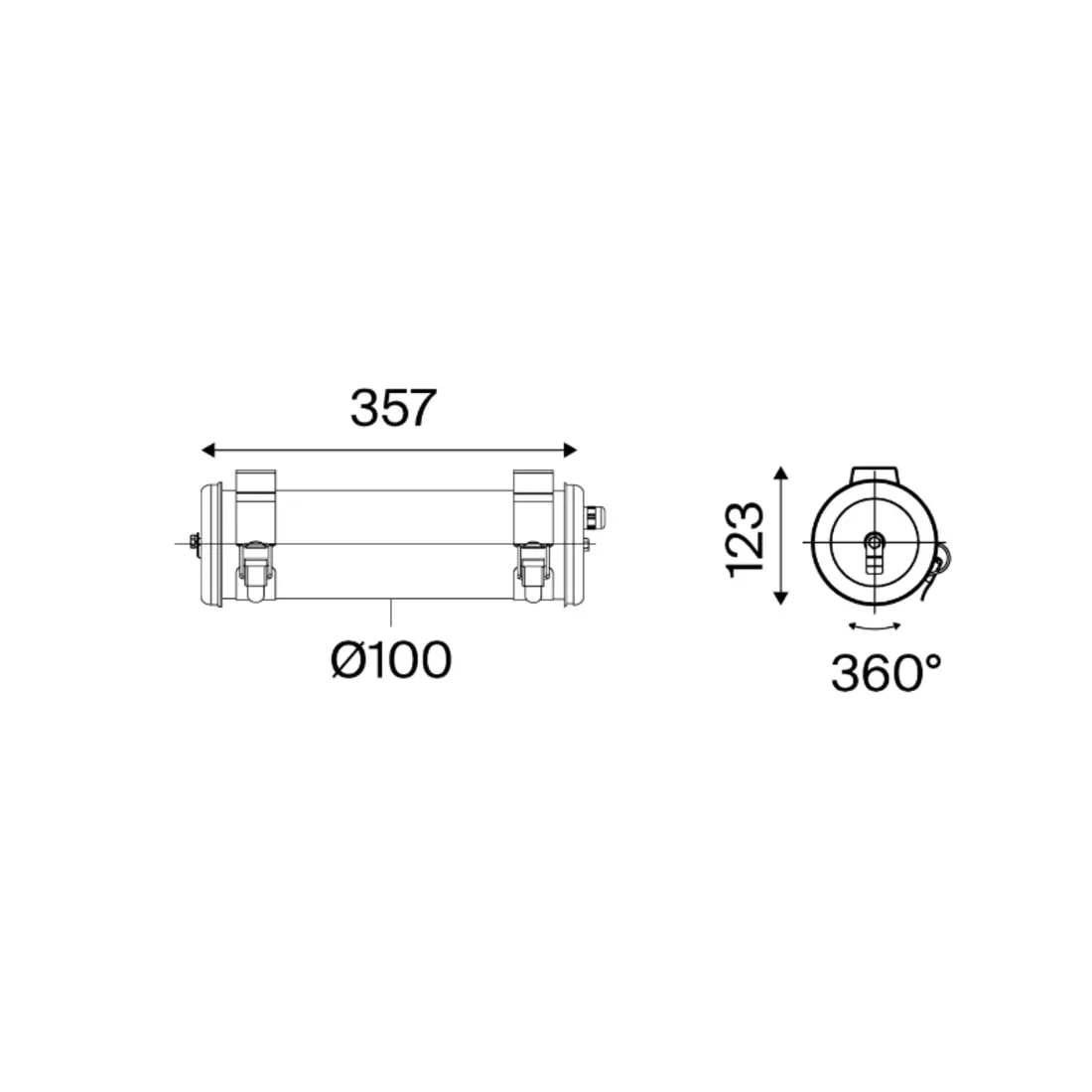

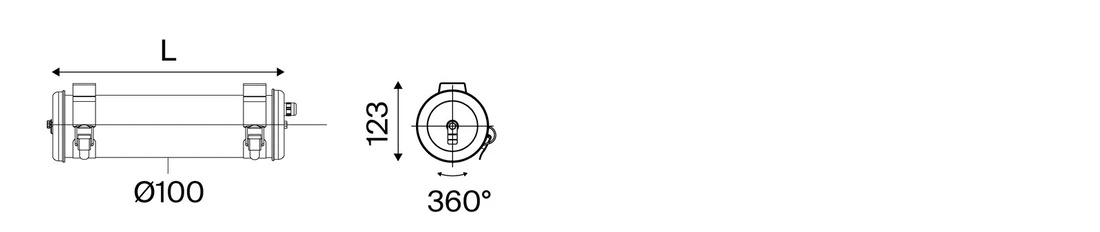

|Emergency output (lm)||Type||L (mm)||T (K)||Designation||Code||Watt/VA||Technical data||Plan||STEP DS||.TXT||Download all||75||EVAC||357||4000||MAX100 LSC EVAC SA 113LN BRS||18405014||45018||Technical data||Plan||STEP DS||.TXT||Download all||330||AMB||357||4000||MAX100 LSC AMB SA 113LN BRS||18405015||7,9/16||Technical data||Plan||STEP DS||.TXT||Download all|
|Emergency output (lm)||Autonomy(h)||L (mm)||T (K)||Designation||Code||Watt**||Technical data||Plan||STEP DS||.TXT||Download all||45||1||357||6500||MAX100 S1H 45-865 SA 113LN BRS||18415053||1||Technical data||Plan||STEP DS||.TXT||Download all||45||3||357||6500||MAX100 S3H 45-865 SA 113LN BRS||18415035||1||Technical data||Plan||STEP DS||.TXT||Download all||440||1||385||4000||MAX100 S1H 440-840 SA 113LN BRS||18415051||1,7||Technical data||Plan||STEP DS||.TXT||Download all||440||3||385||4000||MAX100 S3H 440-840 SA 113LN BRS||18415052||2,2||Technical data||Plan||STEP DS||.TXT||Download all|
|Emergency output (lm)||Autonomy(h)||L (mm)||T (K)||Designation||Code||Watt**||Technical data||Plan||STEP DS||.TXT||Download all||45||1||357||6500||MAX100 S1H 45-865 RD SA 113LN BRS||18415054||1||Technical data||Plan||STEP DS||.TXT||Download all||45||3||357||6500||MAX100 S3H 45-865 RD SA 113LN BRS||18415055||1||Technical data||Plan||STEP DS||.TXT||Download all||440||1||385||4000||MAX100 S1H 440-840 RD SA 113LN BRS||18415056||1,7||Technical data||Plan||STEP DS||.TXT||Download all||440||3||385||4000||MAX100 S3H 440-840 RD SA 113LN BRS||18415057||2,2||Technical data||Plan||STEP DS||.TXT||Download all|
|Nickel-coated brass capacity Ø5-14 mm||113LN|
|Nickel-coated brass capacity Ø5-14 mm||213LN|

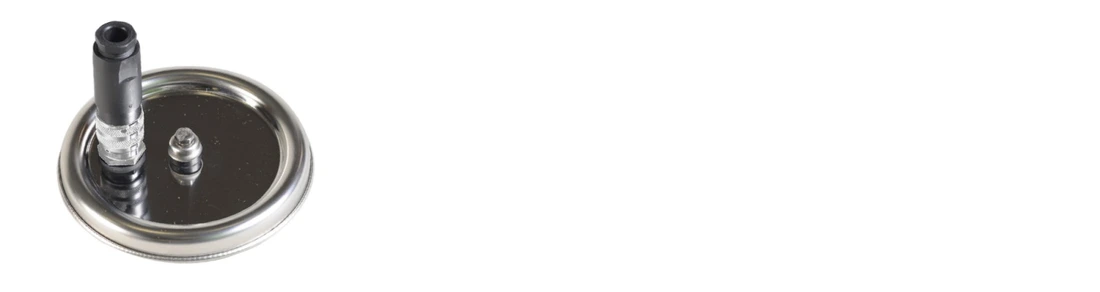

|IP68/69K quick-lock plug with threaded ring (capacity: Ø8 to 10 mm)||PS3/PS5|
|Reinforced fixing straps||BRS|
|Reinforced fixing straps with HSHC screw||BRV|

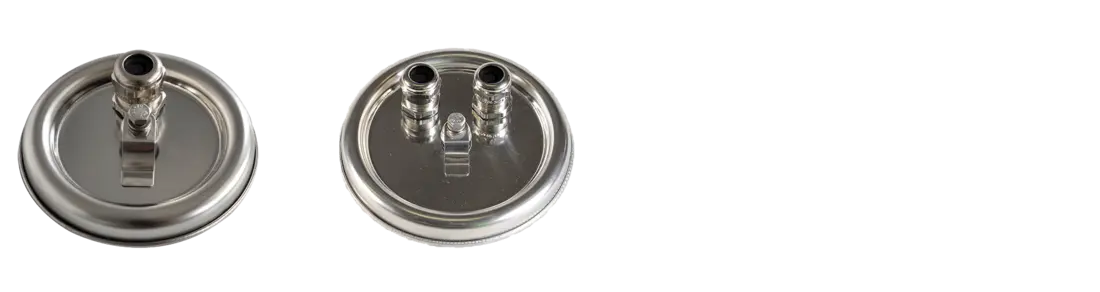

|End caps & fixing straps 304L stainless steel||-|
|End caps & fixing straps 316L stainless steel||MR|

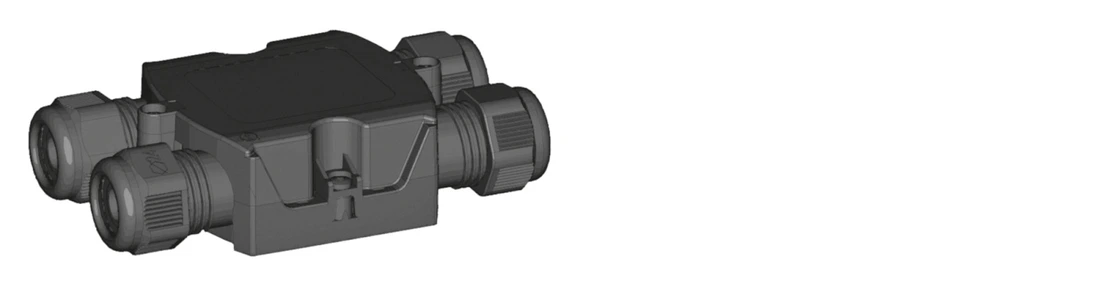

|IP68 4-outlet junction box (capacity Ø7-14mm) CP00674|
|2 x 20 cm 304L stainless steel extensions PU44277|
|2 x 5 cm 304L stainless steel extensions PU44278|
|LED engine maintenance||
|End caps and fixing straps||
|Method of construction||
|LCIE licence n°||
|Label (EVAC versions)||
|Resistance to IK shocks||
