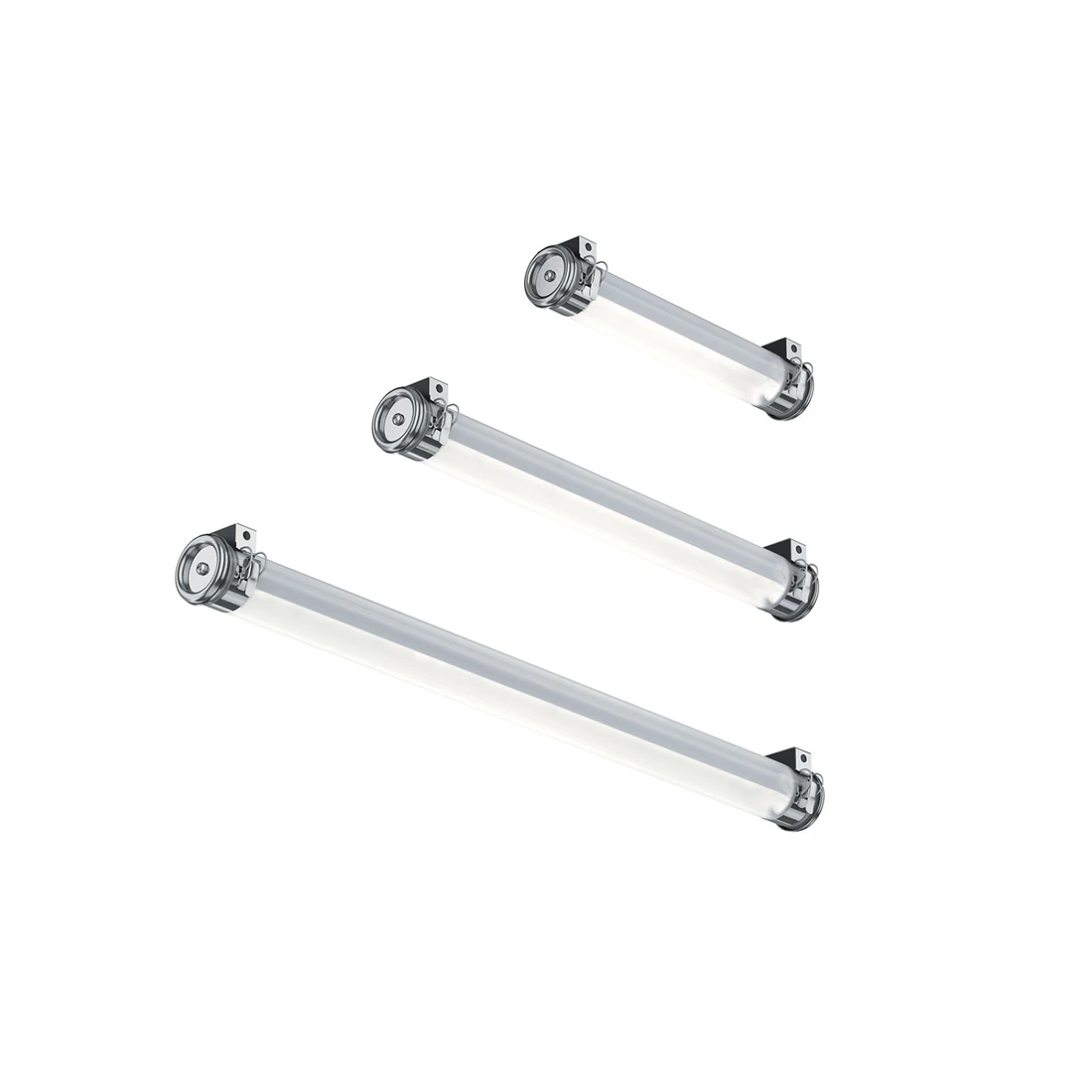

Compact 24 VDC LED tubular luminaire, ø70, for machines and process lighting

The 24V Foucault luminaire is designed to light up machines. It is perfect for providing high visibility in confined spaces. The IRC80 LED is powerful and homogeneous while avoiding glare. This model is resistant to humidity, steam and vapours, dust, impacts, oils and lubricants. Thanks to the swivelling 360° fixing straps, this model can be adapted to any type of space.

The Foucault 24V luminaire can withstand the conditions prevailing near machines and processing equipment.

Chemical and sealing conditions

Corrosive substances, acid vapours

Oils & hydrocarbons

Saline atmosphere, sea spray

UV radiation and bad weather

Dust and humidity

Washing with a high-pressure jet

Health and safety requirements according to IFS, BRC and HACCP texts

Thermal, mechanical and electrical stresses

Permanent use at temperatures of up to 40°C

Extreme variation in temperature

Repeated turning on and off

Heavy mechanical impacts

Intense and repetitive vibrations

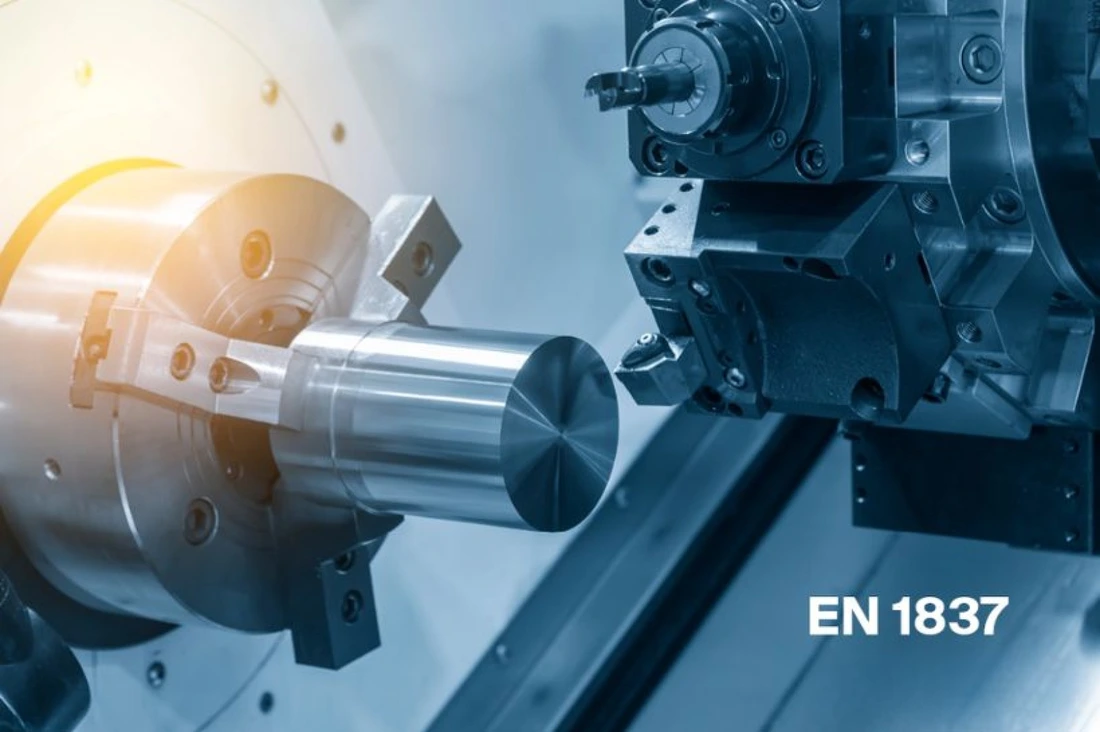

Meets EN 1837, for 24 VDC machine lighting

This luminaire with its high-strength satin-finish diffuser is specifically designed for 24 VDC supply and provides powerful and homogeneous lighting, with no risk of glare or stroboscopic effects, meeting the applications of EN 1837 Safety of machinery – Integral lighting of machines.

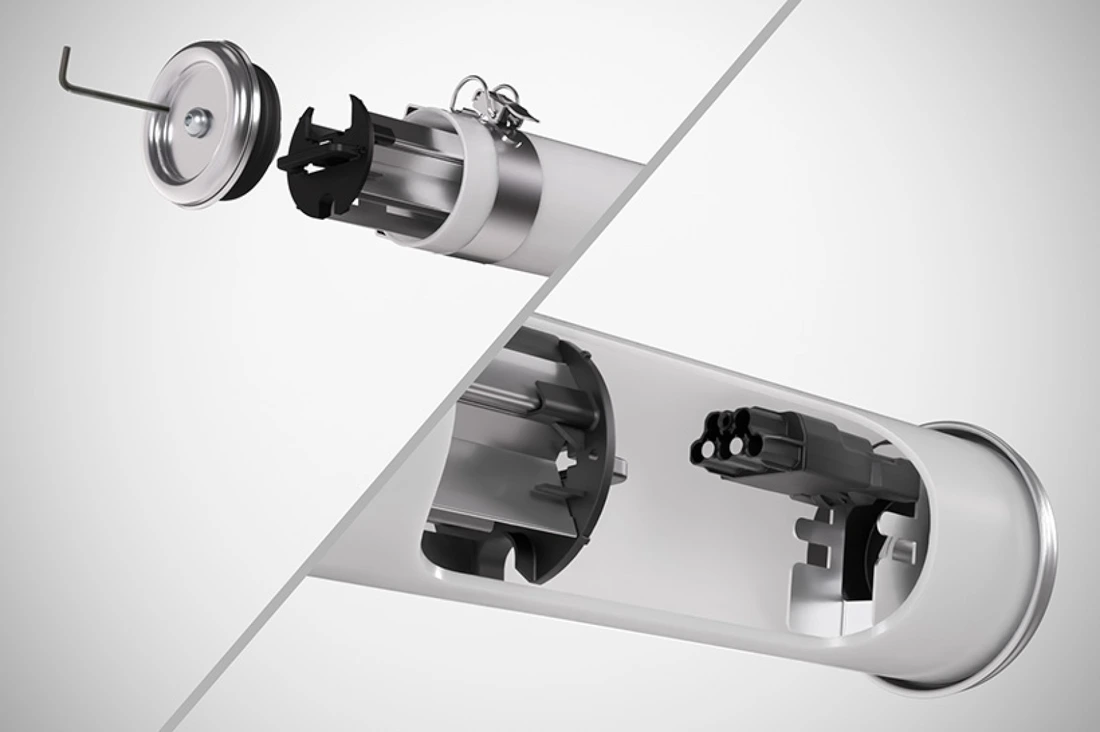

Serviceable and upgradeable (patented Close’n Connect© system)

The machines are designed to be upgraded, well so are our luminaires! Need proof? Check out this smart maintenance system: forget adjusting the cable and simply extract the gear tray on the opposite side. This device is convenient and reliable thanks to an automatic connection upon closure, making the luminaire easy to repair and upgrade.

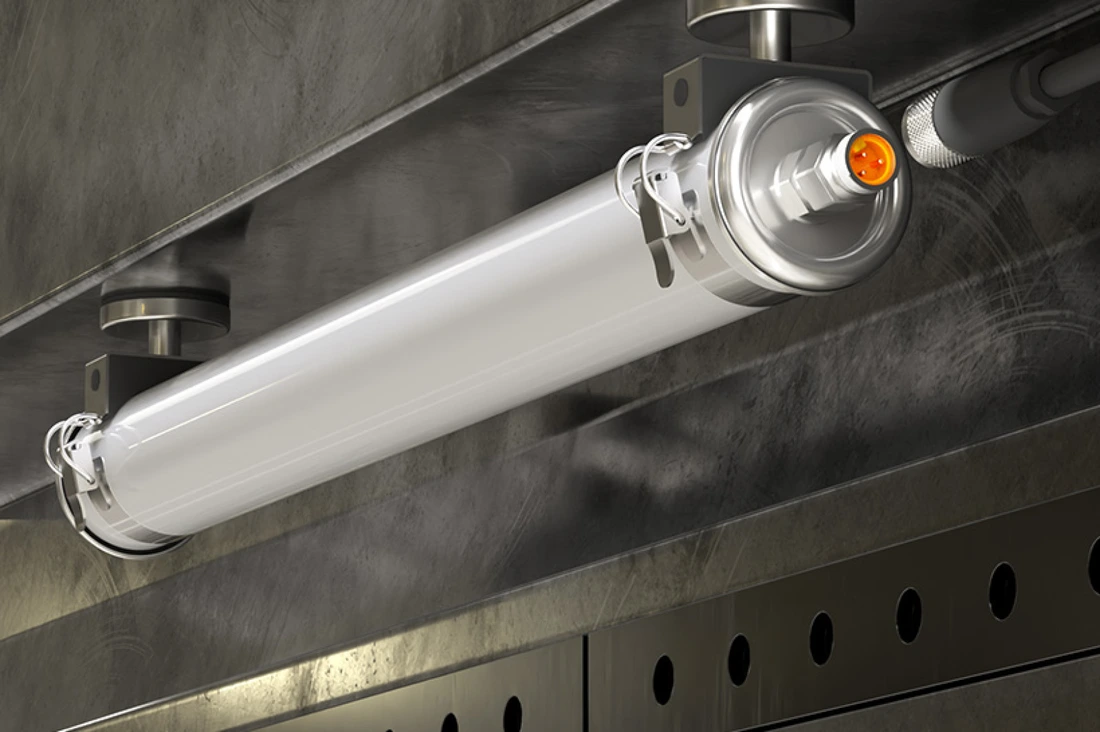

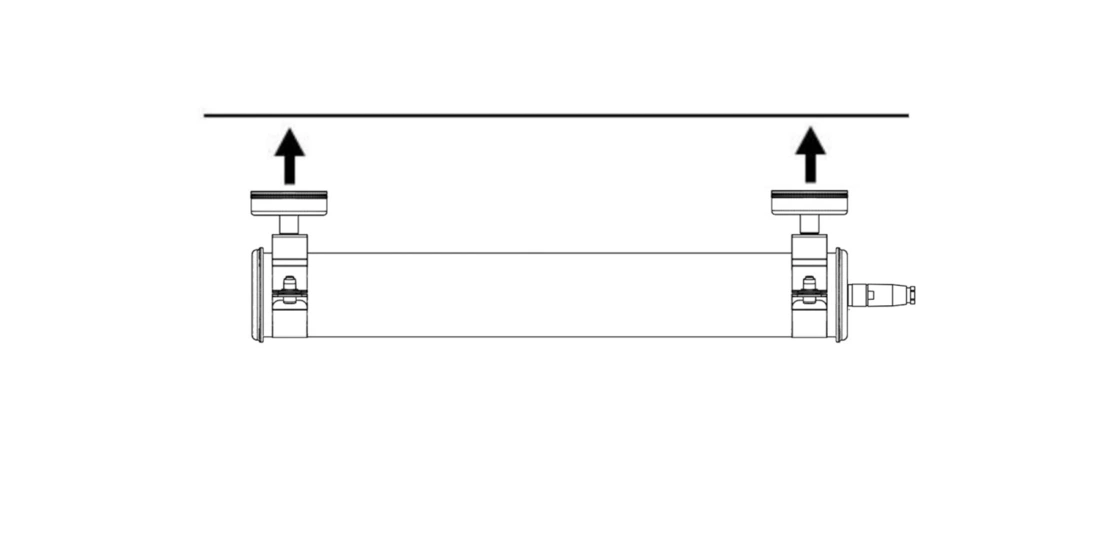

Light and convenient, even when drilling is not an option

Sammode has everything covered! A light but solid luminaire, the FOUCAULT model offers several Plug & Play installation options, with straight or angled pluggable connectors. As the icing on the cake, a magnetic fastening kit can be fitted on the fixing straps, to temporarily secure the luminaire to metal walls (320 N per magnet).

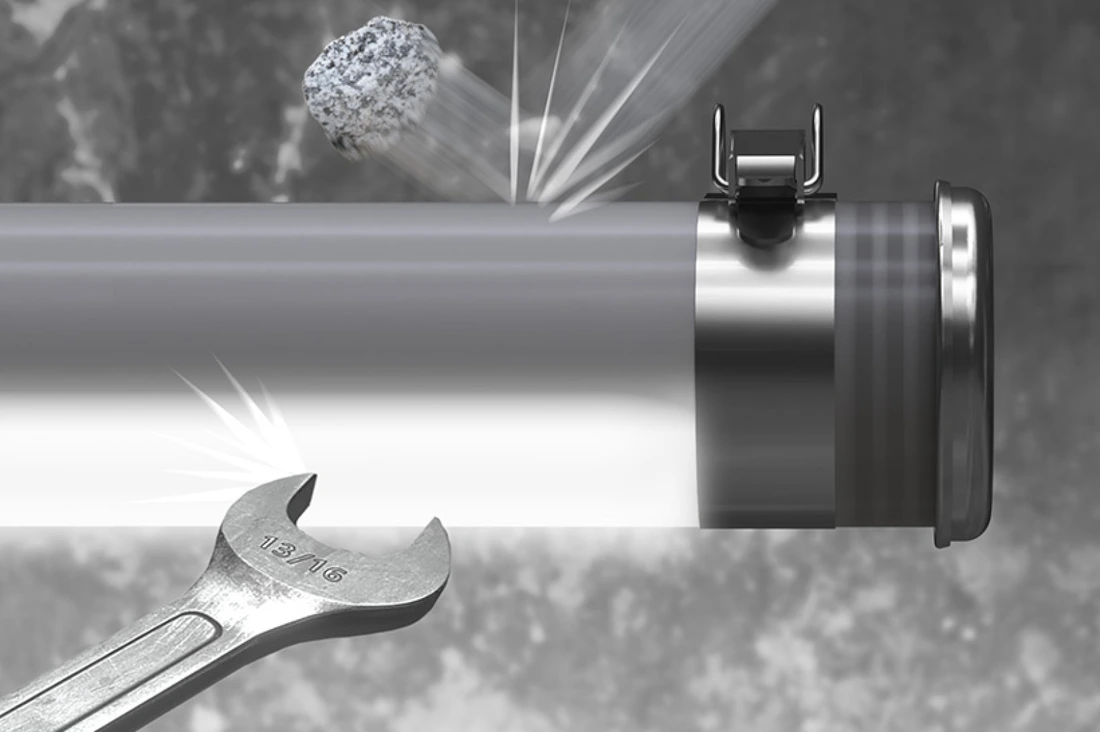

Resistant to impacts and vibrations

Equipment installed in narrow industrial spaces must be reliable and robust, which is why Sammode selected homogeneous materials with unfailing mechanical strength and no mating surfaces. The result: an ultra-durable, impact- and vibration-proof IK10 housing.

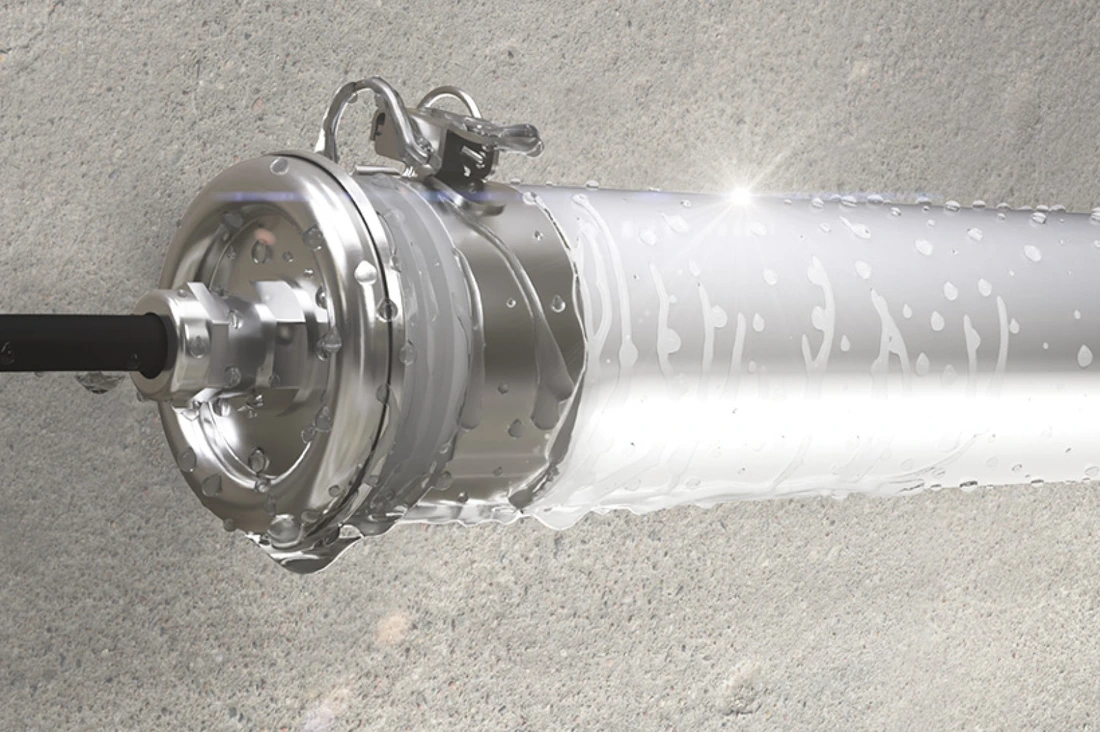

Durable sealing and protection against oil splashes

The co-extruded PMMA and polycarbonate tubular housing is sealed by tightening the nut under the cable gland. With this technique, the gasket expands evenly, guaranteeing absolute sealing for any type of humidity (IP68, IP69K), even if temperatures vary significantly.

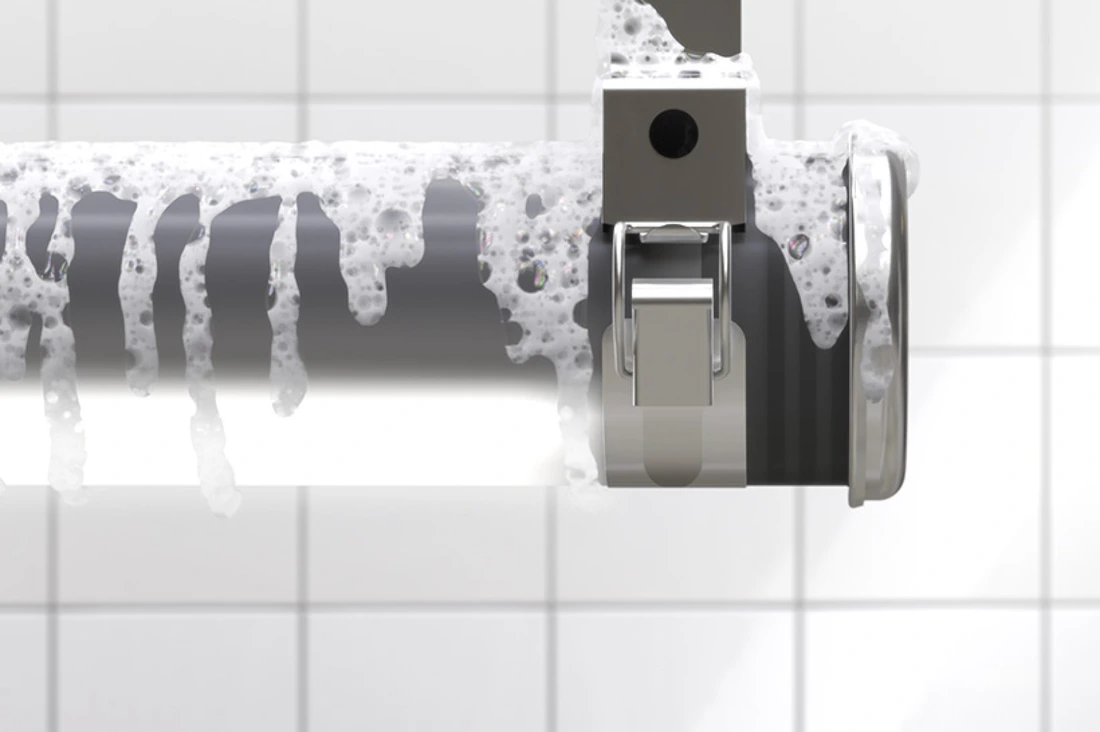

Suitable for food grade conditions

Its reinforced stainless steel end-caps and fixing straps, combined with its composite diffuser protected from corrosive substances by co-extruded PMMA, ensure exceptional resistance against the detergents used in a food environment, and the acid vapours, oils and solvents used in industry.

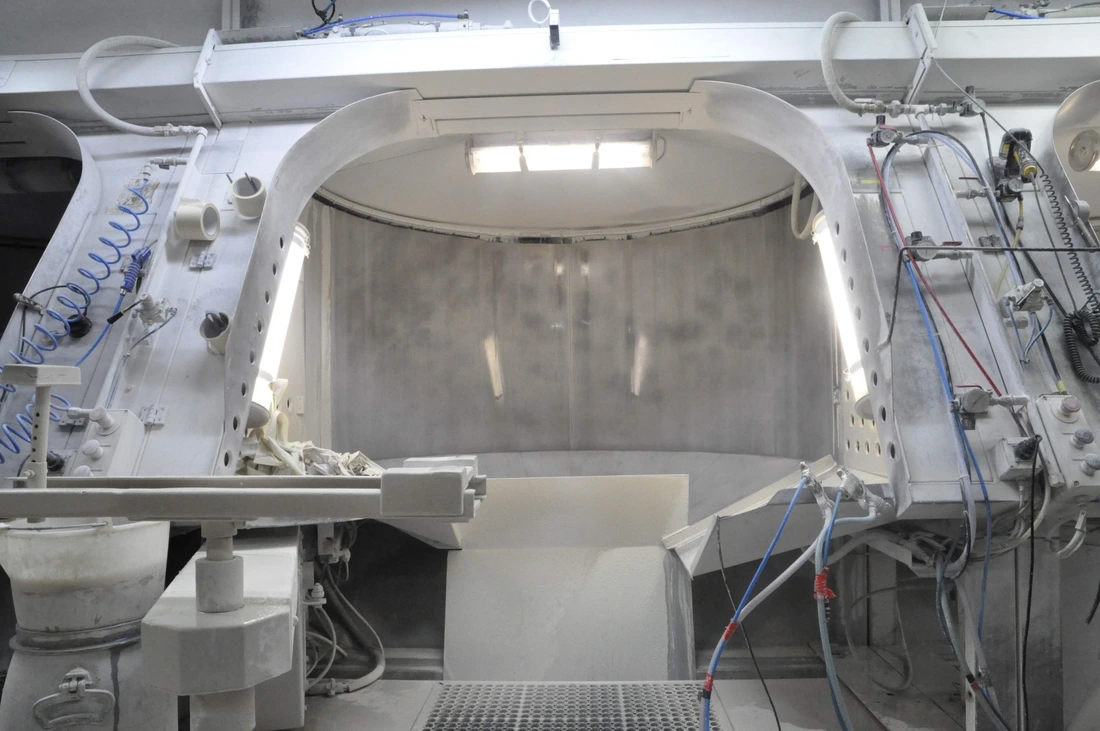

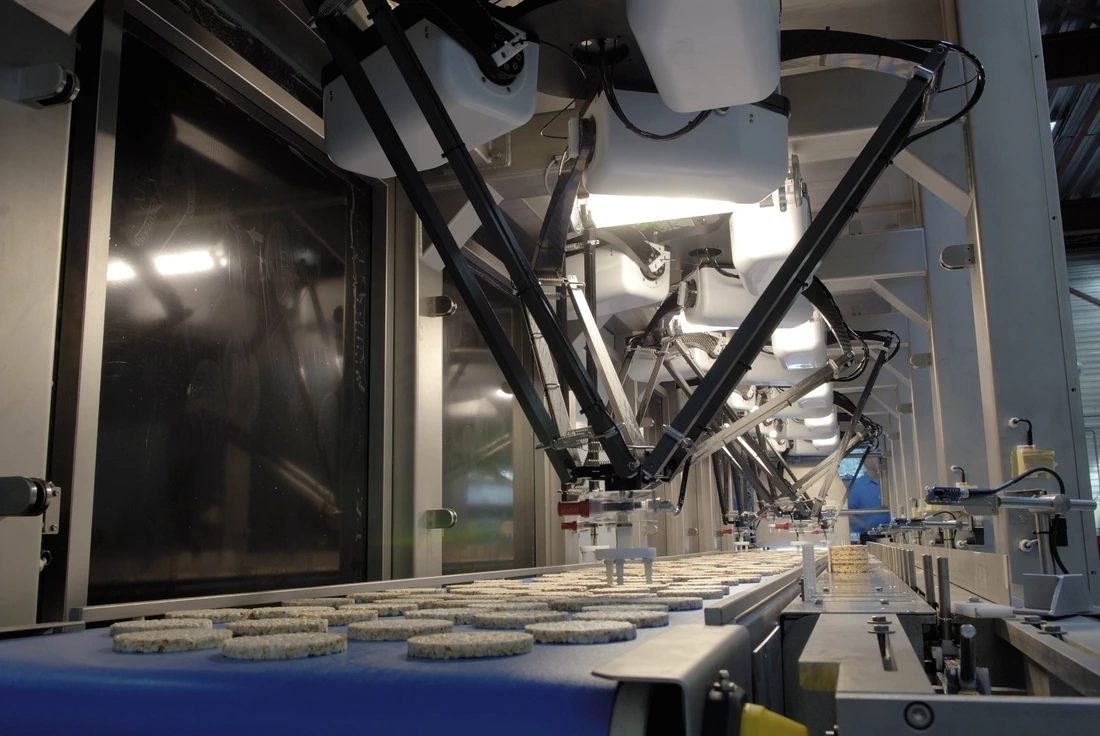

Applications of luminaires by the name Foucault 24V DC

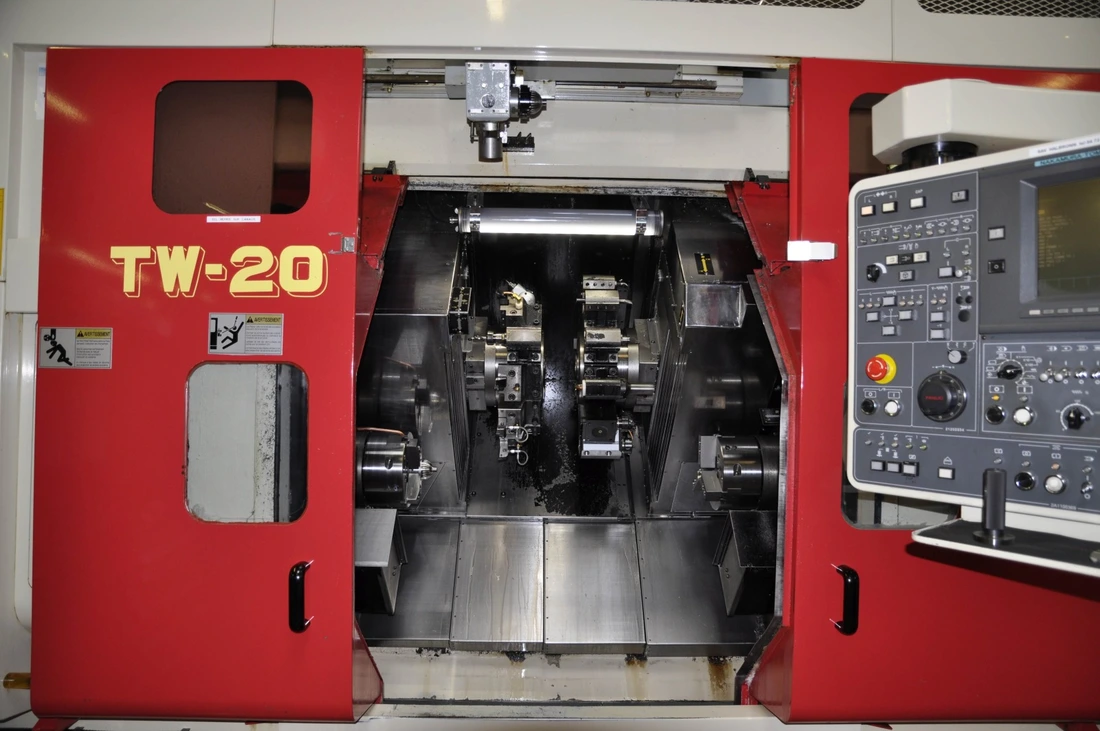

  • Machine tool lighting
  • Mechanical industry: milling and lathe lighting
  • Wood transformation: lighting in cutting and crushing areas
  • Automotive: lighting in automated assembly zones

  • Bakery: lighting for packaging machines
  • Cold meats industry: lighting in rotating machines
  • Chocolate works: lighting for packaging lines

  • Maritime transport: container lighting
  • Ship lighting: in the engine room

Our services

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year warranty, no matter how tough the conditions

Valid even for 24/7 use at the product’s maximum operating temperature, reflecting our unfailing commitment to our customers!

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Top-up lighting versions

CRI 80, 4000K

Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
400 430 FOU70 24V 450 400-840 POME 113LN 34035315 3 Data sheet Plan STEP DS .TXT Download all
600 575 FOU70 24V 575 600-840 POME 113LN 34035327 4 Data sheet Plan STEP DS .TXT Download all
800 715 FOU70 24V 700 800-840 POME 113LN 34035316 6 Data sheet Plan STEP DS .TXT Download all
1200 995 FOU70 24V 1000 1200-840 POME 113LN 34035309 8 Data sheet Plan STEP DS .TXT Download all
1600 1275 FOU70 24V 1300 1600-840 POME 113LN 34035310 12 Data sheet Plan STEP DS .TXT Download all

Reinforced versions

CRI 80, 4000K

Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
800 430 FOU70 24V 450 800-840 POME 113LN 34035306 6 Data sheet Plan STEP DS .TXT Download all
1200 575 FOU70 24V 575 1200-840 POME 113LN 34035307 8 Data sheet Plan STEP DS .TXT Download all
1600 715 FOU70 24V 700 1600-840 POME 113LN 34035308 12 Data sheet Plan STEP DS .TXT Download all


Coextruded polycarbonate/ PMMA housing with high chemical resistance POME
Polycarbonate housing PO
End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

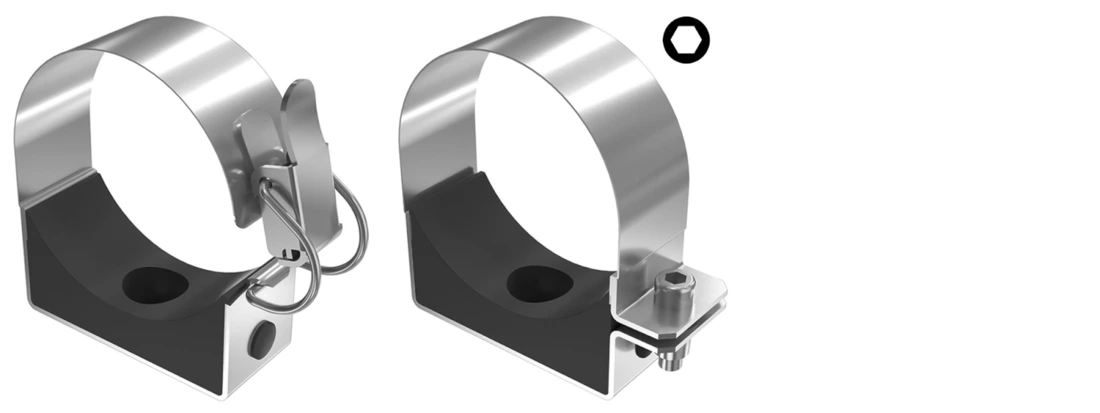

Fixing straps

Fixing straps -
Fixing straps with HSHC screw BAV

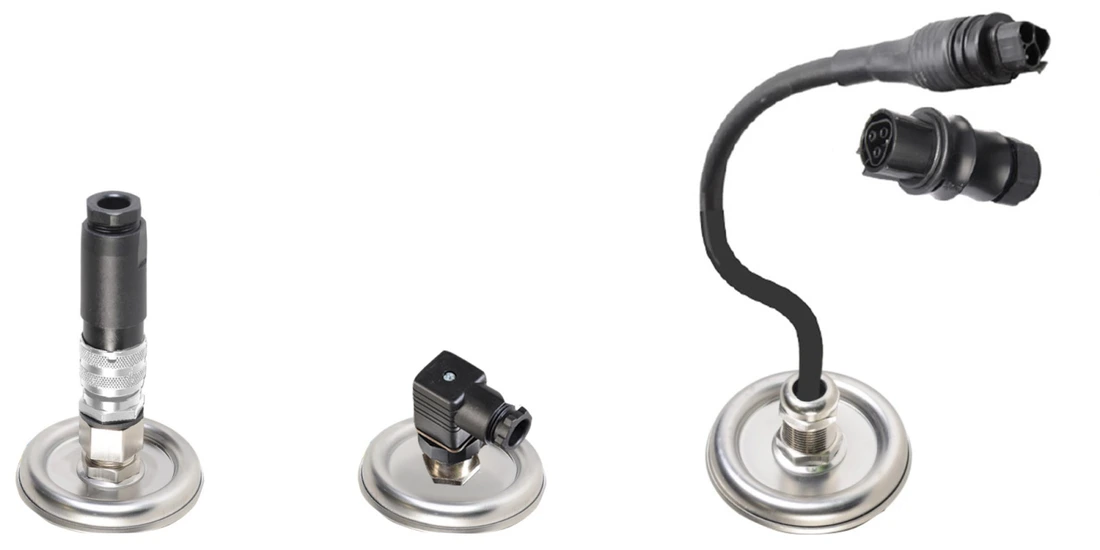

Disconnectable plugs

IP68/69K quick-lock plug with threaded ring (capacity: Ø8 to 10 mm) PS2
IP65 angular socket for screw locking (capacity: Ø6 to 13 mm) PB2

Color temperature

3000K 830
4000K 840
Magnetic fixings kit for 2 fixing straps (320N per magnet) PU45080
Kits for APSAD compliance
2 x 20 cm  304L stainless steel extensions PU44277
2 x 20 cm  316L stainless steel extensions PU47378
2 x 5 cm  304L stainless steel extensions PU44278
2 x 5 cm  316L stainless steel extensions PU45880
1m HO7-RNF pre-wired cable 2x1,5²
Stripped free end CAB0173
Wieland® plug IP68/IP69K (capacity : Ø6-10mm) CAB0174
Wieland® plug and Y spliter for loop-in/out CAB0175

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 50 000 h L80/B10 at max. operating temperature
  • Photobiological hazard : None (RG0)
  • Special satin-finish housing for LED
  • Light mixing chamber
Heat management
  • Aluminium heat sink
Control gear
  • Constant current driver (non-dimmable)
Supply voltage
  • 24V DC +/-10%
Electrical class
  • Class III
Operating temperature
  • -20°C to +40°C

  • With nickel-coated brass cable gland for cable Ø 5-12 mm
  • To a 3 x 2,5 mm² disconnectable terminal block
  • 2 stainless steel fixing straps with spring clip and EPDM support pad, with variable center distance and 360° orientation
LED engine maintenance
  • Maintenance without tampering with the cable by removal of the end cap without cable entry
  • Close'N Connect Patented system with automatic electrical connection/disconnection on closure
  • Easily removable LED modules and driver
  • Closing by tightening the nut on the cable gland

  • Special polycarbonate housing protected by a coextruded PMMA layer
End caps and fixing straps
  • 304L stainless steel
  • Peroxide-cured EPDM
Method of construction
  • One-piece housing with reinforced ingress protection by radial expansion of the seal

  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C
Vibration resistance
  • Meets the severe application requirements of standard EN 60598-1 (tested according to IEC 60068-2-6)
