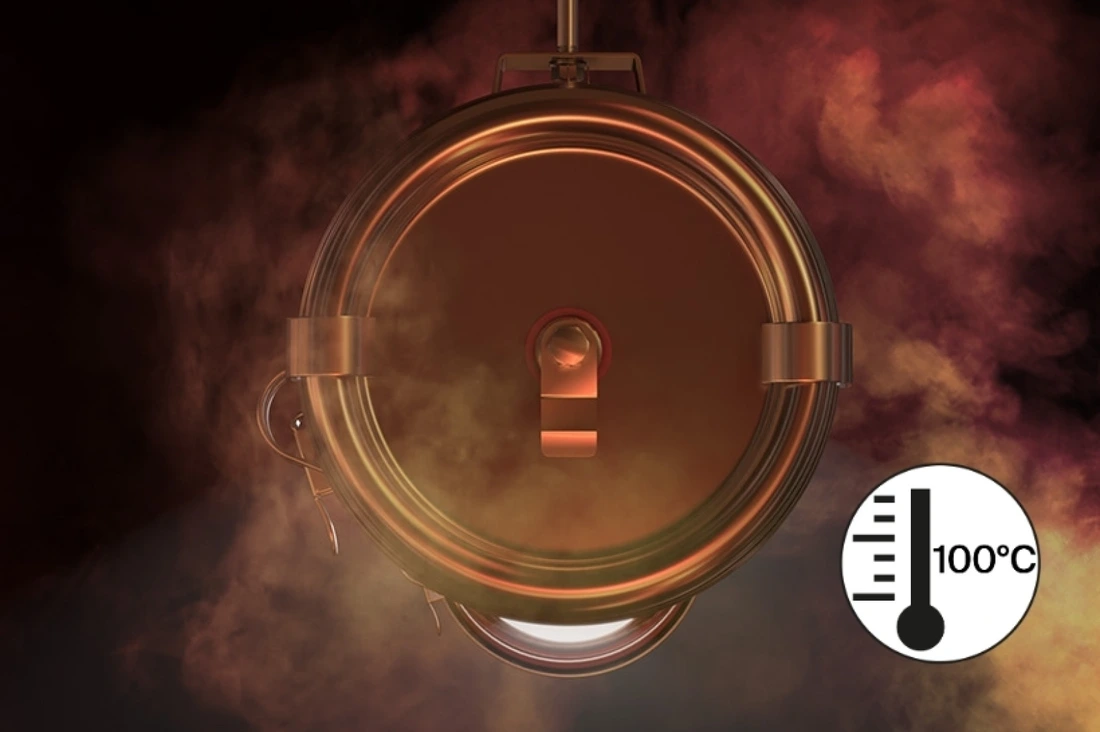

Ø133 borosilicate-glass tubular luminaire for very-high-temperature environments up to 100 °C

In the most demanding process areas, innovation only delivers value when it lasts. To ensure reliable, high-quality lighting in ambient temperatures of up to 100 °C, the Pauli HT X-Heat uses the most robust LEDs available, mounted on a fully serviceable gear tray and powered by a specially calibrated remote electronic driver. Its glass enclosure is permanently stable and unaffected by thermal shock. The Pauli HT X-Heat withstands acidic vapours and high-temperature liquid splashes while maintaining its performance for several decades.

The Pauli HT X-Heat luminaire meets the most extreme requirements encountered in industrial process areas

Chemical and sealing conditions

Highly corrosive and abrasive environments

Splashes of scalding liquids

Flame resistance and non-combustibility

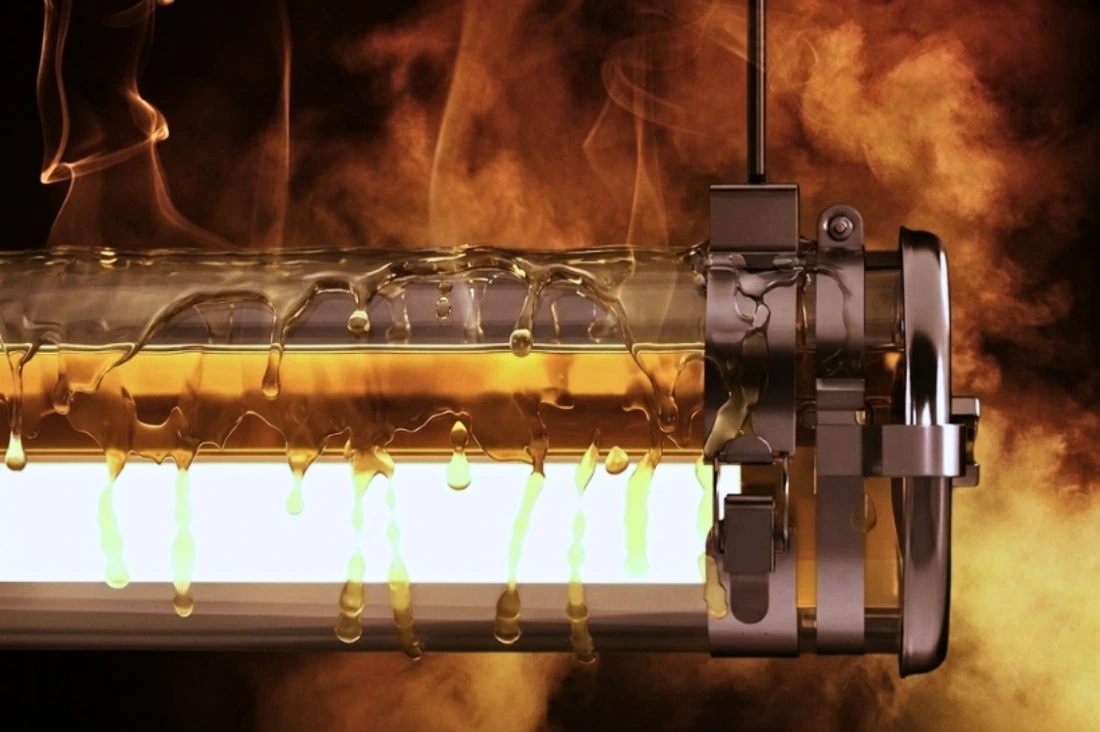

Oils and hydrocarbons

Extreme dust accumulation and fouling

Very hot, humid or dry atmospheres

High-pressure jet washing

Thermal, mechanical and electrical stresses

Continuous operation at temperatures up to 100 °C

Thermal shocks

Repeated switching cycles

Mechanical impacts

Severe, repeated vibration

Voltage spikes up to 4 kV and overvoltage events

Proven service life under intensive operation at up to 100 °C

Ultimate IP68/IP69K sealing, permanently stable materials and heat-resistant components: the Pauli HT X-Heat brings together Sammode’s full expertise for applications up to 100 °C. Its one-piece design combines borosilicate glass, an internal satin-silicone diffuser for high visual comfort and heavy-duty LED modules, ensuring complete reliability and minimal maintenance, even in continuous 24/7 operation at 100 °C.

Remote electronics for assured reliability

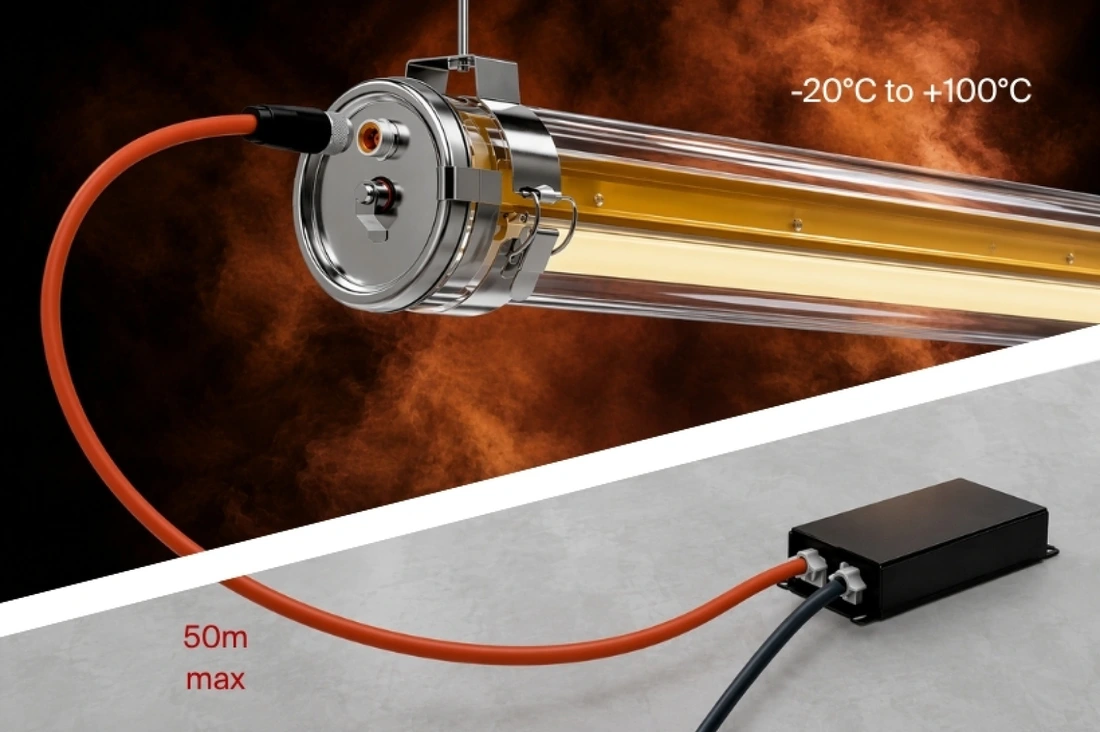

The Pauli HT is supplied with its dedicated LED driver, mounted on a gear tray for remote installation outside the hot zone, up to 50 metres from the luminaire. This high-reliability driver is unaffected by temperature fluctuations and electrical disturbances and ensures up to 10 years of continuous, maintenance-free operation. A pre-wired version with high-temperature silicone cable is available for easier installation.

100% stainless steel and glass, guaranteeing unfailing chemical resistance

Exceptional long-term performance in the harshest conditions, thanks to an enclosure resistant to corrosion and abrasion. It comprises a borosilicate-glass body and reinforced 316L stainless-steel mechanical components, including the cable gland.

Upgrade your luminaires without replacing them

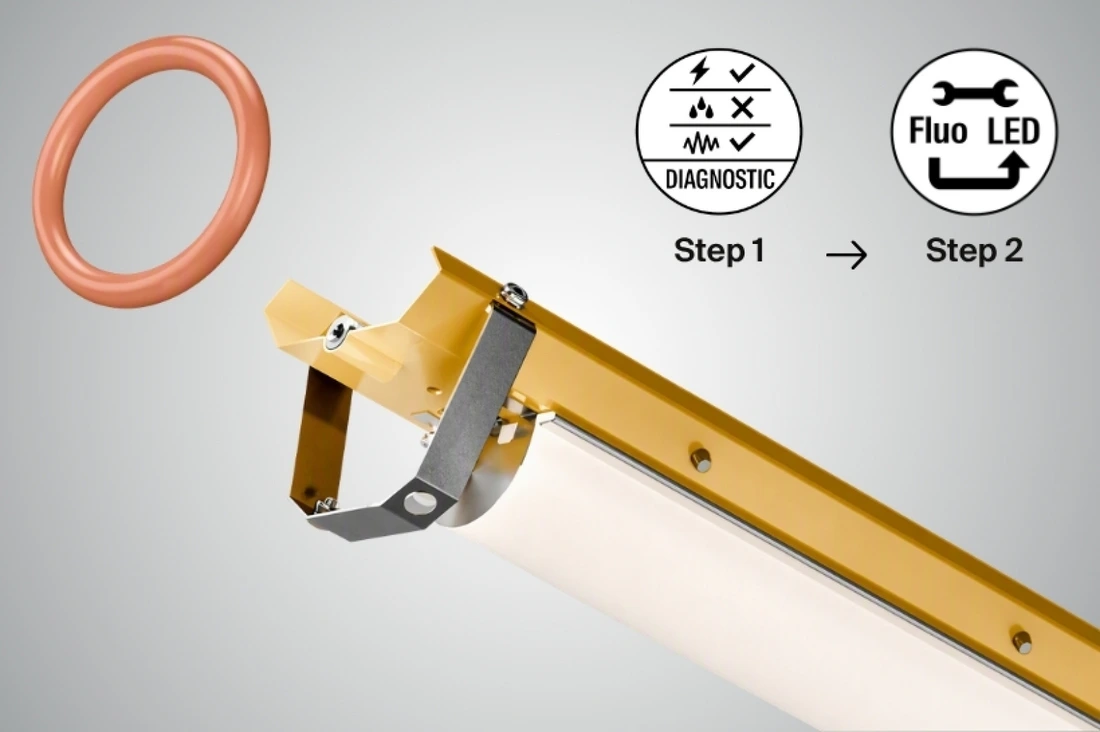

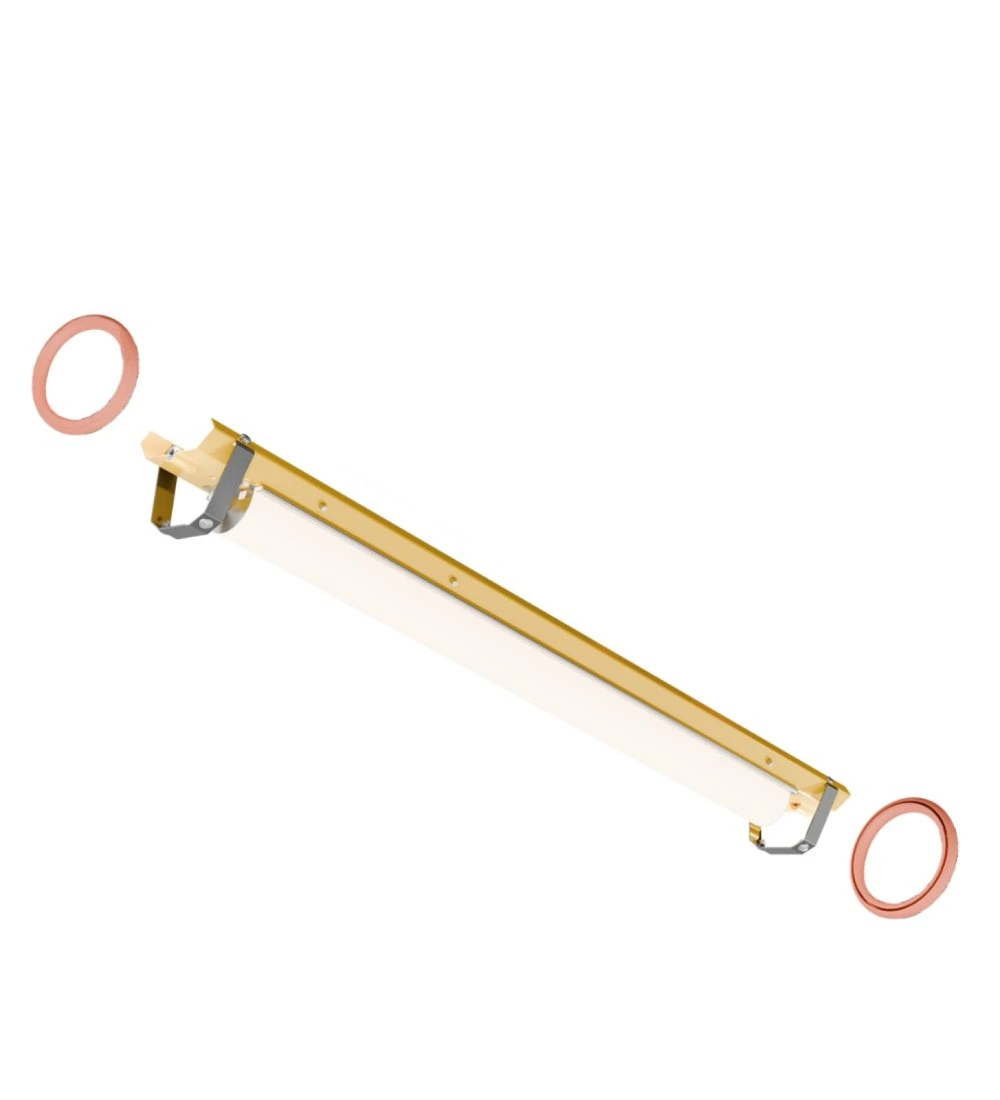

Our dedicated LED gear trays allow legacy fluorescent installations to be converted to LED while retaining the existing stainless-steel and glass enclosure. This cost-effective, upgradeable solution modernises and extends the service life of the installed base, reduces capital expenditure and enables refurbishment work without interrupting production.

Installed power reduced by a factor of three!

Unlike fluorescent sources, properly integrated and calibrated long-life LEDs can retain their full efficacy at high temperatures. Our X-Heat models therefore deliver outstanding performance: 100% luminous flux immediately at switch-on and as much light as two T8 tubes, while consuming three times less power.

Applications of luminaires by the name Pauli HT X-Heat

  • Lighting for industrial hoods and ovens
  • Paper industry: lighting for drying areas

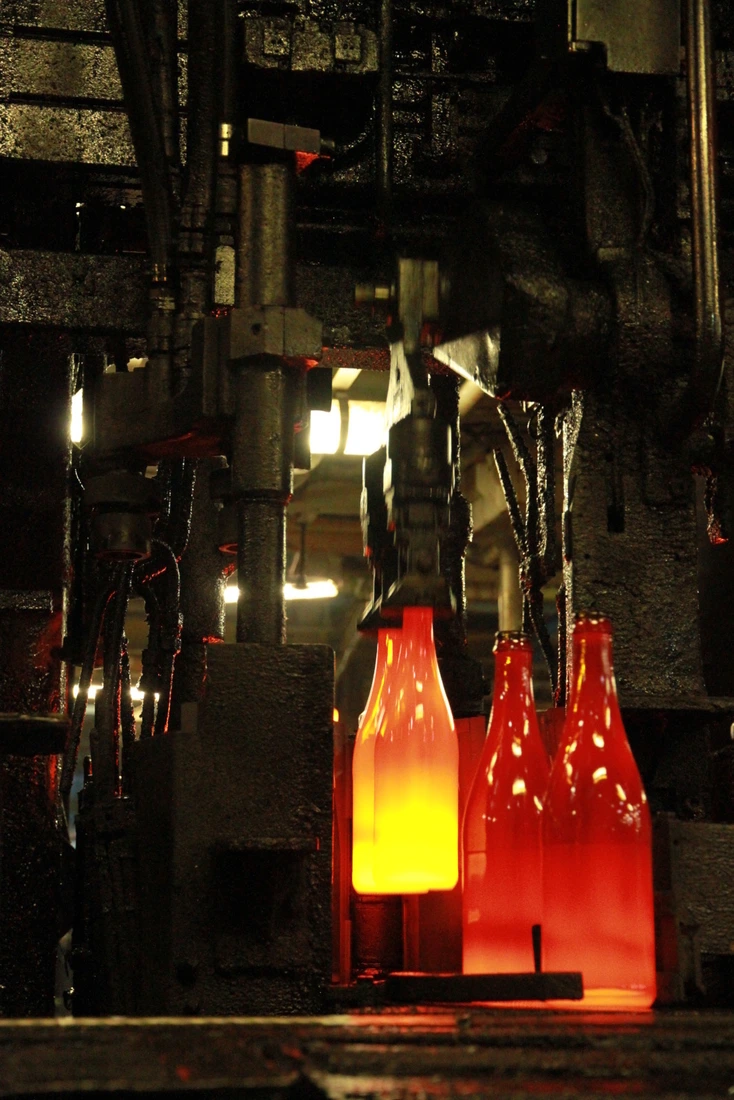

  • Glass works: lighting in glass casting areas
  • Ceramic works: lighting around firing areas

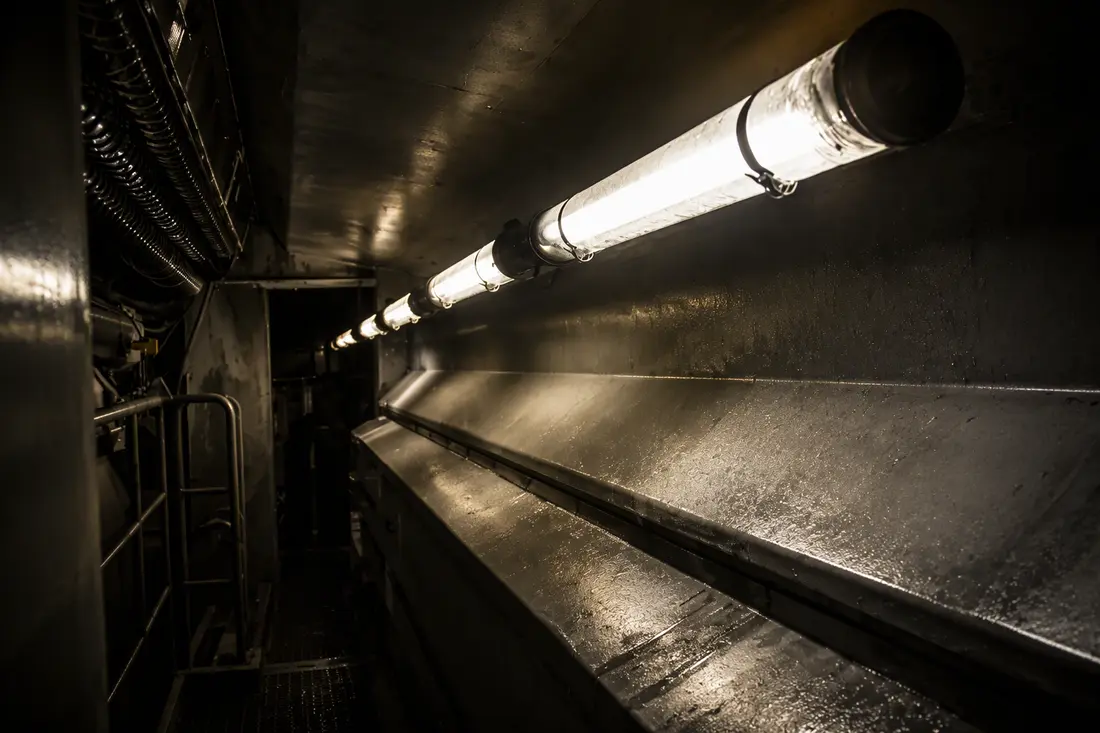

  • Subway station: smoke extraction duct lighting

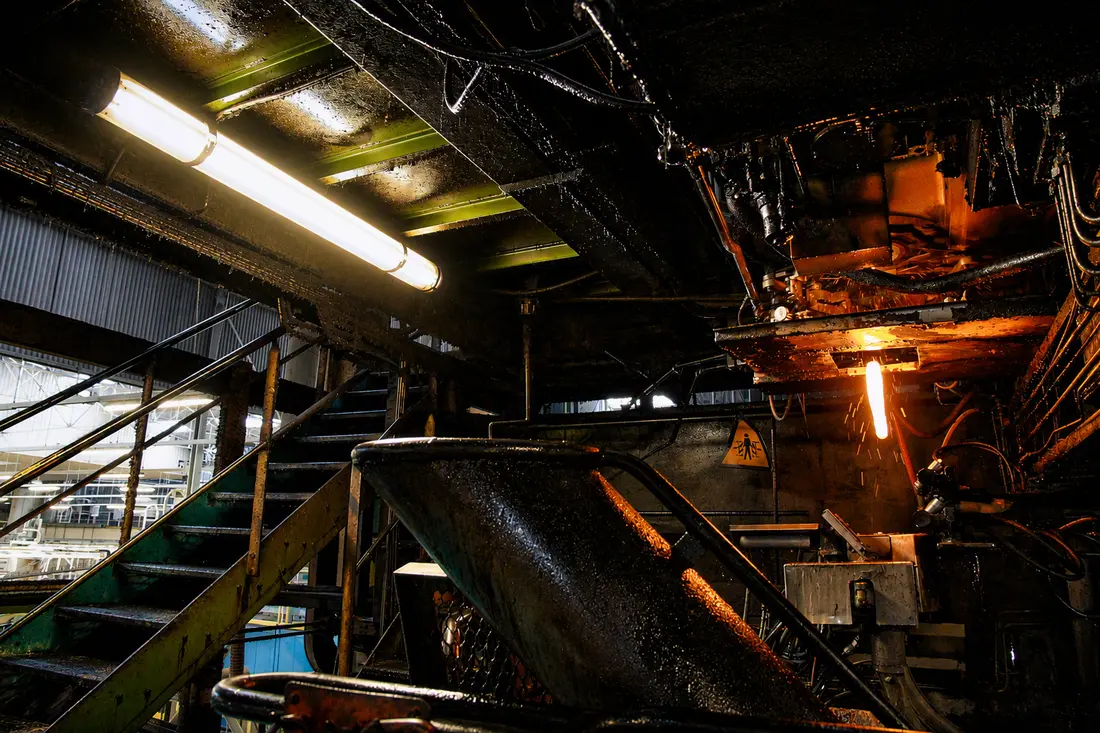

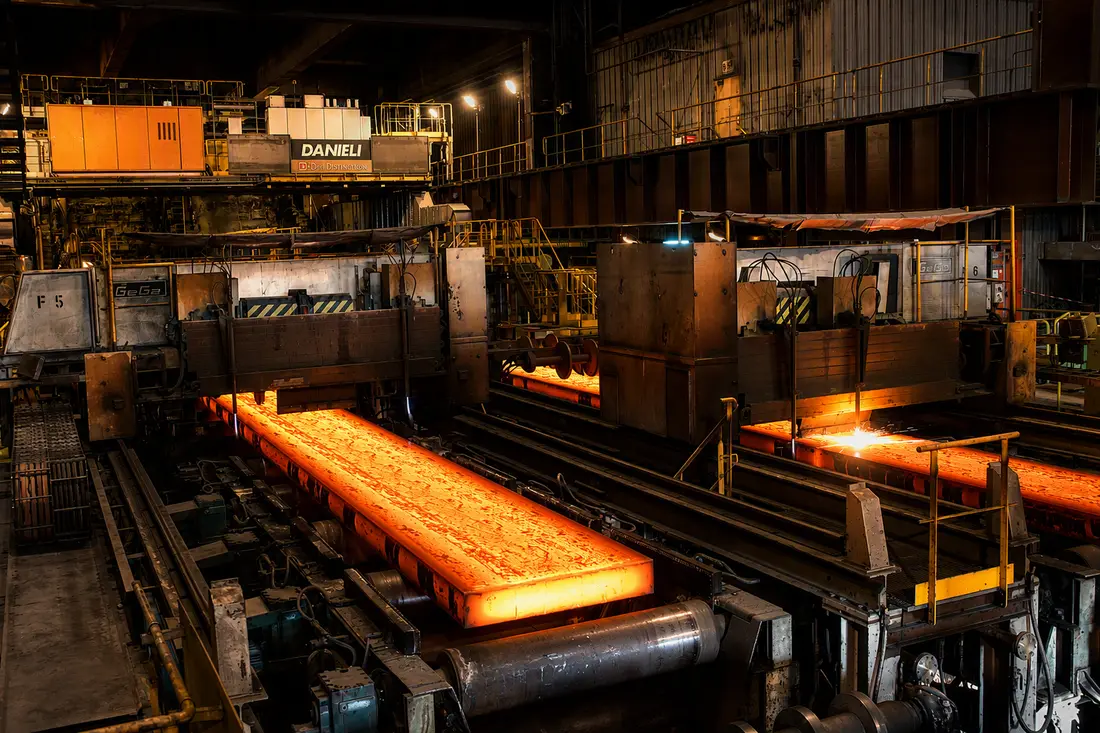

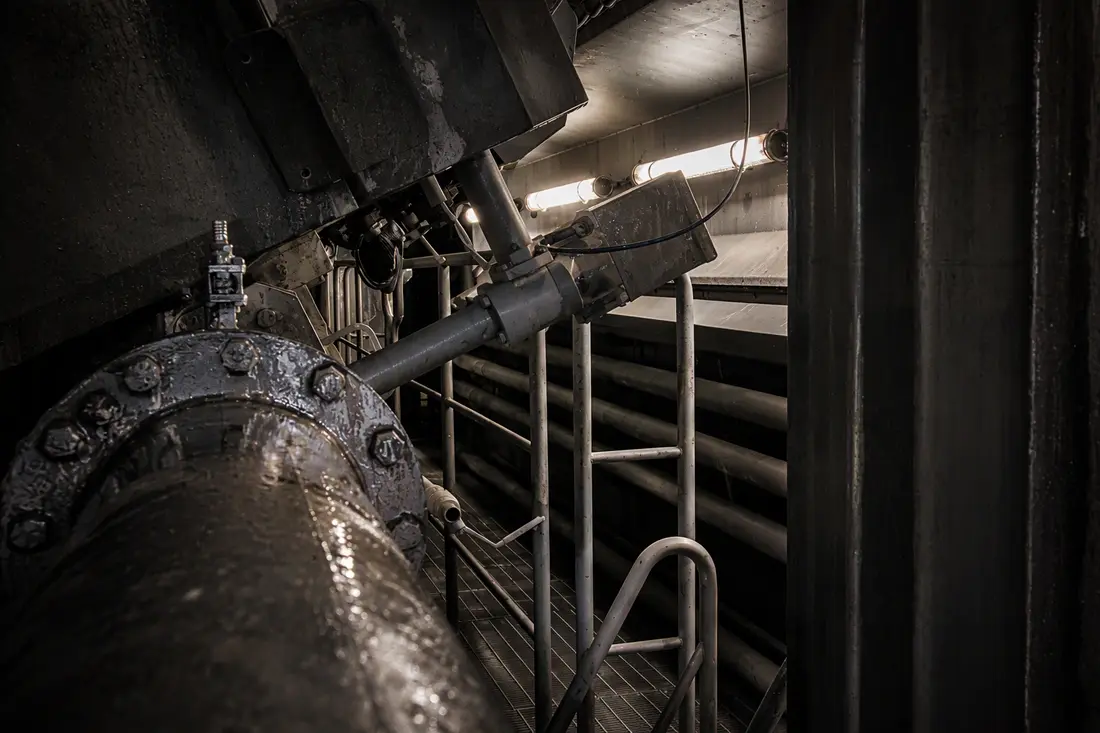

Product shown in situ

Our services

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year warranty, no matter how tough the conditions

Valid even for 24/7 use at the product’s maximum operating temperature, reflecting our unfailing commitment to our customers!

100% Removable and repairable on site

Even after 15 or 20 years’ use, every single part we supply can be easily replaced, with no need to send it back to us. No one else offers a guarantee of lifelong lighting solutions!

Main references and downloads

Product brochure

Eulumdat (LDT)

Manual

Certificate
Download all

LED version compatible with temperatures of up to 100°C, ultimate chemical resistance

CRI80, 4000K. Driver on a remote gear tray, up to 50 m (supplied).

Ø (mm)Flux (lm)*L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 1750 697 PAU100 HT 700 1750-840 PY 113INOX MR BRS 35150010 16 Data sheet Plan STEP DS .TXT Download all
100 3500 1307 PAU100 HT 1300 3500-840 PY 113INOX MR BRS 35150009 30 Data sheet Plan STEP DS .TXT Download all
100 4375 1607 PAU100 HT 1600 4375-840 PY 113INOX MR BRS 35150008 37 Data sheet Plan STEP DS .TXT Download all
133 2300 677 PAU133 HT 700 2300-840 PY 113INOX MR BRS 36150008 21 Data sheet Plan STEP DS .TXT Download all
133 4600 1287 PAU133 HT 1300 4600-840 PY 113INOX MR BRS 36150009 40 Data sheet Plan STEP DS .TXT Download all
133 5750 1587 PAU133 HT 1600 5750-840 PY 113INOX MR BRS 36150010 50 Data sheet Plan STEP DS .TXT Download all

Intermediate cabling

between the tubular luminaire and the remote driver, high temperature cable. Order separately for this service.

Cord length (m)DesignationCode Data sheet Plan STEP DS .TXT Download all
1 CABL INTER FLAM-RED SHIELD 1M CAB0216 Data sheet Plan STEP DS .TXT Download all
3 CABL INTER FLAM-RED SHIELD 3M CAB0217 Data sheet Plan STEP DS .TXT Download all
6 CABL INTER FLAM-RED SHIELD 6M CAB0218 Data sheet Plan STEP DS .TXT Download all

LED gear tray compatible with temperatures of up to 100°C, refurbishment of existing installations

CRI 80, 4000K, to be installed in an existing housing in good condition

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 1750 697 PAU100 KIT TRAY HT 700 1750-840 35150013 16 Data sheet Plan STEP DS .TXT Download all
100 4375 1607 PAU100 KIT TRAY HT 1600 4375-840 35150012 37 Data sheet Plan STEP DS .TXT Download all
100 3500 1307 PAU100 KIT TRAY HT 1300 3500-840 35150011 30 Data sheet Plan STEP DS .TXT Download all
133 2300 677 PAU133 KIT TRAY HT 700 2300-840 36150012 21 Data sheet Plan STEP DS .TXT Download all
133 4600 1287 PAU133 KIT TRAY HT 1300 4600-840 36150011 40 Data sheet Plan STEP DS .TXT Download all
133 5750 1587 PAU133 KIT TRAY HT 1600 5750-840 36150013 50 Data sheet Plan STEP DS .TXT Download all

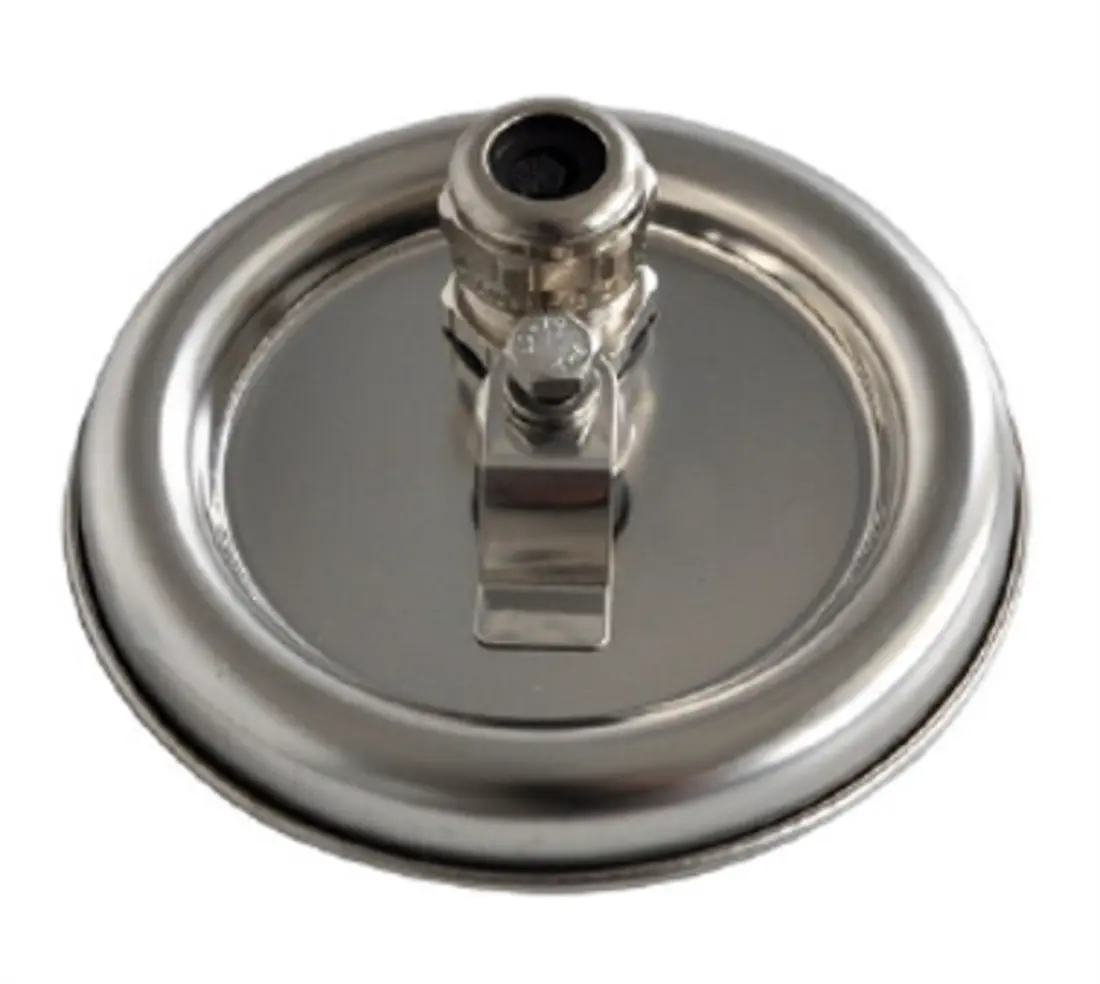

Entry cap

This part must be ordered separately, depending on the assessment of the existing equipment.

Ø (mm)EntryMaterialDesignationCode Data sheet Plan STEP DS .TXT Download all
100 113 Polyamide ENTRY CAP D100 SCREW SIL 113 HT MR 50000645 Data sheet Plan STEP DS .TXT Download all
100 113LN Nickel-coated brass ENTRY CAP D100 SCREW SIL 113LN HT MR 50000646 Data sheet Plan STEP DS .TXT Download all
100 113INOX 316L stainless steel ENTRY CAP D100 SCREW SIL 113INOX HT MR 50000647 Data sheet Plan STEP DS .TXT Download all
133 113 Polyamide ENTRY CAP D133 SCREW SIL 113 HT MR 50000648 Data sheet Plan STEP DS .TXT Download all
133 113LN Nickel-coated brass ENTRY CAP D133 SCREW SIL 113LN HT MR 50000649 Data sheet Plan STEP DS .TXT Download all
133 113INOX 316L stainless steel ENTRY CAP D133 SCREW SIL 113INOX HT MR 50000650 Data sheet Plan STEP DS .TXT Download all

Cable gland

Polyamide capacity Ø5-14mm 113
Nickel-coated brass capacity Ø5-8 mm 113LN
Stainless steel 316L capacity Ø5-14mm 113INOX

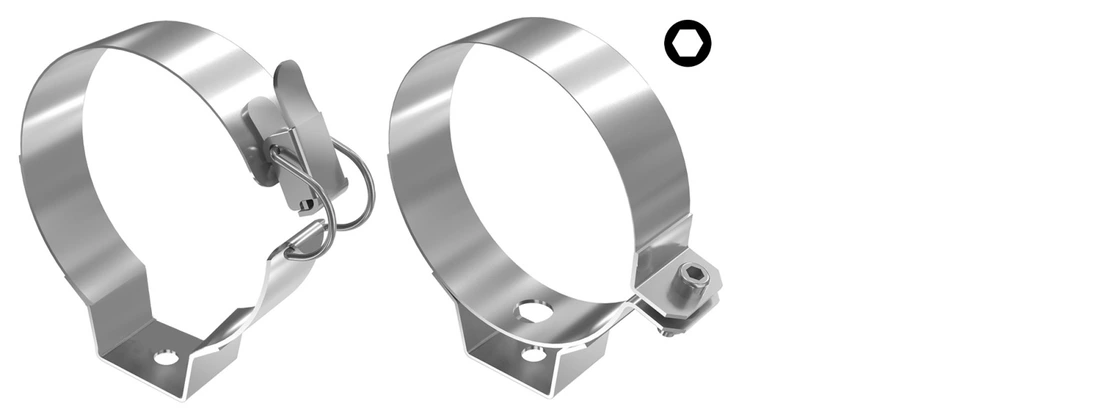

Fixing straps

Reinforced fixing straps BRS
Reinforced fixing straps with HSHC screw BRV

Materials

End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Colour temperature

4000K 840

Lighting management

Non dimmable -
Electronic gear unit for DALI 2 dimming RD

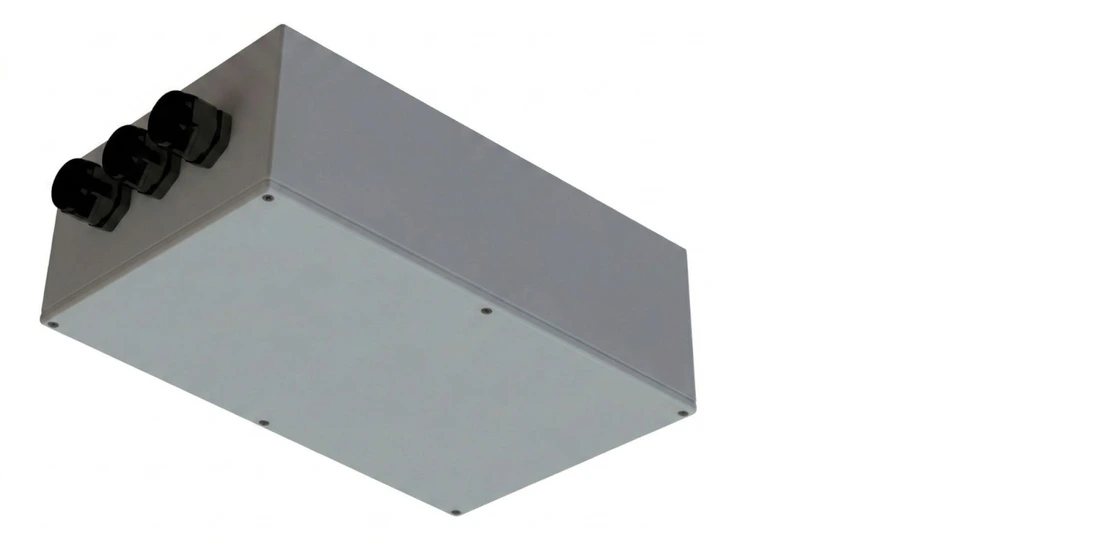

IP65 housing for remote driver gear tray
Equipped with 3 polyamide cable glands, ø5-12 mm, polycarbonate, dimensions 275x160x90 mm 17500274
Folded 316L stainless steel protective cover
Length 800mm CP00565
Length 1100mm CP00596
Length 1400mm CP00566
Length 1700mm CP00567
316L stainless steel column mounting fixing strap
2 adapters ø1"1/4 (=42mm) CP00571
2 adapters ø1"1/2 (=49mm) CP00572
2 adapters ø2" (=60mm) CP00573

Technical specifications

Light source

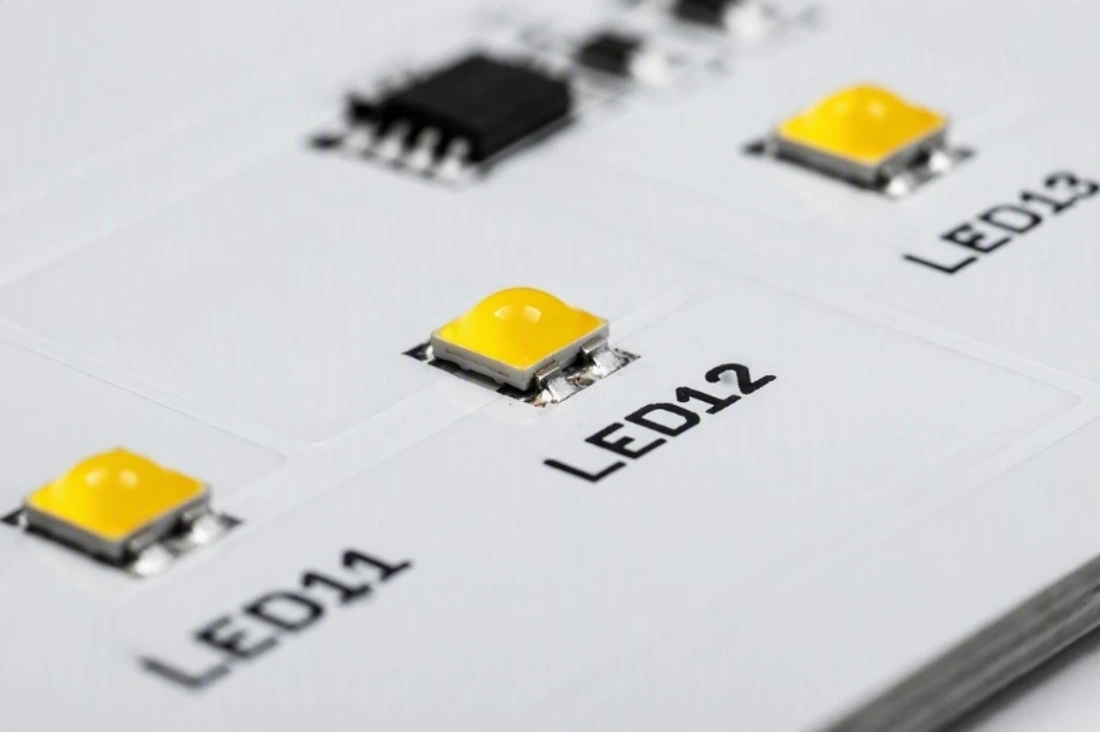

  • High efficiency replaceable LED modules for high temperature (IRC>80, 2 SDCM)
  • 50 000 h L80/B10 at max. operating temperature
Optics
  • High-temperature satin-finish silicone optical diffuser
Lighting comfort
  • UGR ≤ 28
Heat management
  • LED modules on an aluminium base, with advanced heat dissipation properties.
Control gear
  • Includes a remote driver fitted on an IP20 gear tray, to be installed 50 m or less from the luminaire and at a maximum ambient temperature of 50°C, used to supply constant current to a single luminaire.
  • High-reliability driver with constant-current output, mechanically and thermally reinforced, 10-year maintenance-free period, including when used intensively
  • Resistance to overload: 320 V AC, 48 h
  • Supports voltage spikes < 4 kV
  • Compatible with neutral TN, TT and IT arrangements with no limitations
  • Electronic compatible with central source
Driver supply voltage
  • 220-240V ±10% 0/50/60Hz
Electrical class
  • Tubular: Class III - Driver plate: Class I
Operating temperature
  • Tubular : -20°C to +100°C
  • Driver plate : -20°C to +50°C

Connection
  • Via a 316L stainless steel cable gland for cables with a diameter of 5 to 14 mm, on a 3 x 2.5 mm² disconnectable terminal block
  • A shielded cable is strongly recommended to avoid any electromagnetic line disturbance
  • A loop can be created on the gear plate's power supply.
Mounting
  • Attachement with 2 bolt-fitted stainless steel straps with variable center distance and 360° orientation
LED engine maintenance
  • Mechanical parts and electronic subassemblies easily to dismantle and replace
  • Easily removable LED modules and driver
  • Opening by releasing the 2 closing screws, removing the end cap and extracting the gear tray

Housing
  • Borosilicate-glass
End caps and fixing straps
  • 316L stainless steel
Gaskets
  • Silicone
Method of construction
  • Housing in one piece with high mechanical and chemical resistance
  • Long-lasting imperviousness by axial screw fitting

Waterproofness
  • Tubular: IP66/68/69K - Driver plate : IP20
Resistance to IK shocks
  • Tubular: IK07
Fire resistance
  • 960°C
Vibration resistance
  • Tubular: Meets the severe application requirements of standard EN 60598-1 (tested according to IEC 60068-2-6)
  • Tubular: The mechanical design has been tested according to railway standard IEC 61373 (Rolling stock equipment - Shock and vibration tests)

  • Mechanical parts made in our Vosges factory (France)
  • Spare parts and sub-assemblies available for a minimum of 30 years.

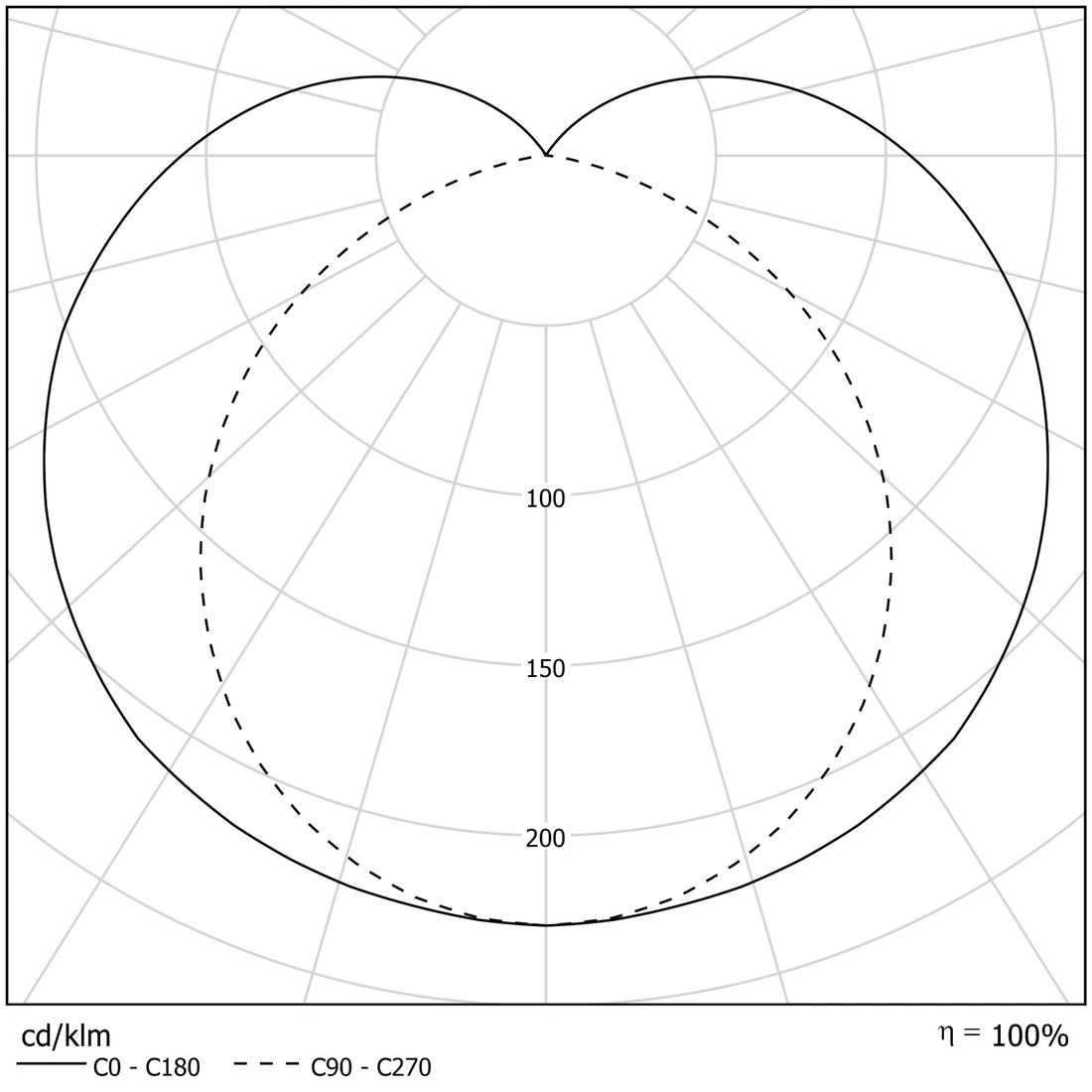

Diameter 100

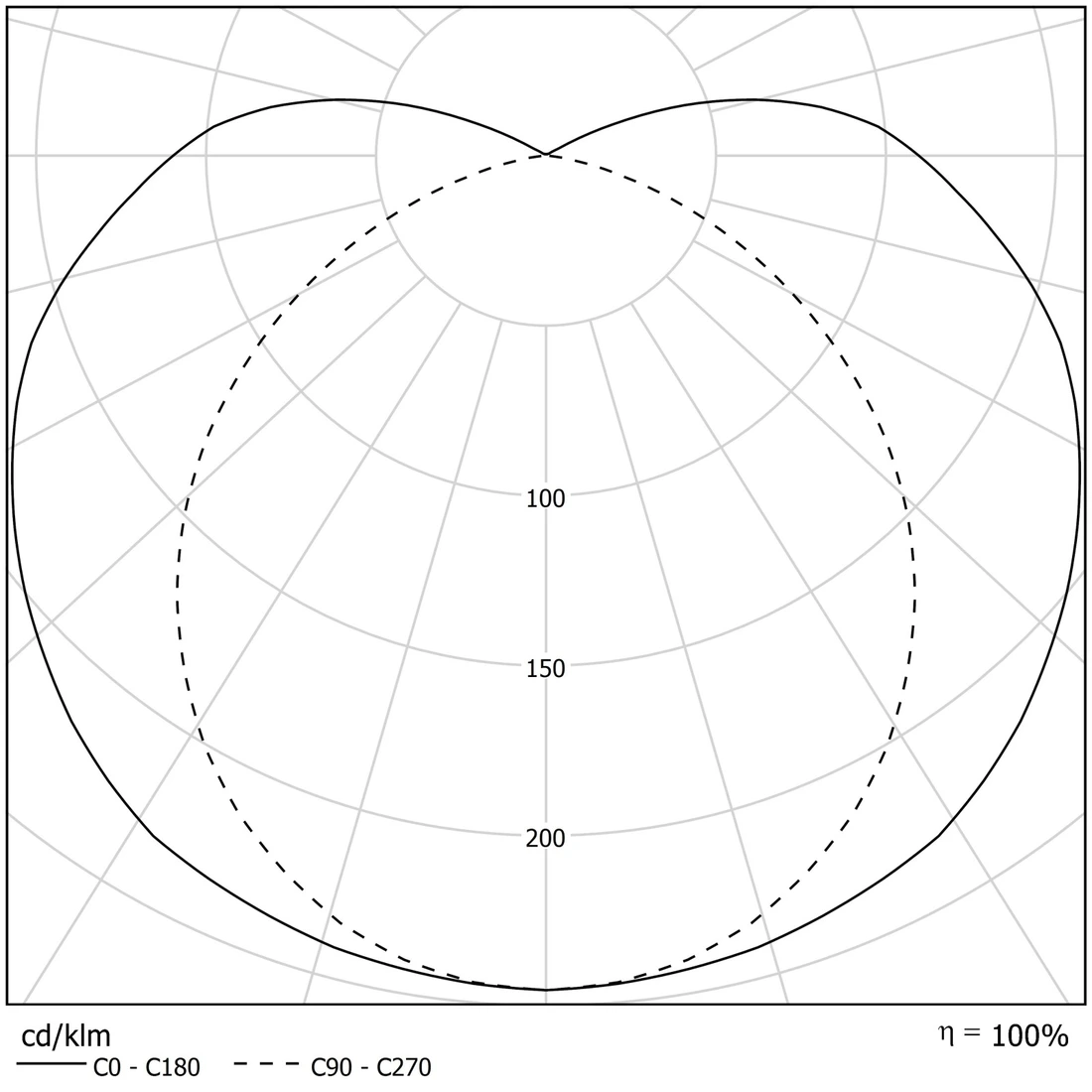

Diameter 133
