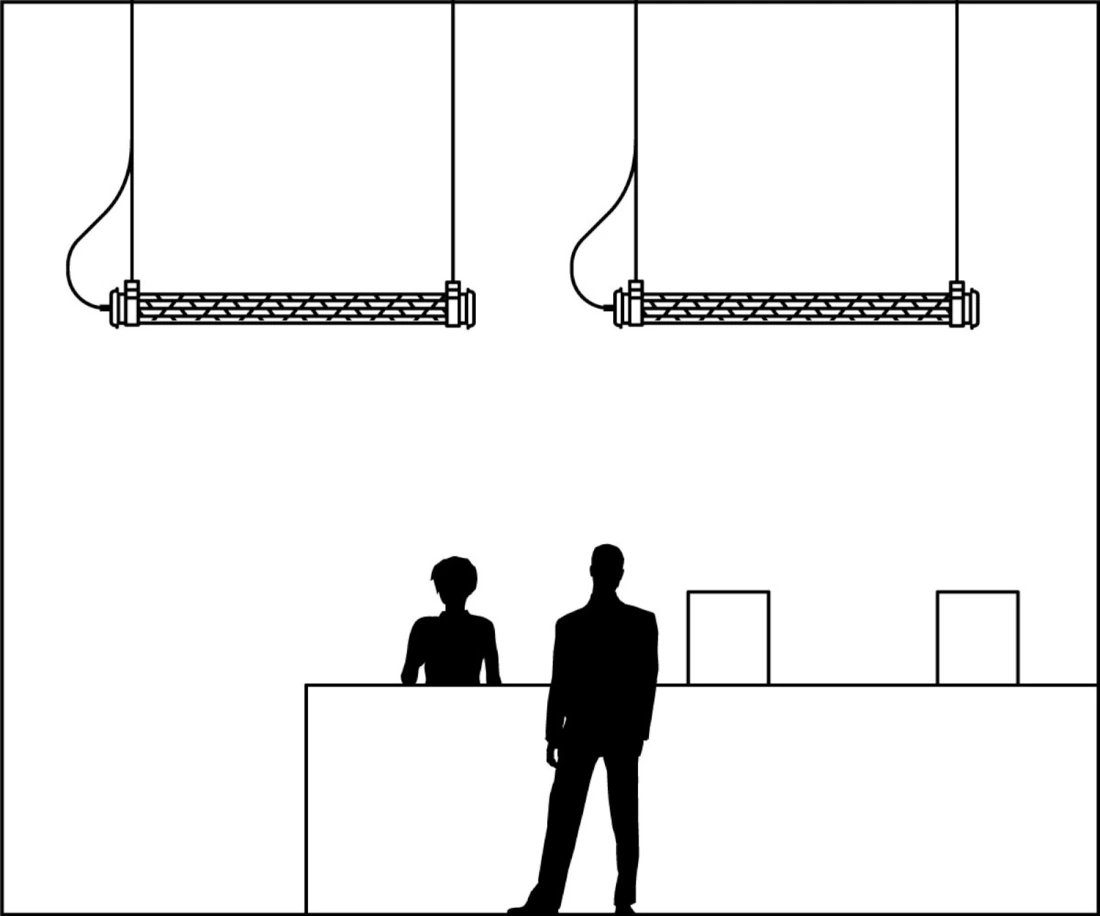

Whether fitted horizontally or vertically, the Belleville suspended light fitting can illuminate the entrance hall of a block of flats or the lobby of an office building, the bar counter in a hotel or the patio of a restaurant, showrooms in a large store or the car park of a shopping mall.

LED suspended light fitting for diffuse 360° lighting, ø133

Thanks to light diffused over 360°, the Belleville suspended light fitting can flatter any space with a pleasant and yet well-lit glow. The reinforced flux version can light up large areas while guaranteeing visual comfort. The Belleville luminaire is both functional and well designed, making it ideal to highlight architectural sites.

A multi-purpose and yet decorative suspended light fitting

The Belleville luminaire is both flexible and multi-purpose, and can be fitted either vertically or horizontally thanks to a smart suspension kit. Configure your own custom luminaire by adapting the tube lengths, selecting spacing or opting for the ideal suspended light fittings to match the size of the location.

Perforated louvres with an industrial design

Sammode’s signature tube is contained in a metal housing with a resolutely contemporary feel. The Belleville’s perforated louvre was designed by the Normal Studio agency and reflects the industrial style of the famous district of Paris. The simple, straight, stainless steel louvre is available in a range of colours.

Diffuse LED lighting

The Belleville body diffuses light over 360°, providing a wide, well-light area with guaranteed visual comfort for users. This model is great for both small and large areas. The reinforced flux provides just the right amount of glare-free light.

Suspended light fittings for indoor/outdoor areas

Just like all designer Sammode luminaires in the Paname, Promenade, Originals and Lö ranges, the Belleville benefits from the brand’s industrial know-how. This model is solid, leaktight and durable, can withstand bad weather, impacts and UV radiation either indoors or outdoors and comes with a long-term warranty.

Stylish, functional and high-performance luminaires

Check out the industrial quality of a Sammode tubulaire in a high-end designer luminaire. This model combines Sammode technical expertise with the artistic input of Normal Studio, producing a both effective and great looking luminaire. Belleville suspended light fittings are ideal for illuminating any type of architectural project with their sleek and contemporary design.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year indoor-outdoor warranty

Architectural projects look to the long term, which is why Sammode commits to a 5-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Belleville 360° - Comfortable Flux

3000 K

Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
1875 995 BELLEVILLE 133 360° S 1000 1875-830 SUSP 80290016 32 Data sheet Plan STEP DS .TXT Download all
2500 1295 BELLEVILLE 133 360° S 1300 2500-830 SUSP 80290013 42 Data sheet Plan STEP DS .TXT Download all
3125 1595 BELLEVILLE 133 360° S 1600 3125-830 SUSP 80290031 52 Data sheet Plan STEP DS .TXT Download all

Belleville 360° - Reinforced Flux

3000 K

Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
3450 995 BELLEVILLE 133 360° S 1000 3450-830 SUSP 80290017 54 Data sheet Plan STEP DS .TXT Download all
4600 1295 BELLEVILLE 133 360° S 1300 4600-830 SUSP 80290032 71 Data sheet Plan STEP DS .TXT Download all
5750 1595 BELLEVILLE 133 360° S 1600 5750-830 SUSP 80290030 89 Data sheet Plan STEP DS .TXT Download all

End caps & fixing straps finish

End caps & straps painted Coal RAL7021 COAL

Grids and colors

Various choices in grids and colors : Refer to us

Fixing straps

Fixing straps -
Fixing straps with HSHC screw BRV
Fixing straps with tamper-resistant Torx screw BRVT

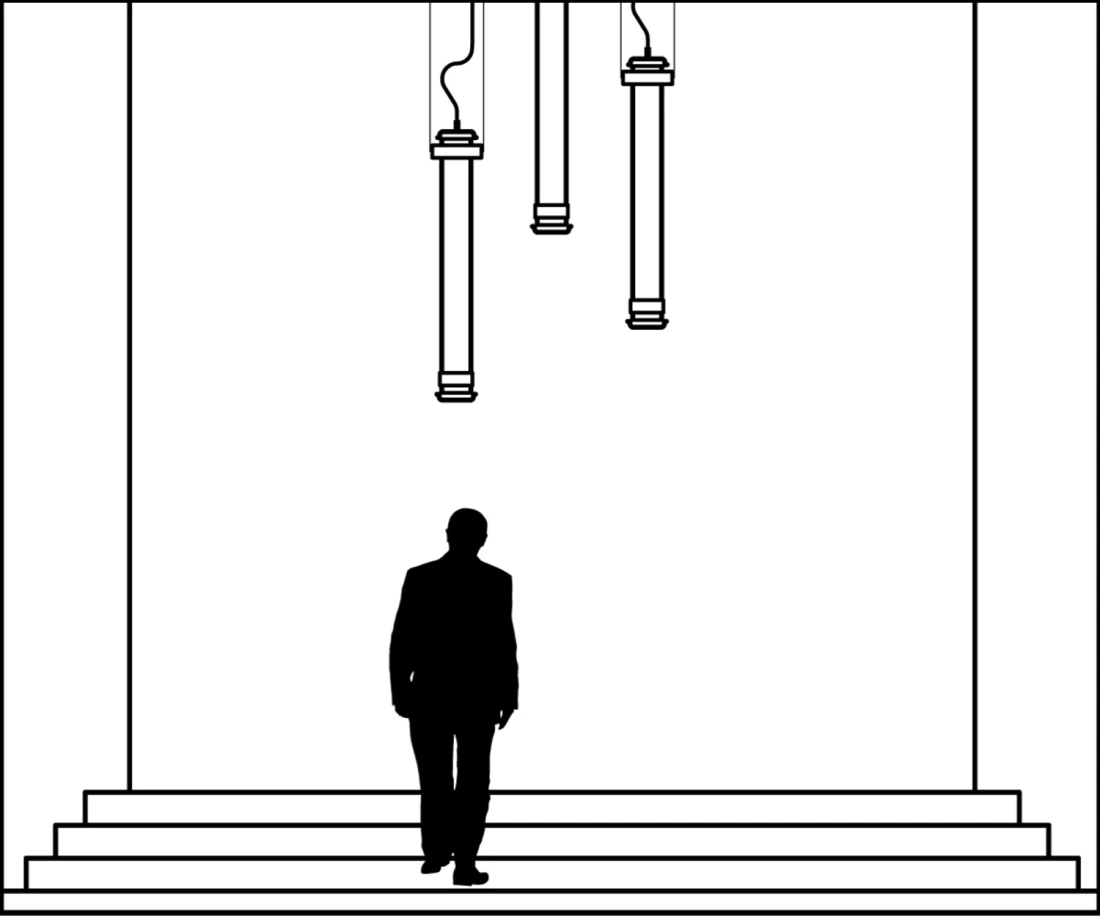

Vertical mounting

Straps and wires for vertical suspension SUSPV


Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°) -
Polycarbonate housing (960°C) PO

Color temperature

2700K 827
3000K 830
4000K 840

Lighting management

Electronic gear unit for DALI dimming RD
Electronic gear unit for push button RS
Switch-off warning function (for sensor/timer) RC
Casambi Bluetooth control RB

Electrical class

Class I CL1
Class II -

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 50 000 h L80/B10 at 25°C
  • Photobiological hazard : None (RG0)
  • Specific satin-finish primary diffuser optics
  • Use of a satin-finish housing or internal film for a homogeneous light distribution
Lighting comfort
  • Luminance control through diffusing optical systems
  • Omnidirectional lighting with high lighting comfort
Control gear
  • Constant current driver (non-dimmable)
Supply voltage
  • 220-240V 50/60Hz
Electrical class
  • Class II
Operating temperature
  • -20°C to +30°C

  • With nickel-coated brass cable gland for cable Ø 5-14 mm
  • To a 3 x 2,5 mm² disconnectable terminal block
Opening and closing
  • Quick, with just one screw
  • 2 stainless steel fixing straps (with variable centre distance)
  • Provided with 2 suspension kits and 3 m of steel wire
LED engine maintenance
  • Patended sliding maintenance system
  • Easily removable LED modules and driver

Internal grid
  • Stainless steel grid
  • Ø133 Co-extruded polycarbonate/PMMA for inside/outside use
End caps and fixing straps
  • 304L stainless steel

  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C

  • Normal Studio

ULR = 50%
