The Coulomb luminaire can provide emergency lighting in offices, stations and airports, schools, cultural centres, restaurants and hotels, shops, shared housing, corridors and staircases.

Standalone emergency lighting or central source

Thanks to its sleek lines and industrial quality materials, the Coulomb luminaire, a front-runner model for standalone tubular emergency lights or central sources, is an indispensable option for all tertiary applications, both indoors and outdoors.

Opt for daring designer emergency lighting

If you were under the impression that emergency lights are necessarily housed in white plastic with doubtful aesthetics and resilience, Sammode is here to persuade you otherwise with a great-looking durable model: Coulomb. Our Coulomb luminaire is available with the same finishes as all of our ranges, and provides the last touch to an overall interior design plan for lighting, just one more detail which makes a clear difference.

This model can cover any configuration

Several versions are available but all fulfil the same role: guiding people to a safe place. 2 versions are available for emergency lighting (BAES) models with a built-in battery, or LSC models for a central source: Evacuation (EVAC) with orientation label, or Ambiance (AMB), for anti-panic lighting when people are moving around. BAEH and bi-function BAES-BAEH emergency lighting models for residential and sleeping areas are also available.

Flexible installation

To avoid the need to select between several models depending on the required direction of evacuation, our EVAC version is supplied with a set of 3 standard-compliant adhesive labels. These labels can be located as required, directly at the site, depending on the layout of the premises. Go right, head left or even go up – you select the direction you require!

Opt for long-lasting design

Benefit from the full range of Sammode know-how, based on our expertise in industrial environments, applied here to the Coulomb. This unique design guarantees optimal sealing against dust, direct water splashes and vapour. By opting for sustainable materials, stainless steel and a composite diffuser (IK10), this luminaire is designed to last, even in the face of UV radiation and vandalism.

Performance SATI certification: built-in automatic testing system

The COULOMB emergency light is available in Evacuation (EVAC) or Ambiance (AMB) versions and is NF AEAS certified with automatic testing meeting NF C71-820. For reprogramming, start manually, or switch the luminaires to stand-by if the power is deliberately cut. A polarised 12V remote control is available as an accessory.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year warranty

Our products are designed to be upgraded along with your set-up, which means that they come with a 5-year warranty and guaranteed availability for the accessories you need, today and into the future.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

1h Independent version

Non-maintained compliant with NF EN 60598-2-22, NF AEAS approved BAES with automatic tests according to NF C71-820

Emergency output (lm)TypeL (mm)T (K)DesignationCodeWatt** Data sheet Plan STEP DS .TXT Download all
45 EVAC 357 4000 COUL100 BAES EVAC 113LN 18510010 <0,35 Data sheet Plan STEP DS .TXT Download all
250 AMB 357 4000 COUL100 BAES AMB 113LN 18510020 <0,7 Data sheet Plan STEP DS .TXT Download all

5h Independent version for homes (BAEH) and 1h/5h for premises with sleeping facilities (BAES/BAEH)

Non-maintained compliant with NF EN 60598-2-22, NF AEAS approved with automatic tests according to NF C71-820

Emergency output (lm)TypeL (mm)T (K)DesignationCodeWatt** Data sheet Plan STEP DS .TXT Download all
15 BAEH (home safety lighting) 357 4000 COUL100 BAEH 113LN 18510030 <0,35 Data sheet Plan STEP DS .TXT Download all
45 / 15 BAES-BAEH 357 4000 COUL100 BAES-BAEH 113LN 18510040 <0,6 Data sheet Plan STEP DS .TXT Download all

230V AC/DC central battery system version

Maintained or non-maintained, NF AEAS approved LSC unit

Emergency output (lm)TypeL (mm)T (K)DesignationCodeWatt/VA Data sheet Plan STEP DS .TXT Download all
45 EVAC 357 4000 COUL100 LSC EVAC 113LN 18500010 45018 Data sheet Plan STEP DS .TXT Download all
250 AMB 357 4000 COUL100 LSC AMB 113LN 18500020 7,9/16 Data sheet Plan STEP DS .TXT Download all

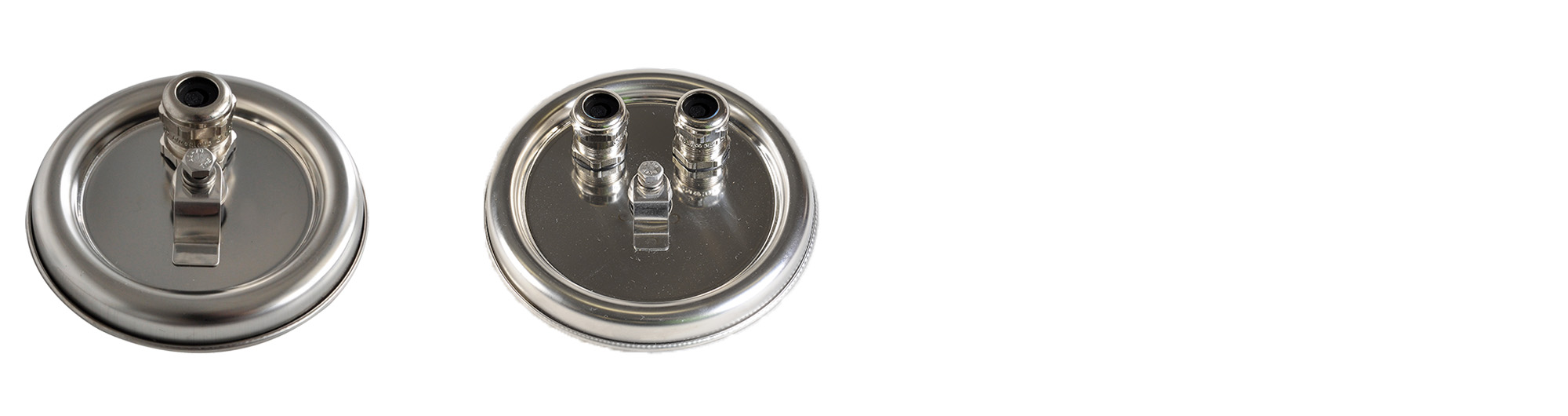

Cable entry

1 cable gland

Nickel-coated brass capacity Ø5-14 mm 113LN

2 cable glands including one blind plug

Nickel-coated brass capacity Ø5-14 mm 213LN

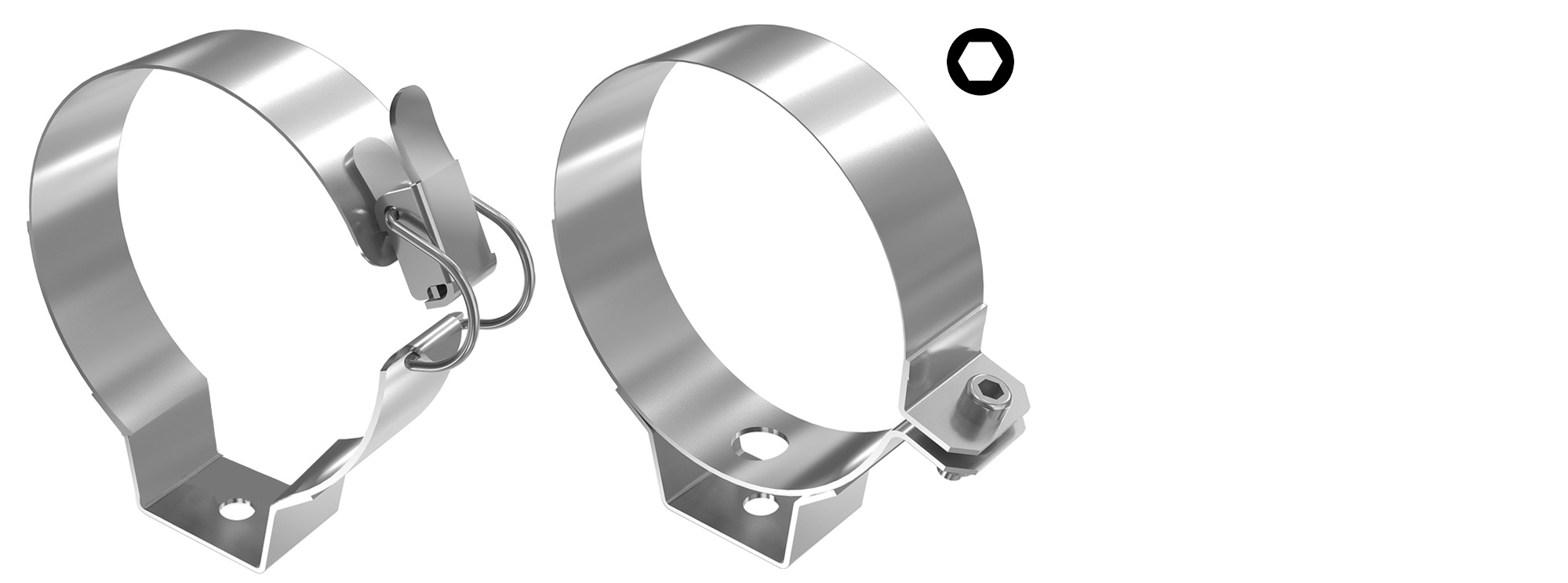

Fixing straps

Fixing straps -
Reinforced fixing straps with HSHC screw BRV

End caps & fixing straps finish

End caps & straps painted Coal RAL7021 COAL


End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • Photobiological hazard : None (RG0)
  • Optimum light uniformity: LEDs regularly distributed
  • Window with a special LED satin finish polycarbonate diffuser
Control gear
  • LSC EVAC version : Driver with constant current output
  • Other versions (BAES, BAEH or AMB) : Driver with constant voltage output
Supply voltage
  • BAES and BAEH versions : 230V 50Hz
  • LSC EVAC version : 220-240V 0/50/60Hz
  • LSC AMB version : 180-254V 0/50/60Hz
  • BAES and BAEH versions : NiMH Battery
Electrical class
  • Class I
Operating temperature
  • BAES and BAEH versions : 0°C to +30°C
  • LSC versions : -20°C to +30°C
Label ( EVAC, BAEH and BAES-BAEH versions)
  • Provided with universal labels (pictogram and right arrow)
  • BAES and BAEH versions : Non-maintained
  • LSC versions : Maintained and non-maintained

  • With nickel-coated brass cable gland for cable Ø 5-14 mm
  • BAES and BAEH versions : to a 5 x 2,5 mm² terminal block
  • LSC version : to a 3 x 2,5 mm² terminal block
  • Attachement with 2 bolt-fitted stainless steel straps with variable center distance and 360° orientation
LED engine maintenance
  • Easily removable LED modules
  • Opening by releasing the screw and extracting the diffuser
  • Gear tray fixed on the end cap supporting the cable entry

  • Polycarbonate
End caps and fixing straps
  • 304L stainless steel

  • EN 60598-1, EN 60598-2-22
  • BAES and BAEH versions : NF C71-820, UTE C71-806
  • BAES EVAC and BAES-BAEH versions : NF C71-800
  • BAES AMB version : NF C71-801
  • BAEH and BAES-BAEH versions : NF C71-805
  • LSC versions : NF C71-802
  • BAES-BAEH version : NF C71-803
LCIE licence n°
  • BAES EVAC version : n° T14007
  • BAES AMB version : n° T14008
  • BAEH version : n° T14009
  • LSC EVAC version : n°14028
  • LSC AMB version : n°14027
  • BAES and BAEH emergency lighting units: SATI (automatic built-in test system) performance
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 960°C
