Bering X-Cold VLT
A unique solution on the market, providing reliable and long-lasting lighting down to -60°C

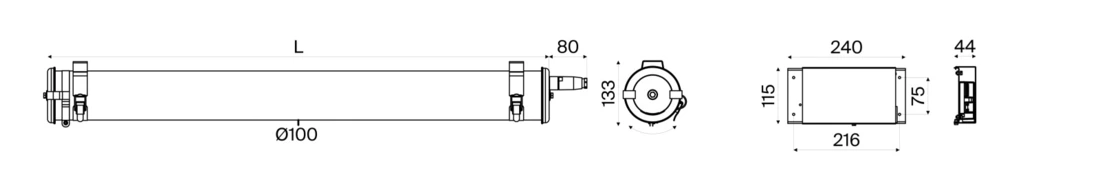

ø100 tubular luminaire for process and storage zones at extremely cold temperatures down to -60°C
With the BERING X-Cold VLT, Sammode has combined its most solid tubular housing with an LED source designed for the coldest temperatures, down to -60°C. This luminaire is easy to install thanks to its unpluggable connector, reinforced against freezing temperatures and moisture ingress, and is available in a wide range of lighting levels, with a satin finish or special optics designed for shelving. BERING X-Cold VLT is supplied by a specifically calibrated remote driver compatible with temperature variations. This luminaire remains completely unfazed, even with frequent turning on and off at -60°C!
The Bering X-Cold VLT luminaire is designed to meet the demands of industrial environments with very low temperatures.
Chemical and sealing conditions
Corrosive substances, acid vapours
UV radiation and bad weather
Dust and humidity
Freezing temperatures, frost
Washing with a high-pressure jet
Health and safety requirements according to IFS, BRC and HACCP texts
Thermal, mechanical and electrical stresses
Permanent use at temperatures of up to -60°C
Extreme variation in temperature
Thermal shocks
Repeated turning on and off
Heavy mechanical impacts
Intense and repetitive vibrations
Voltage surges up to 6 kV, power surges
Sammode’s durability even in extreme cold

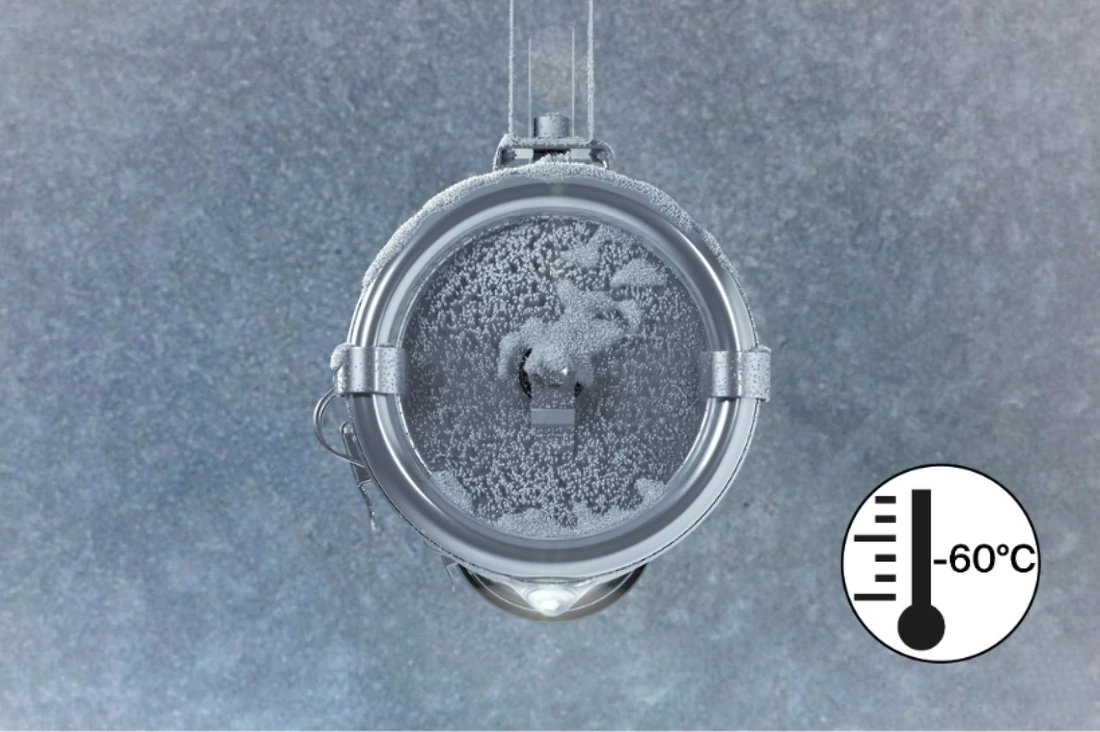

Designed to provide long-lasting lighting in extreme cold down to -60°C, the Bering X-Cold VLT luminaire incorporates high-efficiency LED modules specifically developed to minimise mechanical stress caused by switching cycles at very low temperatures. Its stainless steel housing, combined with a composite diffuser offering high chemical and mechanical resistance (IK10, even at -60°C), eliminates any risk of shattering and ensures compliance with IFS, BRC and HACCP food safety standards.

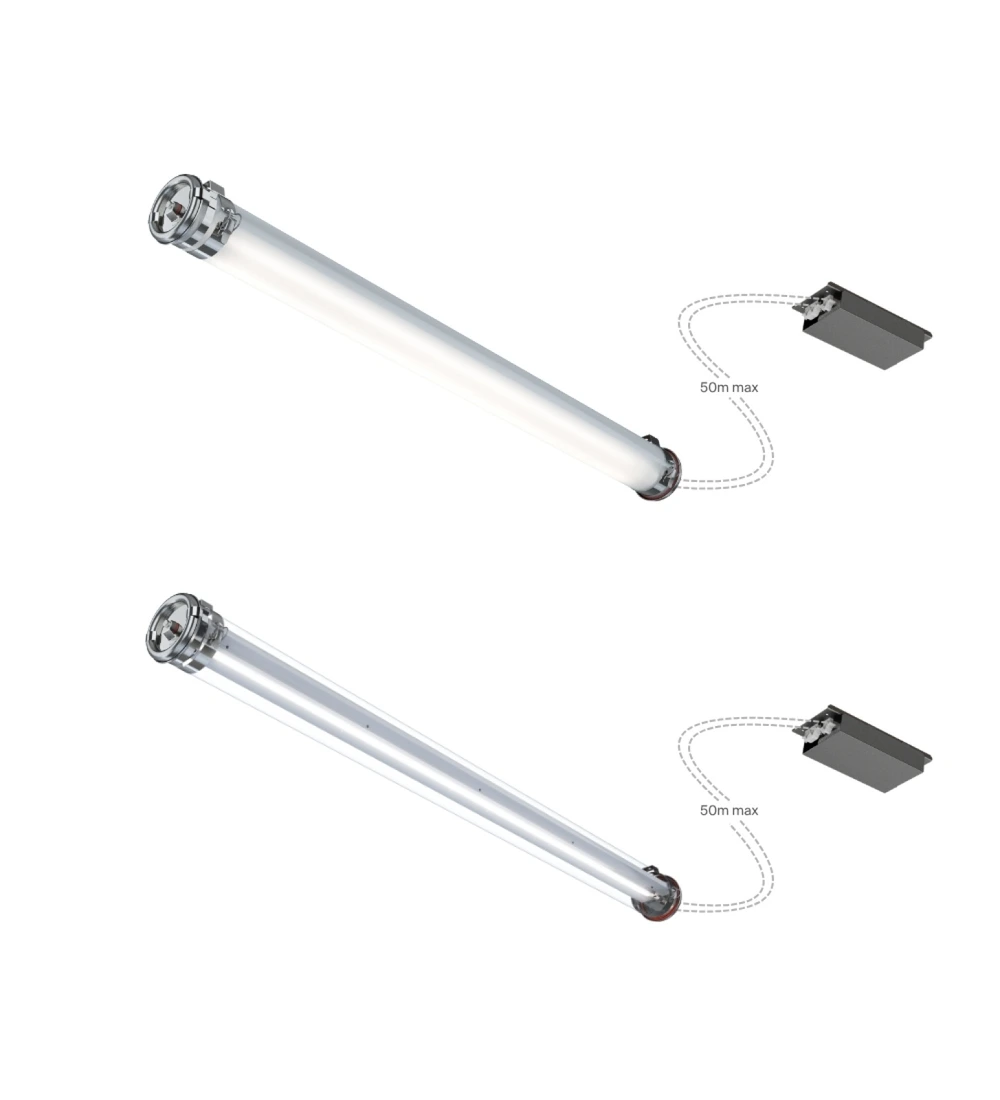

Remote electronics, reliability guaranteed

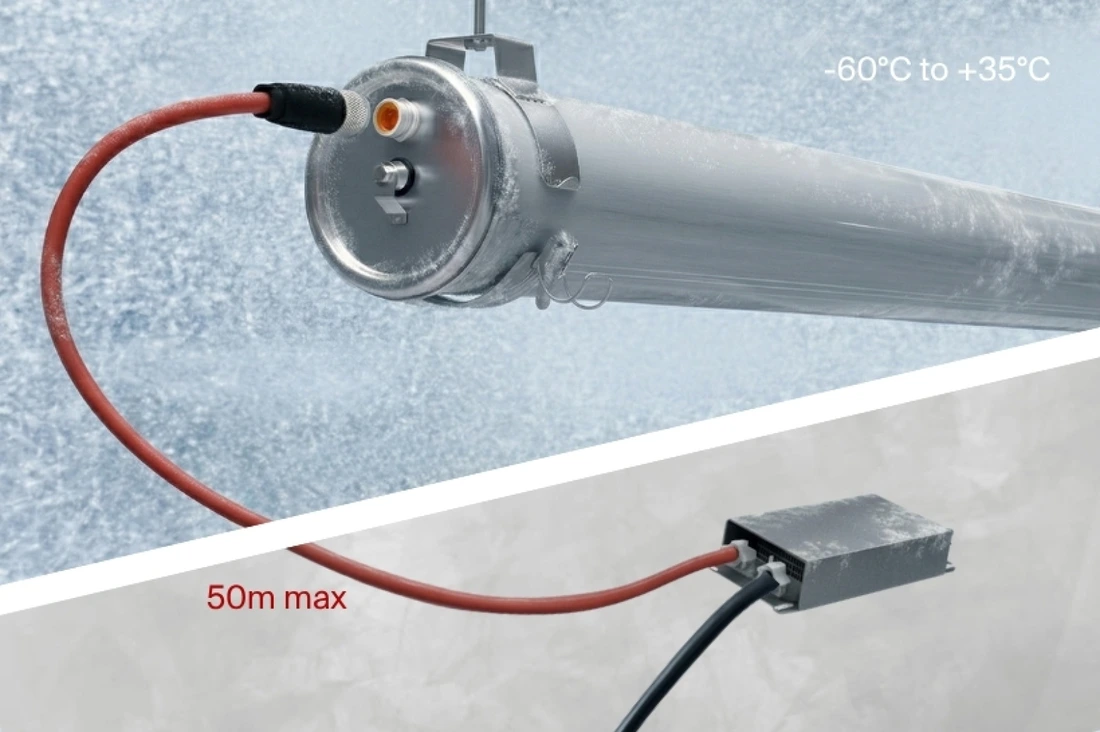

The Bering X-Cold VLT tubular lamp features an LED driver positioned outside the cold zone, providing long-term protection for sensitive components and ensuring 10 years of maintenance-free operation, even under intensive use. Its gradual start-up in under 3 seconds reduces thermal shock and ensures optimum reliability during intensive on-off cycles in extreme environments.
Not affected by large temperature fluctuations

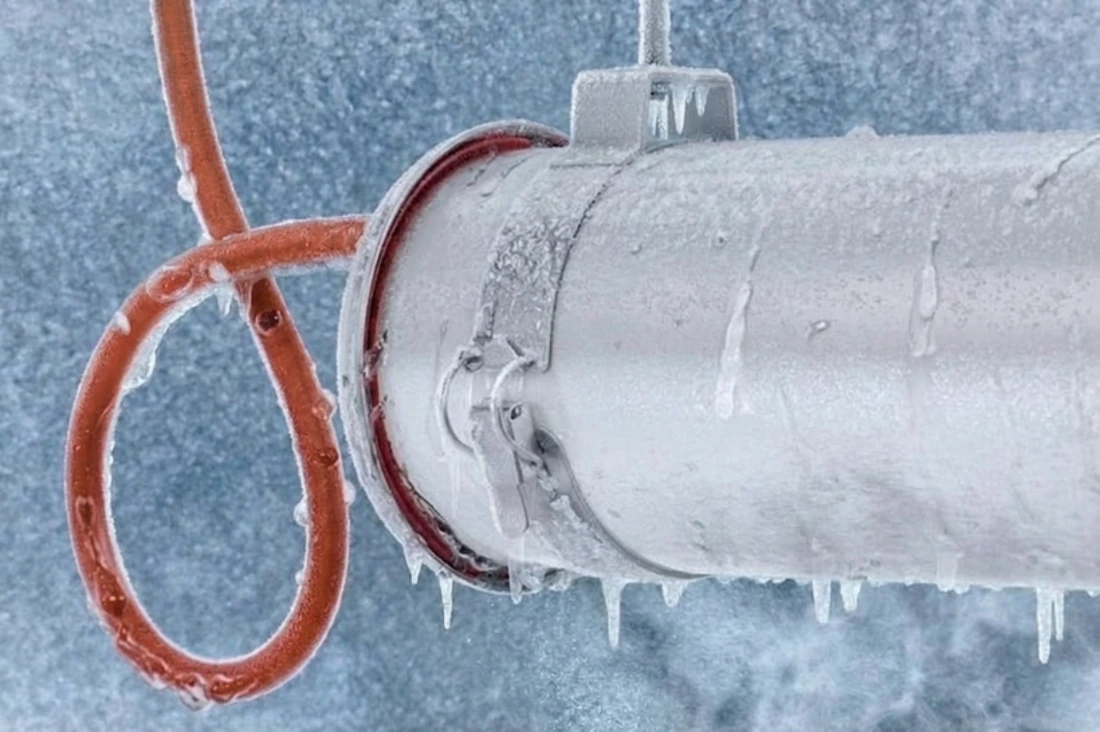

When subjected to extreme temperature fluctuations ranging from 25°C to -60°C, a standard luminaire quickly loses its watertight seal due to thermal contraction of the materials. Thanks to its triple-seal silicone gaskets and its Screw© axial locking system, the Bering X-Cold VLT’s housing remains perfectly watertight, certified to IP68 and IP69K standards, even in the face of significant temperature fluctuations.

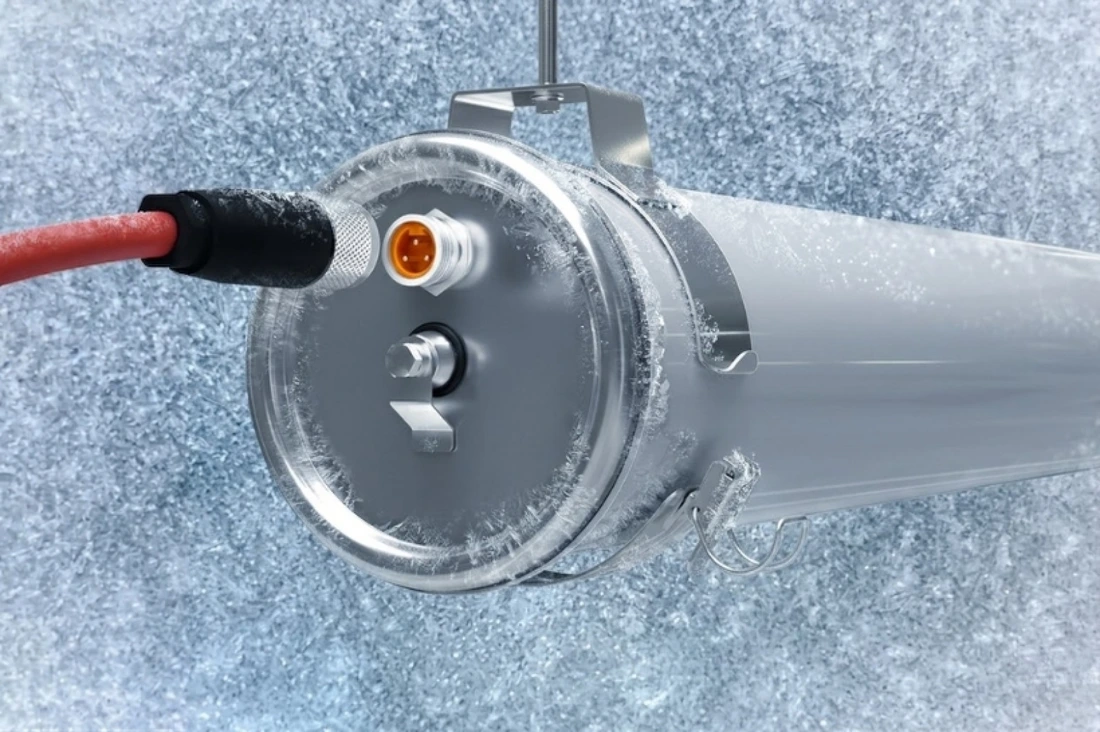

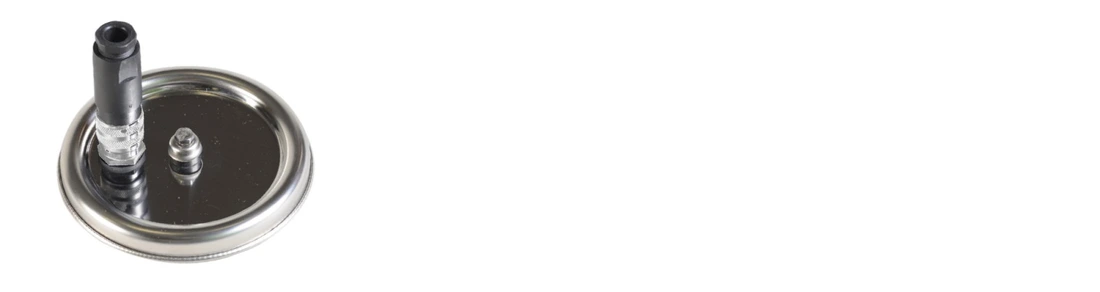

A plug-in socket that is completely resistant to frost and damp
The Bering X-Cold VLT luminaire is fitted with a quick-release plug that is protected against frost and moisture ingress. This allows for quick installation and maintenance without interrupting operations.
A wide range of lenses to suit all setups
From lighting small process areas to high-ceilinged halls, every environment requires the right lighting design. The Bering X-Cold VLT offers a comprehensive range of optics for every application: a satin-finish diffuser for comfortable task lighting, or light distributions specifically tailored to the height and width of the aisles.
Applications of luminaires by the name Bering X-Cold VLT
- Logistics warehouse: cold room lighting
- Manufacturing cold rooms and cooling stations
- Medical biological laboratories: preservation of therapeutic plasmas
- Ice cream and frozen foods: lighting in deep freezing tunnels
- Industrial bakeries: cold room lighting
- Lactic ferments: storage chamber lighting
- Luminaires embedded in icebreaker ships

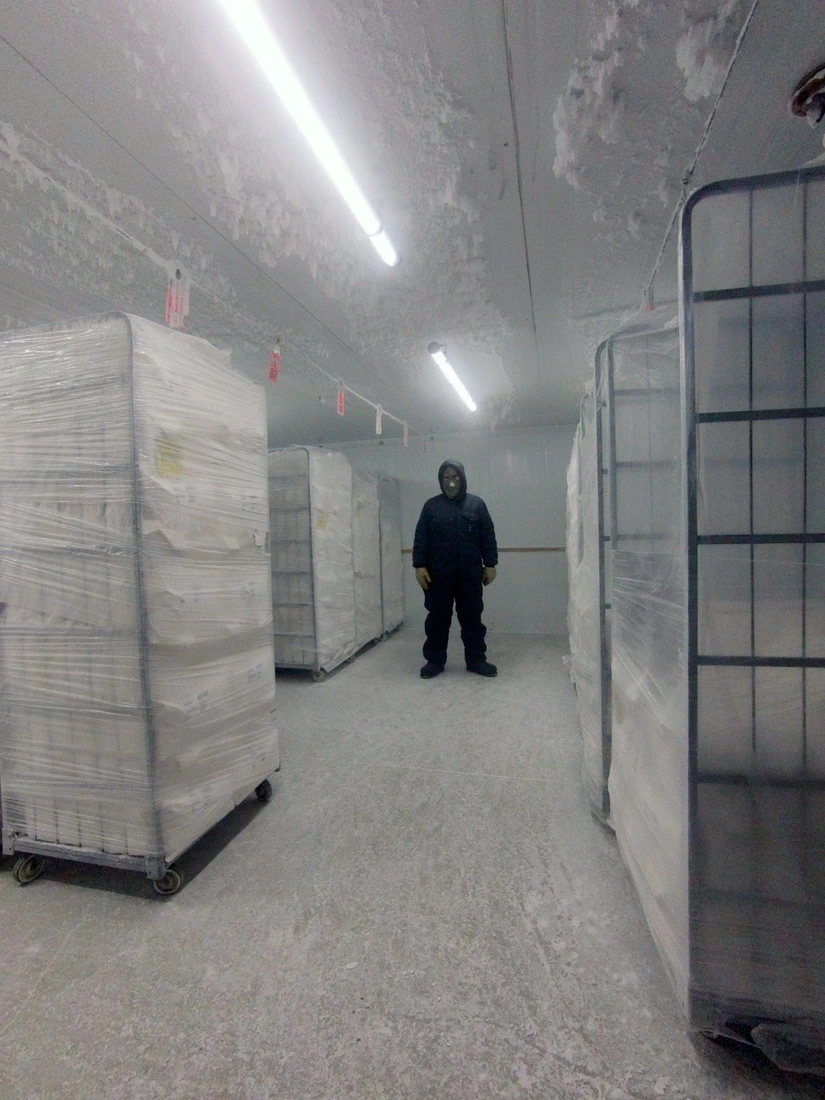

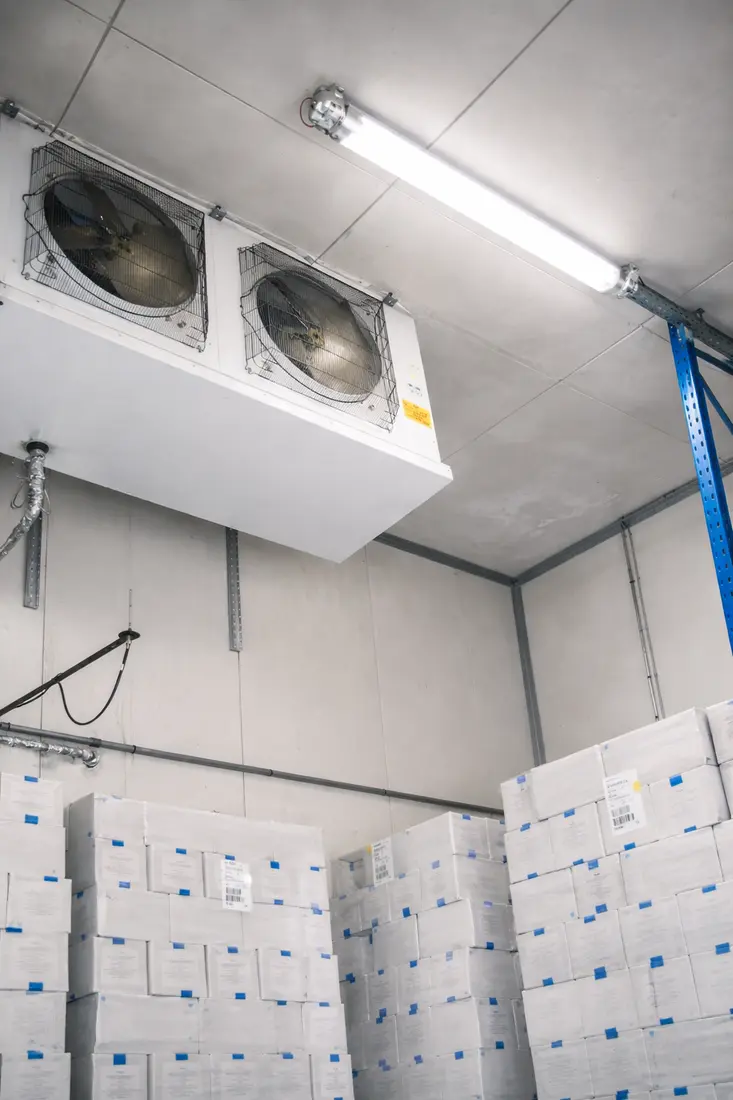

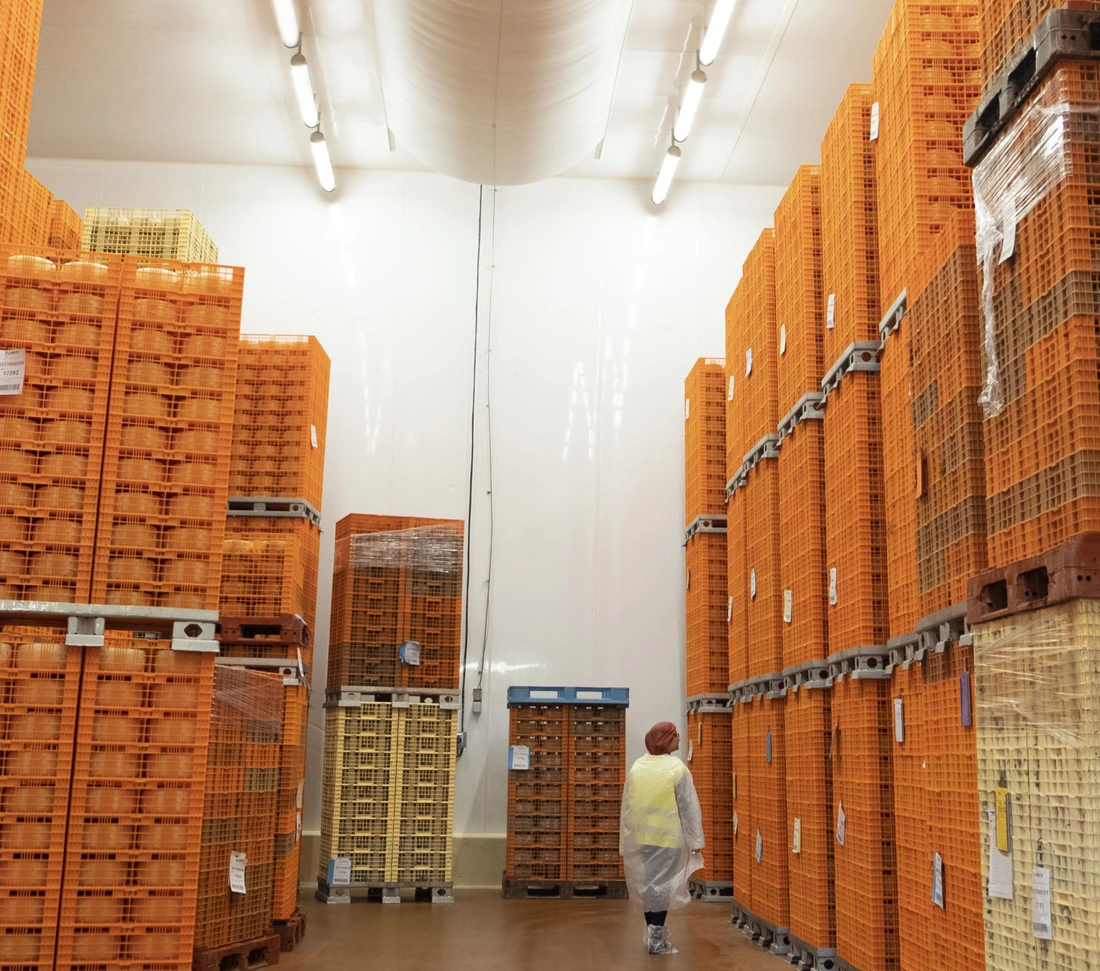

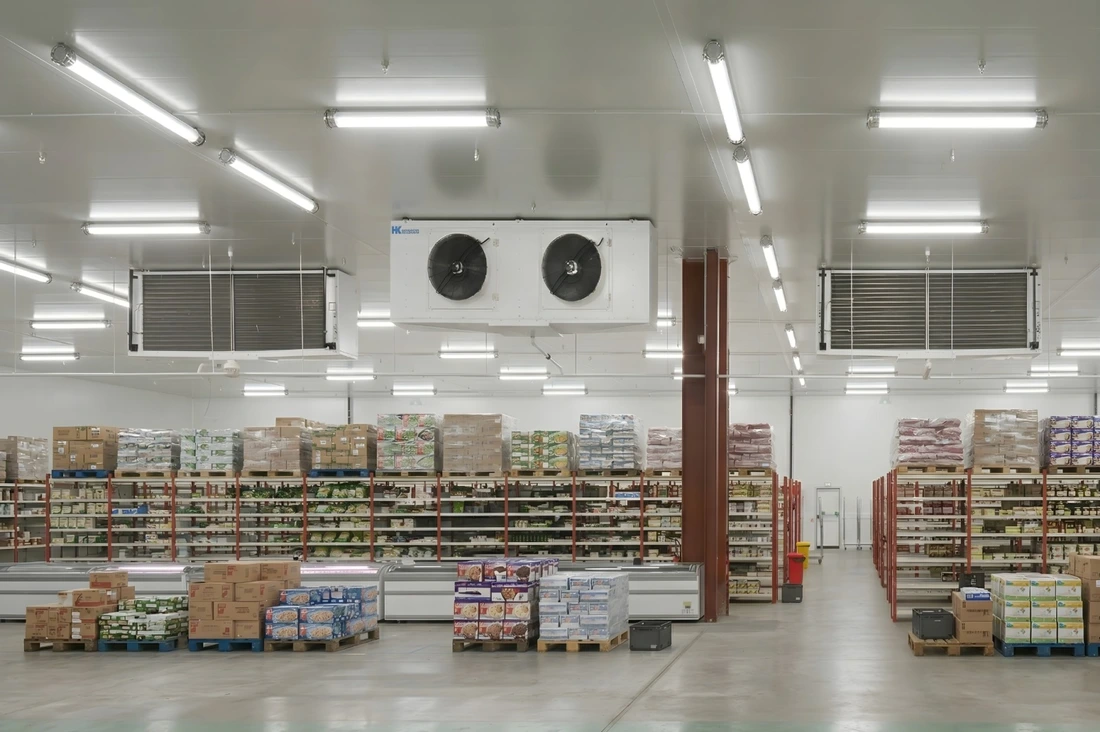

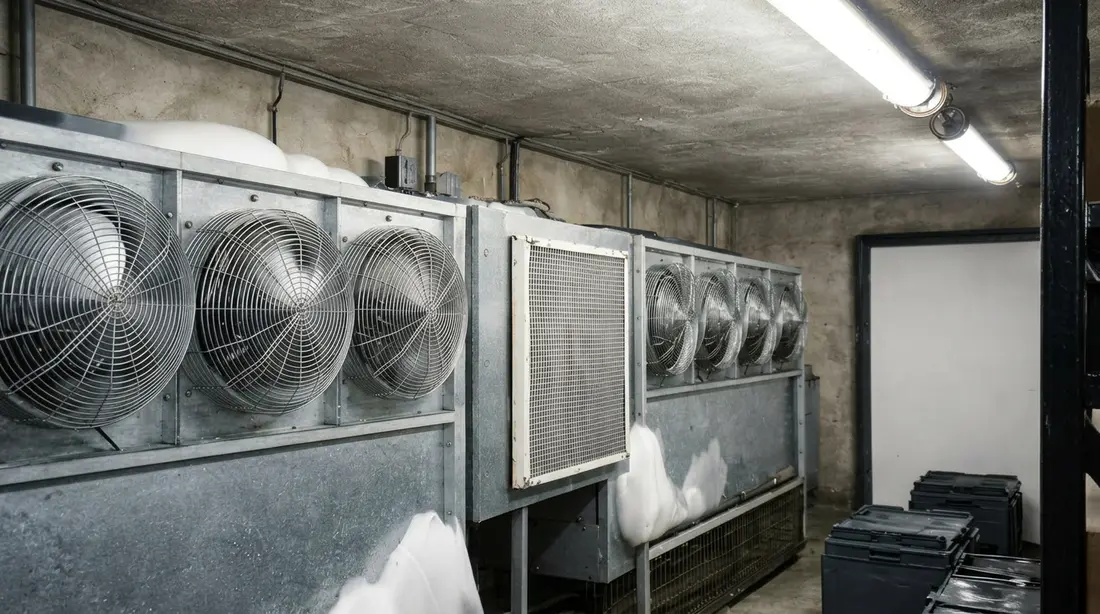

Product shown in situ
Our services
Designed and manufactured in France
Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.
5-year warranty, no matter how tough the conditions
Valid even for 24/7 use at the product’s maximum operating temperature, reflecting our unfailing commitment to our customers!
100% Removable and repairable on site
Even after 15 or 20 years’ use, every single part we supply can be easily replaced, with no need to send it back to us. No one else offers a guarantee of lifelong lighting solutions!

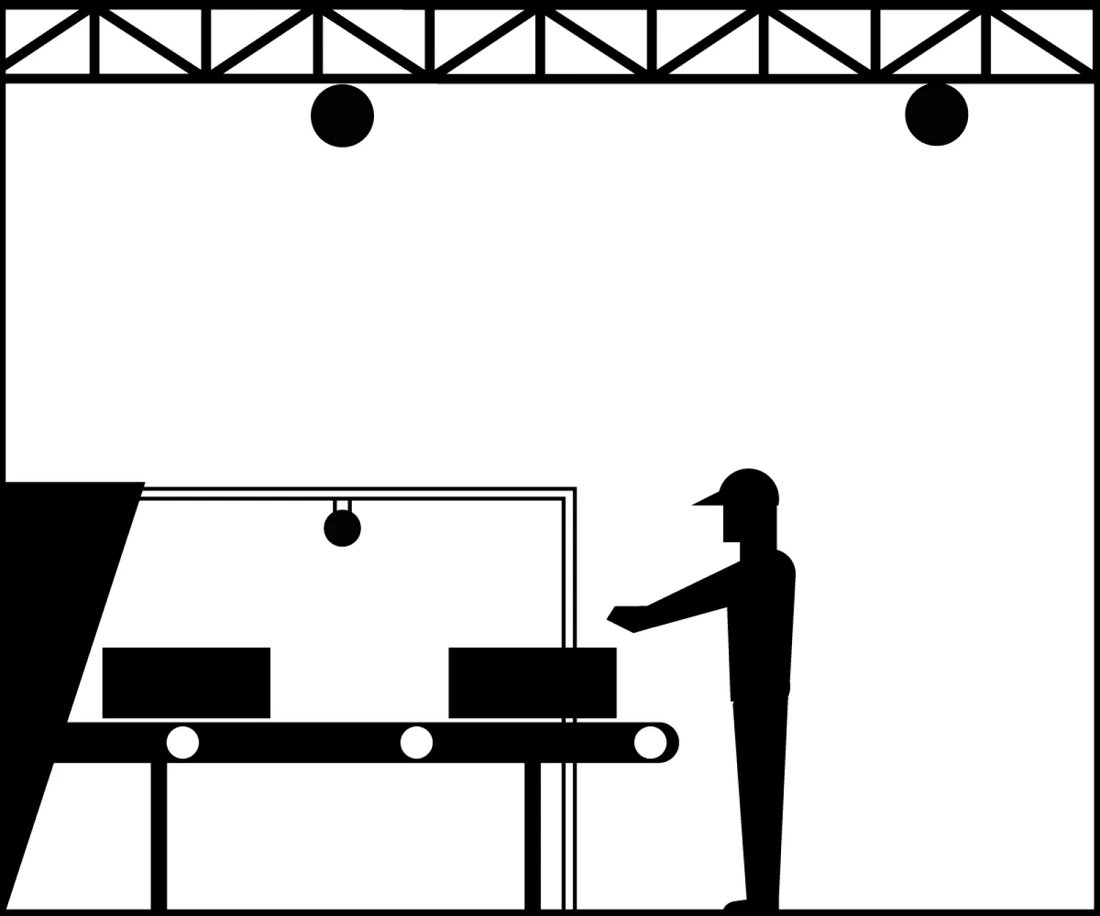

Processing areas and large halls
CRI80, 4000K. Driver on a remote gear tray, up to 50 m (supplied).
| |  |  |
| Version | Flux (lm) | L (mm) | Designation | Code | Watt | Data sheet | Plan | STEP DS | .TXT | Download all | Comfortable (UGR≤25) | 1850 | 697 | BER100 VLT 700 1850-840 POME SA PS3 BRS | 15605162 | 14 | Data sheet | Plan | STEP DS | .TXT | Download all | Comfortable (UGR≤25) | 2775 | 1007 | BER100 VLT 1000 2775-840 POME SA PS3 BRS | 15605163 | 20 | Data sheet | Plan | STEP DS | .TXT | Download all | Comfortable (UGR≤25) | 3700 | 1307 | BER100 VLT 1300 3700-840 POME SA PS3 BRS | 15605158 | 27 | Data sheet | Plan | STEP DS | .TXT | Download all | Comfortable (UGR≤25) | 4625 | 1607 | BER100 VLT 1600 4625-840 POME SA PS3 BRS | 15605164 | 33 | Data sheet | Plan | STEP DS | .TXT | Download all | Reinforced (UGR≤28) | 3700 | 697 | BER100 VLT 700 3700-840 POME SA PS3 BRS | 15605165 | 27 | Data sheet | Plan | STEP DS | .TXT | Download all | Reinforced (UGR≤28) | 5550 | 1007 | BER100 VLT 1000 5550-840 POME SA PS3 BRS | 15605166 | 41 | Data sheet | Plan | STEP DS | .TXT | Download all | Reinforced (UGR≤28) | 7400 | 1307 | BER100 VLT 1300 7400-840 POME SA PS3 BRS | 15605167 | 54 | Data sheet | Plan | STEP DS | .TXT | Download all | Reinforced (UGR≤28) | 9250 | 1607 | BER100 VLT 1600 9250-840 POME SA PS3 BRS | 15605168 | 67 | Data sheet | Plan | STEP DS | .TXT | Download all |
|---|

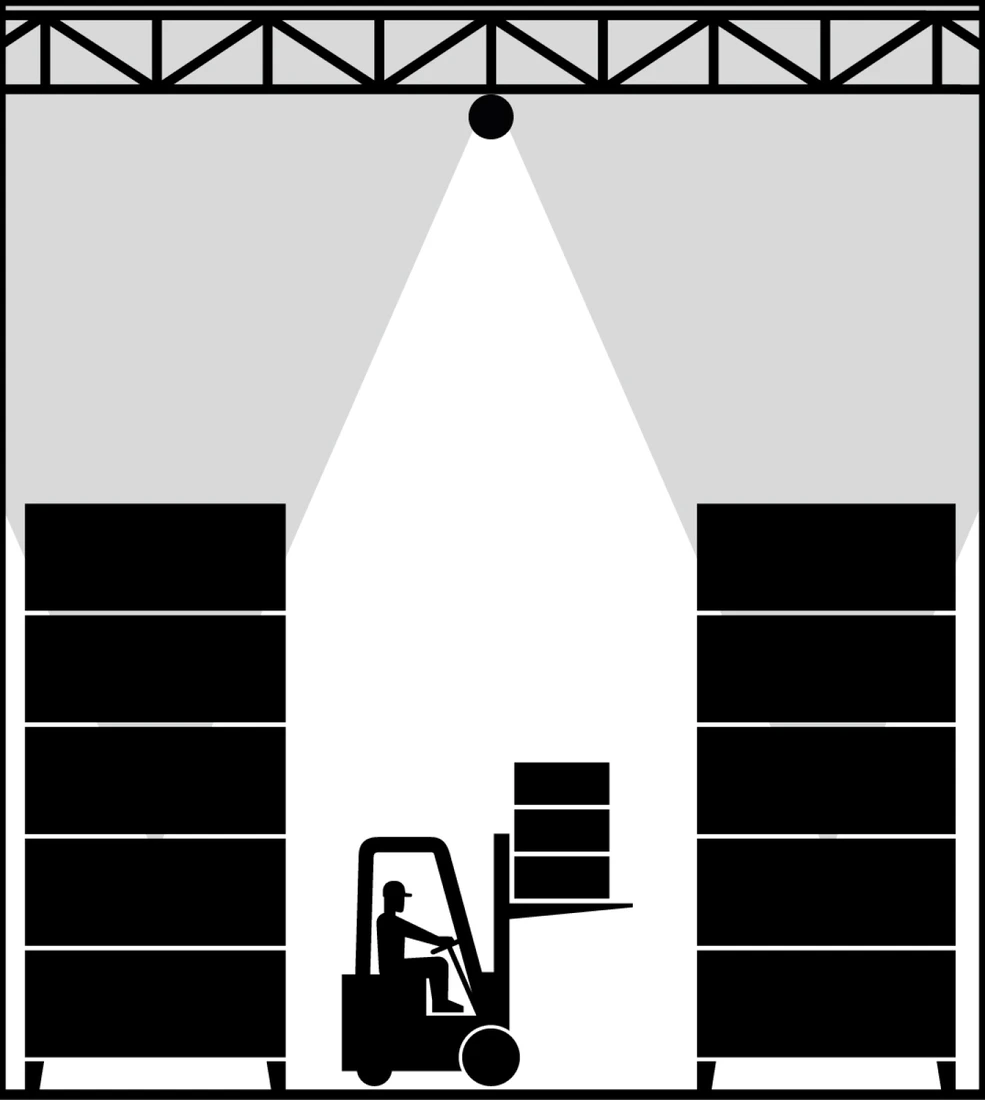

Storage aisles with high shelves
CRI80, 4000K. Driver on a remote gear tray, up to 50 m (supplied).
| |  | |
| Optics (depending on height) | Flux (lm) | L (mm) | Designation | Code | Watt | Data sheet | Plan | STEP DS | .TXT | Download all | Wide batwing 120° (h≈5m) | 5550 | 1007 | BER100 VLT 1000 5550-840 BTW120 POME PS3 BRS | 15605169 | 41 | Data sheet | Plan | STEP DS | .TXT | Download all | Wide batwing 120° (h≈5m) | 7400 | 1307 | BER100 VLT 1300 7400-840 BTW120 POME PS3 BRS | 15605172 | 54 | Data sheet | Plan | STEP DS | .TXT | Download all | Wide batwing 120° (h≈5m) | 9250 | 1607 | BER100 VLT 1600 9250-840 BTW120 POME PS3 BRS | 15605175 | 67 | Data sheet | Plan | STEP DS | .TXT | Download all | Double asymmetric – Imax 20° (h≈7m) | 5550 | 1007 | BER100 VLT 1000 5550-840 DASY-20 POME PS3 BRS | 15605170 | 41 | Data sheet | Plan | STEP DS | .TXT | Download all | Double asymmetric – Imax 20° (h≈7m) | 7400 | 1307 | BER100 VLT 1300 7400-840 DASY-20 POME PS3 BRS | 15605173 | 54 | Data sheet | Plan | STEP DS | .TXT | Download all | Double asymmetric – Imax 20° (h≈7m) | 9250 | 1607 | BER100 VLT 1600 9250-840 DASY-20 POME PS3 BRS | 15605176 | 67 | Data sheet | Plan | STEP DS | .TXT | Download all | Elliptic beam 60°x130° (h≈10m) | 5550 | 1007 | BER100 VLT 1000 5550-840 EL60x130 POME PS3 BRS | 15605171 | 41 | Data sheet | Plan | STEP DS | .TXT | Download all | Elliptic beam 60°x130° (h≈10m) | 7400 | 1307 | BER100 VLT 1300 7400-840 EL60x130 POME PS3 BRS | 15605174 | 54 | Data sheet | Plan | STEP DS | .TXT | Download all | Elliptic beam 60°x130° (h≈10m) | 9250 | 1607 | BER100 VLT 1600 9250-840 EL60x130 POME PS3 BRS | 15605177 | 67 | Data sheet | Plan | STEP DS | .TXT | Download all |
|---|
Intermediate cabling
between the tubular luminaire and the remote driver, made of silicone. Order separately for this service.
 |
| Cord length (m) | Designation | Code | Data sheet | Plan | STEP DS | .TXT | Download all | 1 | CABL INTER FLAM-RED SHIELD 1M | CAB0216 | Data sheet | Plan | STEP DS | .TXT | Download all | 3 | CABL INTER FLAM-RED SHIELD 3M | CAB0217 | Data sheet | Plan | STEP DS | .TXT | Download all | 6 | CABL INTER FLAM-RED SHIELD 6M | CAB0218 | Data sheet | Plan | STEP DS | .TXT | Download all |
|---|
× ![]()
Cable entry
| IP68/69K quick-lock plug with threaded ring (capacity:Ø8 to 10 mm) | PS3 |

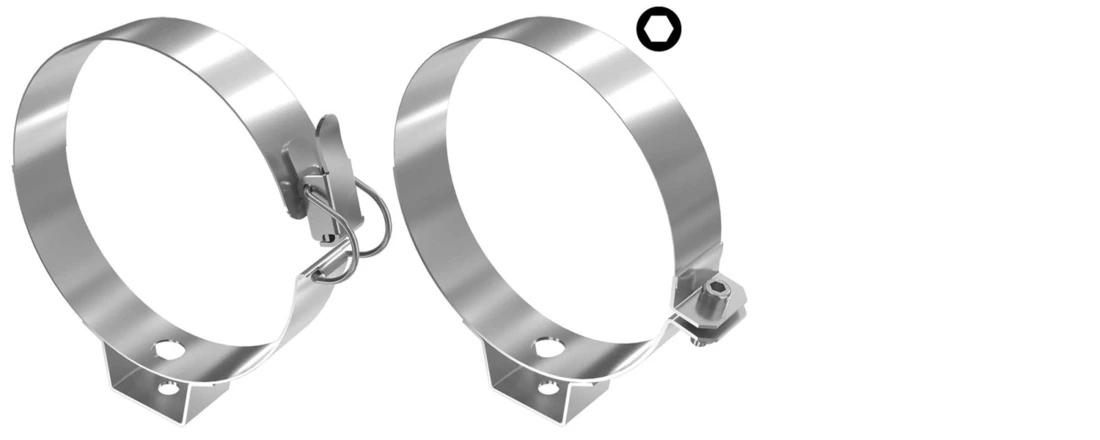

Fixing straps
| Reinforced fixing straps | BRS |
| Reinforced fixing straps with HSHC screw | BRV |
Materials
| End caps & fixing straps 304L stainless steel | - |
| End caps & fixing straps 316L stainless steel | MR |
Colour temperature
| 4000K | 840 |
Lighting management
| Non dimmable | - |
| Electronic gear unit for DALI 2 dimming | RD |
Emergency lighting
| For a 230V AC/DC central power supply (light flux set to 15% in DC mode) | LSC |

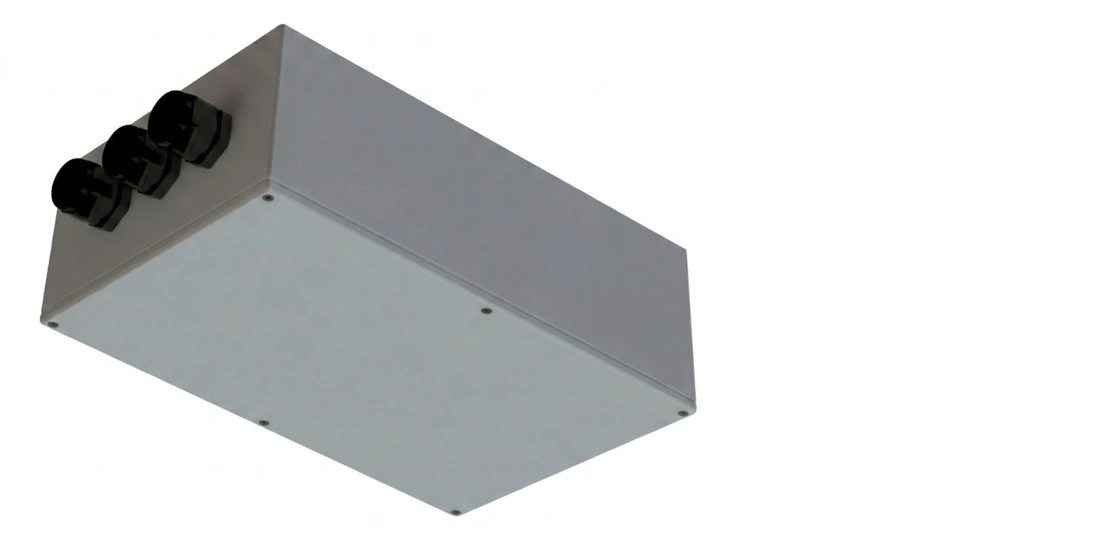

IP65 housing for remote driver gear tray | Equipped with 3 polyamide cable glands, ø5-12 mm, polycarbonate, dimensions 275x160x90 mm 17500217 |

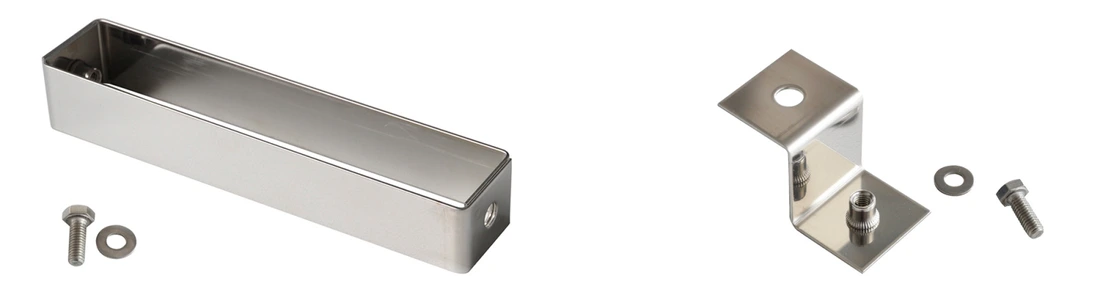

Kits for APSAD compliance | 2 x 20 cm 304L stainless steel extensions PU44277 | |
| 2 x 5 cm 304L stainless steel extensions PU44278 |
Technical specifications
| Light source |
|
| Optics |
|
| Lighting comfort |
|
| Heat management |
|
| Control gear |
|
| Driver supply voltage |
|
| Electrical class |
|
| Operating temperature |
|
| Connection |
|
| Mounting |
|
| LED engine maintenance |
|
| Housing |
|
| End caps and fixing straps |
|
| Gaskets |
|
| Method of construction |
|
| Waterproofness |
|
| Resistance to IK shocks |
|
| Fire resistance |
|
| Vibration resistance |
|
|

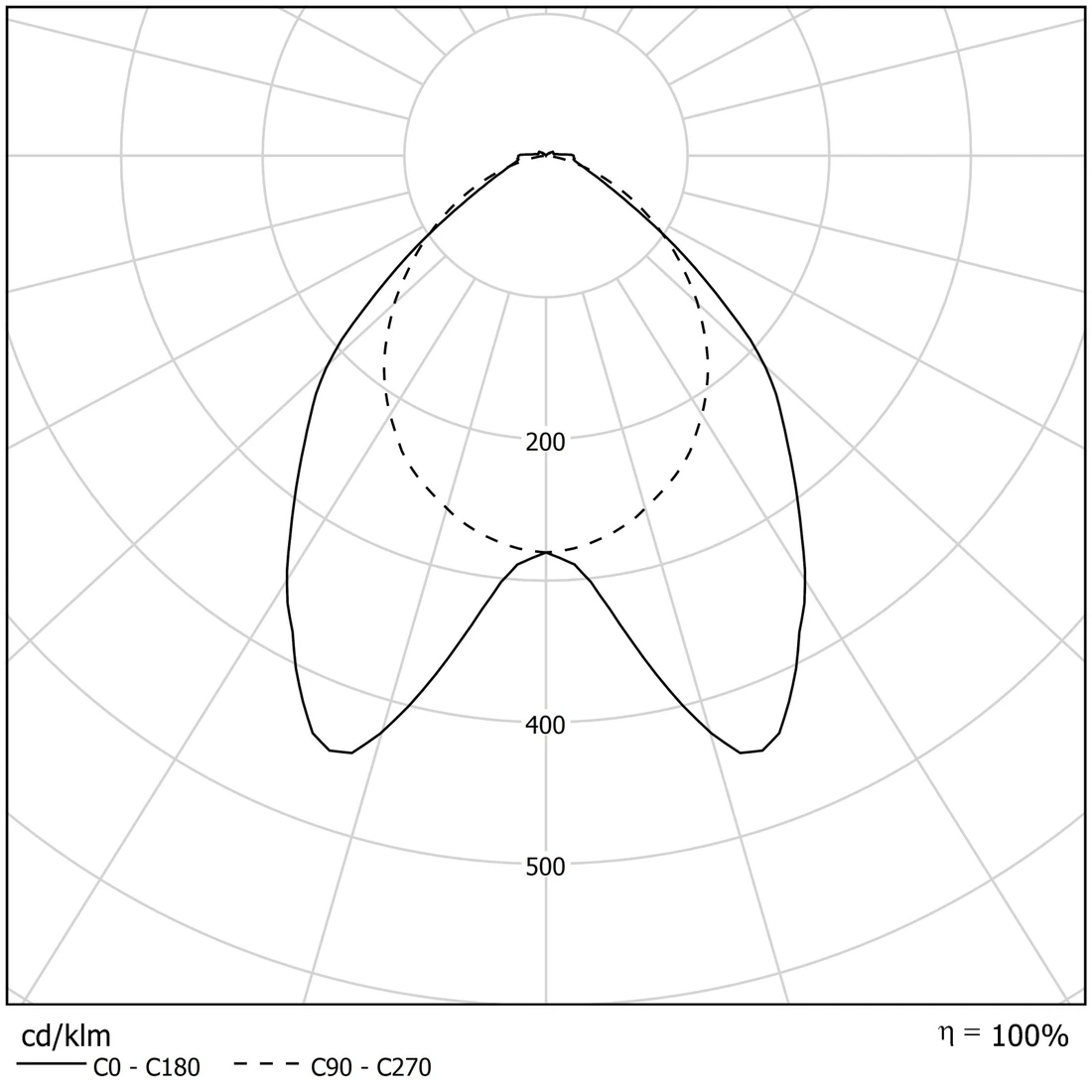

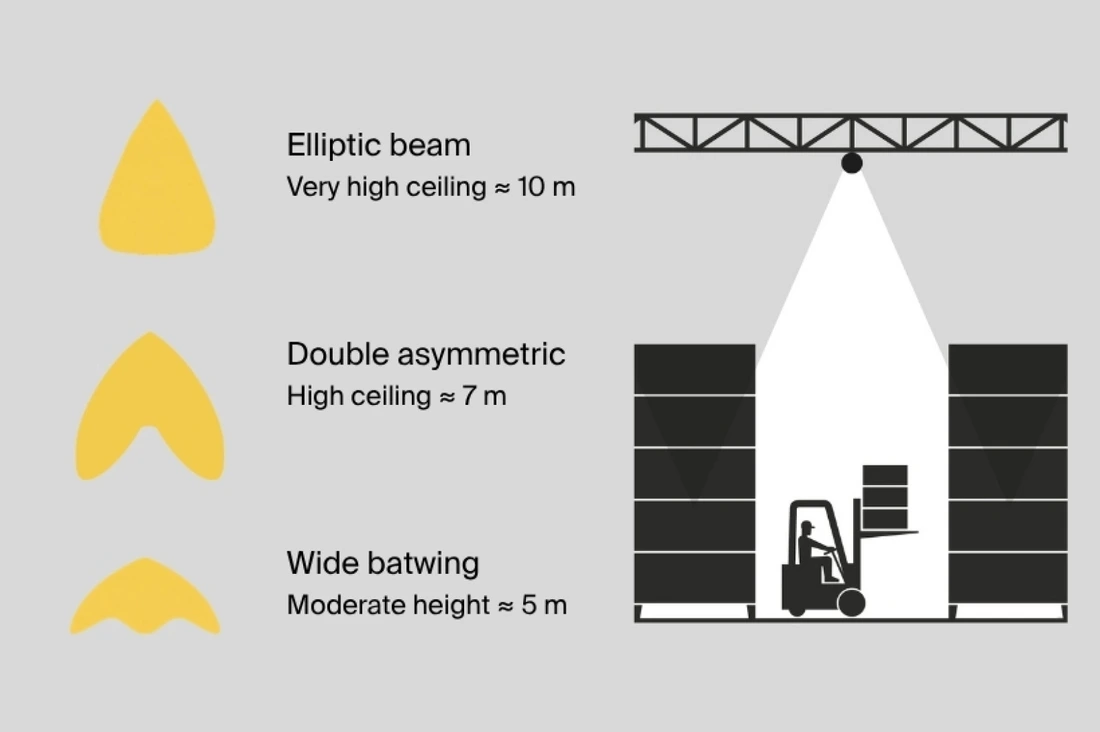

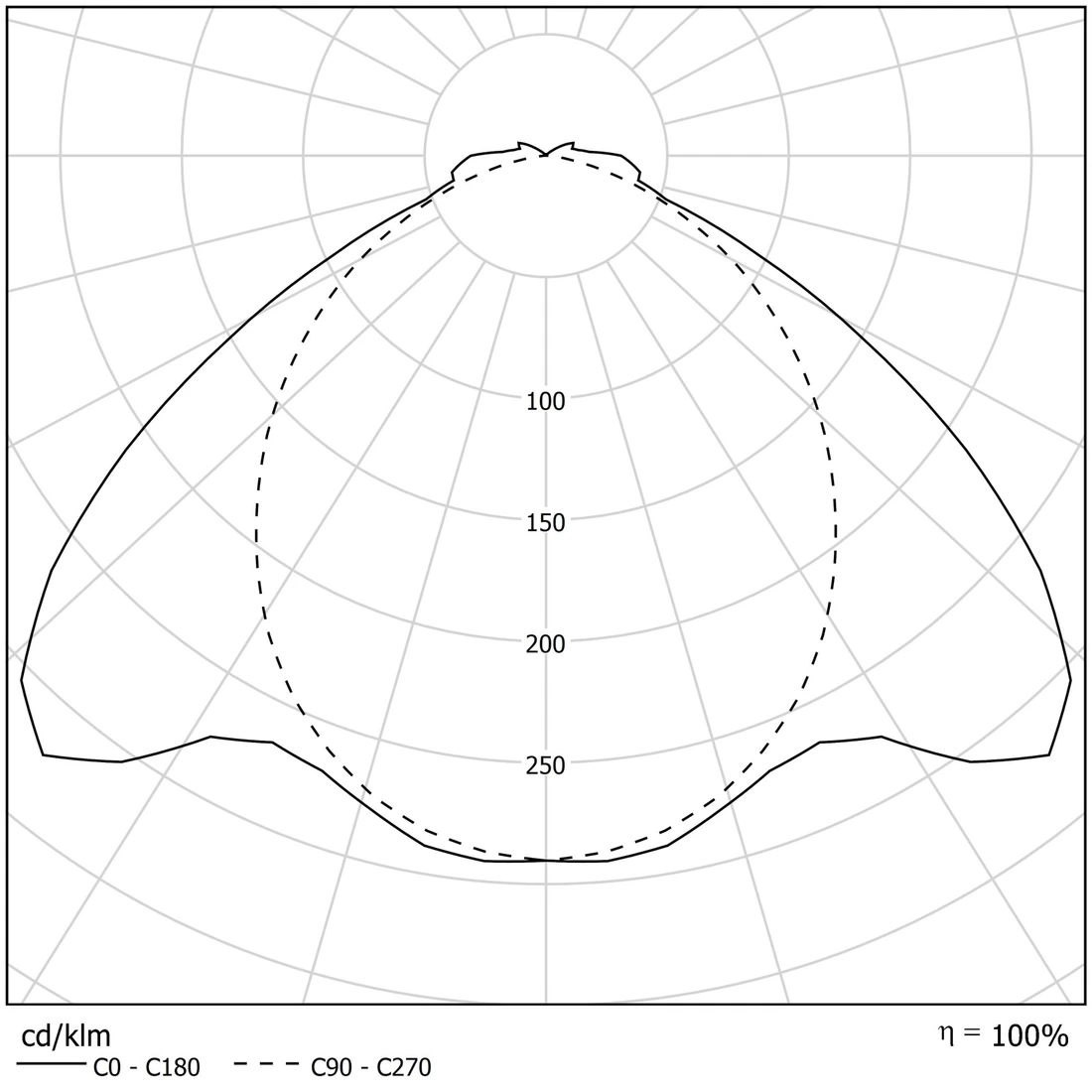

Very wide batwing 120° (BTW120) Ideal for heights of approximately 5m
Double asymmetric (DASY-20) Ideal for heights of approximately 7m

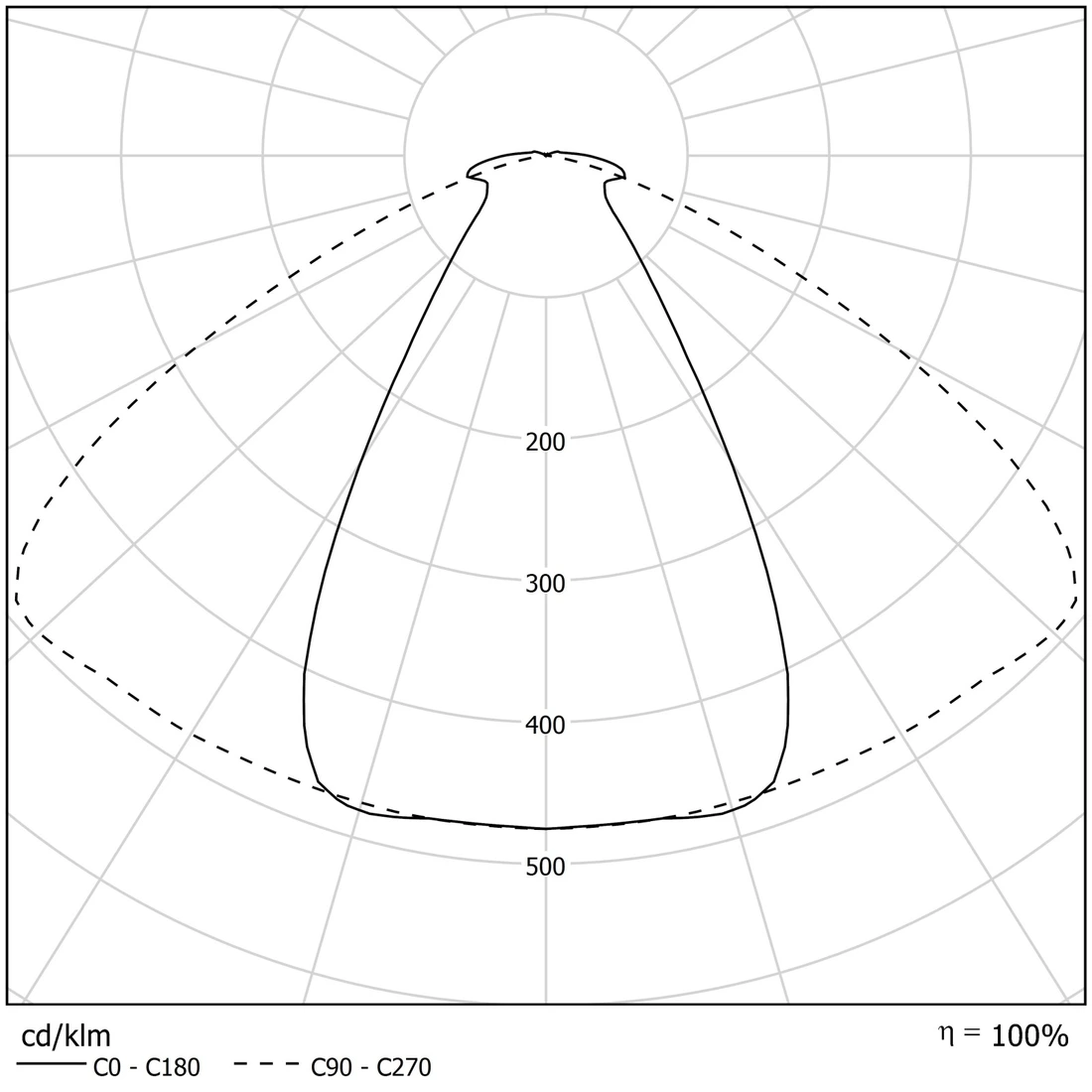

EllipticaI 60° x 130° (EL60x130) Ideal for heights of approximately 10m A diffusing satin-finish version is also available for general lighting in large halls (see “SA” references)
