100 mm and 133 mm diameter tubular lights with monochromatic LEDs for specific industrial applications

The Sammode tubular light, renowned for its extreme waterproofing and durability, accommodates a whole range of monochromatic LED lights designed for highly specialised applications. Amber for cellar lighting, green for storing root vegetables, violet for algae cultivation... In intensive livestock farming, where animal welfare is a key concern, blue light calms poultry, whilst red light helps cattle sleep. And to switch easily between white and coloured light, opt for the dual-switch version of the Pascal Spectrum.

The Pascal tubular luminaire is designed for the moderate conditions faced in industrial and food production environments.

Chemical and sealing conditions

Dust and humidity

Washing with a high-pressure jet

Health and safety requirements according to IFS, BRC and HACCP texts

Corrosive substances, acid vapours

Oils & hydrocarbons

UV radiation and bad weather

Thermal, mechanical and electrical stresses

Permanent use at temperatures of up to 35°C

Repeated turning on and off

Heavy mechanical impacts

Without the right light fitting, the right spectrum is meaningless

Unlike ‘white LEDs’, whose broad spectrum is ideal for the human eye, so-called ‘monochromatic’ LEDs offer high colour purity, which is extremely useful for protecting, stimulating or, conversely, avoiding what is not visible: preserving the flavour of wine, promoting photosynthesis in plants, reducing stress in animals... The applications are varied, but one challenge remains: to ensure longevity, a precise light spectrum requires a suitable luminaire, particularly in damp or corrosive environments.

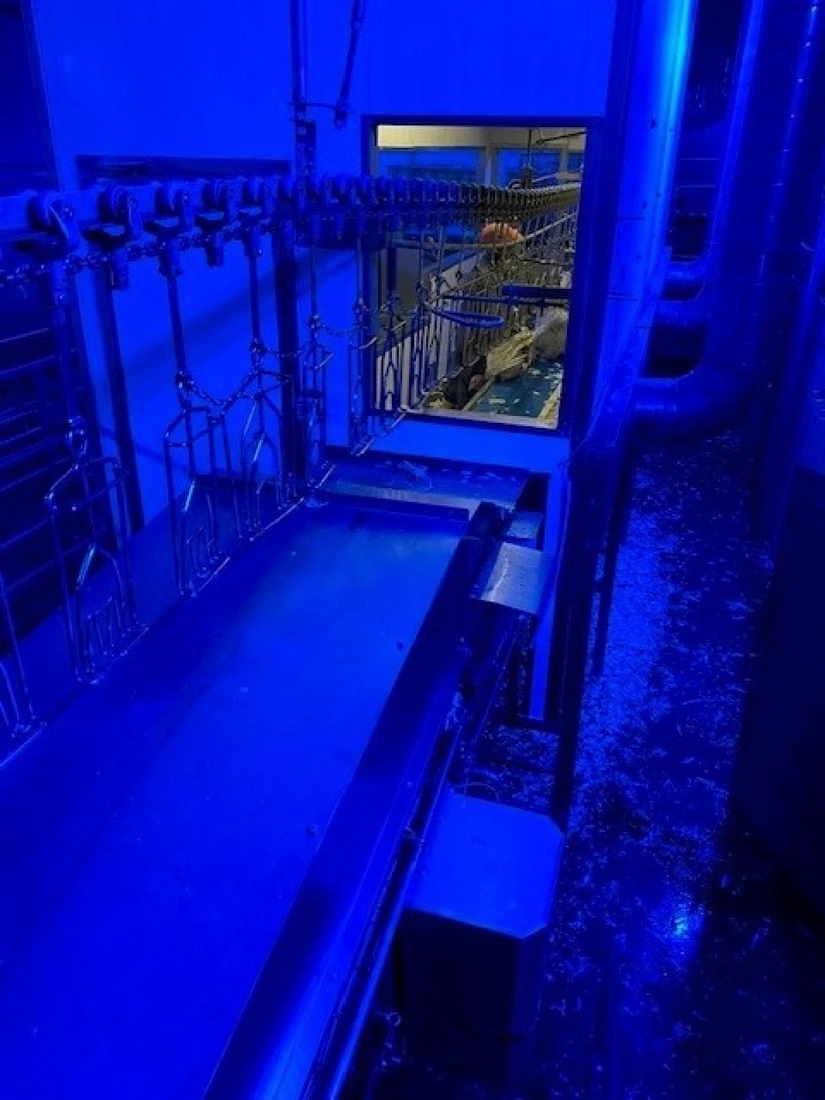

Blue monochromatic LED, a source of well-being for poultry

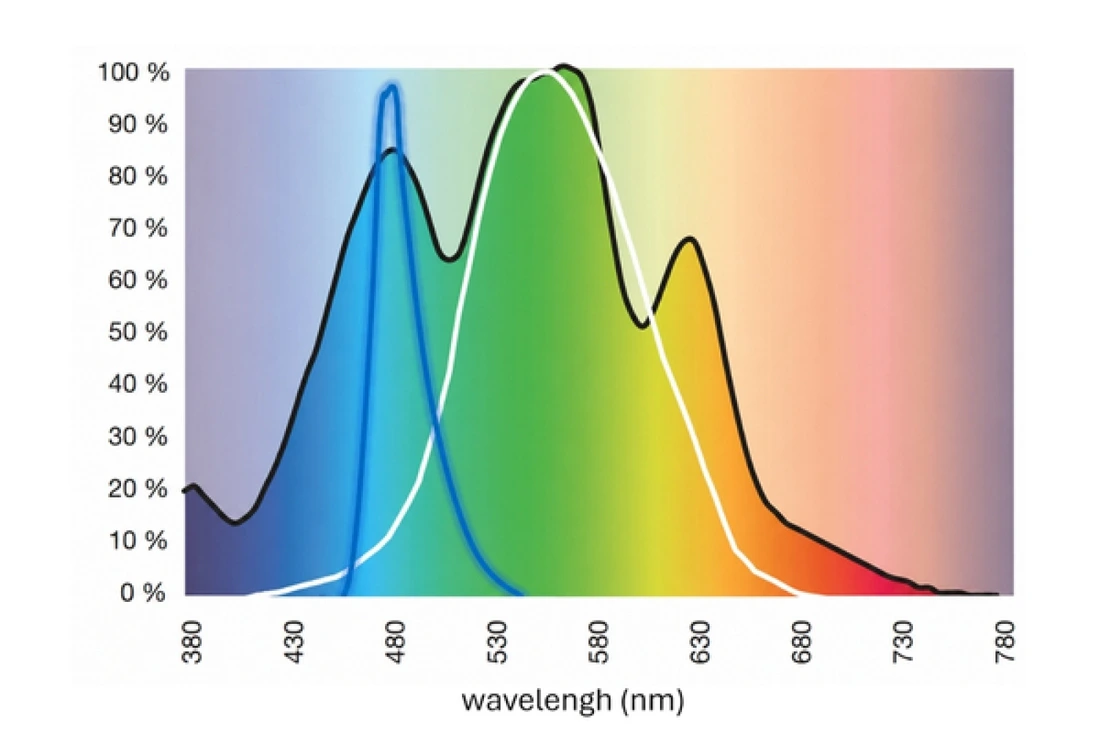

Poultry perceive a broader light spectrum than humans and are particularly sensitive to red and blue light, which trigger opposing physiological responses. Red light induces aggressive behaviour, whilst blue light promotes a state of calm and improves the synchronisation of the animal’s biological rhythms. The blue monochromatic spectrum offered by Sammode, with a peak centred at 470–480 nm, is ideal for broiler poultry, poses no risk to the human eye, and is recommended by veterinary services to reduce stress in animals during the collection and slaughter phases. If required, Sammode also offers a CYAN alternative, with a peak centred at 500 nm

Red light: a range of uses, both in the laboratory and in the great outdoors

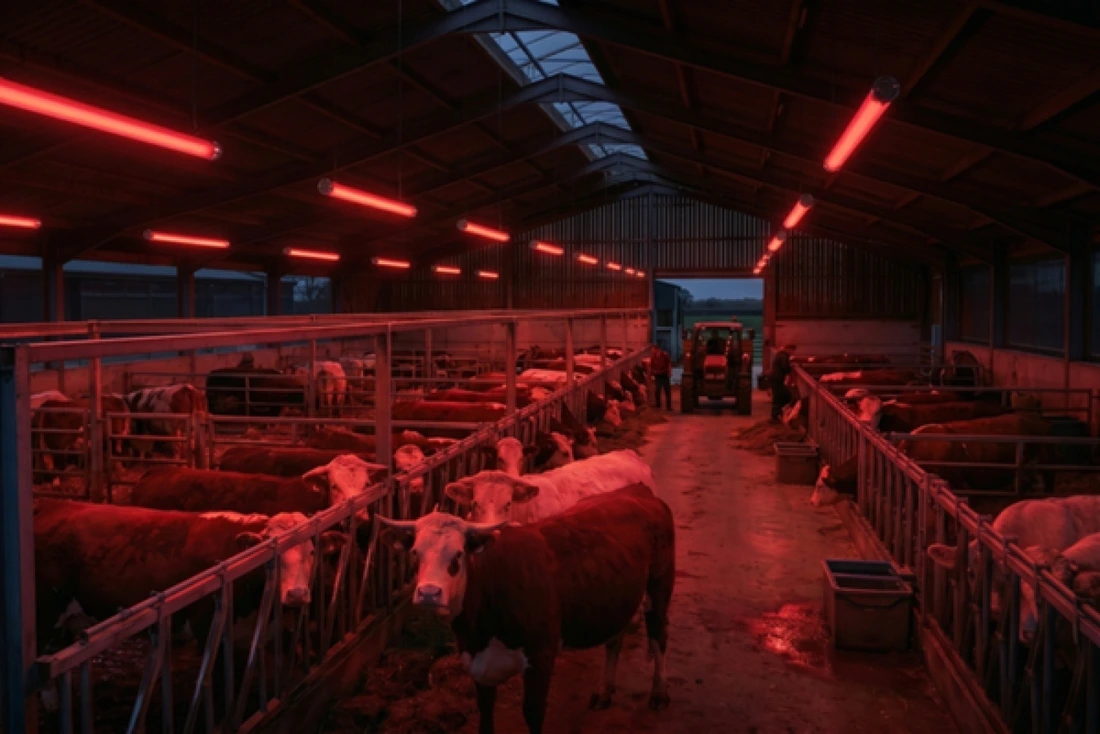

Unlike poultry, cows are barely sensitive to red light. In cattle farming, this therefore allows farmers to carry out inspections or work at night without disrupting the animals’ physiological cycle. In nature reserves and other ecological corridors, red light minimises environmental disturbance, particularly for nocturnal species. Finally, in the laboratory, when its monochromatic spectrum is controlled, it provides reliable non-photochemical lighting that has no impact on photosensitive substances, cell cultures or other photoactive compounds.

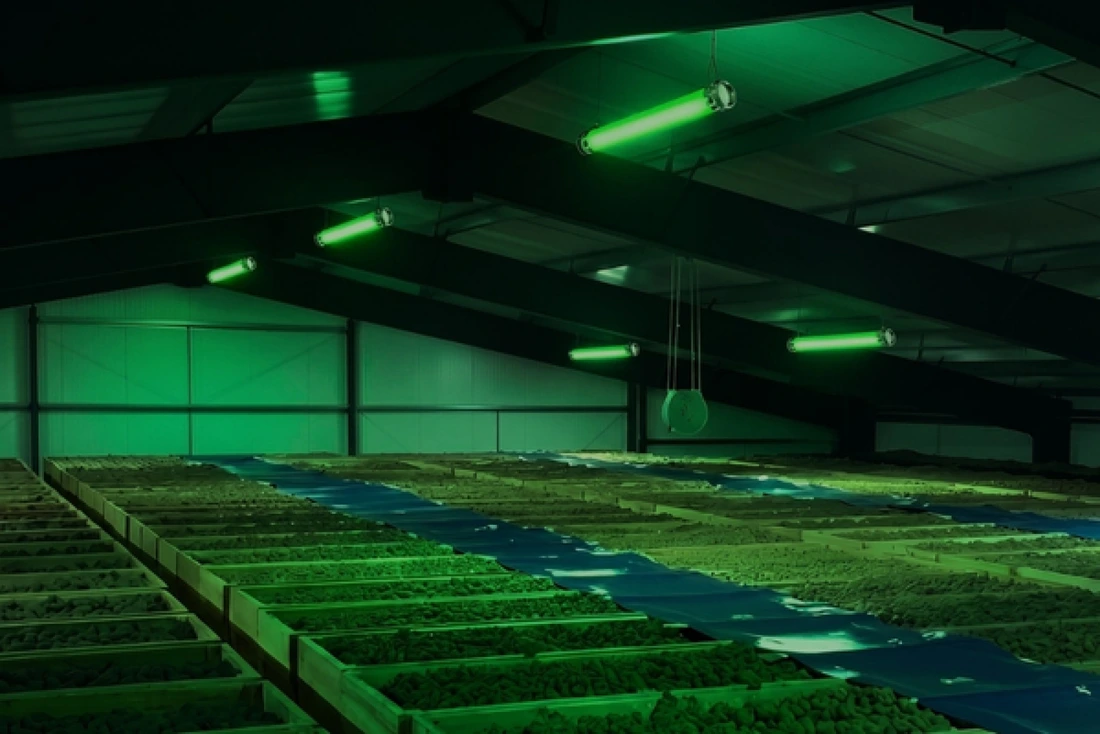

The anti-sprouting effect of green light on potatoes

Green light, due to its minimal interaction with the photoreceptors in the tubers, limits the activation of undesirable physiological processes: in particular, it reduces chlorophyll synthesis and the production of glycoalkaloids, which are responsible for the greening of potatoes. This spectrum, which remains sufficiently effective for the human eye, allows storage areas to be illuminated without compromising the visual and health quality of the tubers

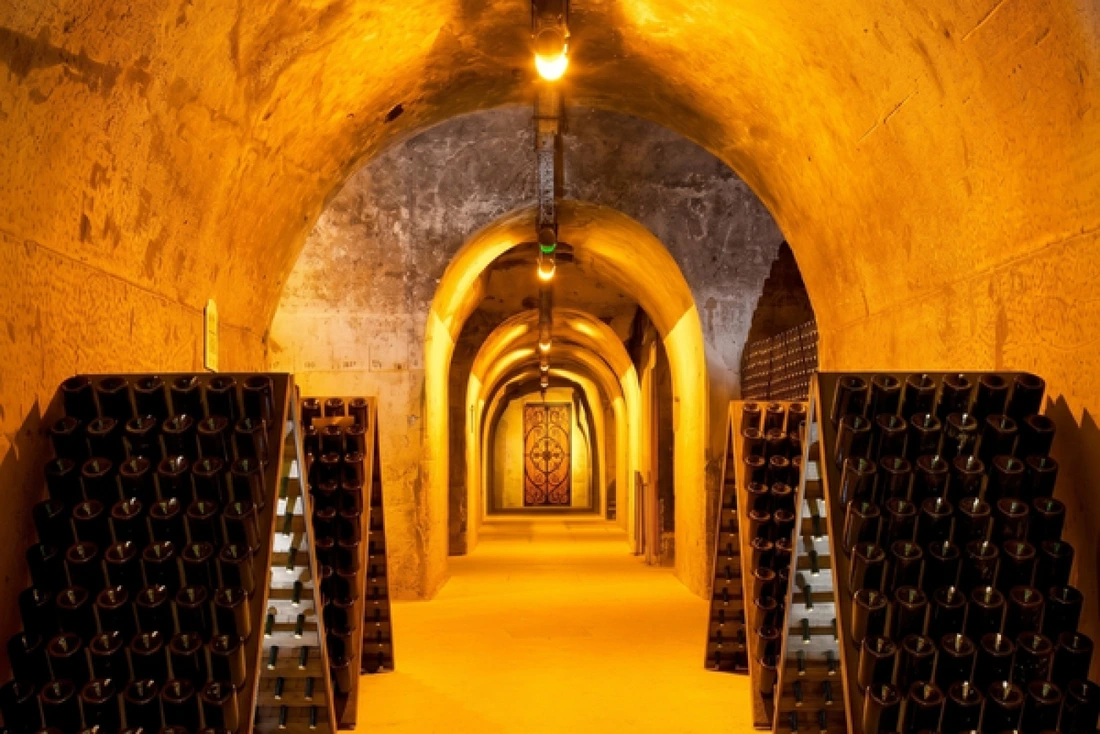

Certified amber spectrum, to guarantee a high-quality champagne

Monochromatic amber light, calibrated to specific wavelengths recommended by the Comité Champagne, allows cellars and wine stores to be lit without affecting the quality of the wine. By targeting areas of the spectrum that do not activate sensitive compounds such as riboflavin, which is naturally present in champagne, it limits the photochemical reactions responsible for the ‘light taste’, a well-known defect in oenology. This spectral selection, whose stability is ensured by our permanently sealed tubular design, helps to preserve the aromas, finesse and balance of the cuvées, even under conditions of prolonged exposure.

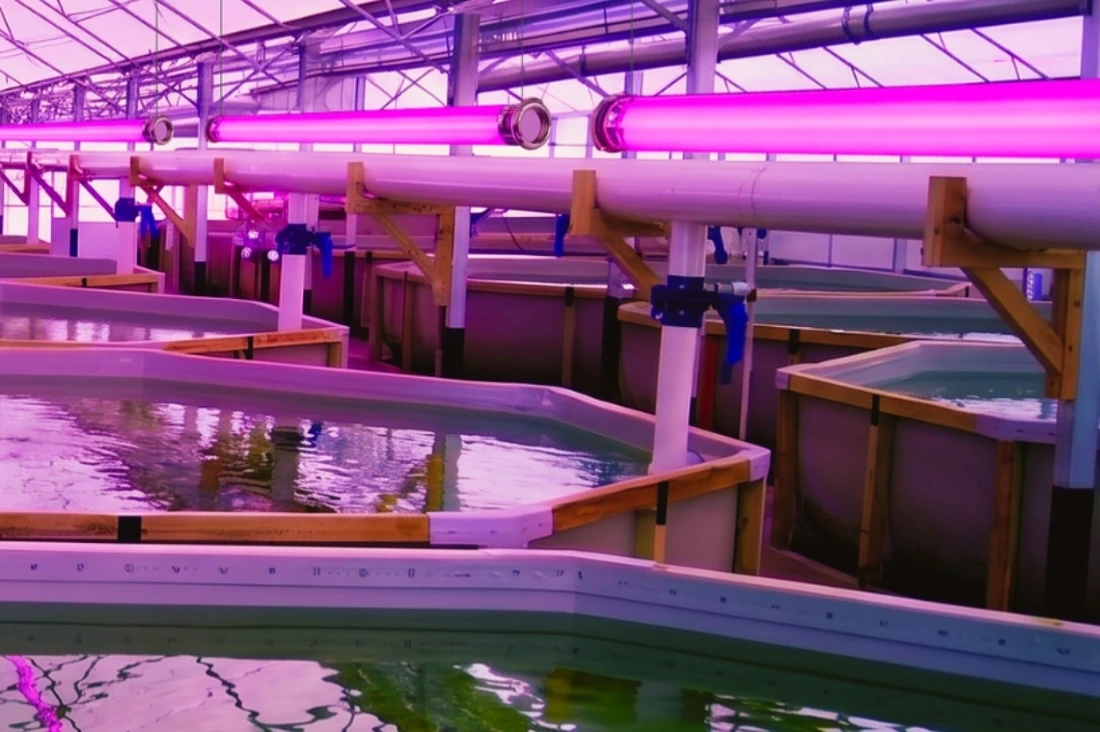

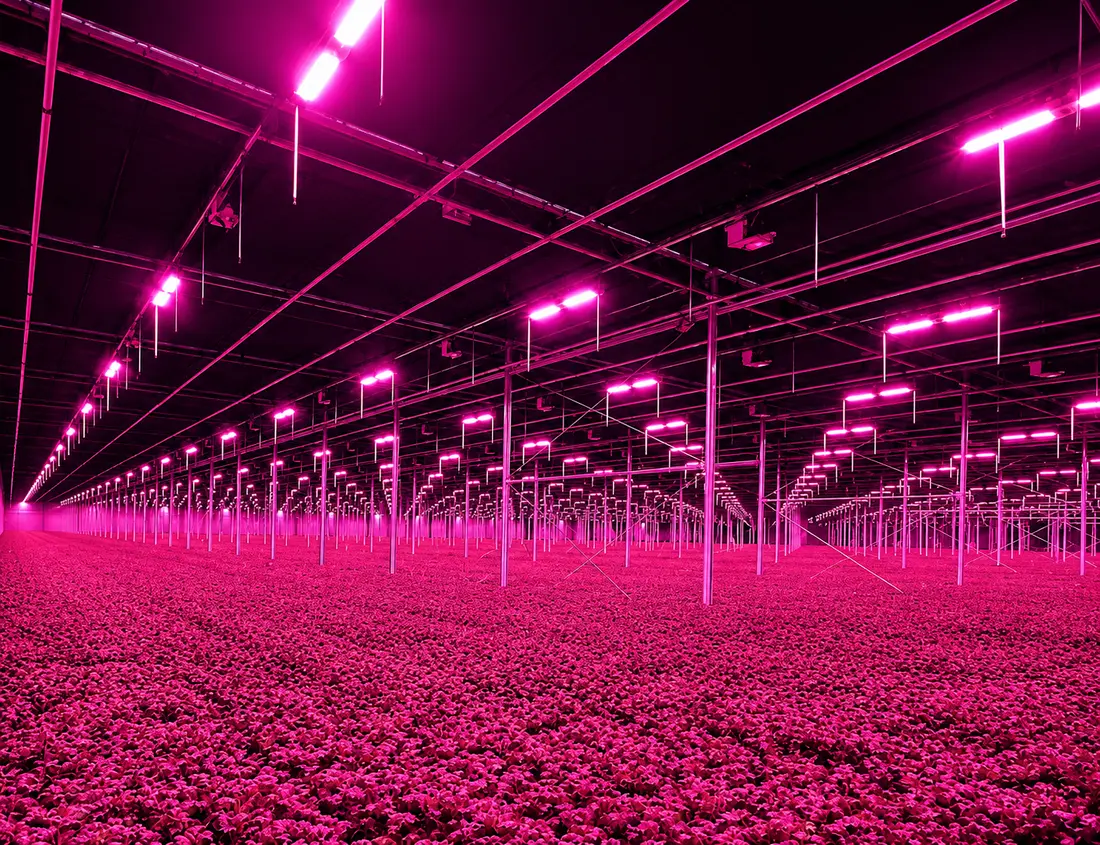

Purple light, a clever blend of red and blue to promote the growth of algae and plants

Whilst light primarily enables humans to see colours, in horticulture and aquaculture alike, it promotes the process of photosynthesis and thus growth. However, certain wavelengths – notably the red and blue components of our violet light – effectively target the absorption bands of chlorophyll. The effectiveness of such ‘photosynthetic photon flux’, also known as PPF, is measured in μmol/s. This composite spectrum is particularly well suited to the cultivation of microalgae and cyanobacteria, including spirulina, by stimulating their development and productivity.

Applications of luminaires by the name Pascal Spectrum

  • Pharmaceutical laboratories: photosensitive substances
  • Medical laboratories: cell cultures
  • Electronic circuit board manufacturing: cleanrooms
  • Chemical and cosmetics industries: photopolymer resins and molecular synthesis

  • Lighting for storage areas: potatoes and other tubers
  • Oenology: lighting in champagne cellars, wine storage

  • Poultry lighting: rearing and collection areas

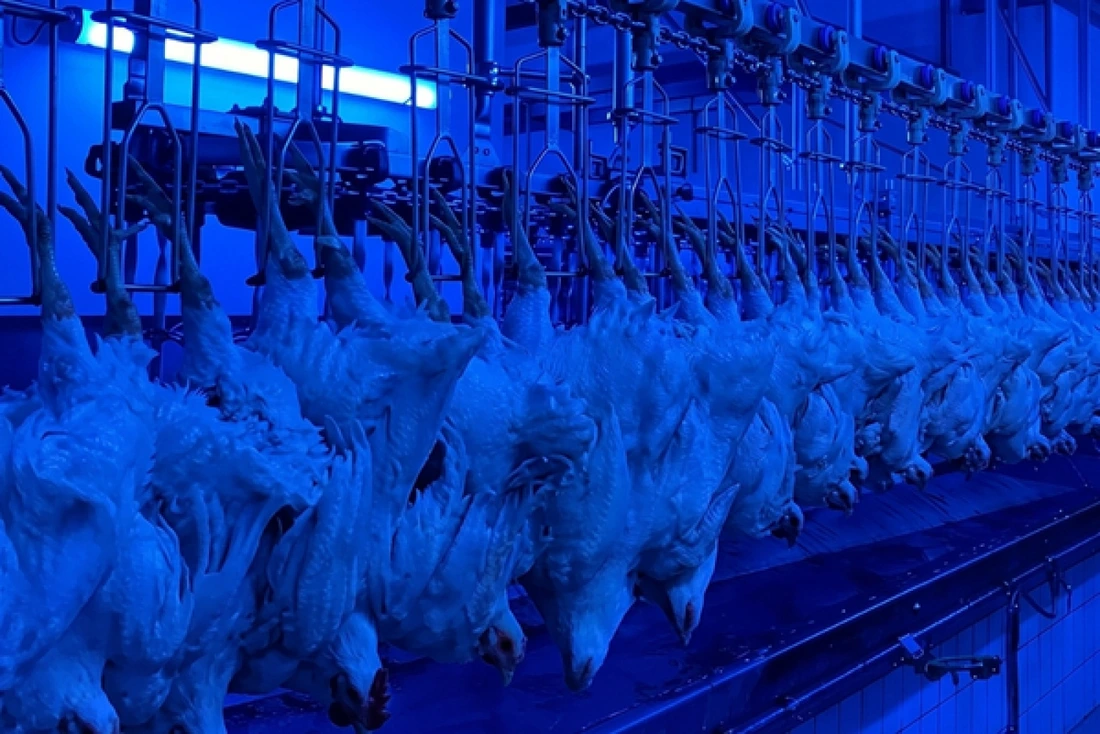

  • Poultry slaughterhouses: stunning areas
  • Cattle farming: night-time lighting in barns

  • Biodiversity hotspots: Nature reserves, ecological corridors
  • Tropical regions: protected species along the coast
  • Caves: visitor reception areas and tour routes
  • Pet shops, Zoos: nocturnal species

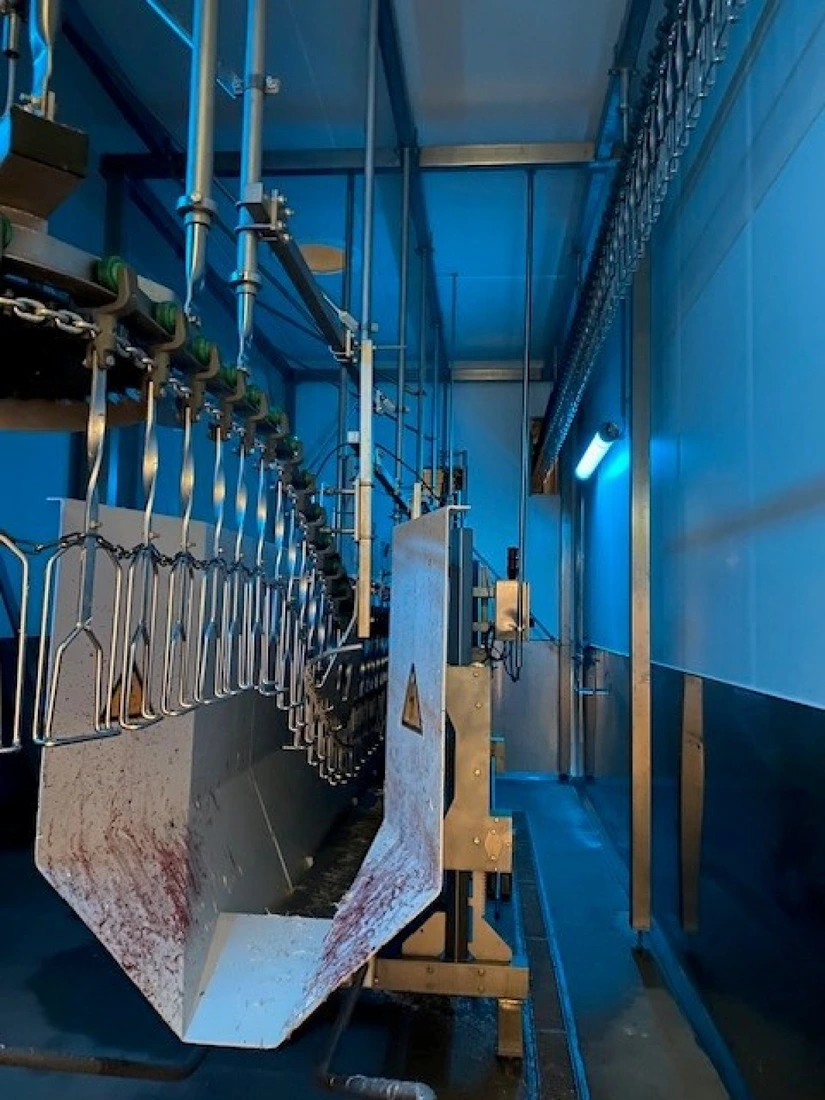

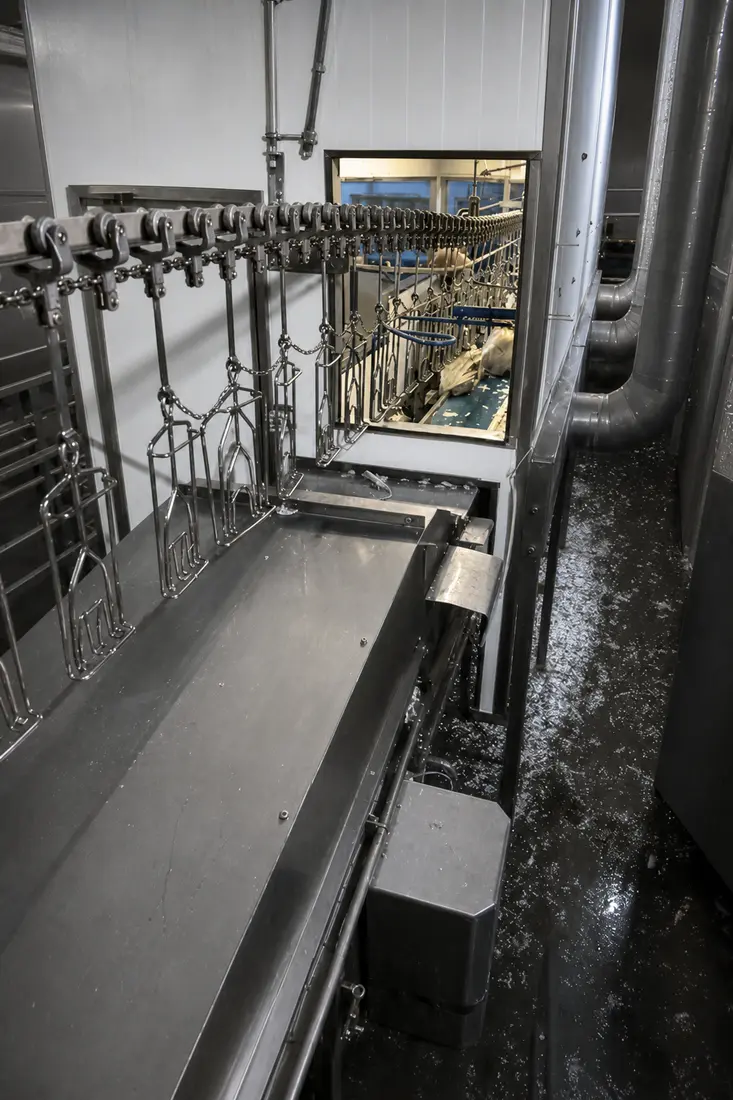

Product shown in situ

Our services

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year warranty, no matter how tough the conditions

Valid even for 24/7 use at the product’s maximum operating temperature, reflecting our unfailing commitment to our customers!

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Main references and downloads

Product brochure

Eulumdat (LDT)

Manual

Certificate
Download all

BLUE spectrum version

Ideal for poultry farming, slaughterhouses, calming effect

Ignition modeØ (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
Single (Blue) 100 1100 1318 PAS100 1300 LC-BLU POME 113 BRS 41606232 32 Data sheet Plan STEP DS .TXT Download all
Single (Blue) 100 1375 1618 PAS100 1600 LC-BLU POME 113 BRS 41606264 40 Data sheet Plan STEP DS .TXT Download all
Single (Blue) 133 2200 1295 PAS133 1300 LC-BLU POME 113 BRS 22605922 62 Data sheet Plan STEP DS .TXT Download all
Single (Blue) 133 2750 1595 PAS133 1600 LC-BLU POME 113 BRS 22605923 76 Data sheet Plan STEP DS .TXT Download all
Dual (White/Blue) 133 7400/1200 1295 PAS133 1300 L2C-840/BLU POME 113 BRS 22605924 61/38 Data sheet Plan STEP DS .TXT Download all
Dual (White/Blue) 133 9250/1500 1595 PAS133 1600 L2C-840/BLU POME 113 BRS 22605907 75/47 Data sheet Plan STEP DS .TXT Download all

RED spectrum version

ideal for cattle farming, biodiversity hotspots, laboratories

Ignition modeØ (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
Single (Red) 100 1200 1318 PAS100 1300 LC-RED POME 113 BRS 41606210 23 Data sheet Plan STEP DS .TXT Download all
Single (Red) 100 1500 1618 PAS100 1600 LC-RED POME 113 BRS 41606258 28 Data sheet Plan STEP DS .TXT Download all
Single (Red) 133 2200 1295 PAS133 1300 LC-RED POME 113 BRS 22605859 44 Data sheet Plan STEP DS .TXT Download all
Single (Red) 133 2750 1595 PAS133 1600 LC-RED POME 113 BRS 22605914 55 Data sheet Plan STEP DS .TXT Download all
Dual (White/Red) 133 7400/1300 1295 PAS133 1300 L2C-840/RED POME 113 BRS 22605853 61/27 Data sheet Plan STEP DS .TXT Download all
Dual (White/Red) 133 9250/1625 1595 PAS133 1600 L2C-840/RED POME 113 BRS 22605915 75/33 Data sheet Plan STEP DS .TXT Download all

GREEN spectrum version

ideal for storing tubers, prevents sprouting

Ignition modeØ (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
Single (Green) 100 3300 1318 PAS100 1300 LC-GN POME 113 BRS 41606224 30 Data sheet Plan STEP DS .TXT Download all
Single (Green) 100 4125 1618 PAS100 1600 LC-GN POME 113 BRS 41606211 38 Data sheet Plan STEP DS .TXT Download all
Single (Green) 133 6200 1295 PAS133 1300 LC-GN POME 113 BRS 22605918 64 Data sheet Plan STEP DS .TXT Download all
Single (Green) 133 7750 1595 PAS133 1600 LC-GN POME 113 BRS 22605860 79 Data sheet Plan STEP DS .TXT Download all
Dual (White/Green) 133 7400/3400 1295 PAS133 1300 L2C-840/GN POME 113 BRS 22605877 61/39 Data sheet Plan STEP DS .TXT Download all
Dual (White/Green) 133 9250/4250 1595 PAS133 1600 L2C-840/GN POME 113 BRS 22605919 75/49 Data sheet Plan STEP DS .TXT Download all

AMBER spectrum version for champagne and wines

in accordance with CIVC guidelines

Ignition modeØ (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
Single (Amber-C) 100 1300 1318 PAS100 1300 LC-AMC POME 113 BRS 41606298 24 Data sheet Plan STEP DS .TXT Download all
Single (Amber-C) 100 1625 1618 PAS100 1600 LC-AMC POME 113 BRS 41606294 29 Data sheet Plan STEP DS .TXT Download all
Single (Amber-C) 133 2400 1295 PAS133 1300 LC-AMC POME 113 BRS 22605920 47 Data sheet Plan STEP DS .TXT Download all
Single (Amber-C) 133 3000 1595 PAS133 1600 LC-AMC POME 113 BRS 22605921 57 Data sheet Plan STEP DS .TXT Download all

High-visibility AMBER spectrum version

for human activity, inactinic

Ignition modeØ (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
Single (Amber) 100 3300 1318 PAS100 1300 LC-AMB POME 113 BRS 41606231 32 Data sheet Plan STEP DS .TXT Download all
Single (Amber) 100 4125 1618 PAS100 1600 LC-AMB POME 113 BRS 41606326 40 Data sheet Plan STEP DS .TXT Download all
Single (Amber) 133 6400 1295 PAS133 1300 LC-AMB POME 113 BRS 22605971 62 Data sheet Plan STEP DS .TXT Download all
Single (Amber) 133 8000 1595 PAS133 1600 LC-AMB POME 113 BRS 22605972 76 Data sheet Plan STEP DS .TXT Download all

PURPLE spectrum version

blue + red light, ideal for algae cultivation and horticulture

Ignition modeØ (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
Single (Purple) 100 1300 1318 PAS100 1300 LC-PRP POME 113 BRS 41606296 30 Data sheet Plan STEP DS .TXT Download all
Single (Purple) 100 1625 1618 PAS100 1600 LC-PRP POME 113 BRS 41606297 37 Data sheet Plan STEP DS .TXT Download all
Single (Purple) 133 2400 1295 PAS133 1300 LC-PRP POME 113 BRS 22605916 58 Data sheet Plan STEP DS .TXT Download all
Single (Purple) 133 3000 1595 PAS133 1600 LC-PRP POME 113 BRS 22605917 71 Data sheet Plan STEP DS .TXT Download all

Cable entry

1 cable gland

Polyamide capacity Ø7-12mm 113
Polyamide capacity Ø8-14mm 116
Nickel-coated brass capacity Ø6-14 mm 113LN

2 cable glands including one blind plug

Polyamide capacity Ø7-12mm 213
Polyamide capacity Ø8-14mm 216
Nickel-coated brass capacity Ø6-14 mm 213LN

Disconnectable plugs

IP68/69K quick-lock plug with threaded ring (capacity:Ø8 to 10 mm) PS3

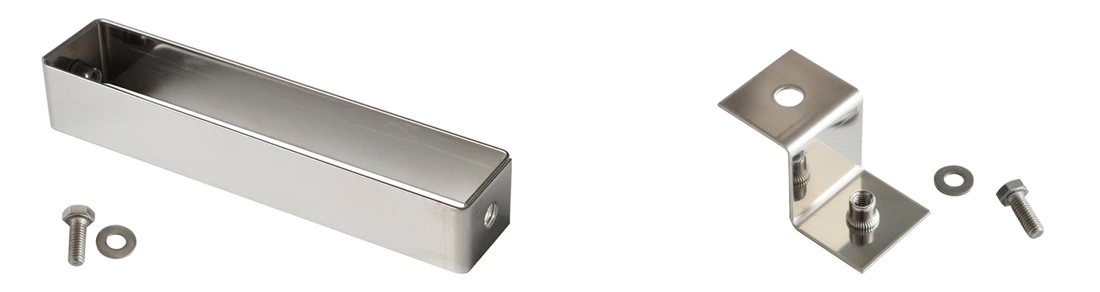

Fixing straps

Reinforced fixing straps BRS
Reinforced fixing straps with HSHC screw BRV

Materials

Polycarbonate housing PO
Coextruded polycarbonate/ PMMA housing with high chemical resistance POME
End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

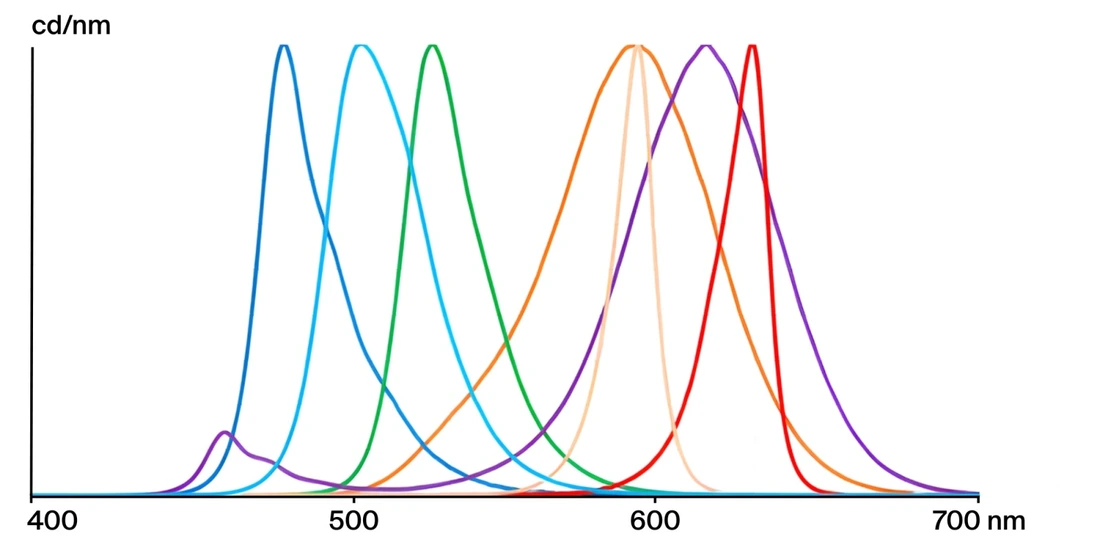

Spectrum colour (colour LED)

Blue 466-494 nm LC-BLU
Cyan 488-524 nm LC-CY
Green 513-542 nm LC-GN
Amber 560-621 nm LC-AMB
Amber for wine cellars 583-598 nm LC-AMC
Violet LC-PRP
Red 617-636 nm LC-RED

Lighting management

Non dimmable -
Electronic gear unit for DALI 2 dimming RD
Gradation for dual-ignition versions: please contact us

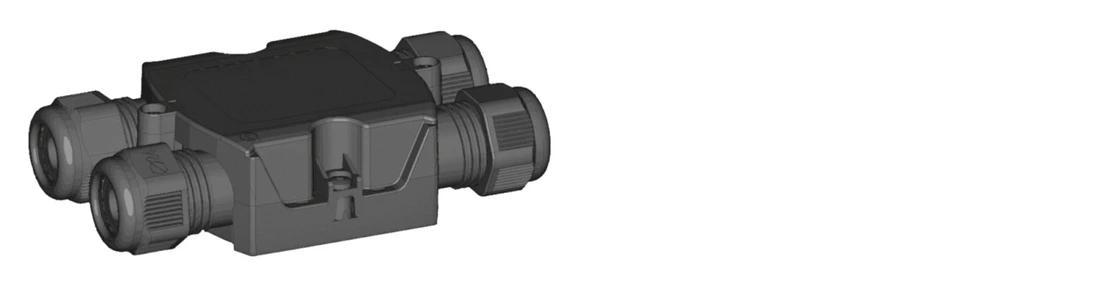

IP68 4-outlet junction box  (capacity Ø7-14mm) CP00674
Kits for APSAD compliance
2 x 20 cm  304L stainless steel extensions PU44277
2 x 5 cm  304L stainless steel extensions PU44278

Technical specifications

Light source
  • High-efficiency removable LED module
  • 50 000 h L80/B10 at max. operating temperature
  • Coloured LEDs: there may be a slight variation in colour tone along the length of the light fitting; this has no effect on the lighting performance
Optics
  • Special satin-finish housing for LED
Lighting comfort
  • UGR ≤ 25
  • Like any monochromatic lighting, this can alter one’s perception of the surroundings
Control gear
  • Constant current driver
  • Electronic compatible with central source
  • Non-dimmable dual-switch versions: 2 drivers for non-simultaneous switching of the two LED light sources, for installations fitted with a phase-switch/selector (not supplied; see instructions)
Supply voltage
  • 220-240V 0/50/60Hz
Electrical class
  • Class I
Operating temperature
  • -20°C to +35°C

Connection
  • Polyamide cable gland for cables with a diameter of 7 to 12 mm, on a plug-in terminal block rated at 3 x 2.5 mm² (except dual-ignition versions: 5 x 2.5 mm²)
Mounting
  • Attachement with 2 bolt-fitted stainless steel straps with variable center distance and 360° orientation
LED engine maintenance
  • Easily removable LED modules and driver
  • Maintenance by removing the end cap and sliding the guided gear plate (Slide©)

Housing
  • Special polycarbonate housing protected from UV, solvents, hydrocarbons and cleaning agents by a coextrusion of PMMA
End caps and fixing straps
  • 304L stainless steel
Gaskets
  • Peroxide-cured EPDM
Method of construction
  • Housing in one piece with long-lasting imperviousness

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C

  • Mechanical parts made in our Vosges factory (France)
  • Spare parts and sub-assemblies available for a minimum of 30 years.

Diameter 100
Diameter 133
