AIRMOD Recessed can illuminate airport terminal lounges, the reception area of a restaurant, a golf club lounge, an entrance hall for an office block, the central area of a kitchen, and more yet.

Pendant light with recessed housing

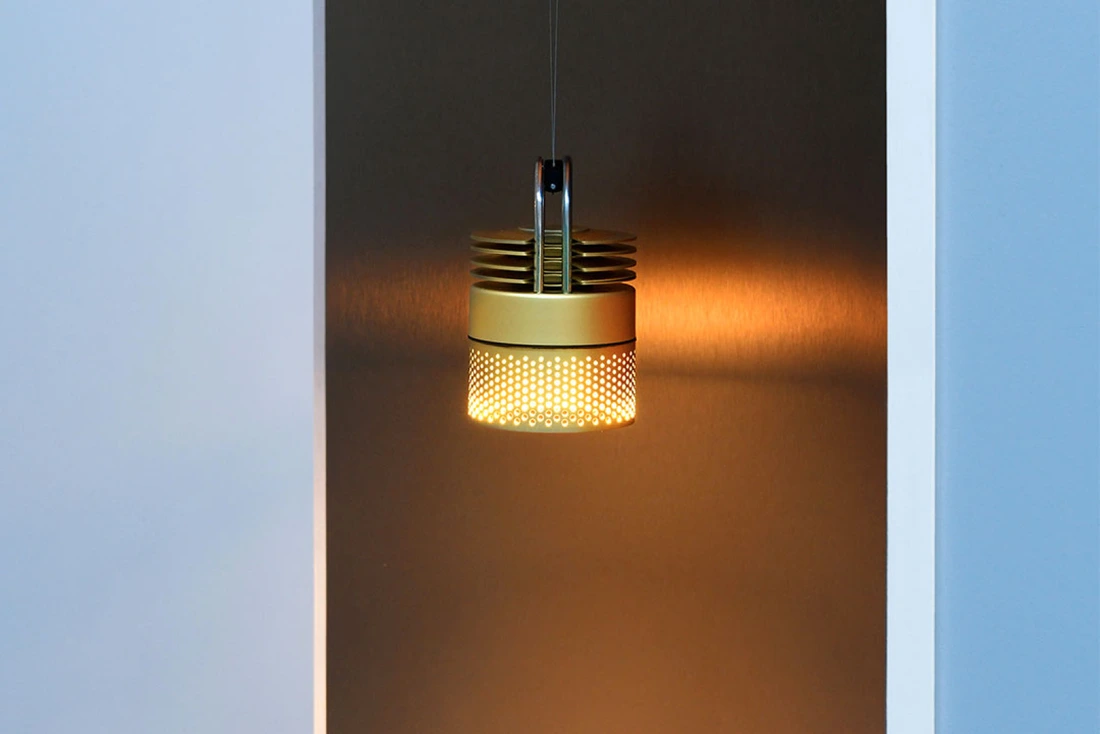

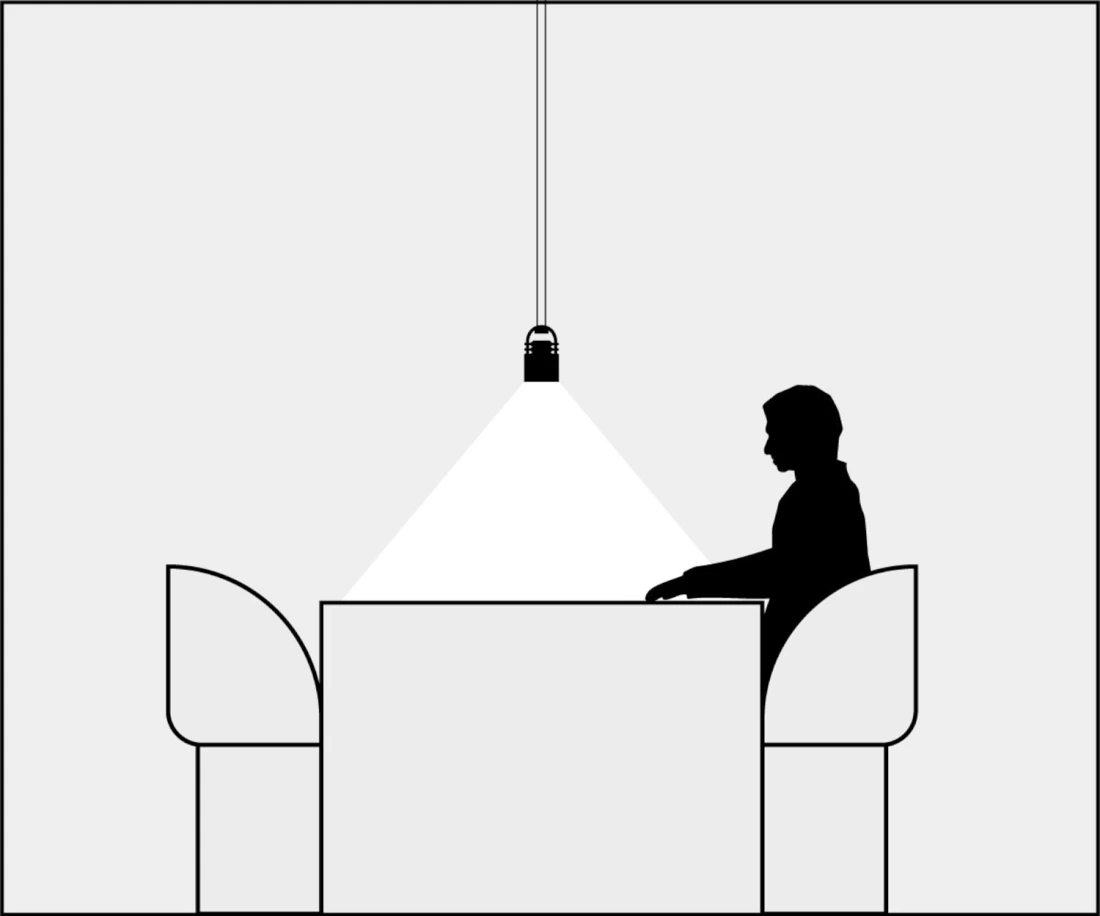

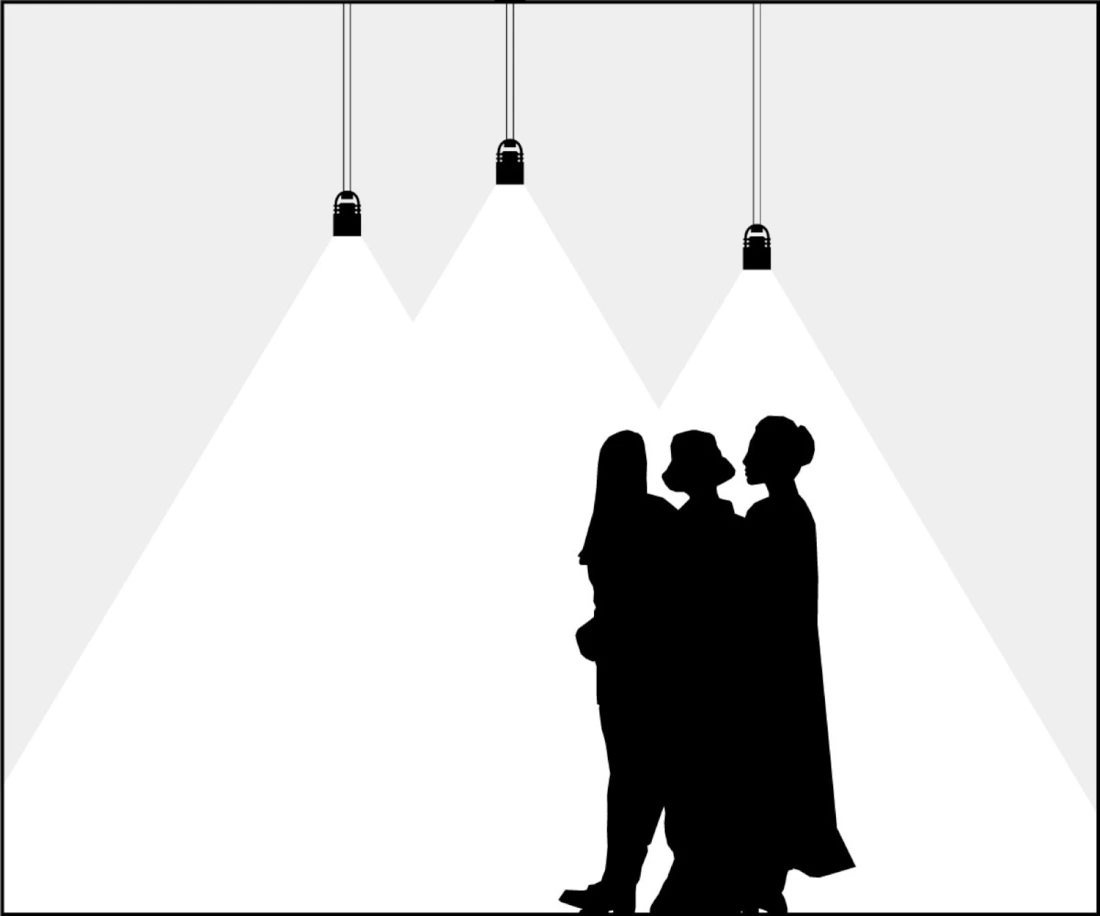

The AIRMOD Recessed suspended light fitting was created for Sammode by the German designer Stefan Diez and defies the laws of gravity! These height-adjustable suspended light fittings offer flexible composition options, for use either in a cluster above a table, or scattered around a space, constellation-fashion.

Access to product information

A fully modular system

Stefan Diez designed this collection to reflect Sammode’s long and rich heritage, producing an innovative system with widely adaptable architecture and state-of-the-art technology, or what he calls “The Universal Tool Box". The result? A luminaire that can incorporate a range of lenses and decorative rims that you can change at will.

Where technical prowess meets aesthetic style

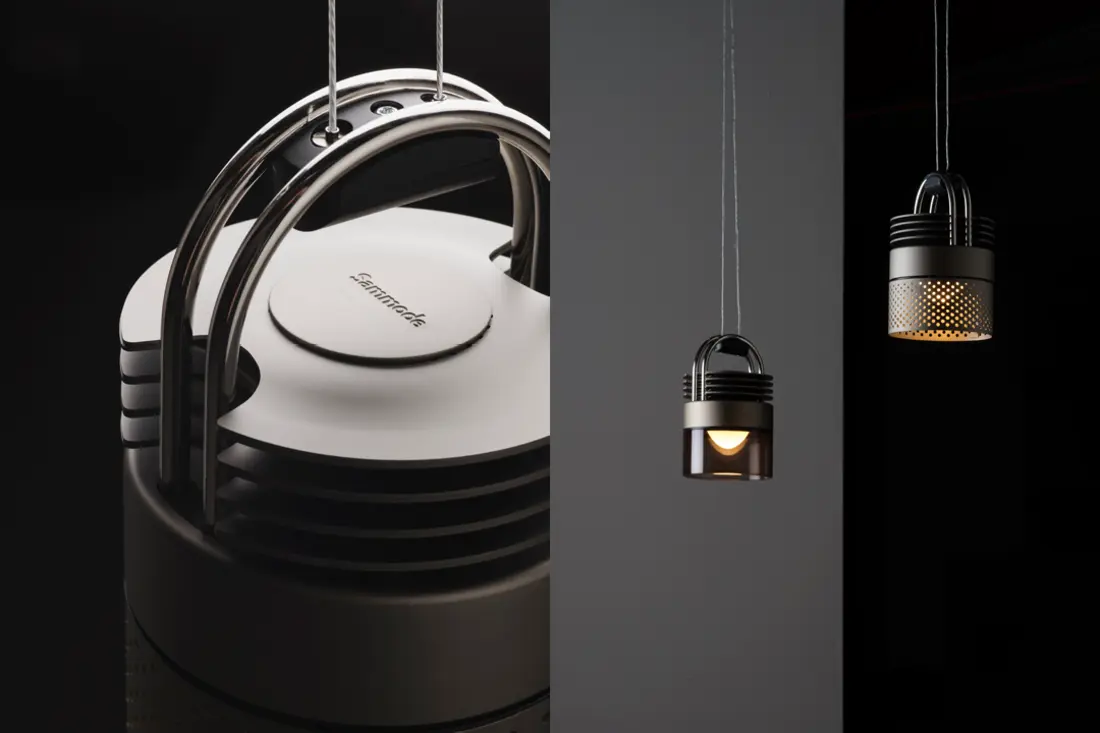

The luminaire head does not have a separate power cable and is exclusively supplied via the suspension wires which gives this classy suspended light fitting, with its standout mechanical-style design, a surprisingly unobtrusive look. With its compact and elegant design, all you need is one head installed to give any space a touch of class.

Made-to-measure luminaires for a never-ending choice of atmosphere

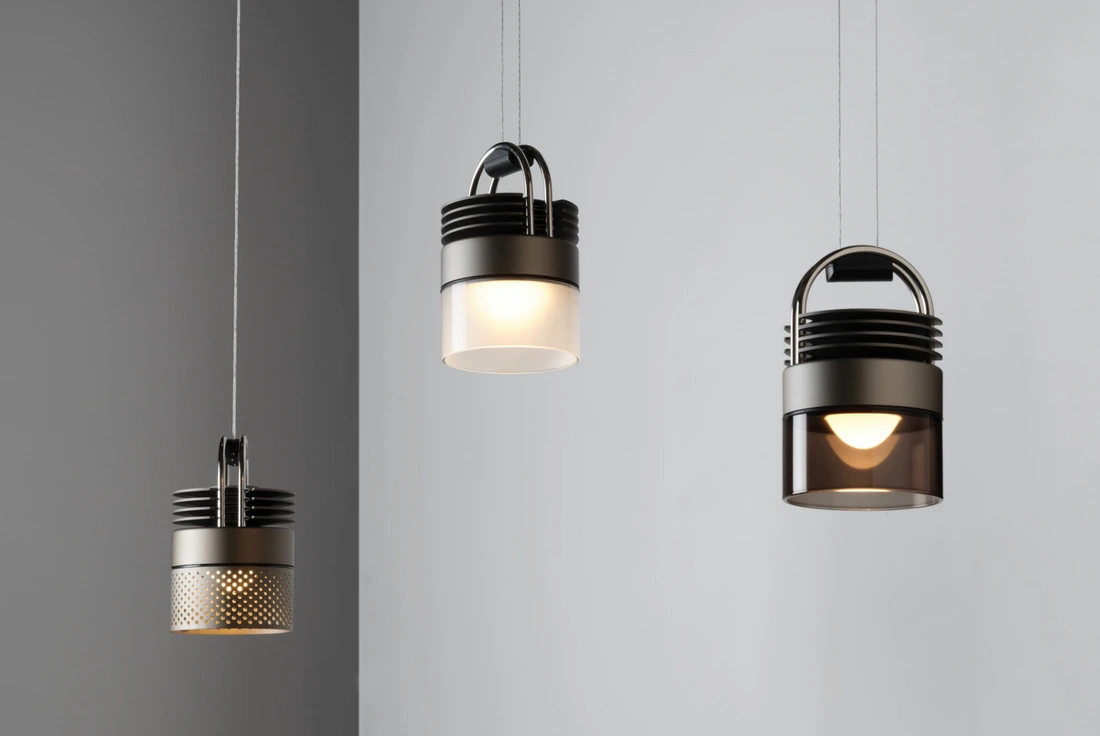

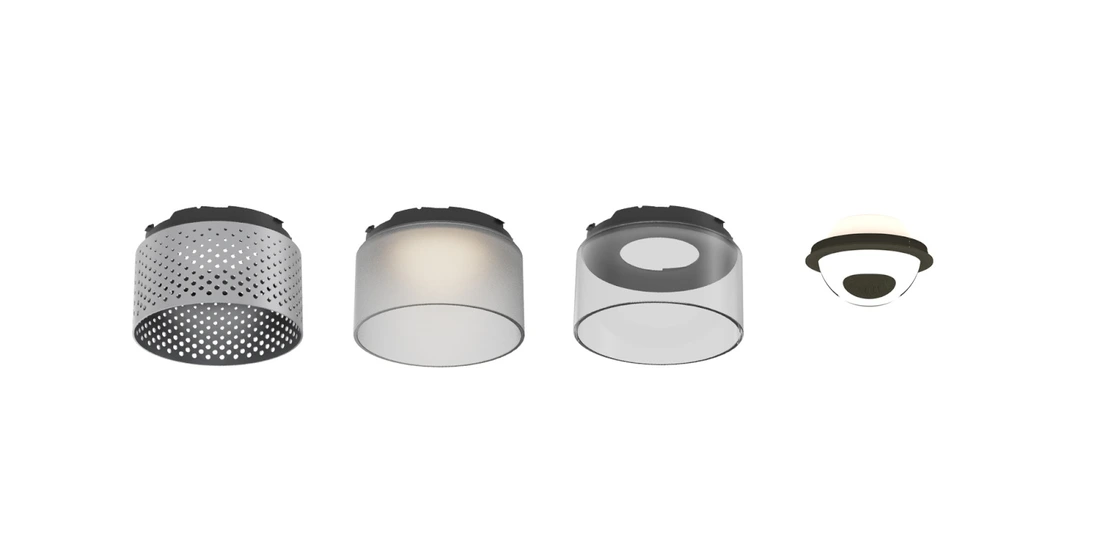

Mix and match your lenses and rims to create your preferred lighting and environment. The Silver and Bronze versions will add a touch of elegance and modernity to any airport lounge or meeting room whether installed singly or at intervals. For diffuse lighting, add a frosted glass shade; for more character, opt for a perforated collimator, unless you are won over by the charming reflections of the smoked glass shades.””

Designed to fit ideally into your architectural design

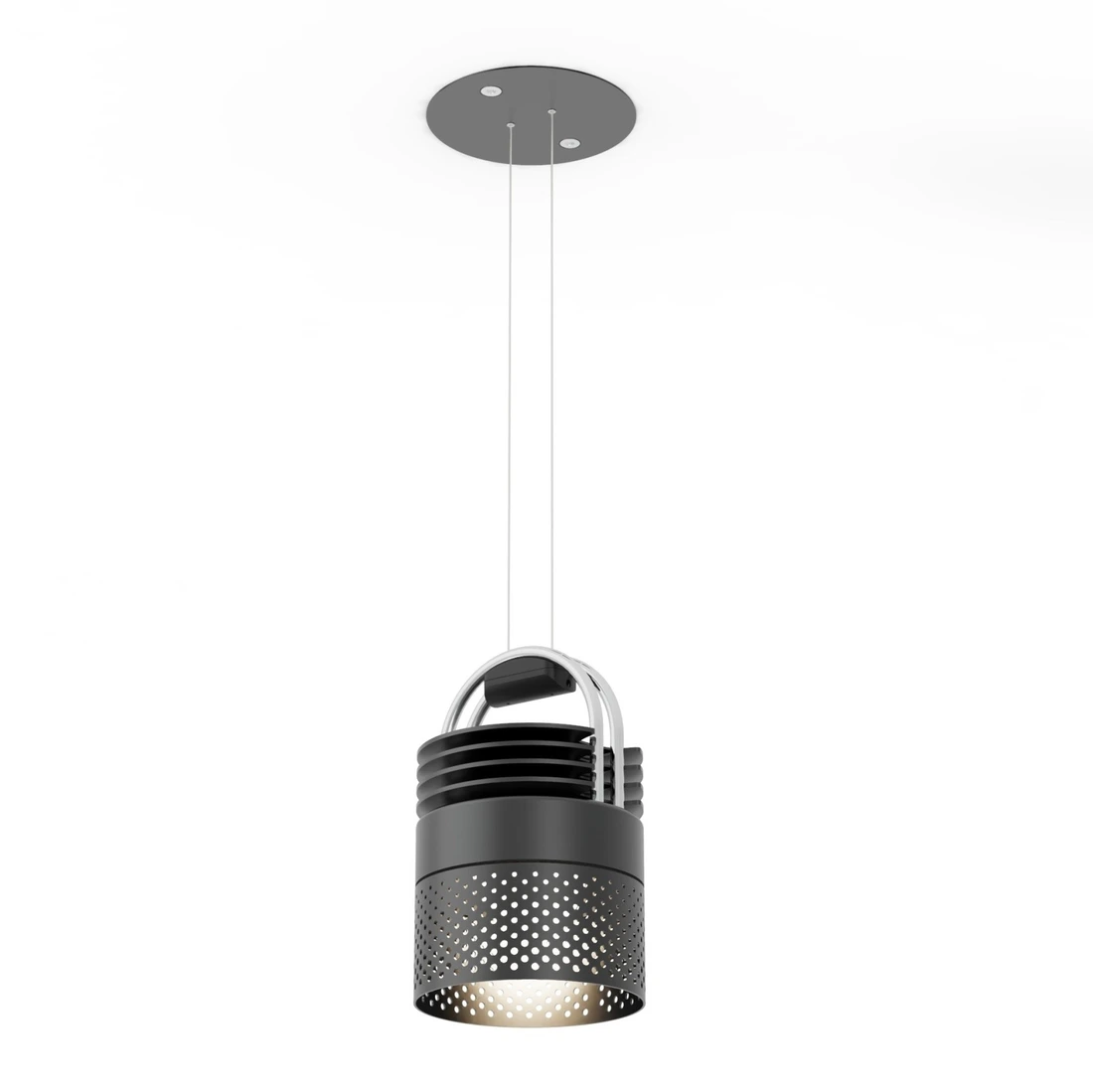

This model for an embedded set-up is equipped with a discreet and eye-pleasing decorative disk in anodised aluminium with the same finish as the suspended light fitting. On this basis, the driver can easily be concealed and forgotten about in a suspended ceiling, leaving the protruding head to shine its light below.

Sammode expertise

Designed in Germany with French expertise

Designed and manufactured in France and Germany, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year warranty

Our products are designed to be upgraded along with your set-up, which means that they come with a 5-year warranty and guaranteed availability for the accessories you need, today and into the future.

Designed to change as your building evolves

Have your preferences changed? MOD can change with you! Thanks to our interchangeable accessories, adjusting your atmosphere or set-up is child’s play. Sammode undertakes to supply the necessary parts over the long term. The MOD Recessed luminaire is specifically built to last and to adapt to changing tastes and trends.

Perforated collimator version

900 lm, 2700 K

FinishingEndcapDesignationCodeWatt Technical data Plan STEP DS .TXT Download all
Silver Silver AIRMOD RCSD S 900-927 GR-S 88200081 13 Technical data Plan STEP DS .TXT Download all
Black Black AIRMOD RCSD BK 900-927 GR-BK 88200084 13 Technical data Plan STEP DS .TXT Download all
Champagne Champagne AIRMOD RCSD CH 900-927 GR-CH 88200040 13 Technical data Plan STEP DS .TXT Download all
Bronze Bronze AIRMOD RCSD BZ 900-927 GR-BZ 88200041 13 Technical data Plan STEP DS .TXT Download all

Frosted glass shade version

900 lm, 2700 K

FinishingEndcapDesignationCodeWatt Technical data Plan STEP DS .TXT Download all
Silver Frosted AIRMOD RCSD S 900-927 GL-FR 88200083 13 Technical data Plan STEP DS .TXT Download all
Black Frosted AIRMOD RCSD BK 900-927 GL-FR 88200086 13 Technical data Plan STEP DS .TXT Download all
Champagne Frosted AIRMOD RCSD CH 900-927 GL-FR 88200044 13 Technical data Plan STEP DS .TXT Download all
Bronze Frosted AIRMOD RCSD BZ 900-927 GL-FR 88200045 13 Technical data Plan STEP DS .TXT Download all

Glass version

900 lm, 2700 K

FinishingEndcapDesignationCodeWatt Technical data Plan STEP DS .TXT Download all
Silver Clear AIRMOD RCSD S 900-927 GL-CL 88200082 13 Technical data Plan STEP DS .TXT Download all
Black Green AIRMOD RCSD BK 900-927 GL-GN 88200085 13 Technical data Plan STEP DS .TXT Download all
Champagne Amber AIRMOD RCSD CH 900-927 GL-AM 88200048 13 Technical data Plan STEP DS .TXT Download all
Bronze Smoked AIRMOD RCSD BZ 900-927 GL-SM 88200049 13 Technical data Plan STEP DS .TXT Download all

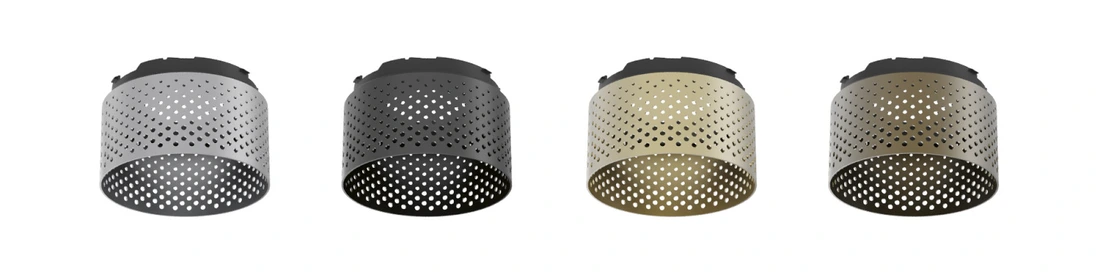

Perforated collimator in anodised aluminium

Silver GR-S
Black GR-BK
Champagne GR-CH
Bronze GR-BZ

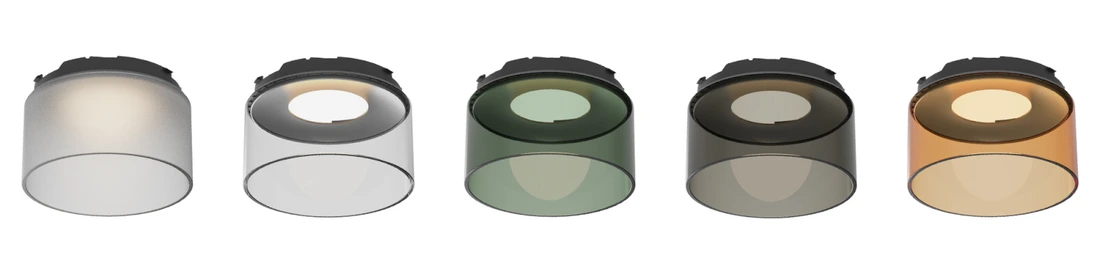

Tempered glass shade

Frosted GL-FR
Clear GL-CL
Green GL-GN
Amber GL-AM
Smoked GL-SM

Color temperature

2700K 927
3000K 930
4000K 940

Lighting management

Electronic gear unit for DALI dimming RD
Casambi Bluetooth control RB
Other lengths: consult us
The interchangeable crowns and lenses can be ordered separately. Refer to us

Technical specifications

Designer
  • Stefan Diez

Light source
  • CoB LED Module 900 lm (without endcap, IRC>90, 3SDCM)
  • 50 000 h L80/B10 at 25°C
  • Photobiological hazard : Group 1
Control gear
  • Constant current driver (non-dimmable)
Supply voltage
  • 220-240V 50/60Hz
Electrical class
  • Class I
Operating temperature
  • -5 °C to +35 °C

Connection
  • Prewired driver, fitted with a male-female Wieland coupling
Mounting
  • Hollow wall attachment for tightening, wall thickness : 30 mm max
Installation hole
  • diameter : 83 mm
Empty plenum space
  • 200 x 300 mm, height : 100 mm
Hanging height
  • Suspension wires adjustable in height, up to 3 m.

Head and covering plate
  • Color anodizing Aluminium, nickel-plated copper hoop
Endcap
  • Perforated collimator : Color anodizing Aluminium
  • Glass : clear, tinted or frosted tempered glass, according to versions
Lens
  • Tempered glass

Waterproofness
  • IP20 (indoor use)
Fire resistance
  • 850°C

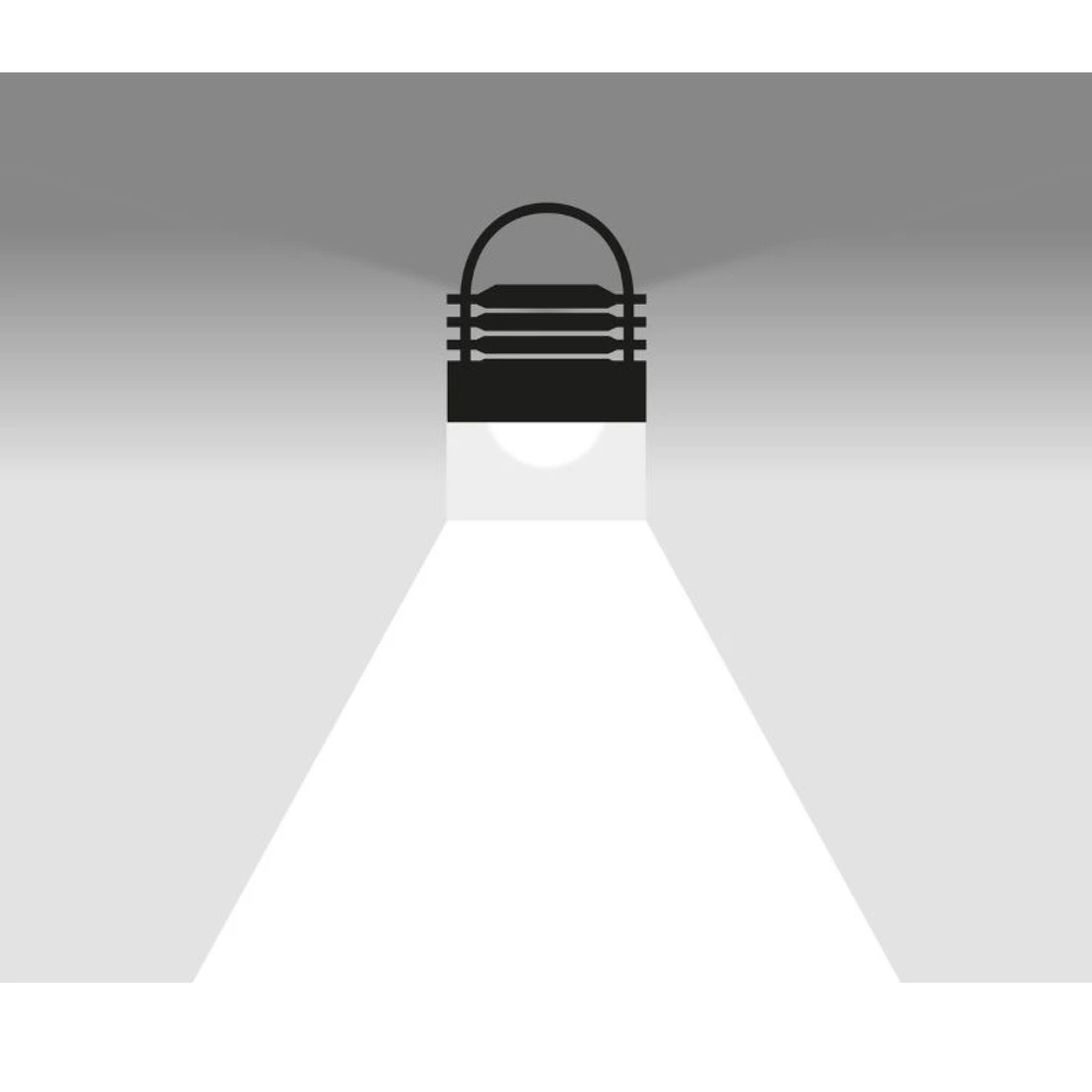

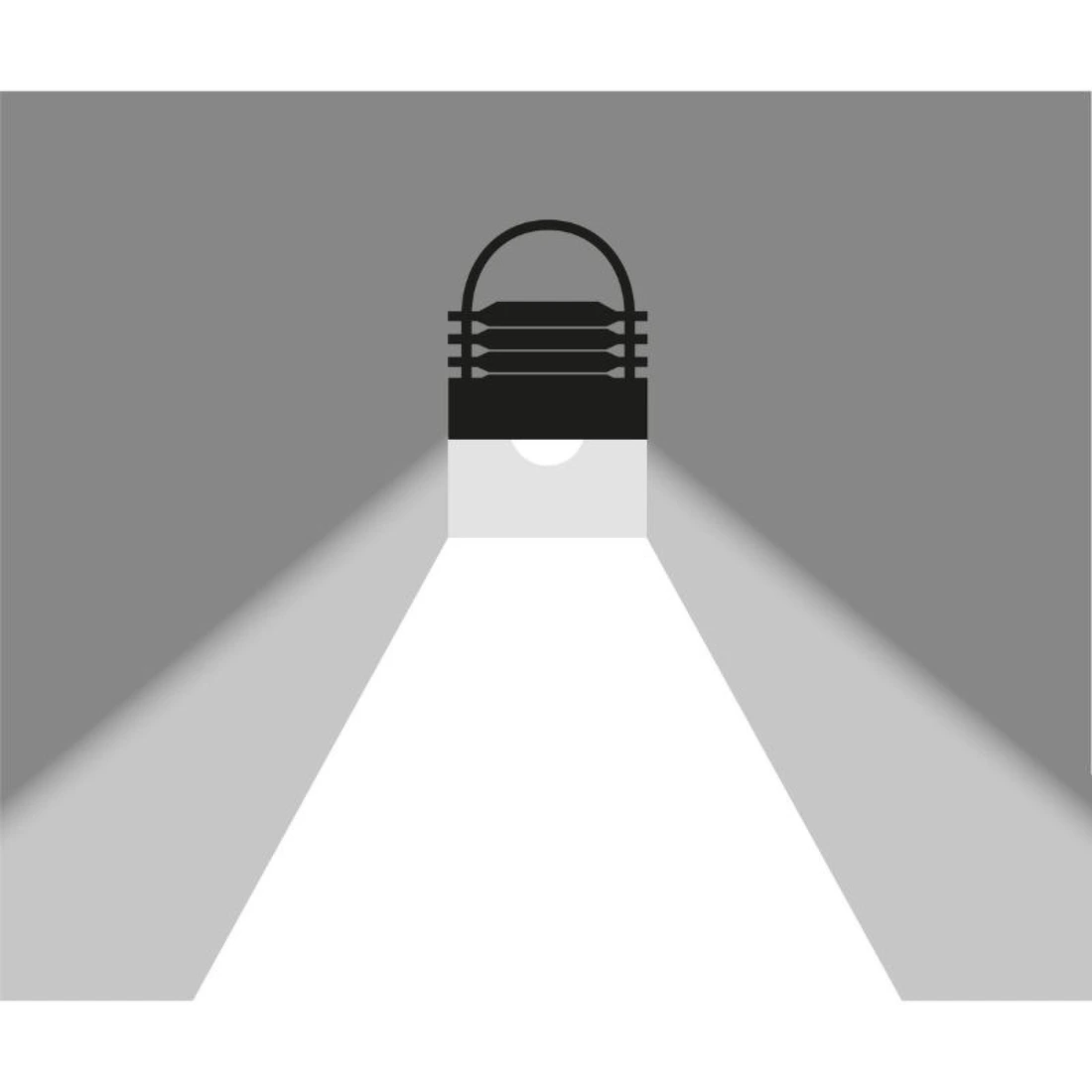

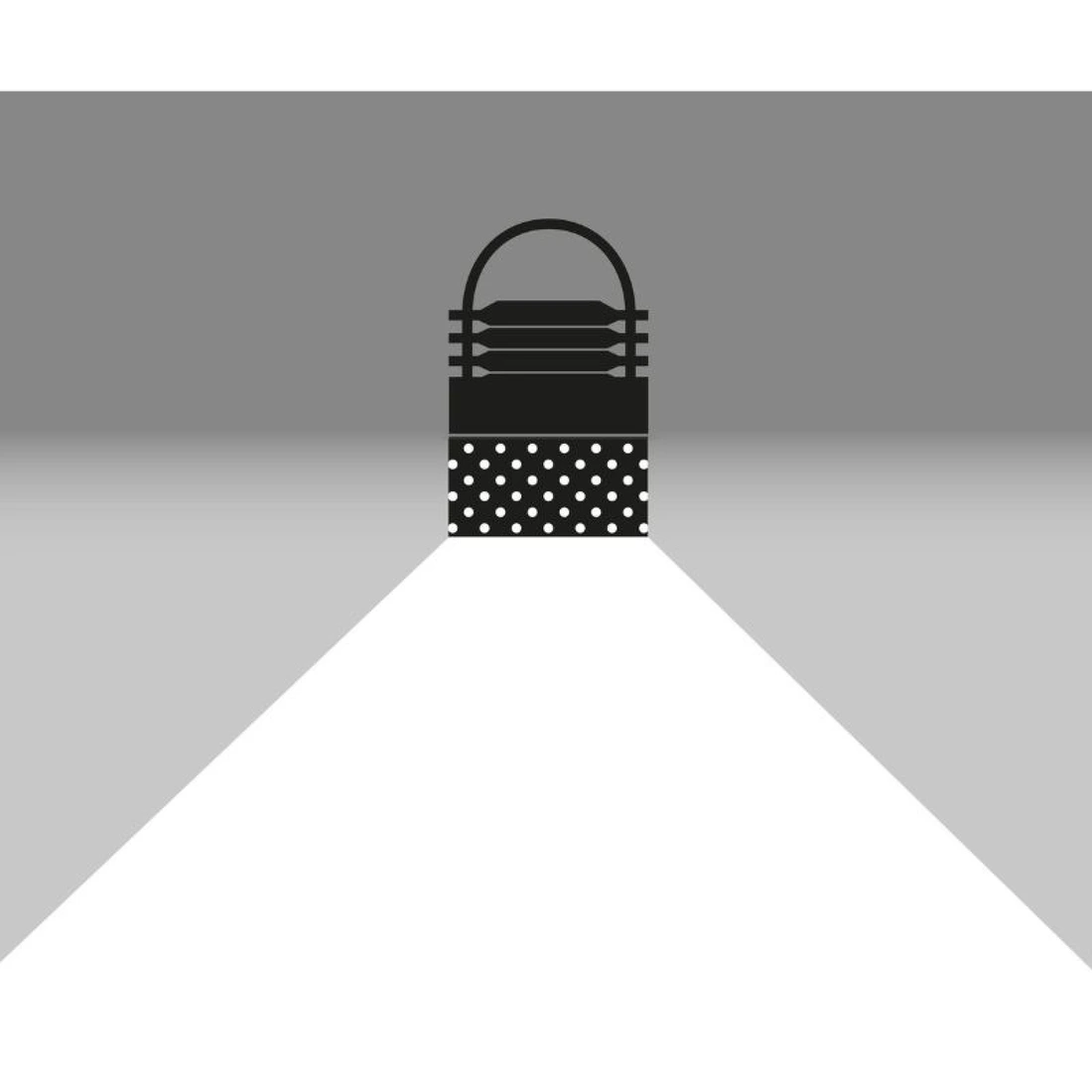

Perforated collimator + Wide Beam Lens
Clear or tinted glass shade + Medium Beam Lens
