Vouet Sensor

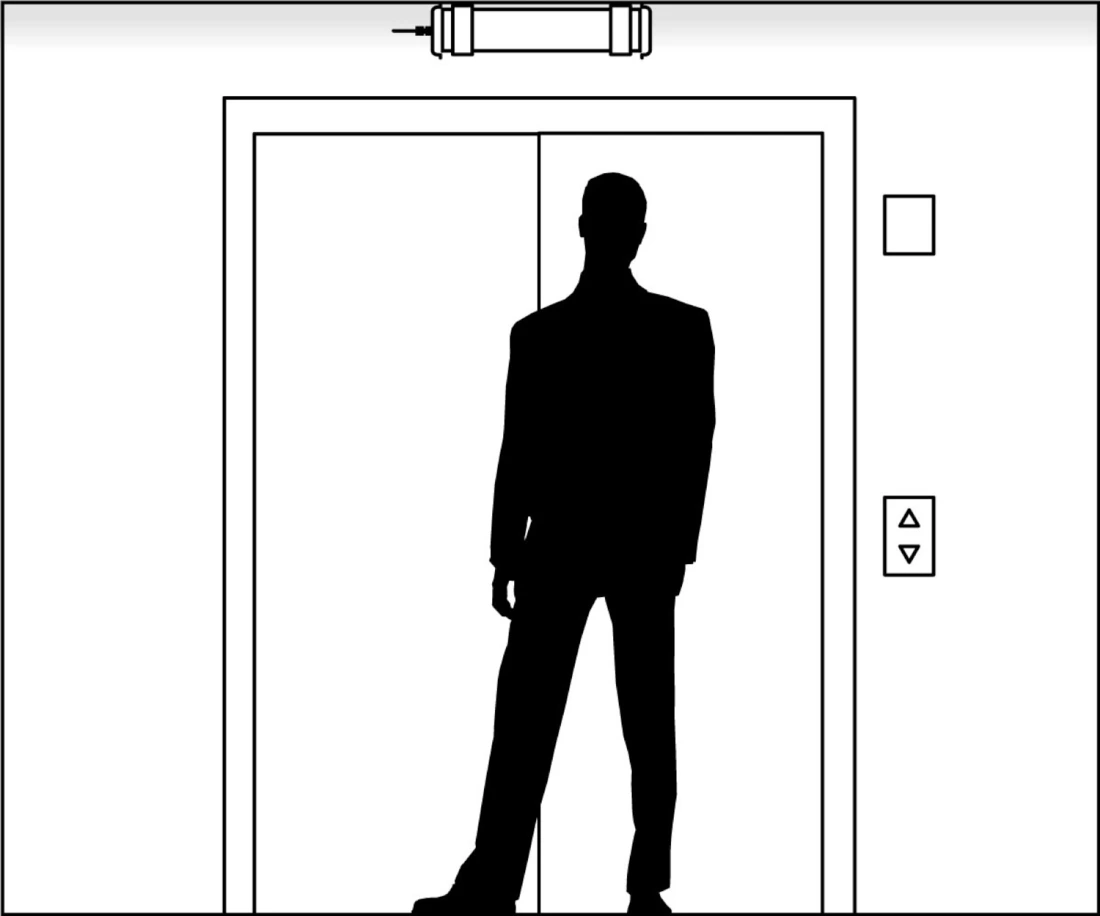

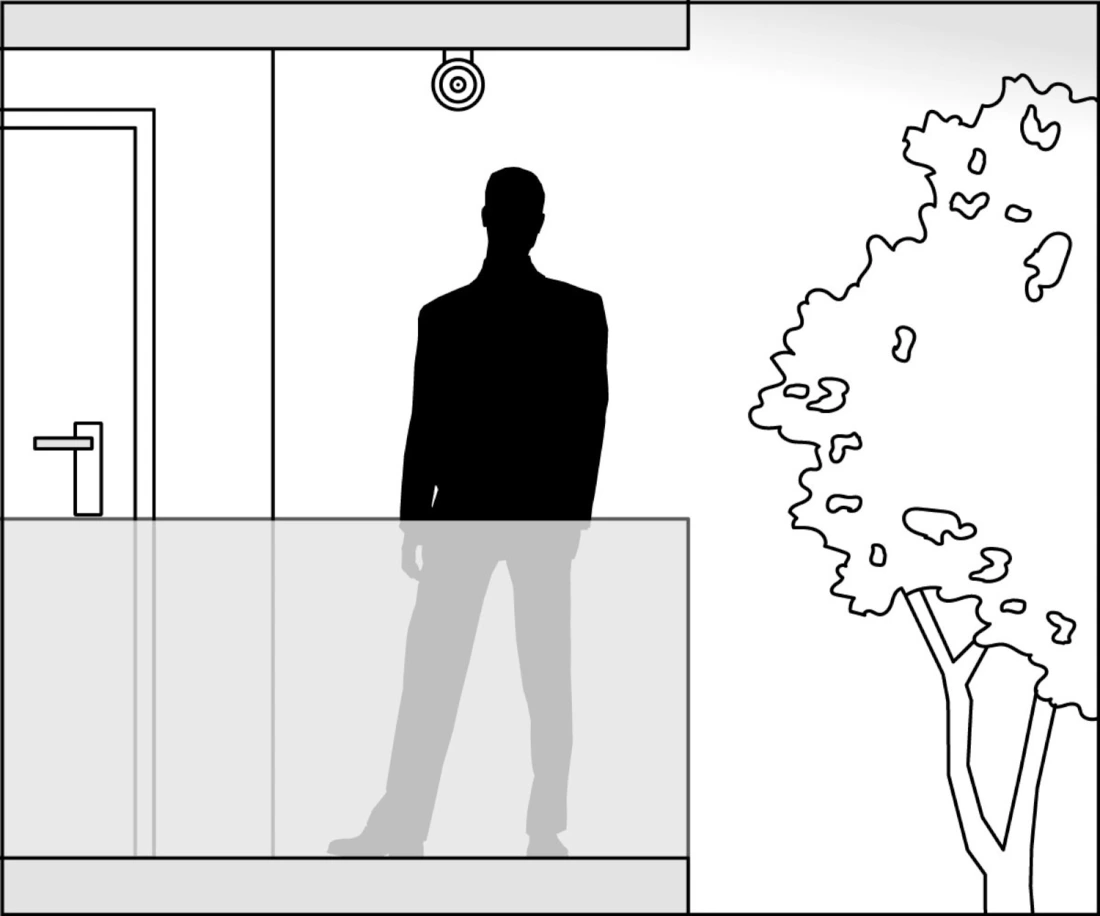

The Vouet Sensor wall or ceiling lights can illuminate car park lift landing halls, university hall corridors, staircases in blocks of flats, entrance doors in residential buildings, flat balconies, and so on.

Wall or ceiling light with built-in sensor, ø100

As an alternative design to traditional bulkhead lights in corridors or small spaces, the Vouet luminaire ensures eye comfort, and is easy to fit in thanks to its compact size. Various lighting management solutions are available to reduce your energy bills.

Access to product information

Light, right where you need it

With its discreet built-in High Frequency motion sensor, the Vouet Sensor automatically comes on based on motion and light levels. The motion sensor is ideal for small areas which people only occasionally enter, with a switch-off warning (RC option), and is excellent for reducing energy consumption. With its discreet built-in High Frequency motion sensor, the Vouet Sensor automatically comes on based on motion and ambient light levels. The motion sensor is ideal for small areas which people only occasionally enter, with a switch-off warning (RC option), and is excellent for reducing power consumption.

Permanent stand-by mode

The permanent stand-by option (RCP option) maintains a luminous flux of 10% to ensure basic safety until motion is detected. Common areas in a building or car parks will never be completely in the dark but your energy bills will be kept to a minimum.

Master/slave system

The master/slave set-up allows for zone lighting management from one single luminaire. One or several Vouet Sensors (master luminaires) turn all the line luminaires equipped with the RC or RCP option on and off. This luminaire is ideal for outdoor pathways or residential corridors with, for example, Vouet Sensors installed at each lift exit.

A luminaire built to last, whatever the weather

The Vouet Sensor luminaire is renowned for its outstanding reliability and sealing, just like the entire Sammode tubular range, and is ideal both outdoors and indoors. The durable materials used (stainless steel and composite diffusers) ensure ultra-long-lasting luminaires and prevent premature yellowing due to UV radiation.

Strength and durability

Benefit from the full range of Sammode know-how, based on our expertise in industrial environments, here applied to the Vouet Sensor. Robust materials were selected to produce a luminaire designed to last despite impacts and vandalism. Try the fixing straps with the optional Torx tamper-resistant screws to benefit from a long-lasting installation.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year indoor-outdoor warranty

Architectural projects look to the long term, which is why Sammode commits to a 5-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Références principales et téléchargements

Plaquette produit

Eulumdat

Notice

Certificat

Tout télécharger

Vouet Sensor ON – OFF

Profile 1: Direct off mode in the absence of detection

T (K)	Flux (lm)	L (mm)	Designation	Code	Watt	Data sheet	Plan	STEP DS	.TXT	Download all
3000	800	420	VOUET SENSOR 100 400 800-830 BRV	15675043	9	Data sheet	Plan	STEP DS	.TXT	Download all
3000	1150	420	VOUET SENSOR 100 400 1150-830 BRV	15675044	12	Data sheet	Plan	STEP DS	.TXT	Download all
4000	800	420	VOUET SENSOR 100 400 800-840 BRV	15675045	9	Data sheet	Plan	STEP DS	.TXT	Download all
4000	1150	420	VOUET SENSOR 100 400 1150-840 BRV	15675046	12	Data sheet	Plan	STEP DS	.TXT	Download all

Vouet Sensor ON - 30min @ 10%

Profile 2 (RC): 10% advance warning mode for 30 min

T (K)	Flux (lm)	L (mm)	Designation	Code	Watt	Data sheet	Plan	STEP DS	.TXT	Download all
3000	800	420	VOUET SENSOR 100 400 800-830 RC BRV	15675013	9	Data sheet	Plan	STEP DS	.TXT	Download all
3000	1150	420	VOUET SENSOR 100 400 1150-830 RC BRV	15675014	12	Data sheet	Plan	STEP DS	.TXT	Download all
4000	800	420	VOUET SENSOR 100 400 800-840 RC BRV	15675016	9	Data sheet	Plan	STEP DS	.TXT	Download all
4000	1150	420	VOUET SENSOR 100 400 1150-840 RC BRV	15675017	12	Data sheet	Plan	STEP DS	.TXT	Download all

Vouet Sensor ON - stand-by 10%

Profile 3 (RCP): 10% permanent standby mode

T (K)	Flux (lm)	L (mm)	Designation	Code	Watt	Data sheet	Plan	STEP DS	.TXT	Download all
3000	800	420	VOUET SENSOR 100 400 800-830 RCP BRV	15675019	9	Data sheet	Plan	STEP DS	.TXT	Download all
3000	1150	420	VOUET SENSOR 100 400 1150-830 RCP BRV	15675020	12	Data sheet	Plan	STEP DS	.TXT	Download all
4000	800	420	VOUET SENSOR 100 400 800-840 RCP BRV	15675021	9	Data sheet	Plan	STEP DS	.TXT	Download all
4000	1150	420	VOUET SENSOR 100 400 1150-840 RCP BRV	15675022	12	Data sheet	Plan	STEP DS	.TXT	Download all

Fixing straps

Fixing straps	-
Fixing straps with HSHC screw	BRV
Fixing straps with tamper-resistant Torx screw	BRVT

Materials

Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°)	-
Polycarbonate housing (960°C)	PO
End caps & fixing straps 304L stainless steel	-
End caps & fixing straps 316L stainless steel	MR

Color temperature

2700K	827
3000K	830
4000K	840

Electrical class

Class I	CL1
Class II	-

Lighting management

Electronic gear unit for DALI dimming	RD
Electronic gear unit for push button	RS
Switch-off warning function (for sensor/timer)	RC
Permanent standby mode 10% function	RCP

Technical specifications

Light source

High-efficiency removable LED module (CRI>80, 3 SDCM)
50 000 h L80/B10 at 25°C
Photobiological hazard : None (RG0)

Optics

Use of a satin-finish housing or internal film for a homogeneous light distribution
Light mixing chamber

Lighting comfort

Controlled glare: UGR ≤25

Control gear

Constant current driver
Option RC : with switch-off warning
Option RCP : with permanent standby function at 10%
Built-in presence sensor

Supply voltage

220-240V 50/60Hz

Electrical class

Class II

Operating temperature

-20°C to +35°C

Connection

With nickel-coated brass cable gland for cable Ø 5-14 mm
To a 3 x 2,5 mm² disconnectable terminal block

Opening and closing

Quick, with just one screw

Mounting

2 stainless steel fixing straps with HSHC screw (with variable centre distance)

LED engine maintenance

Maintenance without tampering with the cable by removal of the end cap without cable entry
Easily removable LED modules and driver

Housing

Ø100 Co-extruded polycarbonate/PMMA for inside/outside use

End caps and fixing straps

304L stainless steel

Waterproofness

IP66, IP68, IP69K

Resistance to IK shocks

IK10

Fire resistance

650°C
