Borosilicate glass LED tubular light ø 100 & 133 for extreme or highly corrosive ATEX environments

With its ultra-tight 100% stainless steel and borosilicate glass housing, the Napier Xtrem industrial LED luminaire stands the test of time, weathering an accumulation of the harshest conditions found on land or at sea: vibrations, corrosion, abrasion, temperature variations and at-risk networks.

The Napier luminaire can withstand extreme highly corrosive environments.

Chemical and sealing conditions

Highly corrosive or abrasive environments

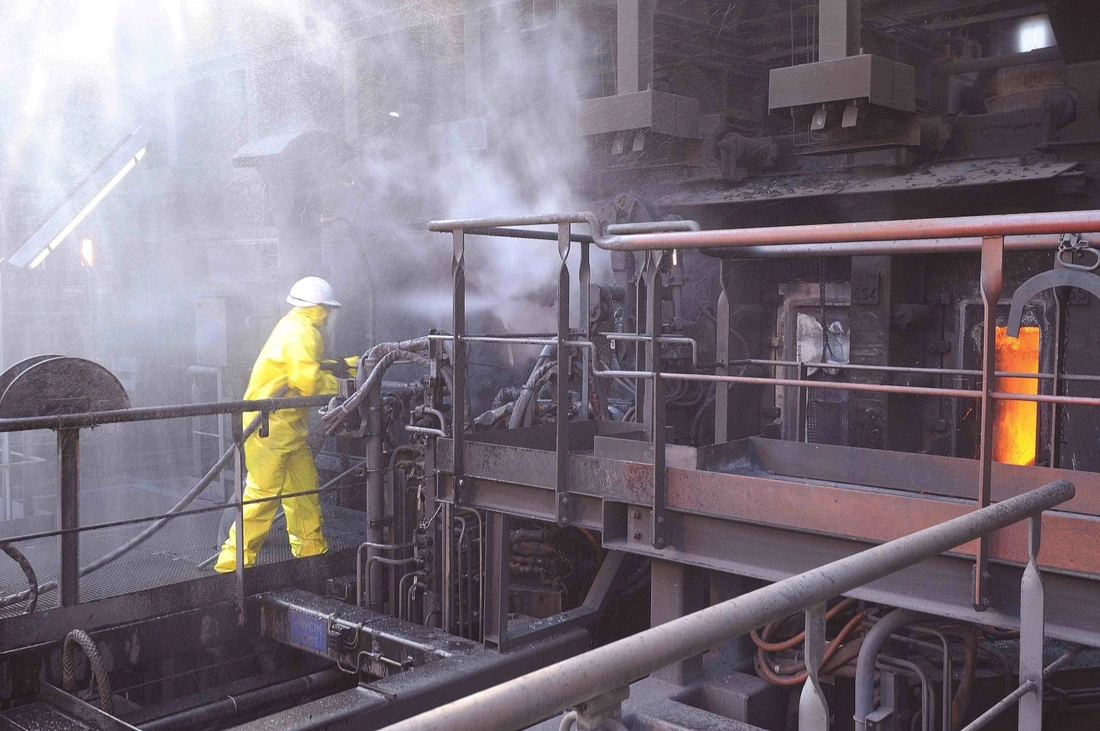

Splashes of very hot liquids

Flame-resistant, inflammable

Oils & hydrocarbons

Saline atmosphere, sea spray

UV radiation and bad weather

Dust and extreme grime

All types of humidity

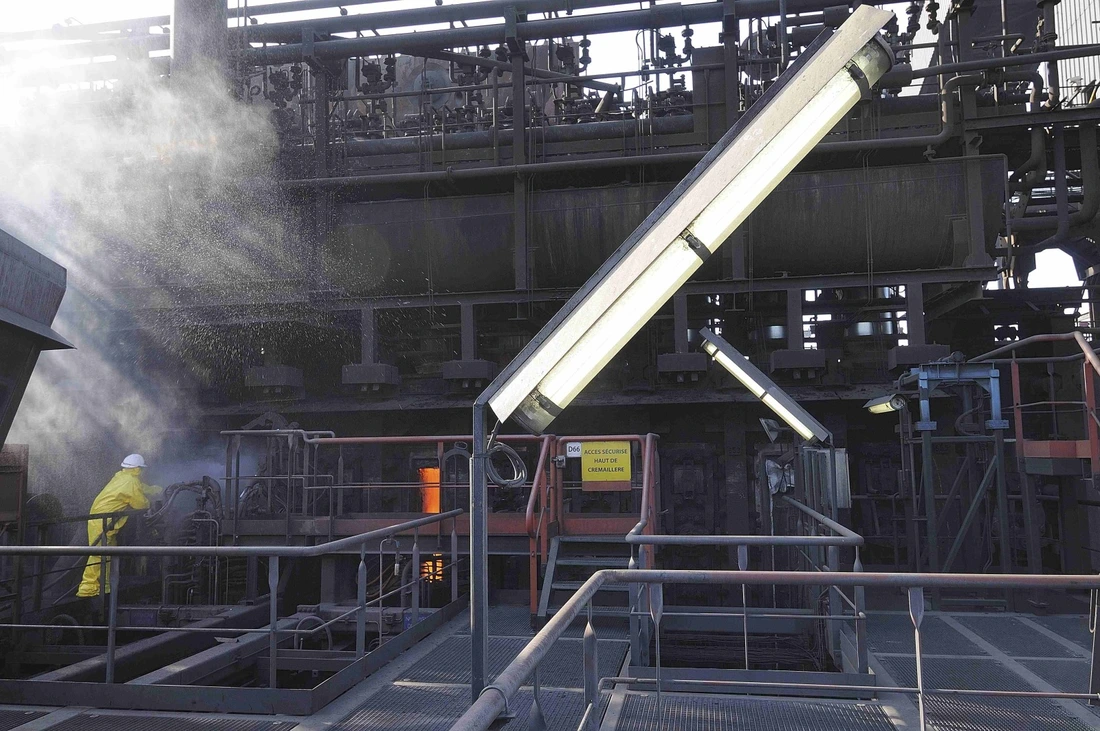

Washing with a high-pressure jet

Thermal, mechanical and electrical stresses

Permanent use at temperatures of up to 50°C

Extreme variation in temperature

Repeated turning on and off

Mechanical impacts Intense and repetitive vibrations

Voltage surges up to 4 kV, power surges

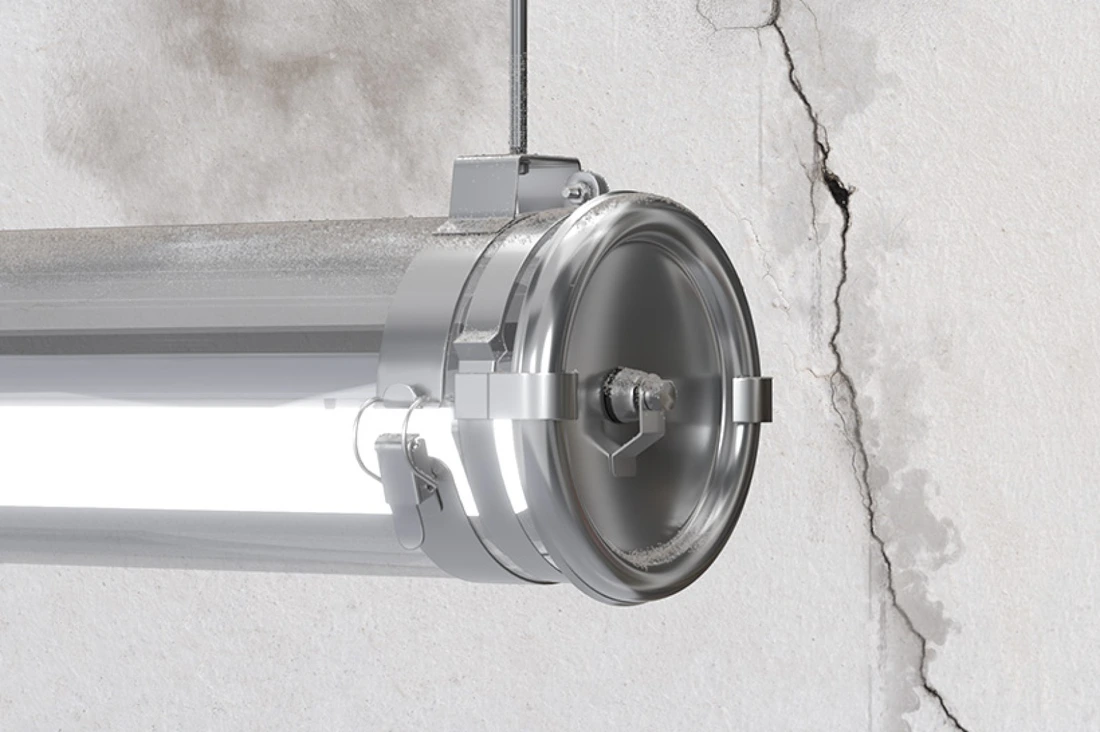

100% stainless steel and glass, guaranteeing unfailing chemical resistance

Benefit from outstanding durability and sturdiness, no matter how tough the conditions, thanks to a corrosion- and abrasion-proof housing in IK07 borosilicate glass, and reinforced stainless steel (304 or 316L) mechanical parts, including a cable gland as an option!

Exceptional by design

Products that do not need replacing have the lowest impact on the environment. Sammode has long been aware of this and thus designs its products to last. This range takes the approach a step further with a high-quality glass body that is extremely hard-wearing, drastically cutting down on plastic components.

Reinforced industrial electronics

Even the very best housing cannot stand up to the potential effects of an at-risk network. With this in mind, Sammode has opted for the most reliable components available, designed to withstand electrical disturbance, voltage surges, extensive temperature variation and vibrations.

Optimal sealing and durability, even with intensive use at 50°C

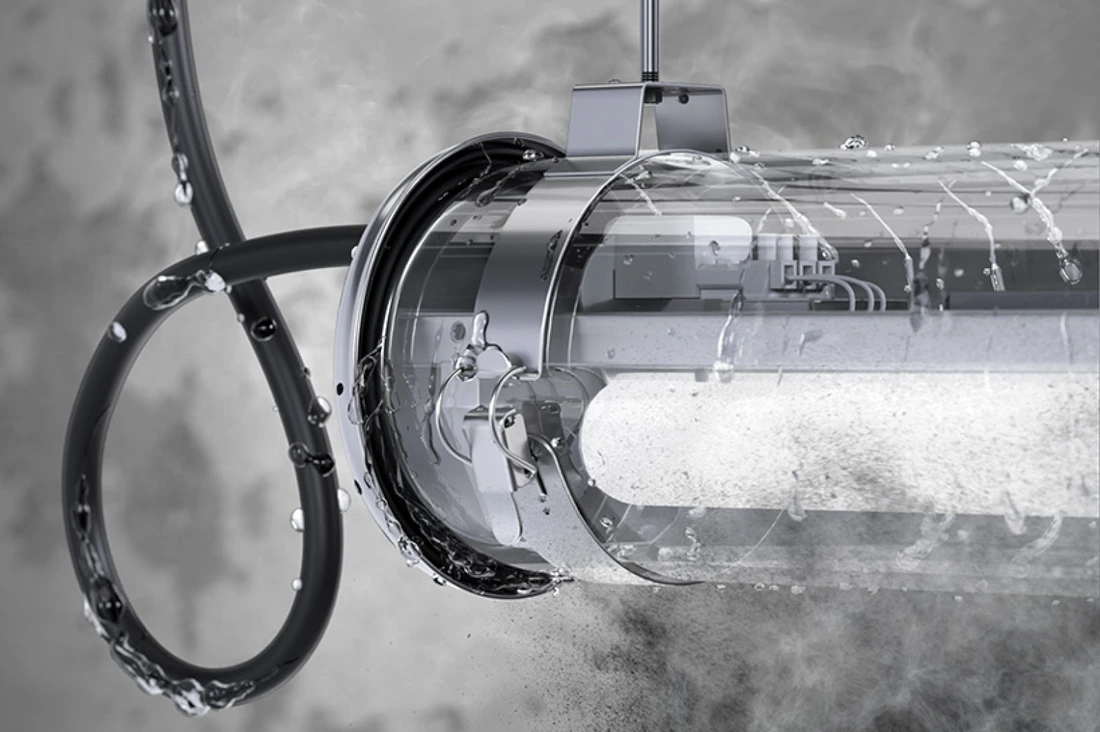

Forget fine dust, high-pressure jets, corrosive substances and the like. Thanks to its 3-seal system and uniform tightening with a central screw, the housing remains firmly sealed, even when the temperature varies significantly. IP68, IP69K, everywhere and well into the future!

Resistant to impacts and vibrations

Solid, smooth materials with no mating surfaces, combined with a locking system based on axial tightening (the Screw© system): simple principles for exceptional mechanical strength and a vibration-proof single-piece design, no matter how intense things get.

Applications of luminaires by the name Napier Xtrem

  • Aeronautical industry: lighting in surface treatment areas
  • Lighting for the degreasing, pickling and acid bath process
  • Metalworks: lighting around coke furnaces

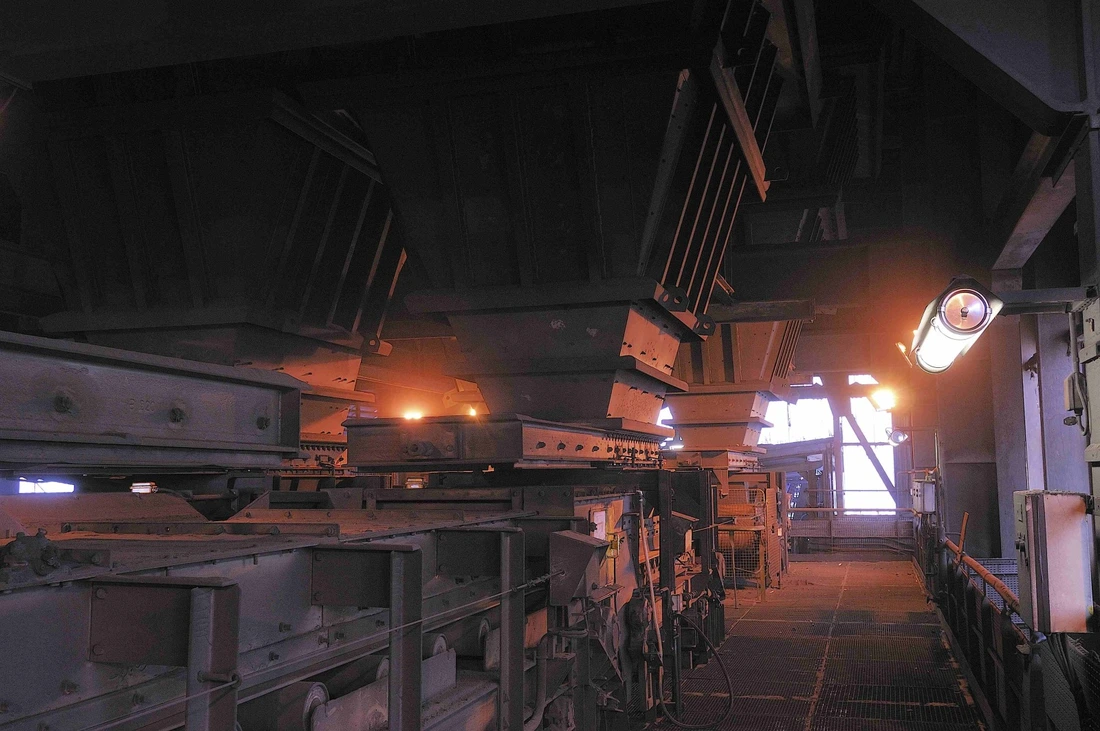

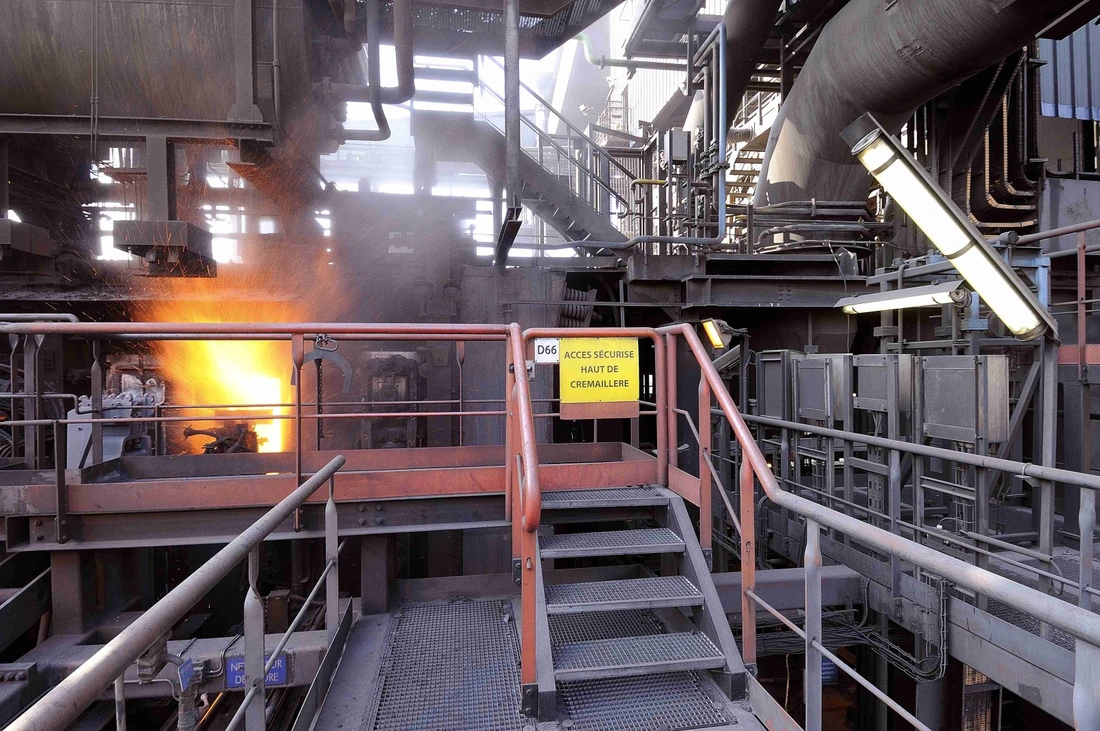

  • Metalworks: lighting around rolling workshops

  • Tunnel: general lighting
  • Road infrastructure: emergency fire exit lighting

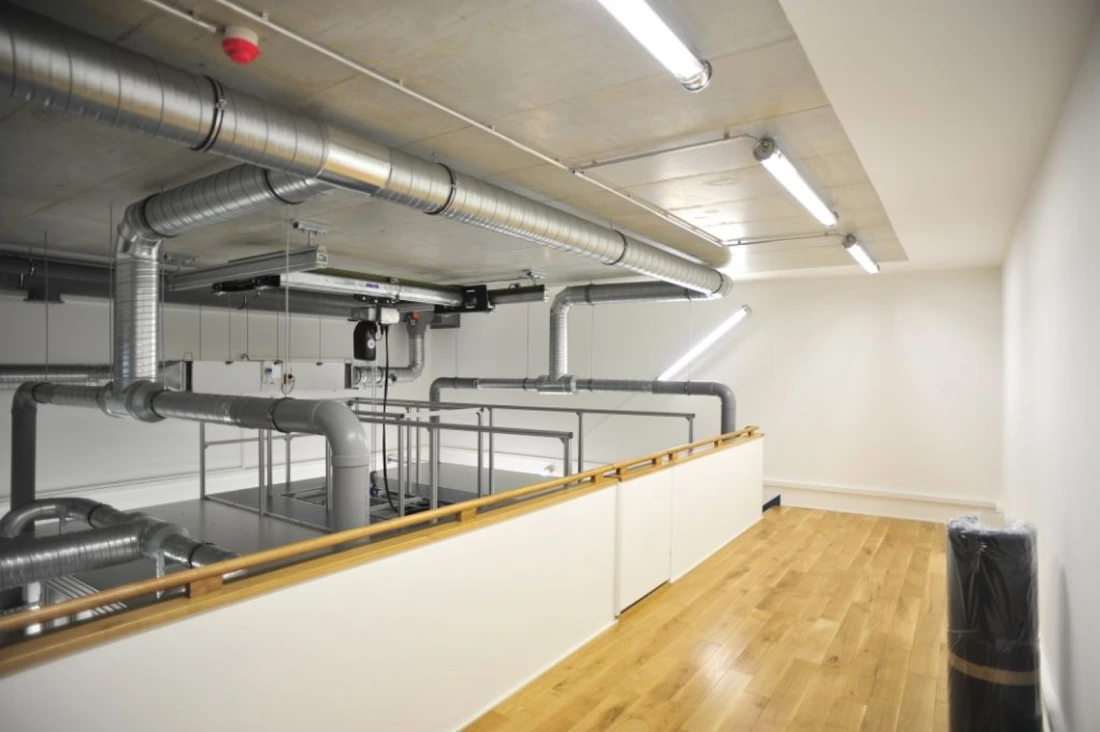

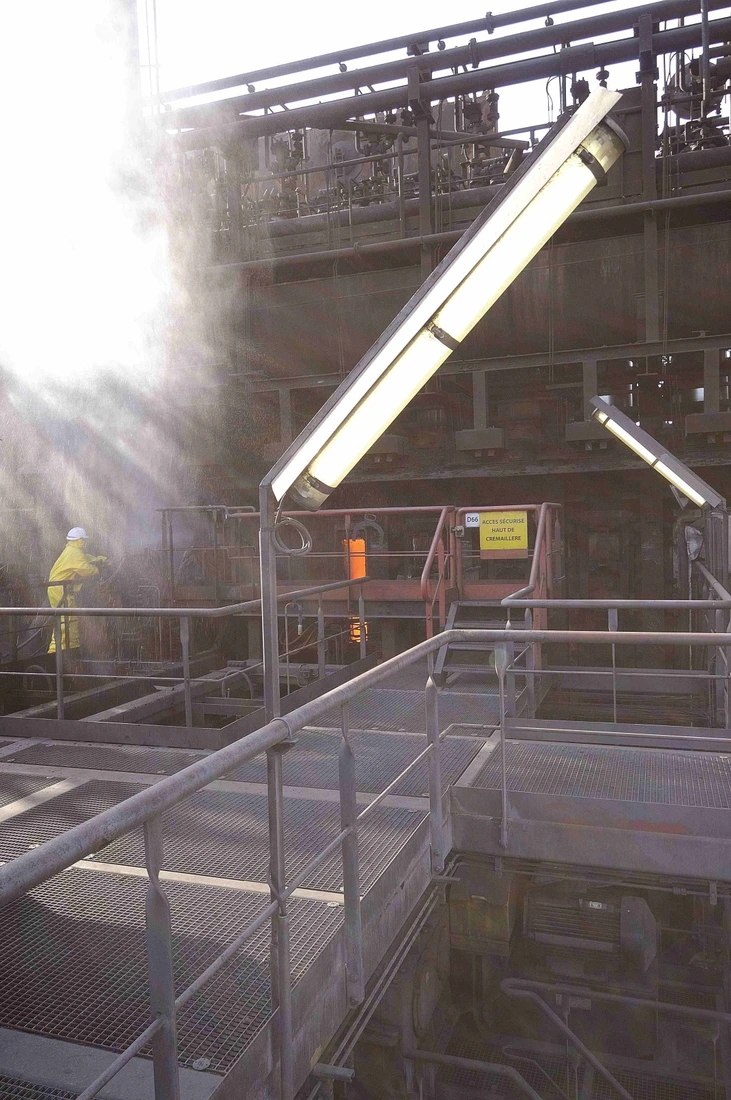

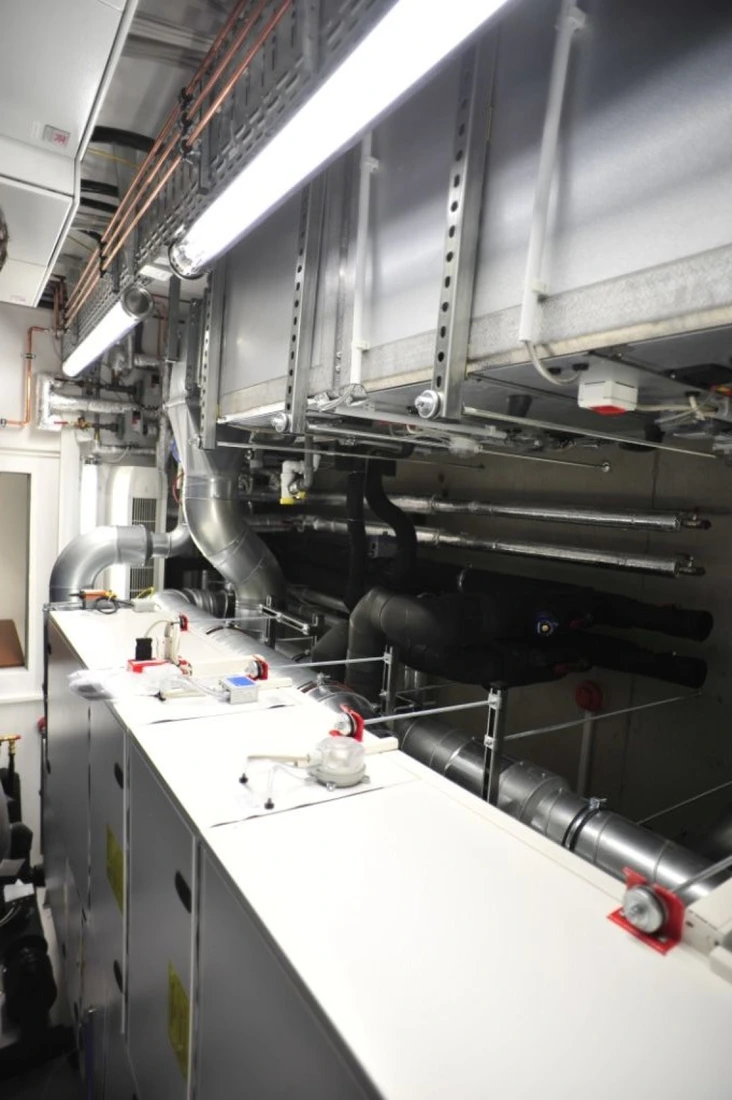

Product shown in situ

Our services

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

8-year warranty, no matter how tough the conditions

Valid even for 24/7 use at the maximum operating temperature for the product. 8-year warranty you will not find anywhere else on the market, reflecting our unfailing commitment to our customers!

100% Removable and repairable on site

Even after 15 or 20 years’ use, every single part we supply can be easily replaced, with no need to send it back to us. No one else offers a guarantee of lifelong lighting solutions!

Références principales et téléchargements

Plaquette produit

Eulumdat

Notice

Certificat
Tout télécharger

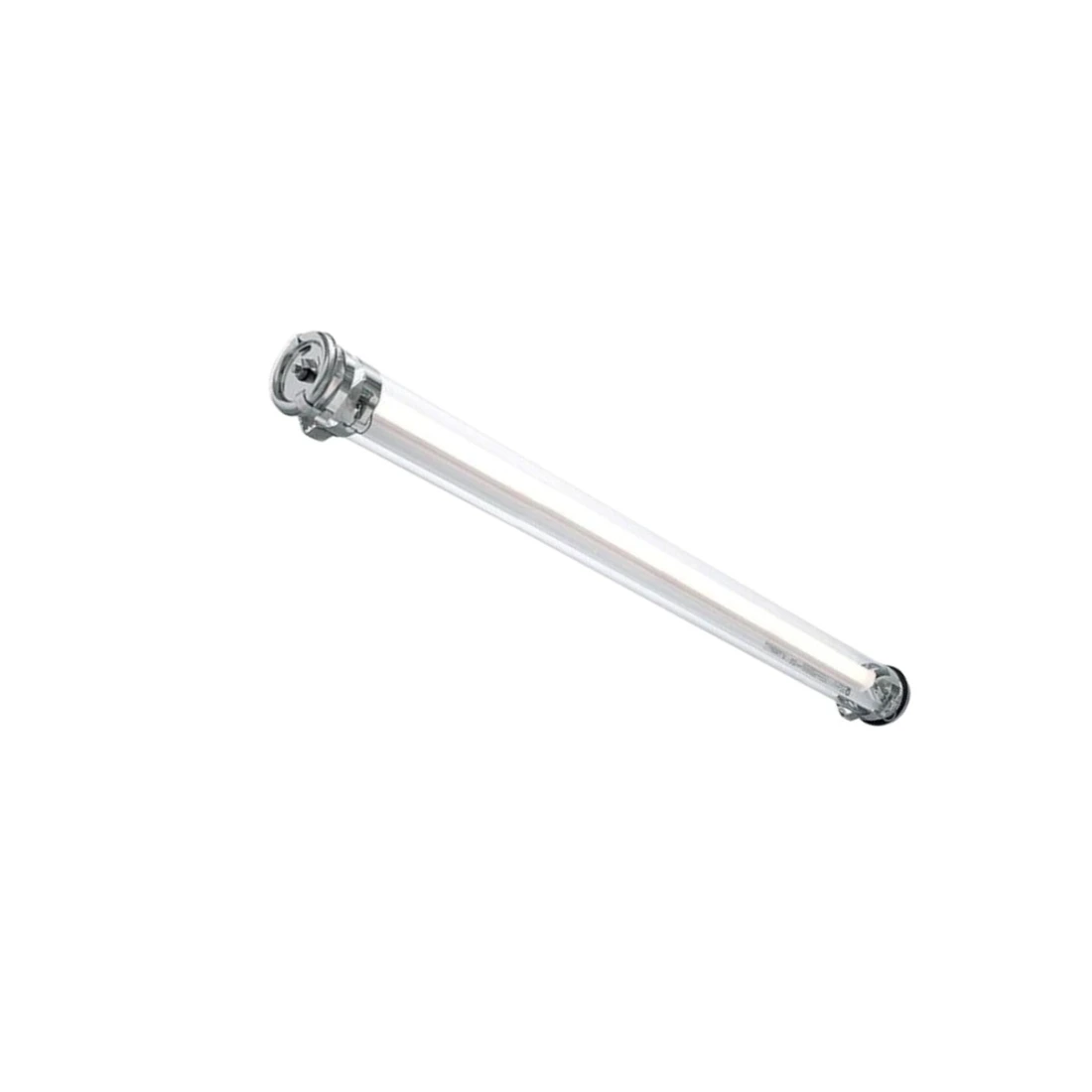

Disconnectable quick-lock plug version

CRI80, 4000K

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 1850 697 NAP100 12H840 PY PS3 BRS 31040020 15 Data sheet Plan STEP DS .TXT Download all
100 2775 1007 NAP100 13H840 PY PS3 BRS 31040040 23 Data sheet Plan STEP DS .TXT Download all
100 3660 1307 NAP100 14H840 PY PS3 BRS 31045024 30 Data sheet Plan STEP DS .TXT Download all
100 4625 1607 NAP100 15H840 PY PS3 BRS 31040080 36 Data sheet Plan STEP DS .TXT Download all
133 5550 987 NAP133 23H840 PY PS3 BRS 32040020 41 Data sheet Plan STEP DS .TXT Download all
133 7500 1287 NAP133 24H840 PY PS3 BRS 32045020 54 Data sheet Plan STEP DS .TXT Download all
133 9250 1587 NAP133 25H840 PY PS3 BRS 32040060 67 Data sheet Plan STEP DS .TXT Download all

All 316L stainless steel version, ultimate chemical resistance

CRI80, 4000K

Ø (mm)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
100 1850 697 NAP100 12H840 PY 113INOX MR BRS 31045046 15 Data sheet Plan STEP DS .TXT Download all
100 2775 1007 NAP100 13H840 PY 113INOX MR BRS 31045045 23 Data sheet Plan STEP DS .TXT Download all
100 3660 1307 NAP100 14H840 PY 113INOX MR BRS 31045047 30 Data sheet Plan STEP DS .TXT Download all
100 4625 1607 NAP100 15H840 PY 113INOX MR BRS 31045048 36 Data sheet Plan STEP DS .TXT Download all
133 5550 987 NAP133 23H840 PY 113INOX MR BRS 32045026 41 Data sheet Plan STEP DS .TXT Download all
133 7500 1287 NAP133 24H840 PY 113INOX MR BRS 32045024 54 Data sheet Plan STEP DS .TXT Download all
133 9250 1587 NAP133 25H840 PY 113INOX MR BRS 32045025 67 Data sheet Plan STEP DS .TXT Download all

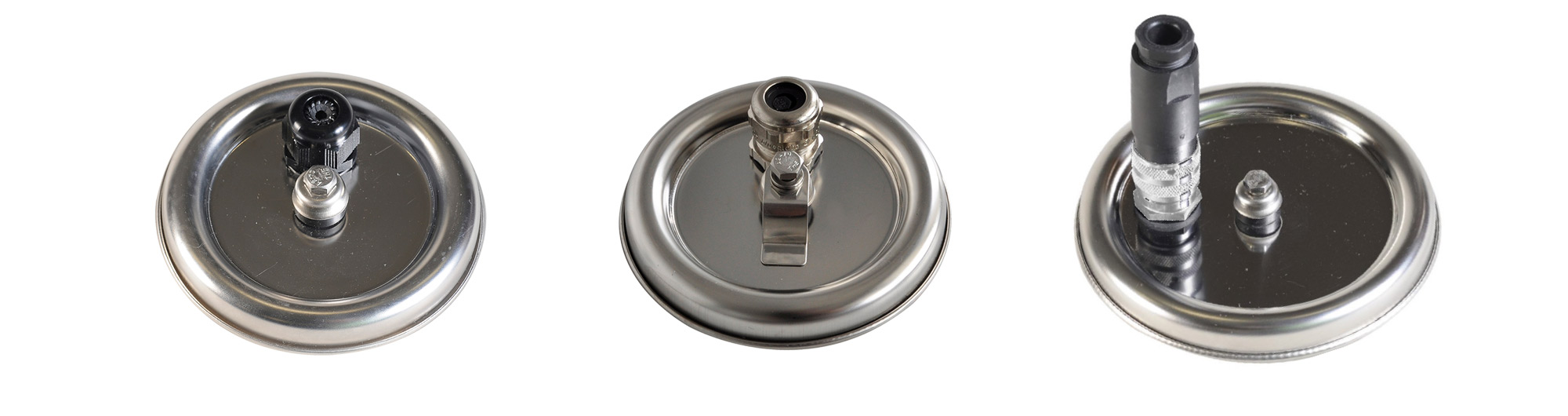

Cable entry

Cable gland

Polyamide capacity Ø5-12mm 113
Polyamide capacity Ø7-14mm 116
Nickel-coated brass capacity Ø5-14 mm 113LN
Stainless steel 316L capacity Ø7-13mm 113INOX

Disconnectable plugs

IP68/69K quick-lock plug with threaded ring (capacity: Ø8 to 10 mm) PS3

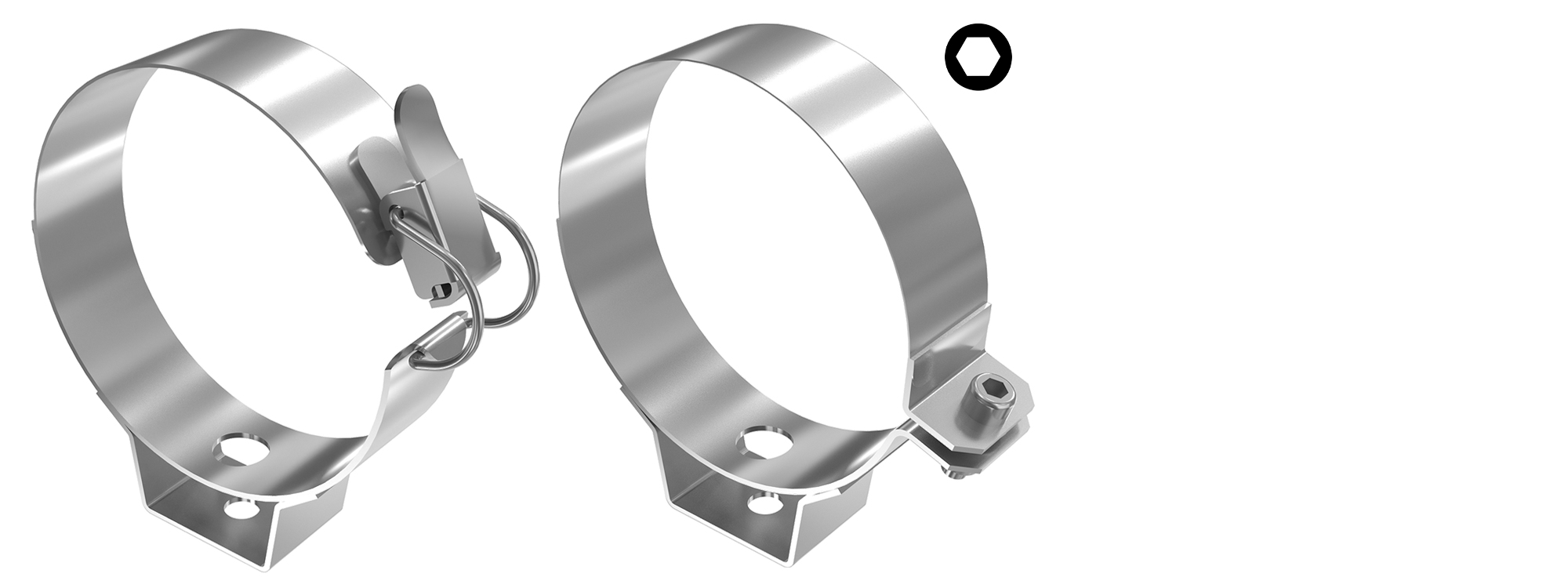

Fixing straps

Reinforced fixing straps BRS
Reinforced fixing straps with HSHC screw BRV

Materials

End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

3000K 830
4000K 840
5000K 850

Lighting management

Electronic gear unit for DALI dimming RD
1m HO7-RNF pre-wired cable 3G1,5²
Stripped free end CAB0080
Wieland® plug IP68/IP69K (capacity : Ø10-14mm) CAB0095
Wieland® plug and Y spliter for loop-in/out CAB0145
Folded 316L stainless steel protective cover
Length 800mm CP00565
Length 1100mm CP00596
Length 1400mm CP00566
Length 1700mm CP00567
316L stainless steel column mounting fixing strap
Adapter ø1"1/4 (=42mm) CP01239
Adapter ø1"1/2 (=49mm) CP01238
Adapter ø2" (=60mm) CP01237

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 70 000 h L80/B10 at max. operating temperature
  • Photobiological hazard : None (RG0)
Optics
  • Specific satin-finish primary diffuser optics
Heat management
  • Aluminium heat sink
Control gear
  • High reliability constant current output driver, mechanically and thermally reinforced.
  • Resistance to overload: 320 V AC, 48 h
  • Supports voltage spikes < 4 kV
  • Electronic compatible with central source
  • Compatible with neutral TN, TT and IT arrangements with no limitations
Supply voltage
  • 198-264V 0/50/60Hz
Operating temperature
  • -20°C to +50°C

Connection
  • Version with 3-pole plug : disconnectable plug for Ø 8 to 10 mm cable (3 × 1.5 mm²)
  • 113INOX version : 316L stainless steel cable gland for cable Ø 7-13 mm, to a 3 x 2,5 mm² disconnectable terminal block
Mounting
  • Attachement with 2 bolt-fitted stainless steel straps with variable center distance and 360° orientation
LED engine maintenance
  • Easily removable LED modules and driver
  • Opening by releasing the 2 closing screws, removing the end cap and extracting the gear tray

Housing
  • Borosilicate-glass
End caps and fixing straps
  • 304L stainless steel (except MR version in 316L stainless steel)
Gaskets
  • Peroxide-cured EPDM
Method of construction
  • Housing in one piece with high mechanical and chemical resistance
  • Long-lasting imperviousness by axial screw fitting

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK07
Fire resistance
  • Non-flammable
Vibration resistance
  • Meets the severe application requirements of standard EN 60598-1 (tested according to IEC 60068-2-6)

Diameter 100
Diameter 133
