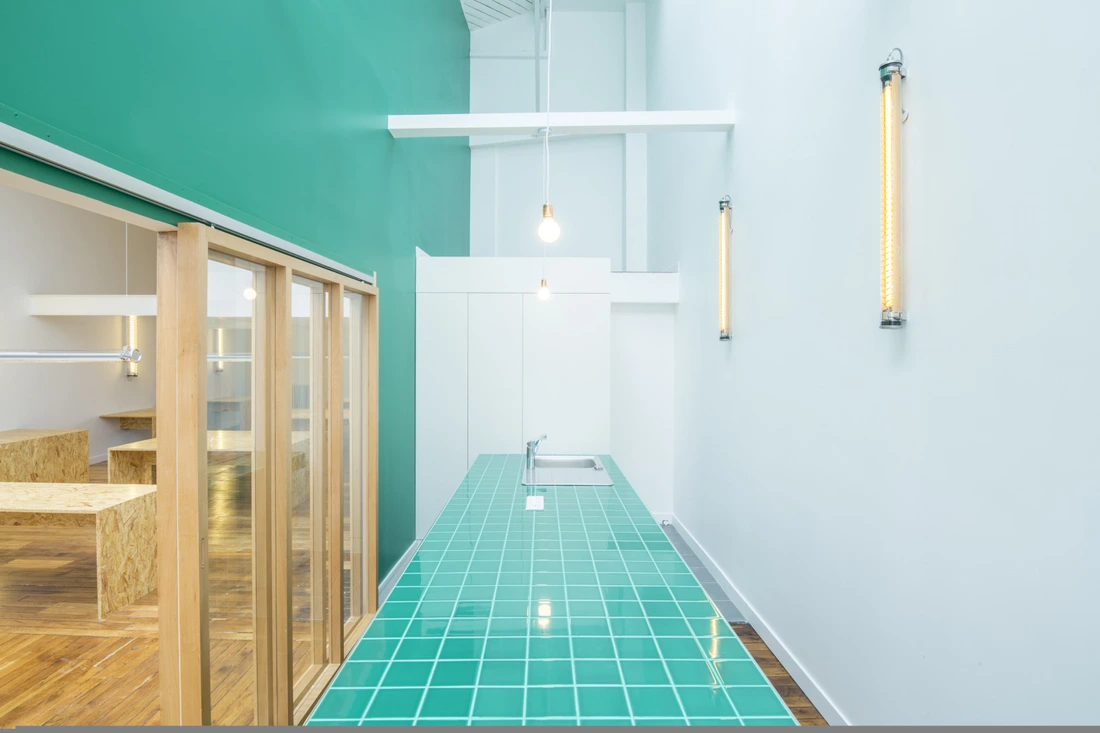

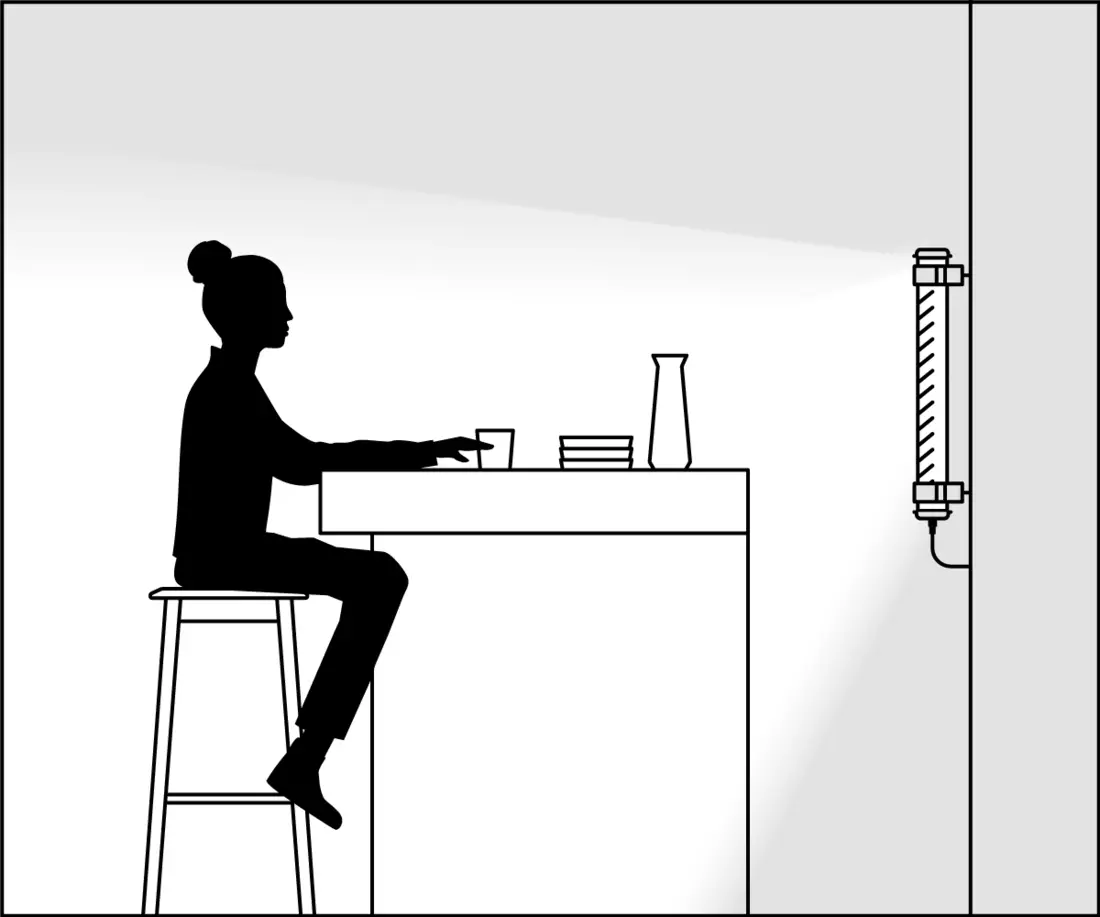

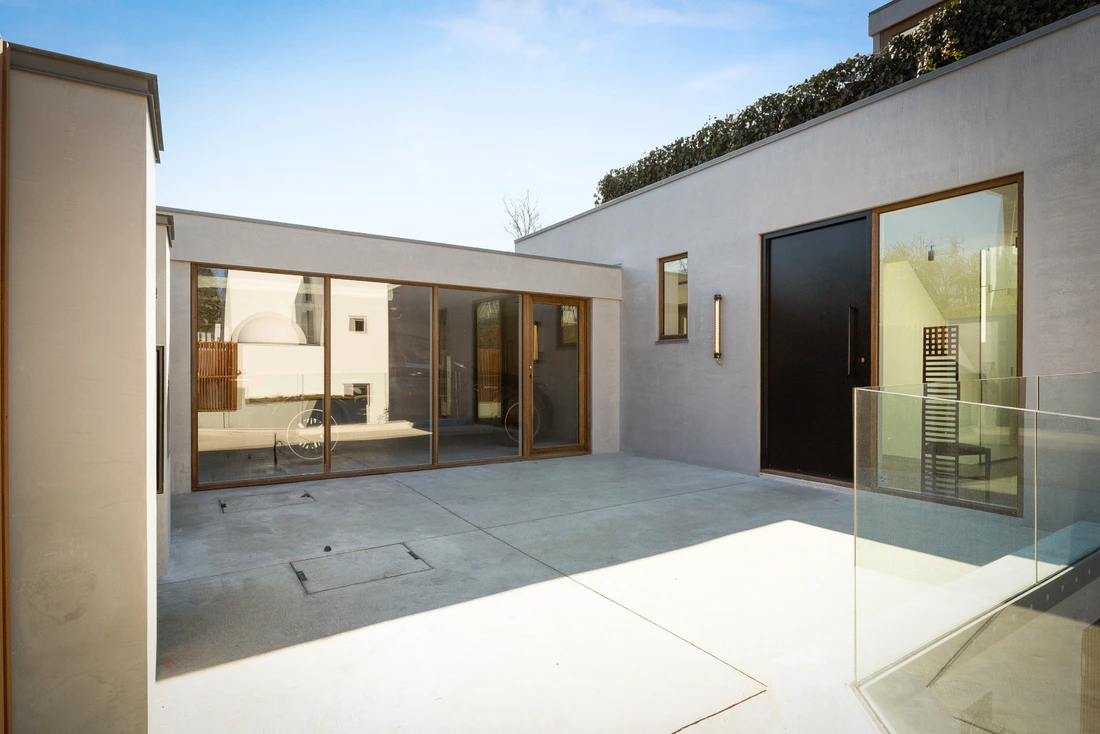

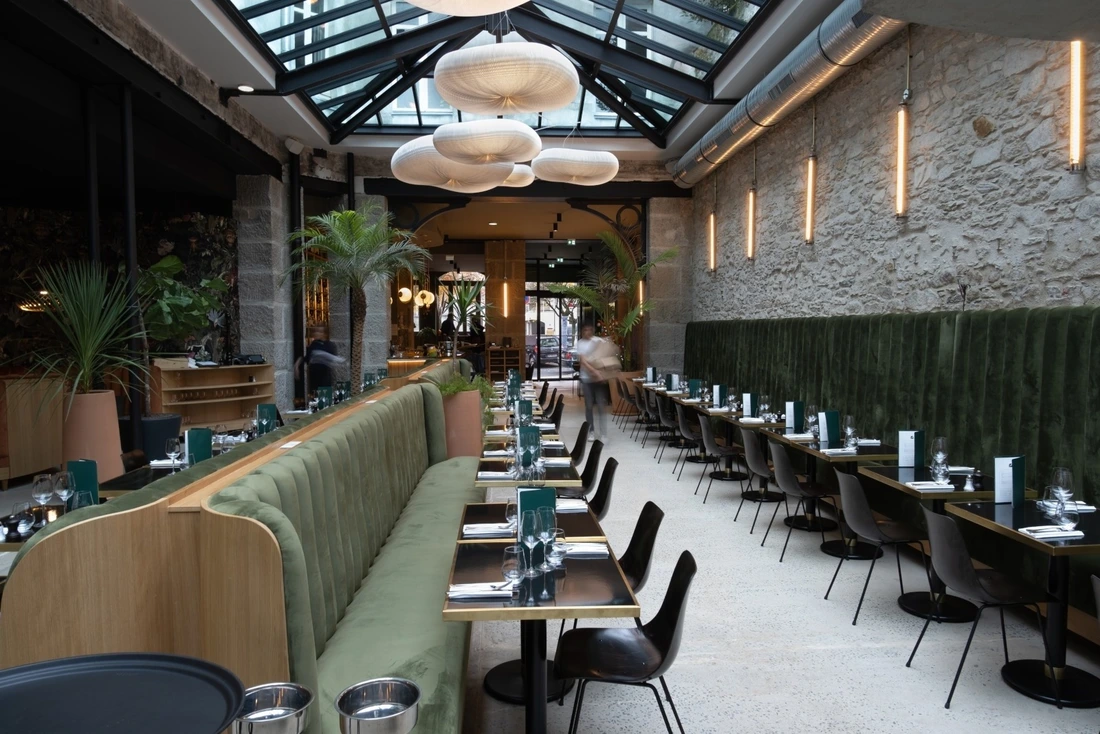

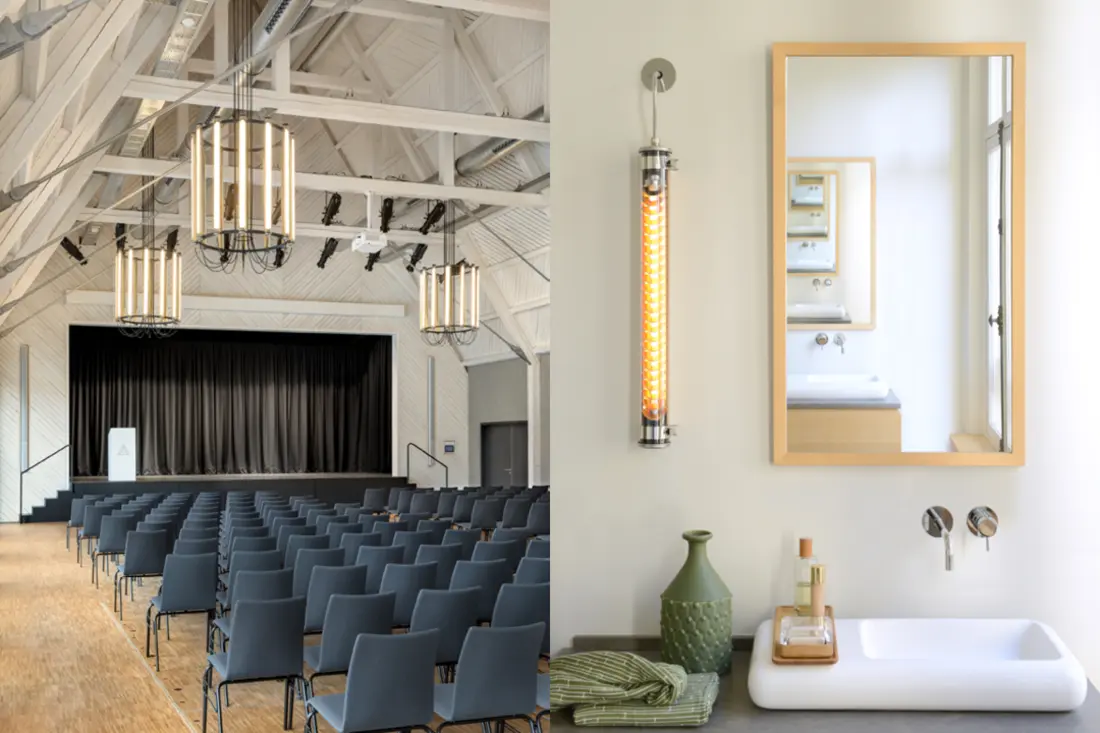

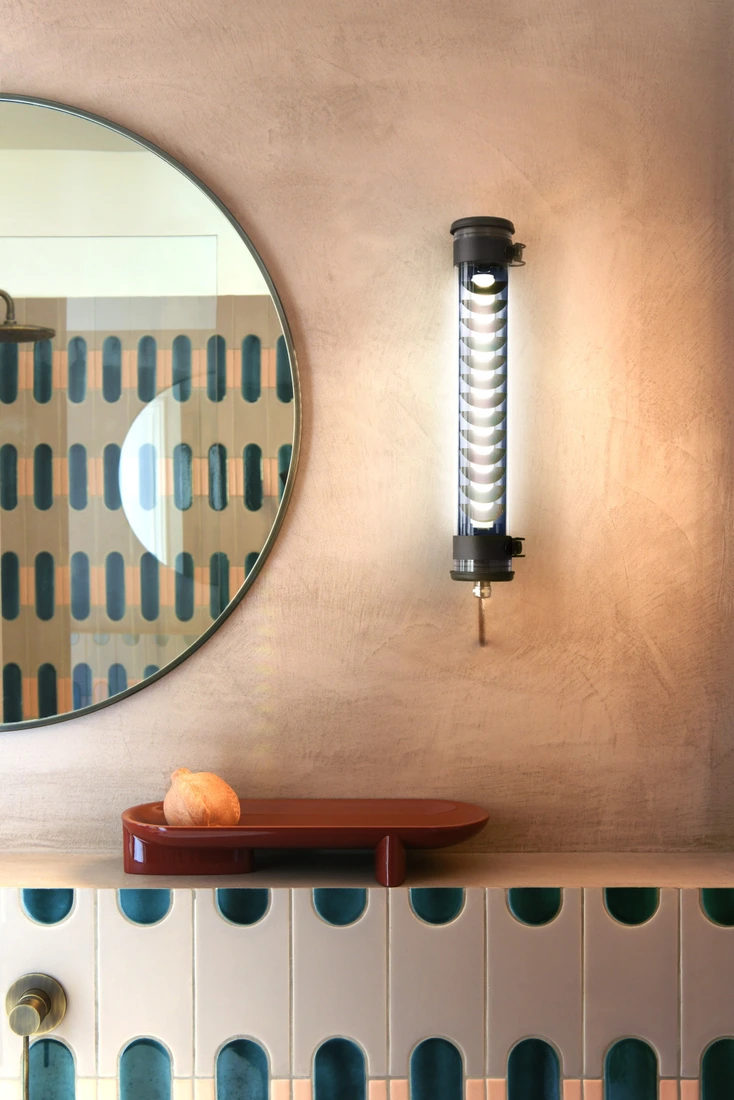

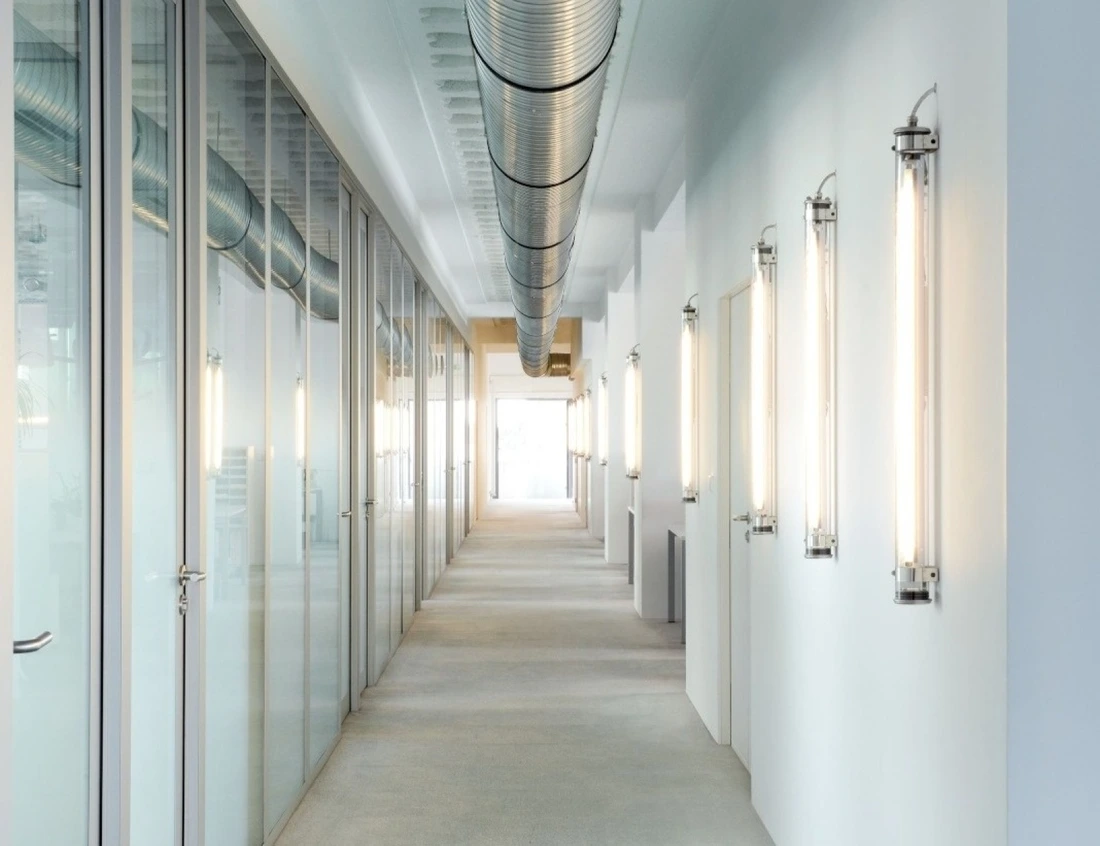

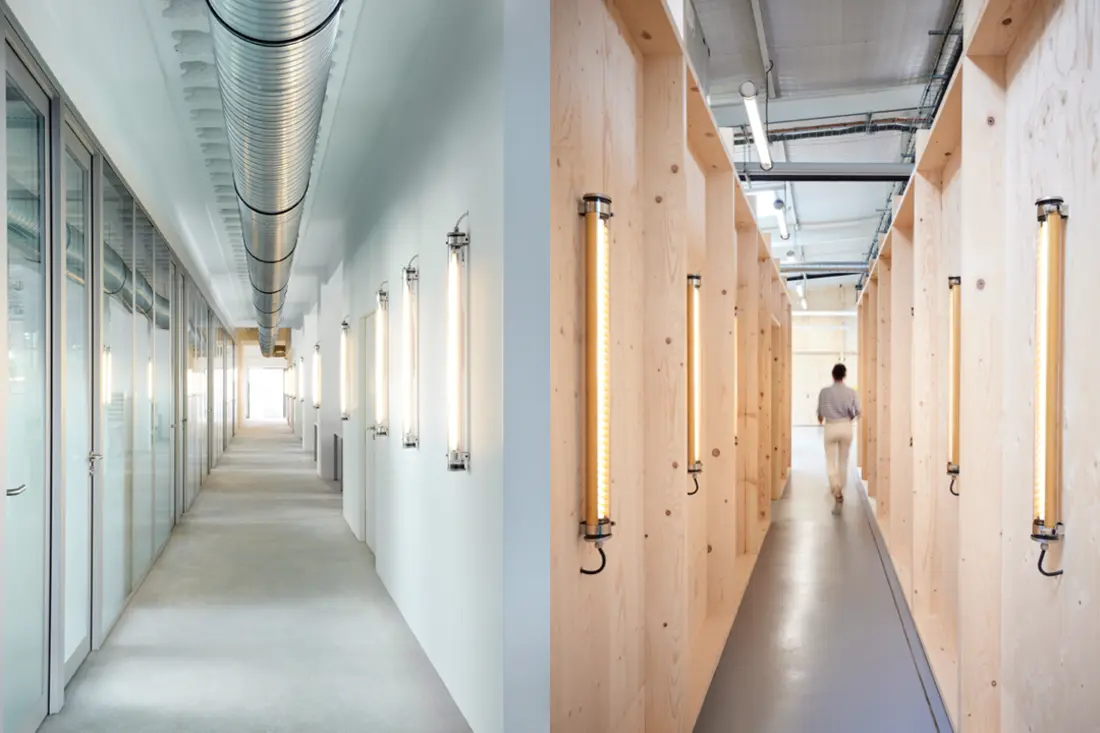

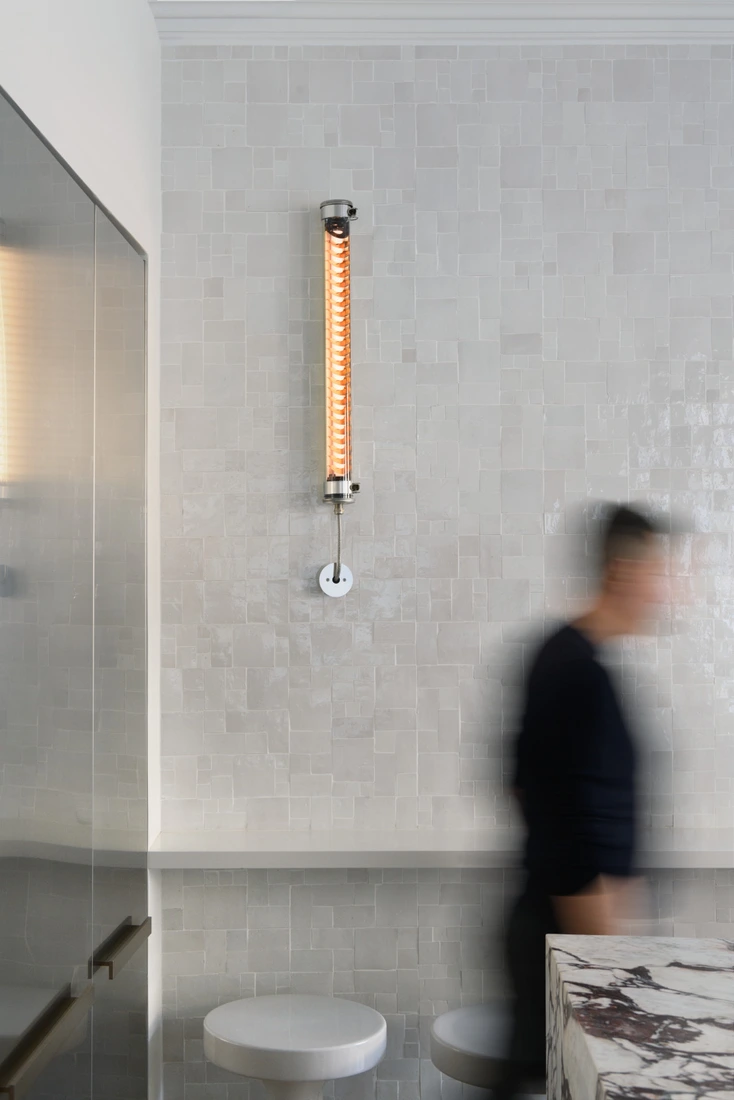

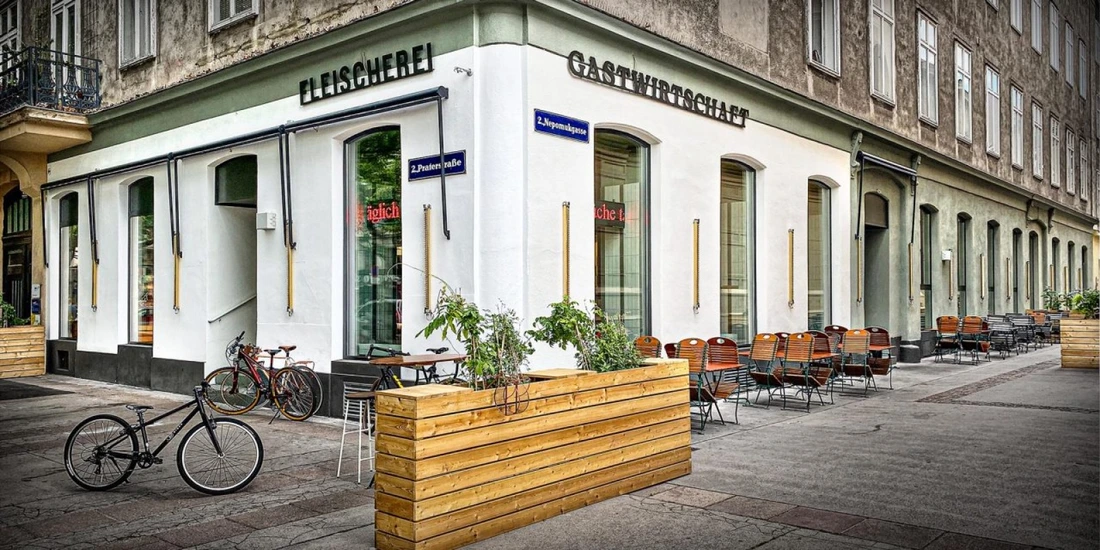

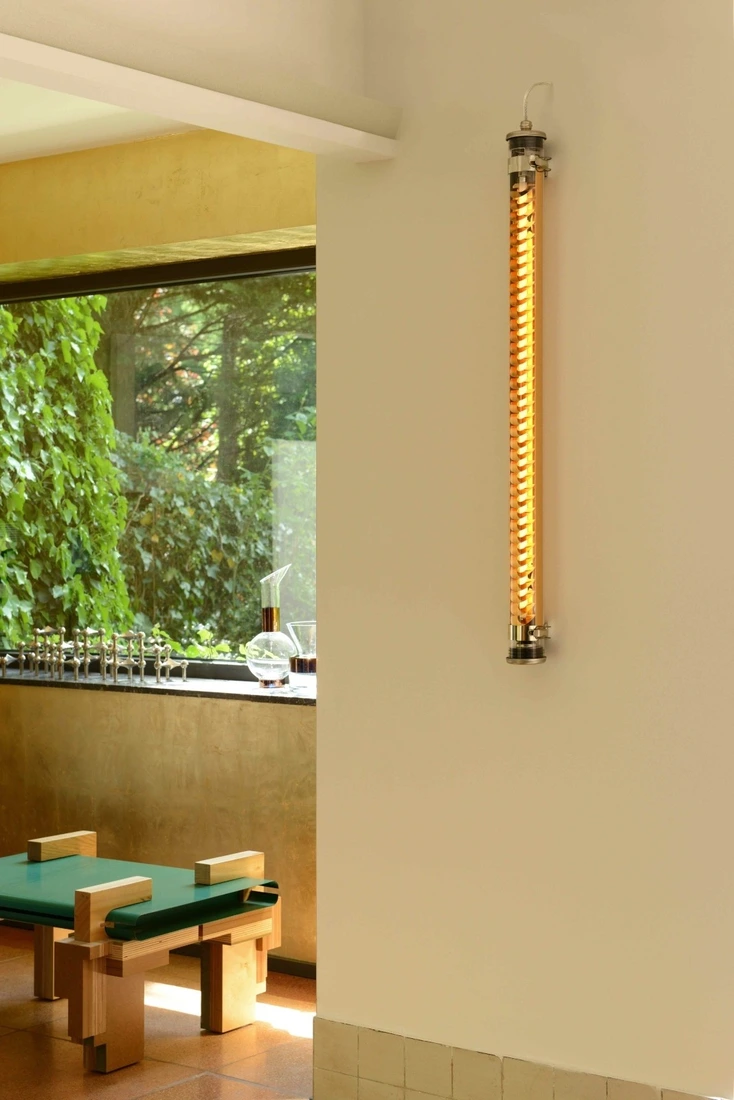

The Elgar wall light can illuminate the corridors of a company head office, a shared kitchen on the premises of a start-up, a hotel room headboard, a rooftop restaurant, the façade of a residential building, a mirror in a suite, and much more.

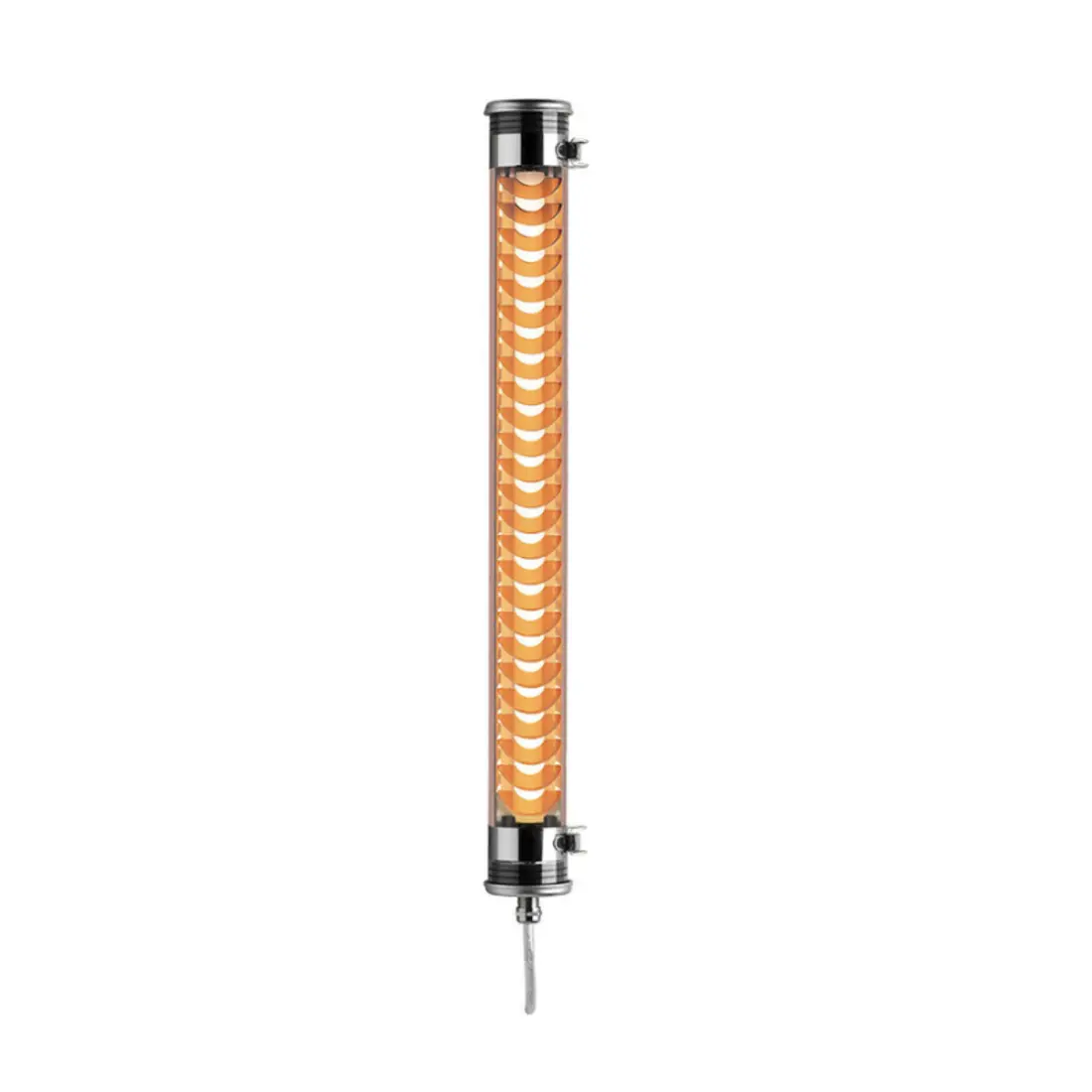

Directional LED wall light, ø70

With optimal transparency and reflection, the Elgar wall light offers the perfect combination of Sammode know-how and design. Its metallic louvre with inclined slats, the signature feature of this emblematic luminaire, conceals the light source for optimum lighting comfort.

Access to product information

Lighting comfort and directional lighting

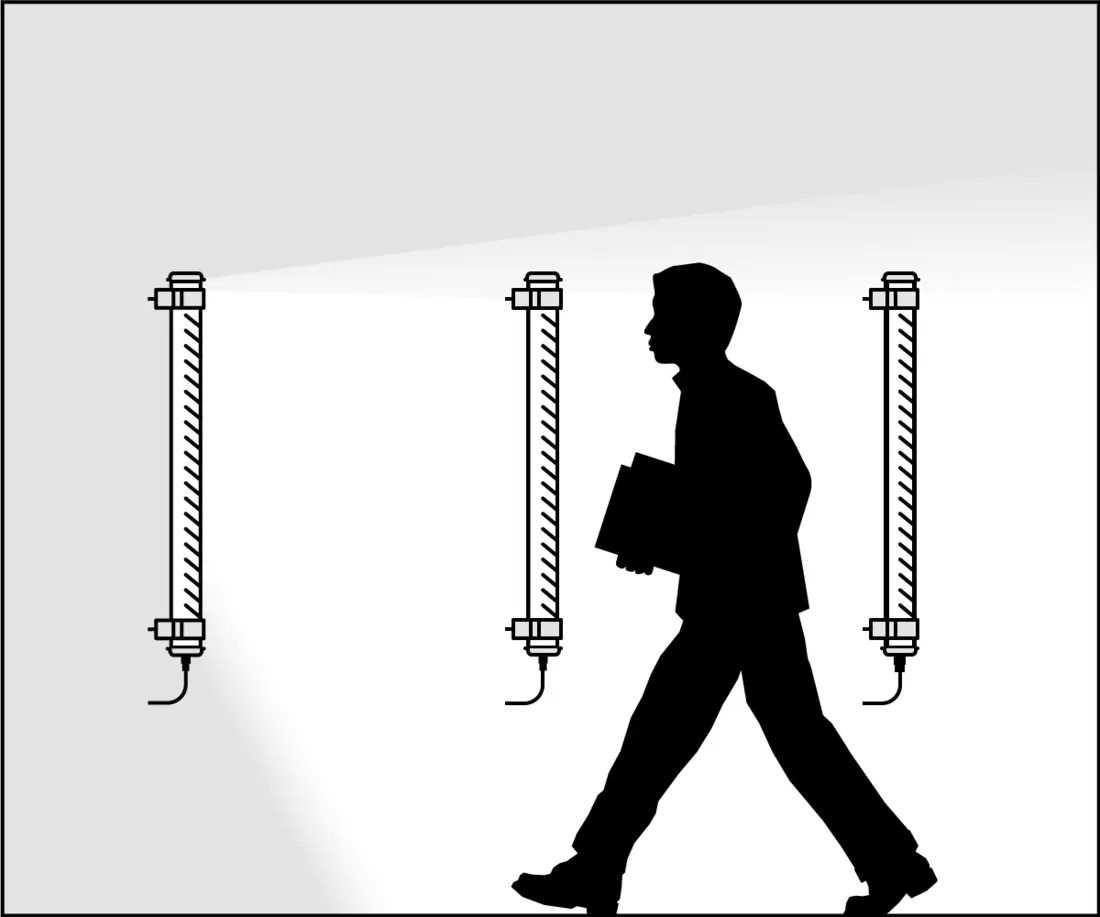

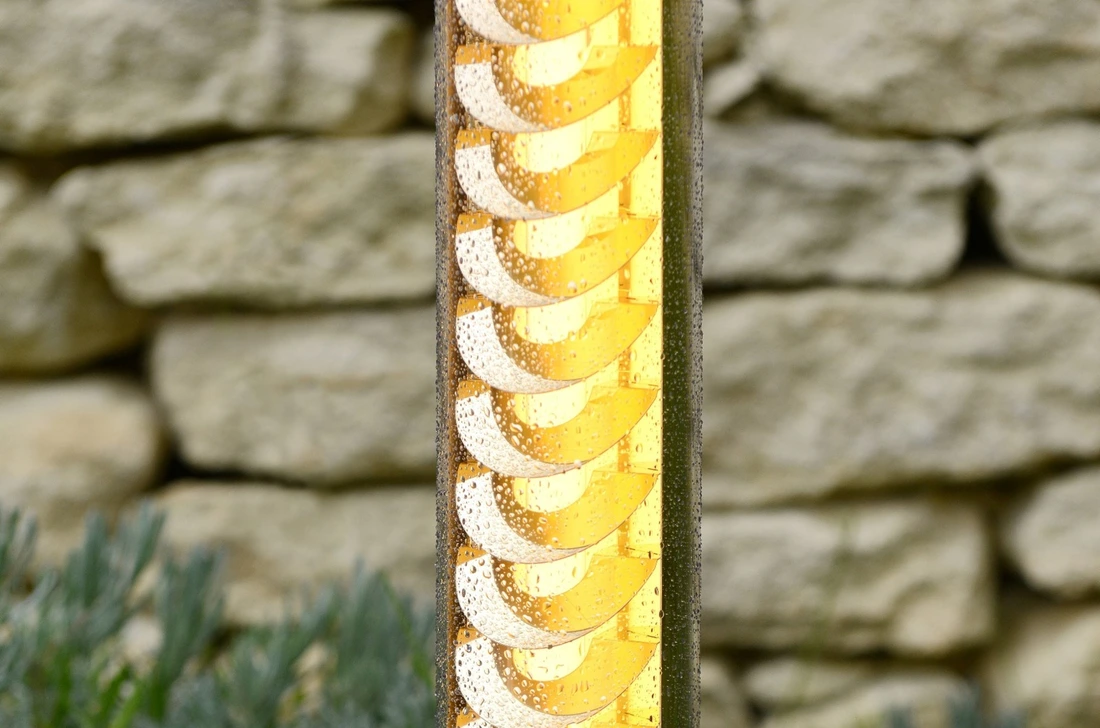

With its unrivalled louvre, the Elgar tubular luminaire is our functional wall light offering the best possible lighting comfort. The inclined slats reflect the light towards the ground while concealing the source. Guaranteed safety thanks to efficient lighting and eye comfort in corridors, stair cases and other busy thoroughfares.

The right atmosphere for each finish.

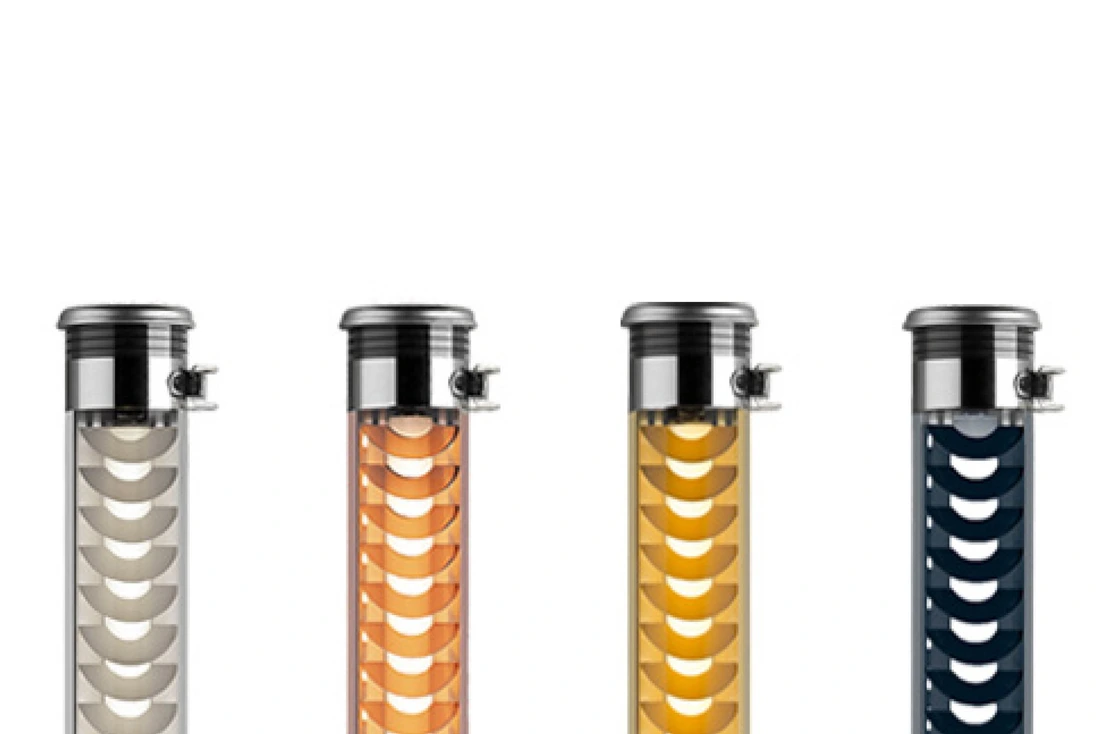

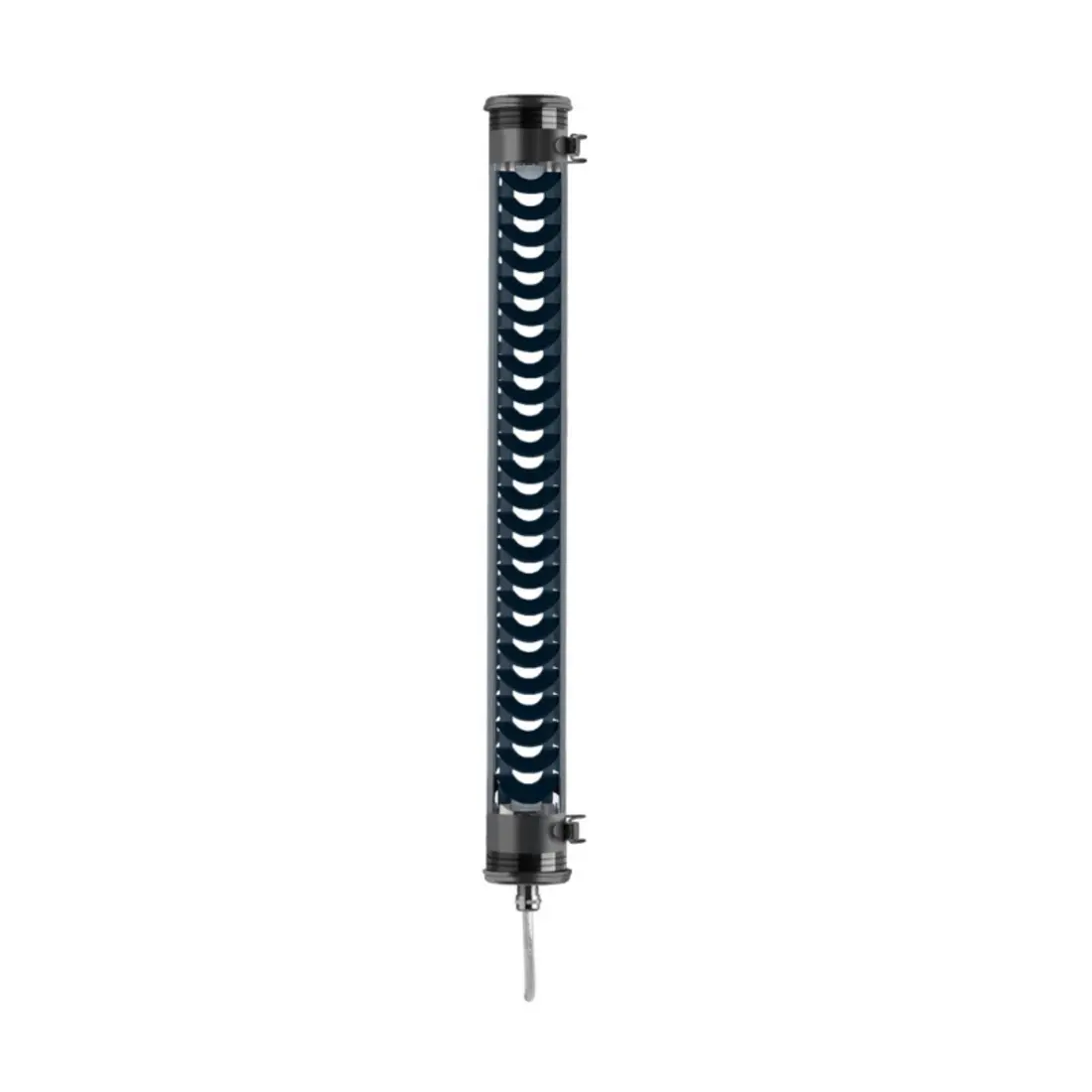

The four hues proposed for the anodised aluminium louvre play on reflections and create a range of lighting atmospheres. Opt for a brass or copper finish for a cosy atmosphere. For a classy industrial look, opt for the Silver reflector, or the Petrol version combined with the lacquered Coal black end-caps and fixing straps.

Multipurpose and upgradeable

The Elgar tubular luminaire is easy to install and can also be upgraded thanks to its removable gear tray with an automatic patented connection system (Close’n Connect©). This smart luminaire is fitted with a reversible louvre allowing cables to be routed via the top.

A designer wall light built to last

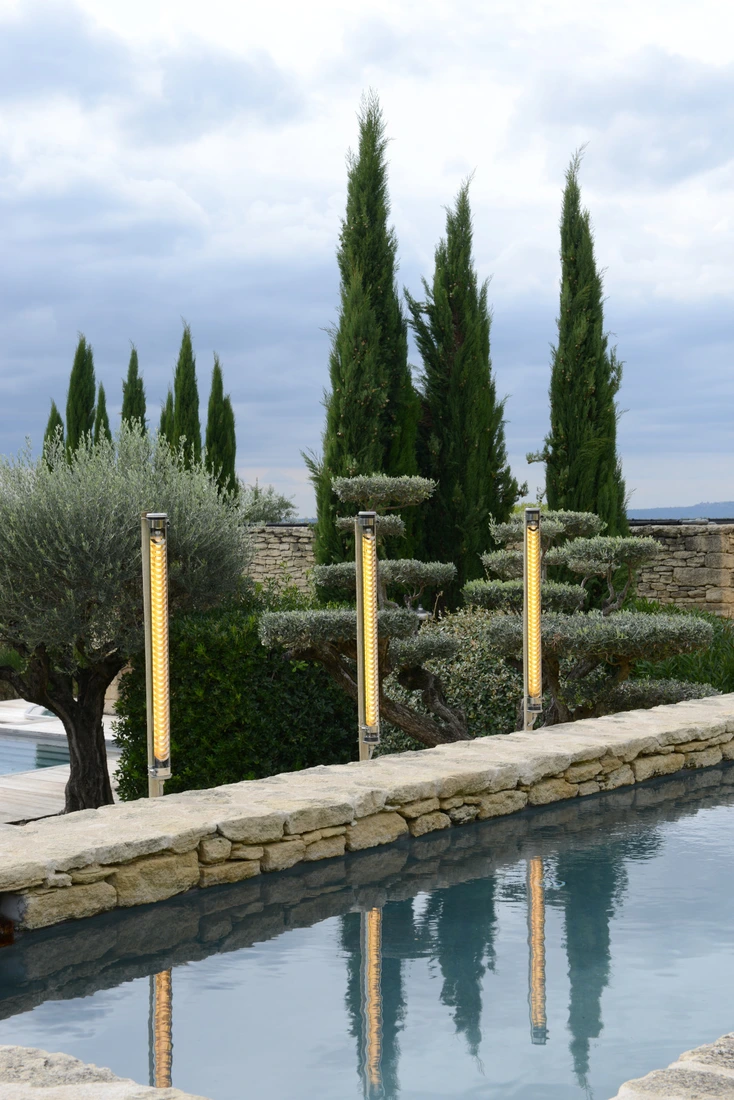

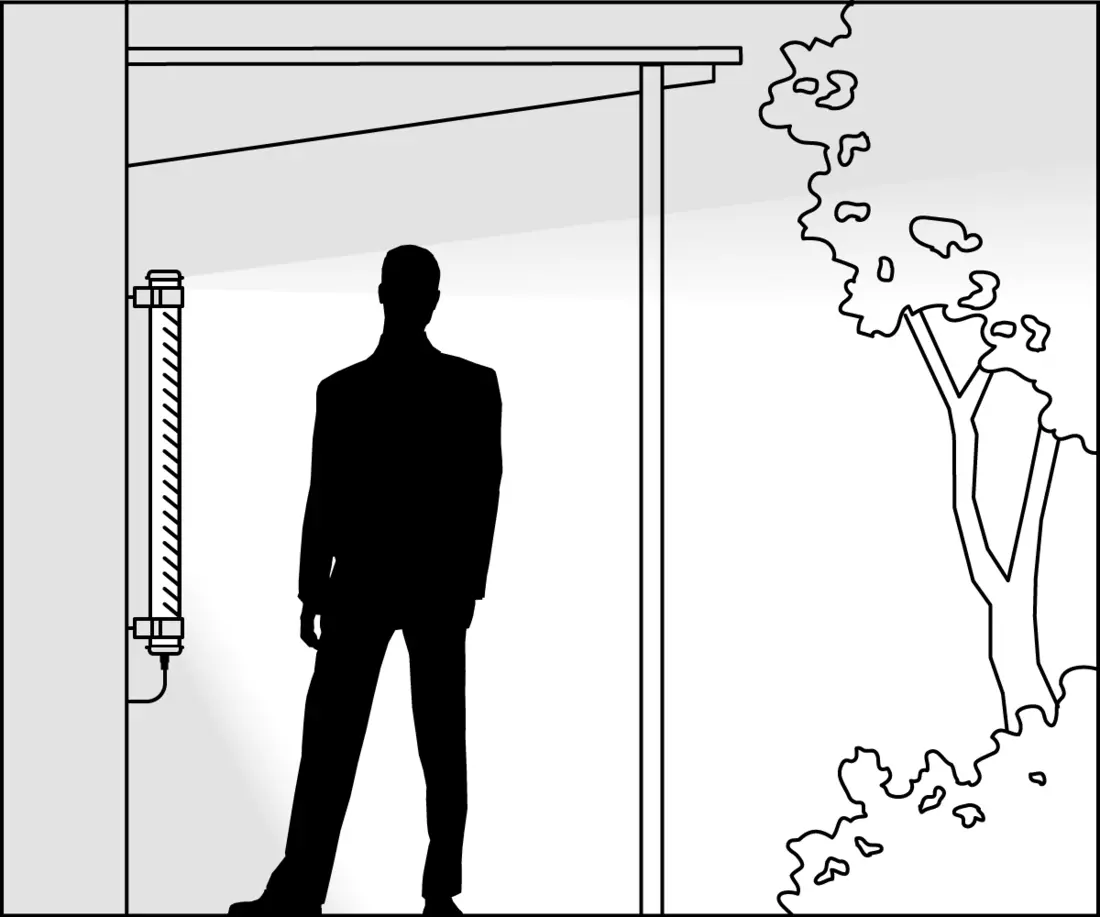

The Elgar luminaire is renowned for its outstanding reliability and sealing, just like the entire Sammode tubular range, and is ideal both outdoors and indoors. The robust materials used (stainless steel and IK10 composite diffusers) ensure that these fixtures are durable and able to resist both UV radiation and the worst acts of vandalism.

Let your creativity run free!

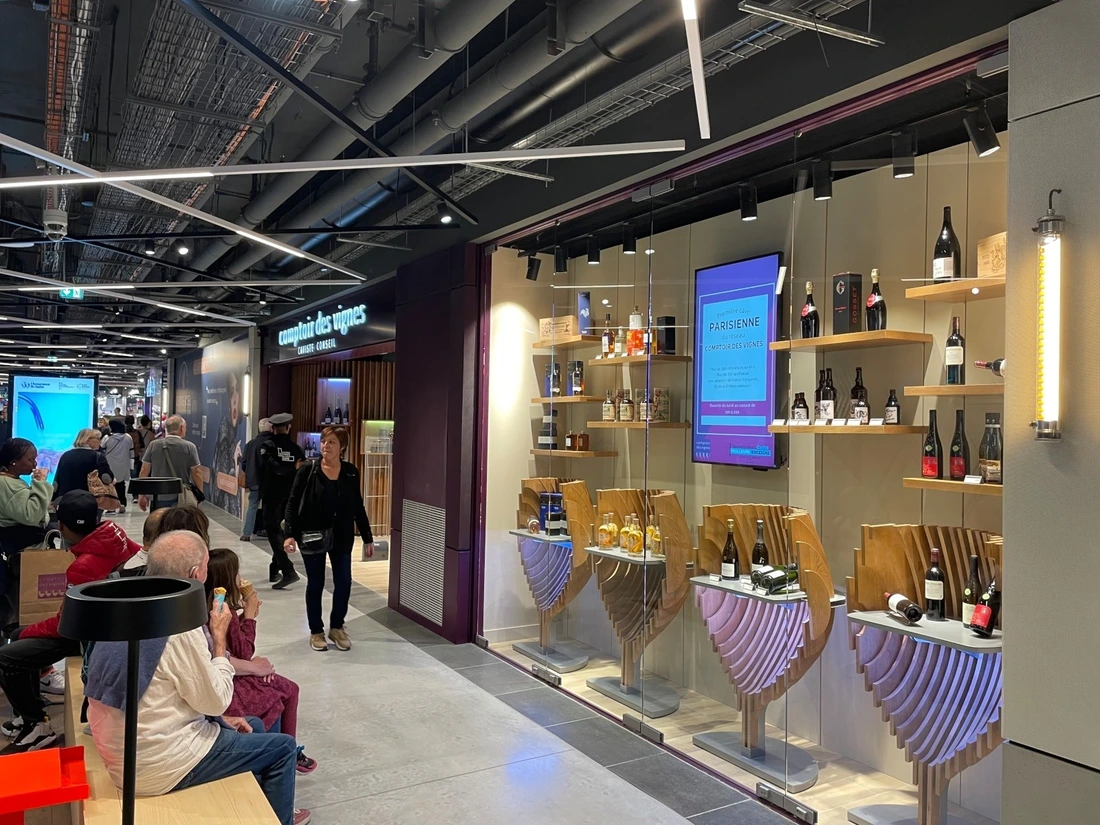

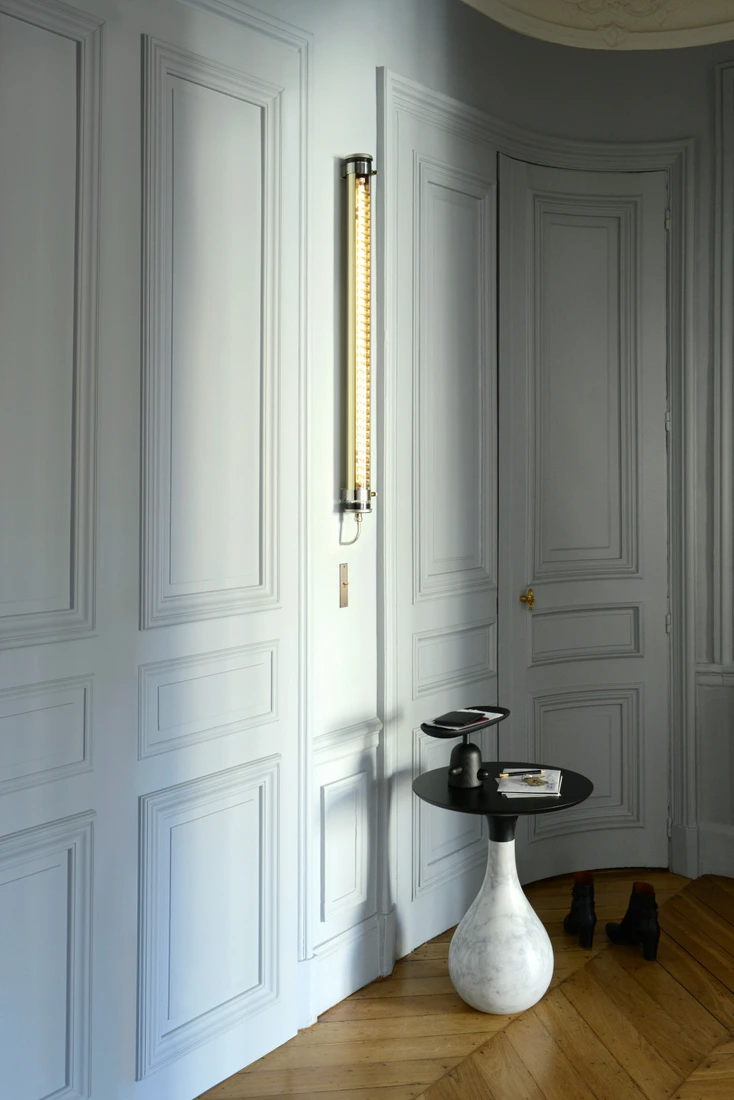

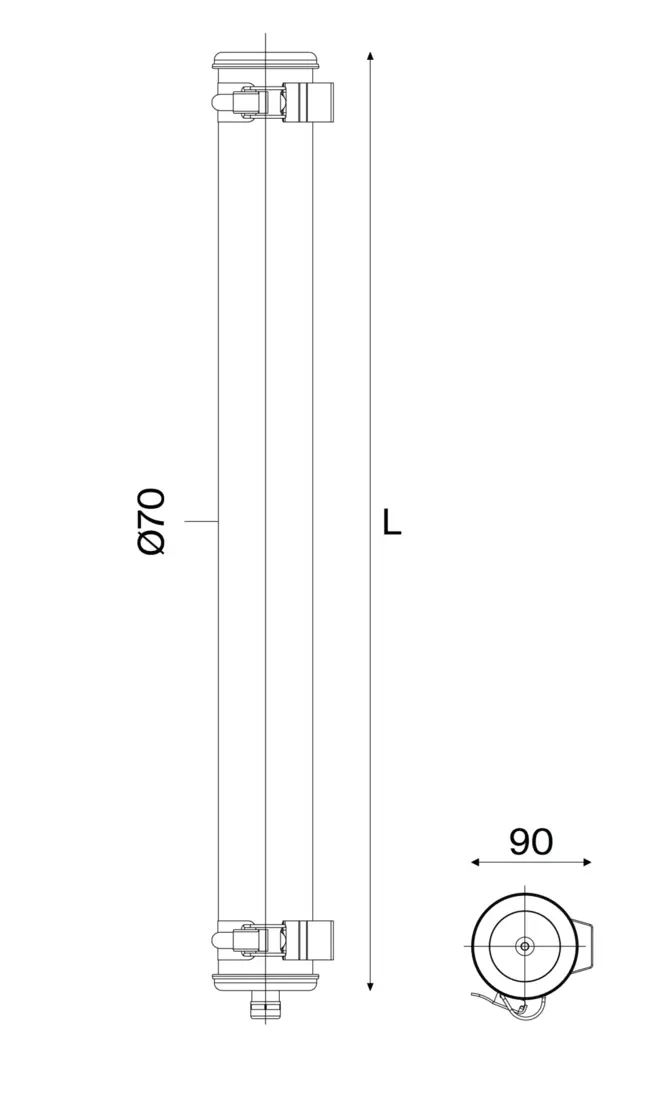

When wall-mounted, whether installed at intervals along a wall, or in clusters, the Elgar luminaire can adapt to any situation to bring architecture to life. This model is available in 5 lengths, ranging from 45 cm to 1.60 m, and can illuminate any space, no matter how small (bedroom, bathroom, patio) or majestic.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year indoor-outdoor warranty

Architectural projects look to the long term, which is why Sammode commits to a 5-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Références principales et téléchargements

Plaquette produit

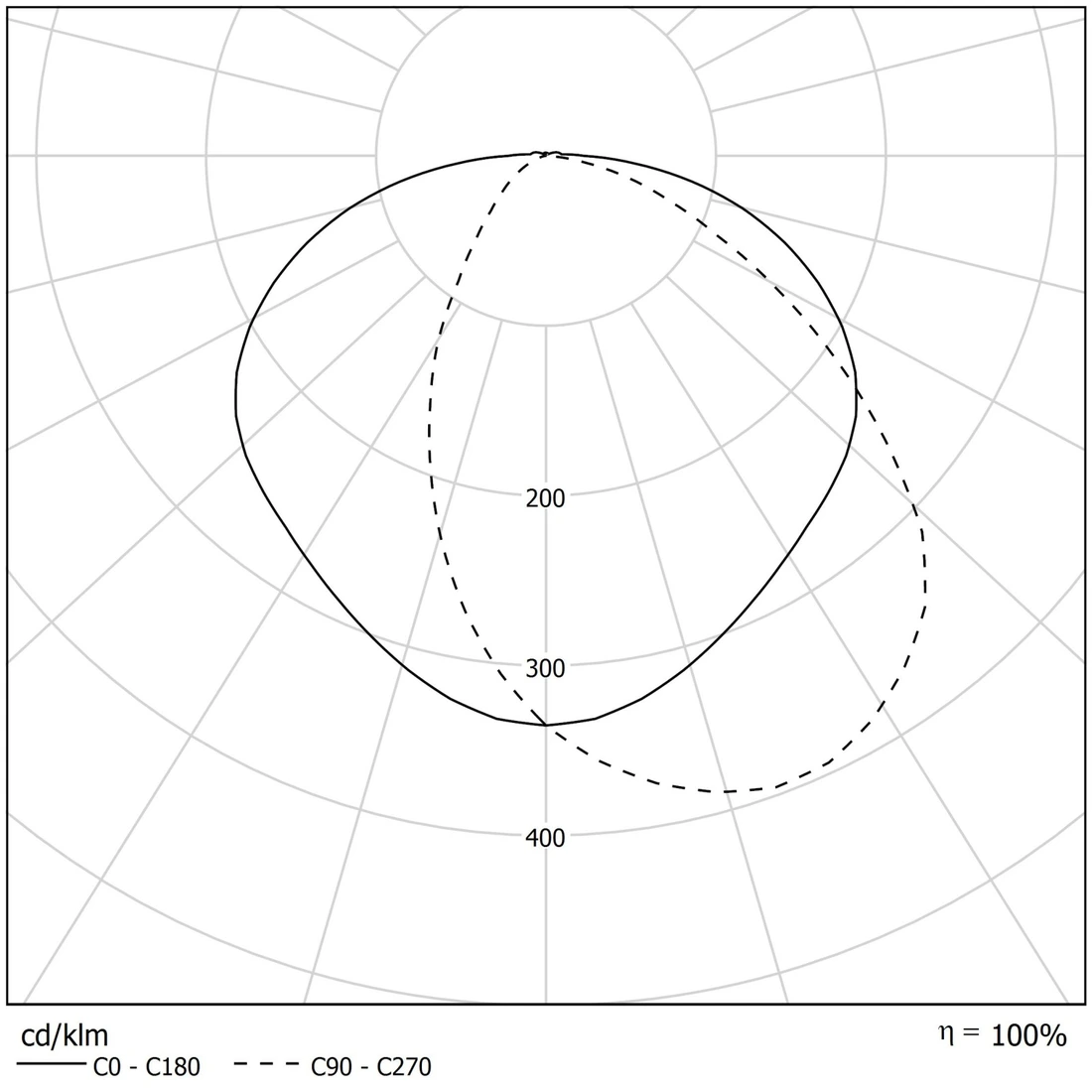

Eulumdat

Notice

Certificat
Tout télécharger

Principal part numbers

3000 K

ReflectorFlux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
Silver 700 695 ELGAR 70 S 700 700-830 14317040 13 Data sheet Plan STEP DS .TXT Download all
Silver 1050 995 ELGAR 70 S 1000 1050-830 14317050 19 Data sheet Plan STEP DS .TXT Download all
Silver 1400 1295 ELGAR 70 S 1300 1400-830 14317060 24 Data sheet Plan STEP DS .TXT Download all
Silver 275 430 ELGAR 70 S 450 275-830 14335840 5 Data sheet Plan STEP DS .TXT Download all
Copper 700 695 ELGAR 70 C 700 700-830 14335123 13 Data sheet Plan STEP DS .TXT Download all
Copper 275 430 ELGAR 70 C 450 275-830 14335815 5 Data sheet Plan STEP DS .TXT Download all
Brass 700 695 ELGAR 70 B 700 700-830 14335128 13 Data sheet Plan STEP DS .TXT Download all
Brass 1050 995 ELGAR 70 B 1000 1050-830 14335129 19 Data sheet Plan STEP DS .TXT Download all
Brass 1400 1295 ELGAR 70 B 1300 1400-830 14335130 24 Data sheet Plan STEP DS .TXT Download all
Copper 1400 1295 ELGAR 70 C 1300 1400-830 14335125 24 Data sheet Plan STEP DS .TXT Download all
Copper 1050 995 ELGAR 70 C 1000 1050-830 14335124 19 Data sheet Plan STEP DS .TXT Download all
Brass 275 430 ELGAR 70 B 450 275-830 14335842 5 Data sheet Plan STEP DS .TXT Download all
Petrol 275 430 ELGAR 70 P 450 275-830 14335843 7 Data sheet Plan STEP DS .TXT Download all
Petrol 700 695 ELGAR 70 P 700 700-830 14335131 19 Data sheet Plan STEP DS .TXT Download all
Petrol 1050 995 ELGAR 70 P 1000 1050-830 14335132 28 Data sheet Plan STEP DS .TXT Download all
Petrol 1400 1295 ELGAR 70 P 1300 1400-830 14335133 37 Data sheet Plan STEP DS .TXT Download all

End caps & fixing straps finish

End caps & straps painted Coal RAL7021 COAL

Aluminium gear unit cover

Silver CRS
Copper CRC
Brass CRB
Petrol CRP

Fixing straps

Fixing straps -
Fixing straps with HSHC screw BCV
Fixing straps with tamper-resistant Torx screw BCVT

Materials

Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°) -
Polycarbonate housing (960°C) PO
End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

2700K 827
3000K 830
4000K 840

Lighting management

Electronic gear unit for DALI dimming RD
Electronic gear unit for push button RS
Casambi Bluetooth control RB

Pushbutton on flange

Dimming by integrated pushbutton, ideal for headboard BPI

Electrical class

Class I CL1
Class II -

Bathroom

Very low voltage for use in bathrooms 24V

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 50 000 h L80/B10 at 25°C
  • Photobiological hazard : None (RG0)
Optics
  • Reflector with reversible louvre
  • Specific satin-finish primary diffuser optics
Lighting comfort
  • Louvre in brushed aluminium with inclined lamina
Control gear
  • Constant current driver (non-dimmable)
Supply voltage
  • 220-240V 50/60Hz
Electrical class
  • Class II
Operating temperature
  • -20°C to +35°C

Connection
  • With nickel-coated brass cable gland for cable Ø 5-12 mm
  • To a 3 x 2,5 mm² disconnectable terminal block
  • Installation in vertical position: cable gland positioned downwards
Closing
  • Closing by tightening the nut on the cable gland
Mounting

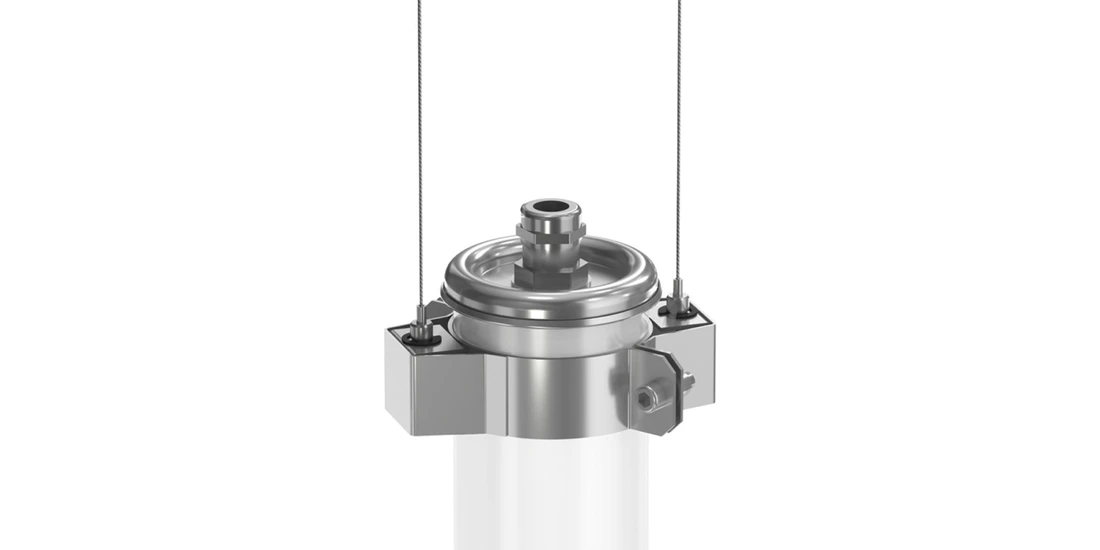

  • 2 stainless steel fixing straps (with variable centre distance)
LED engine maintenance
  • Maintenance without tampering with the cable by removal of the end cap without cable entry
  • Close'N Connect Patented system with automatic electrical connection/disconnection on closure
  • Easily removable LED modules and driver
  • Quick opening and closing with just one screw

Housing
  • Coextruded polycarbonate/PMMA diameter 70 for indoor and outdoor use
End caps and fixing straps
  • 304L stainless steel
Louvre
  • Aluminium louvre

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C

ULR = 31%
