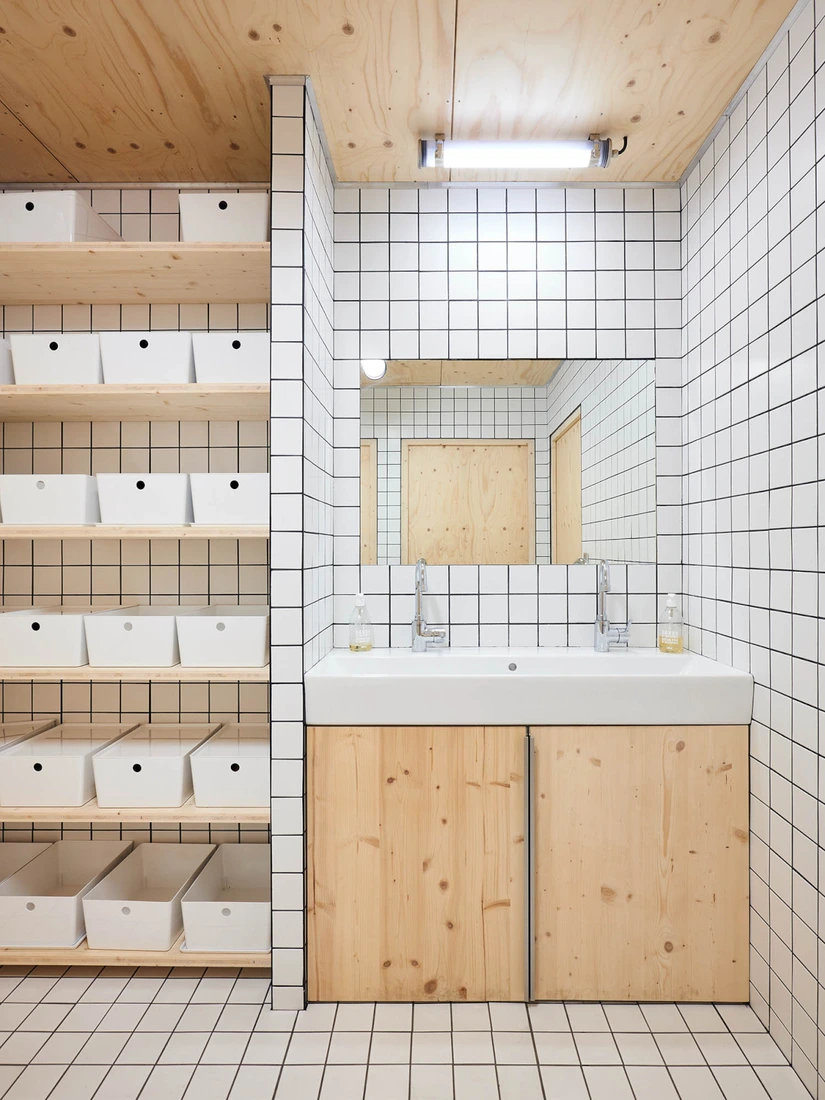

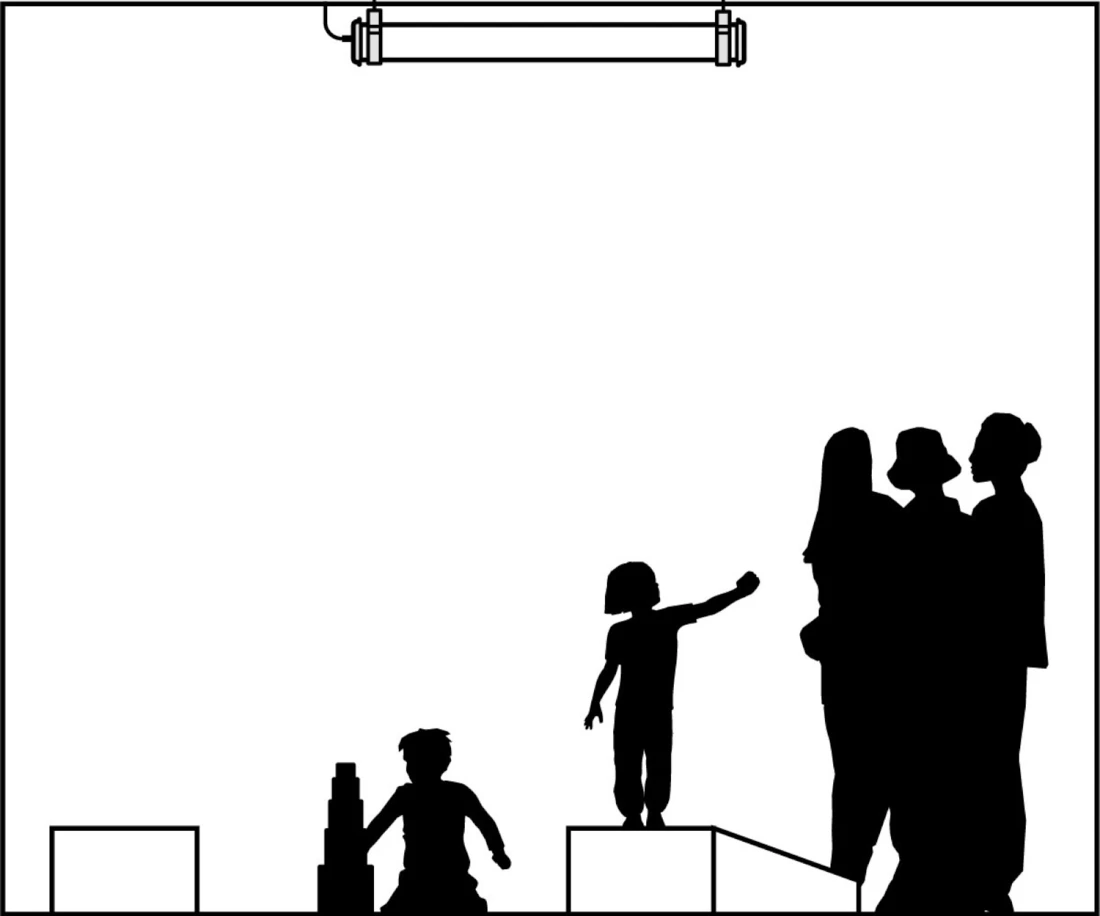

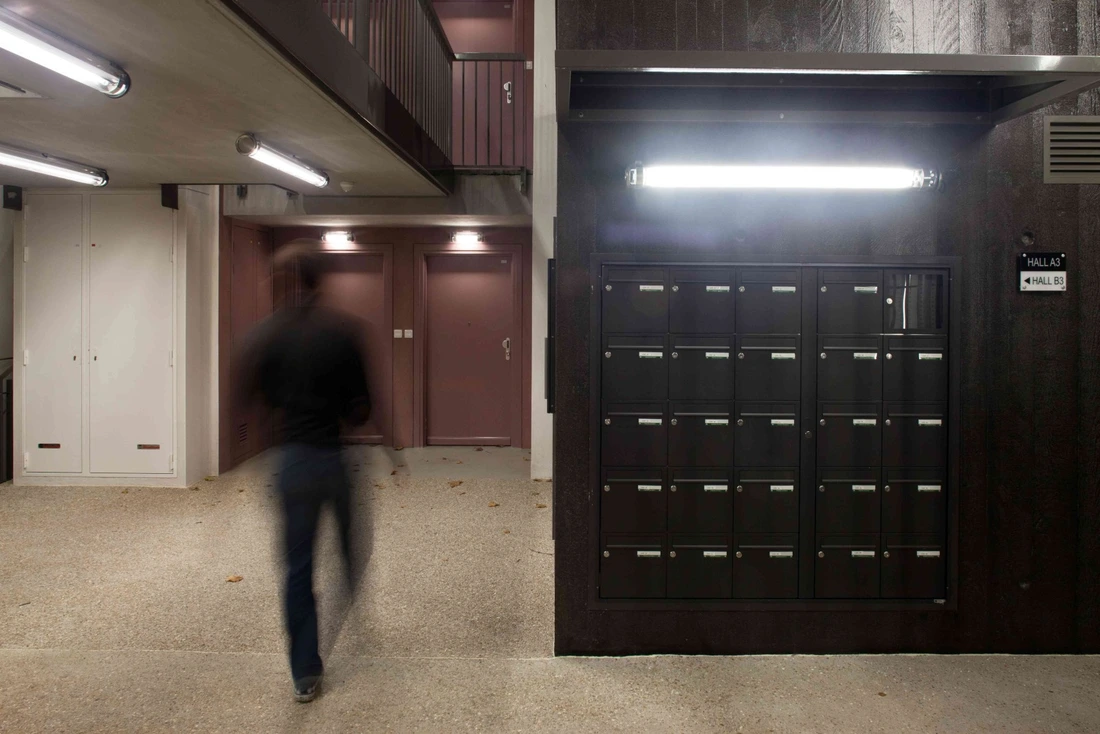

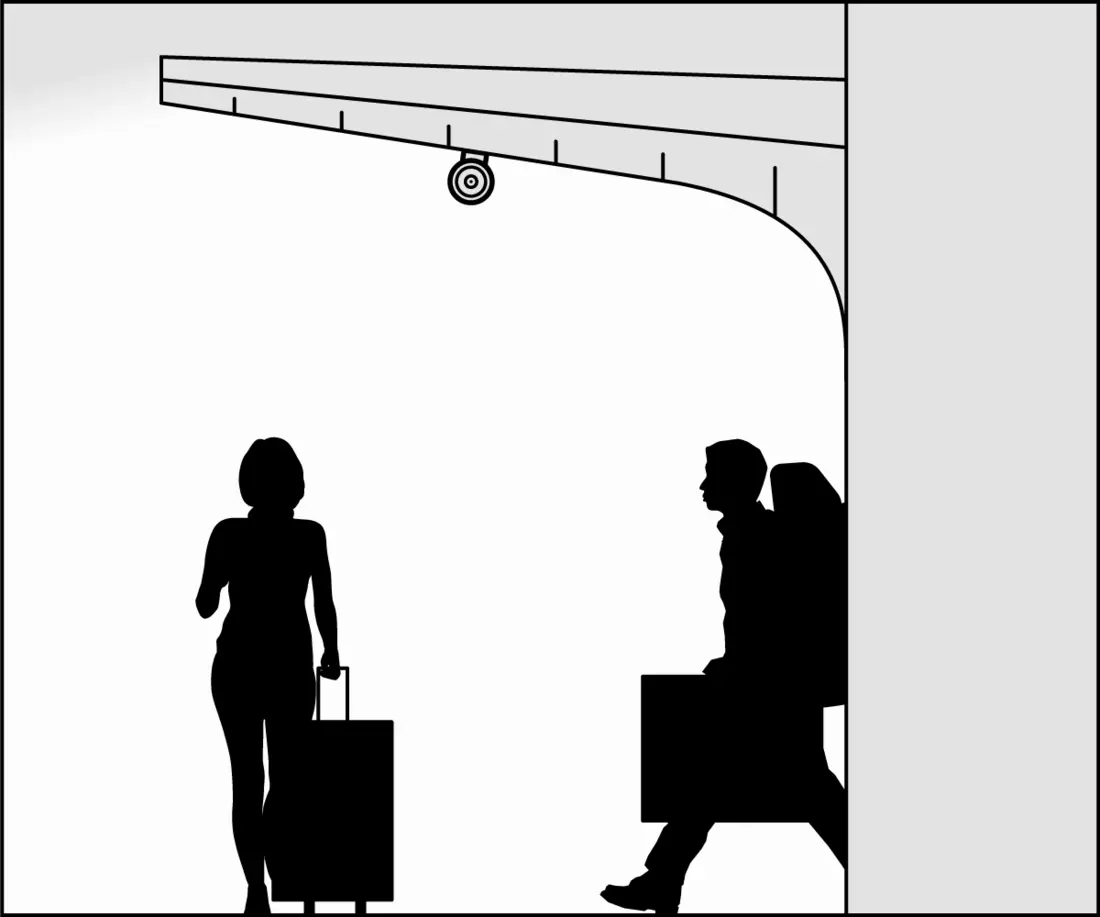

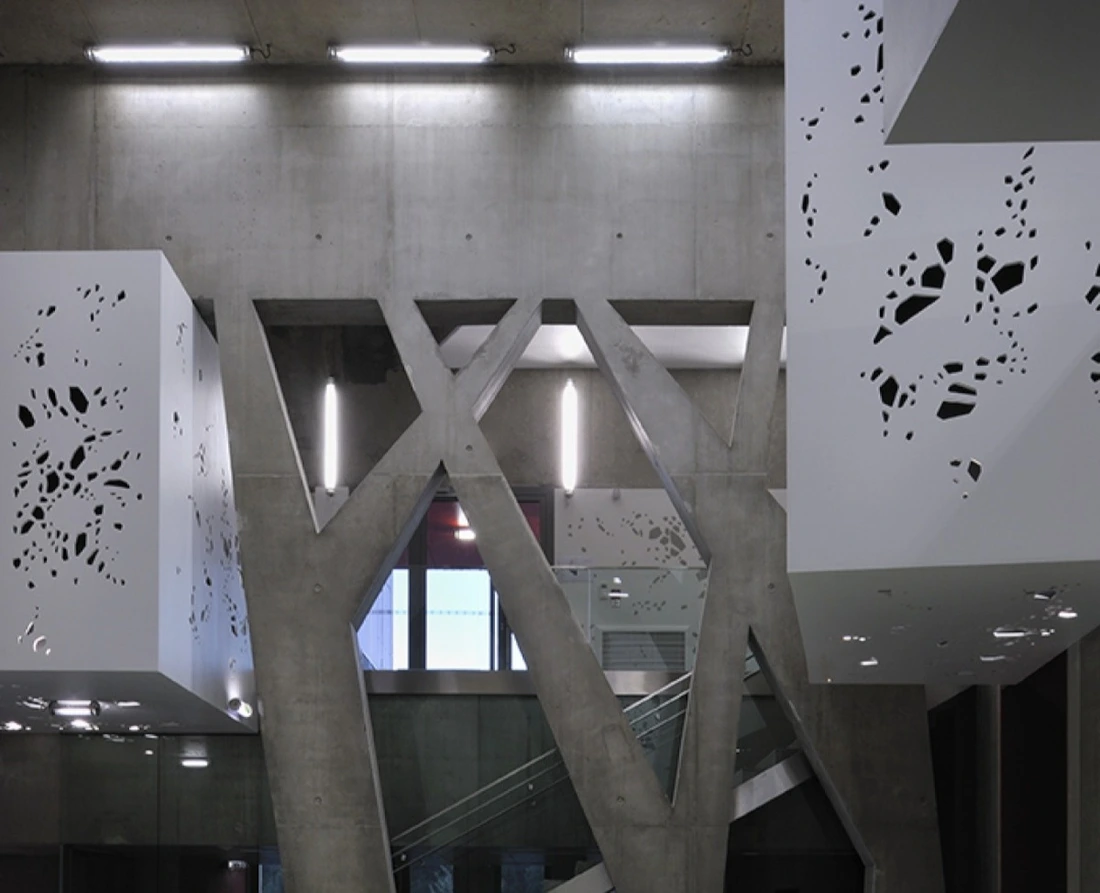

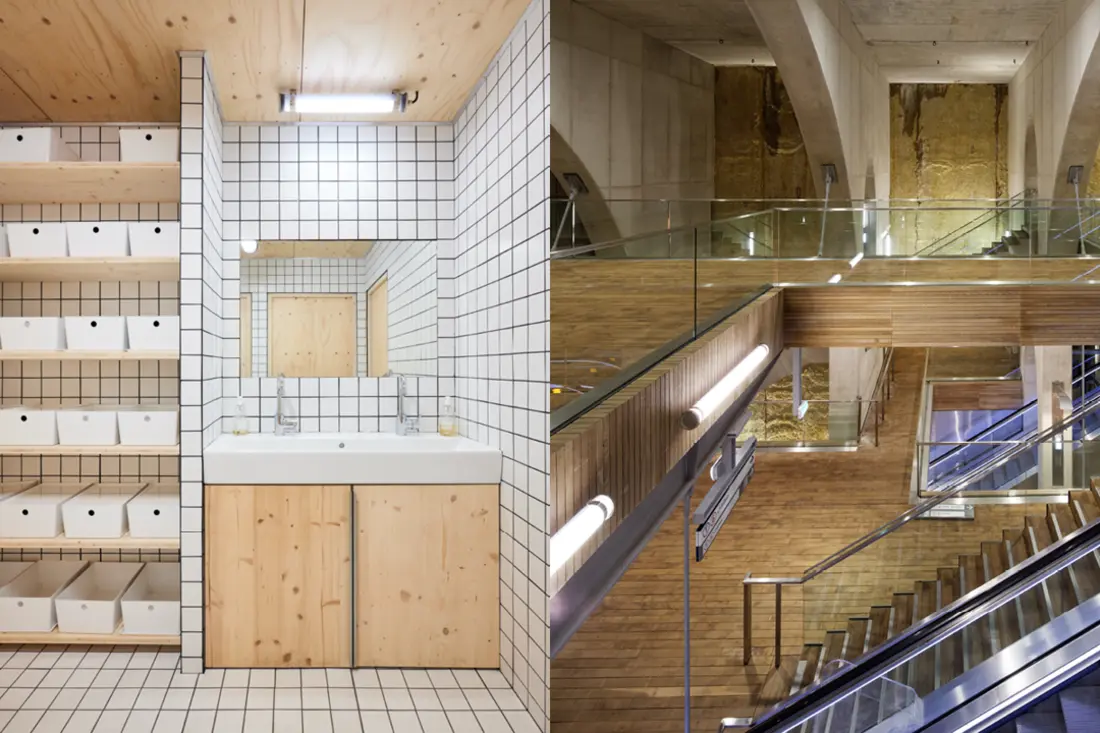

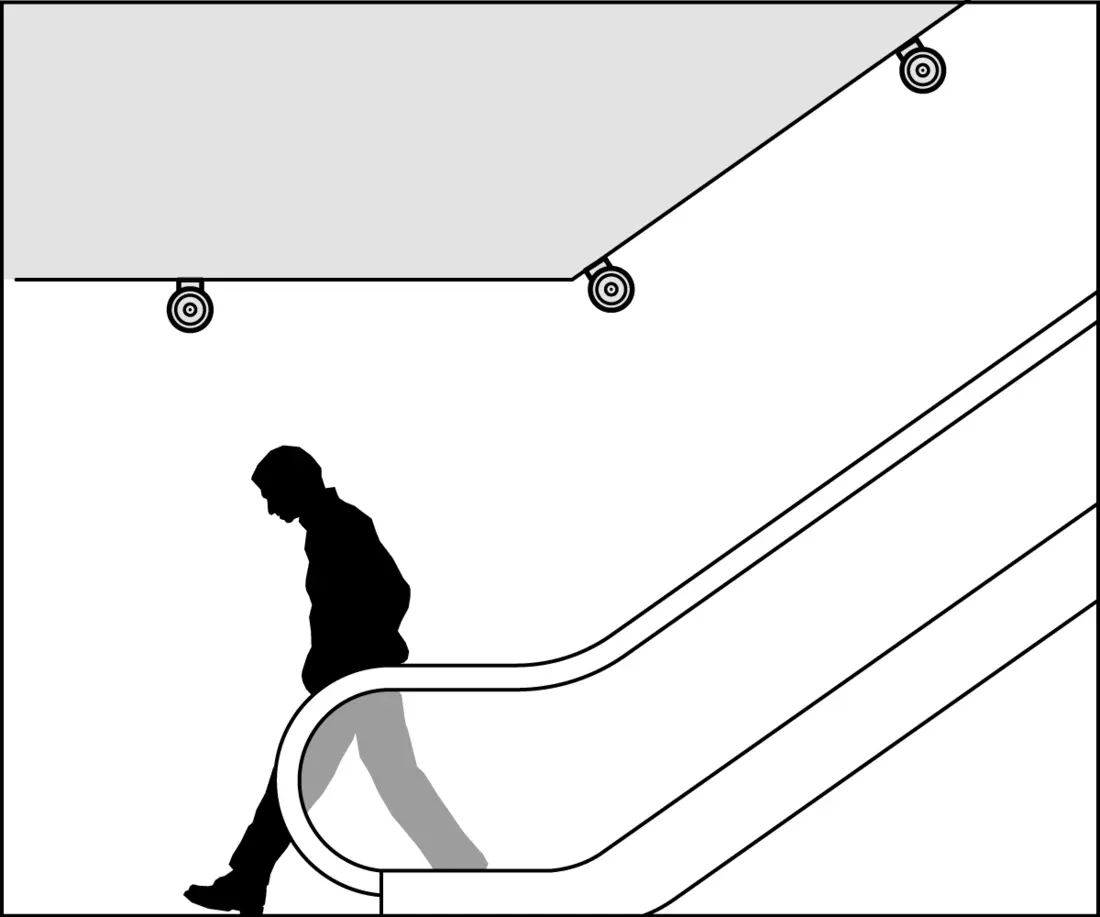

The Géricault luminaire can illuminate staircases in blocks of flats, the bike room in student halls, a school gym, a crèche activity room, swimming pool changing rooms, tramway stop platforms, and plenty of places besides.

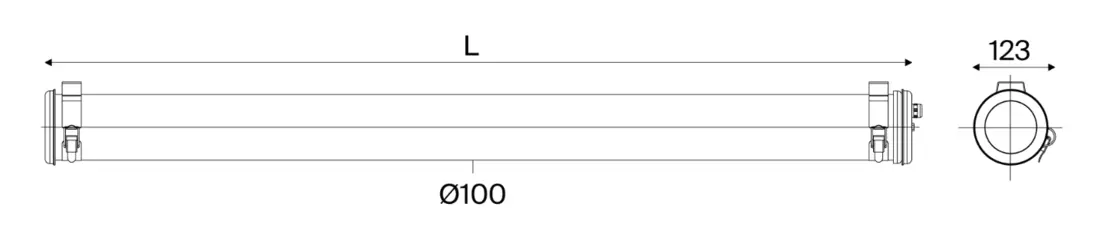

LED ceiling light for diffuse lighting, ø100 or 133

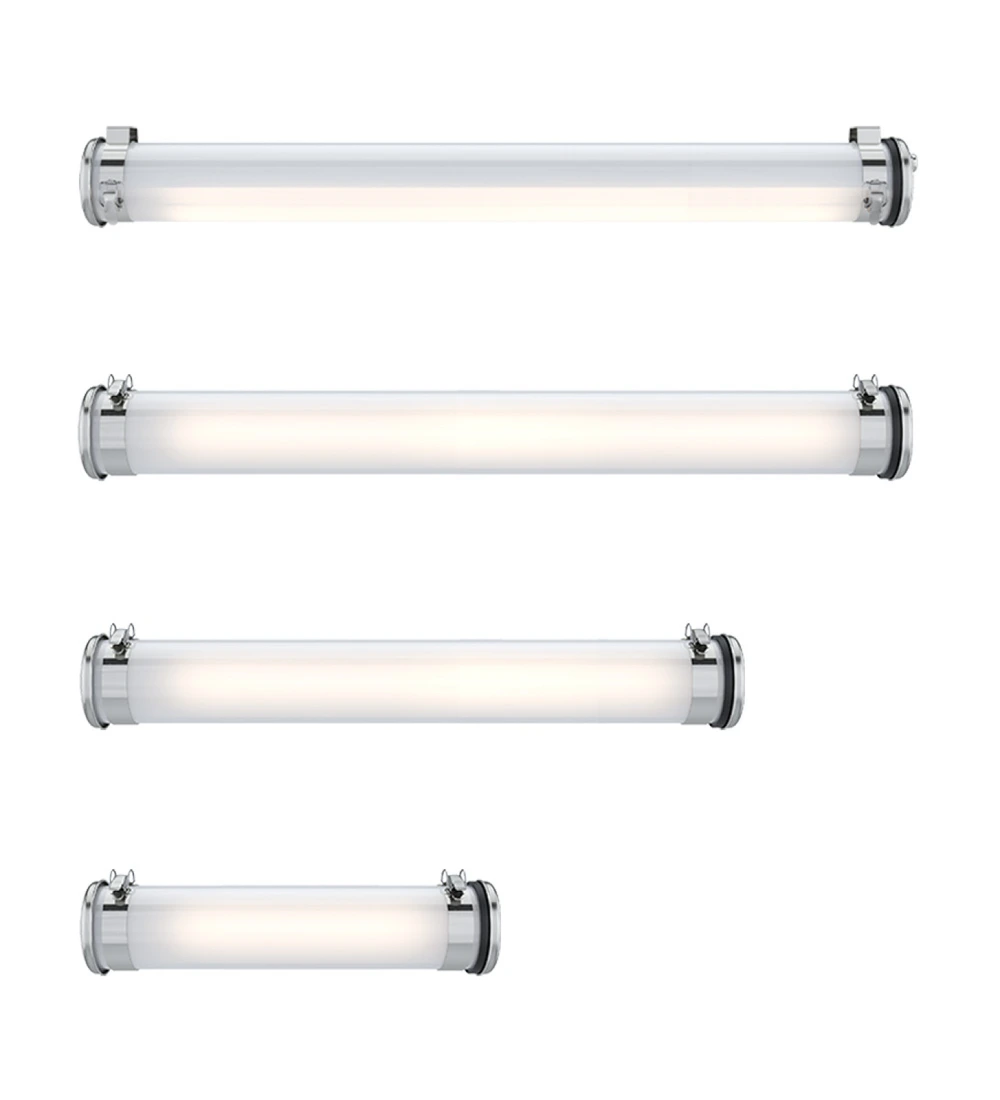

The Géricault luminaire is available in 2 diameters, and 7 lengths ranging from 40 cm to 1.85 m, with several light output levels, and is an extremely versatile luminaire, suited to all kinds of spaces and rooms. The satin-finish body emits a diffuse light, ensuring top-notch lighting comfort.

Designed to last

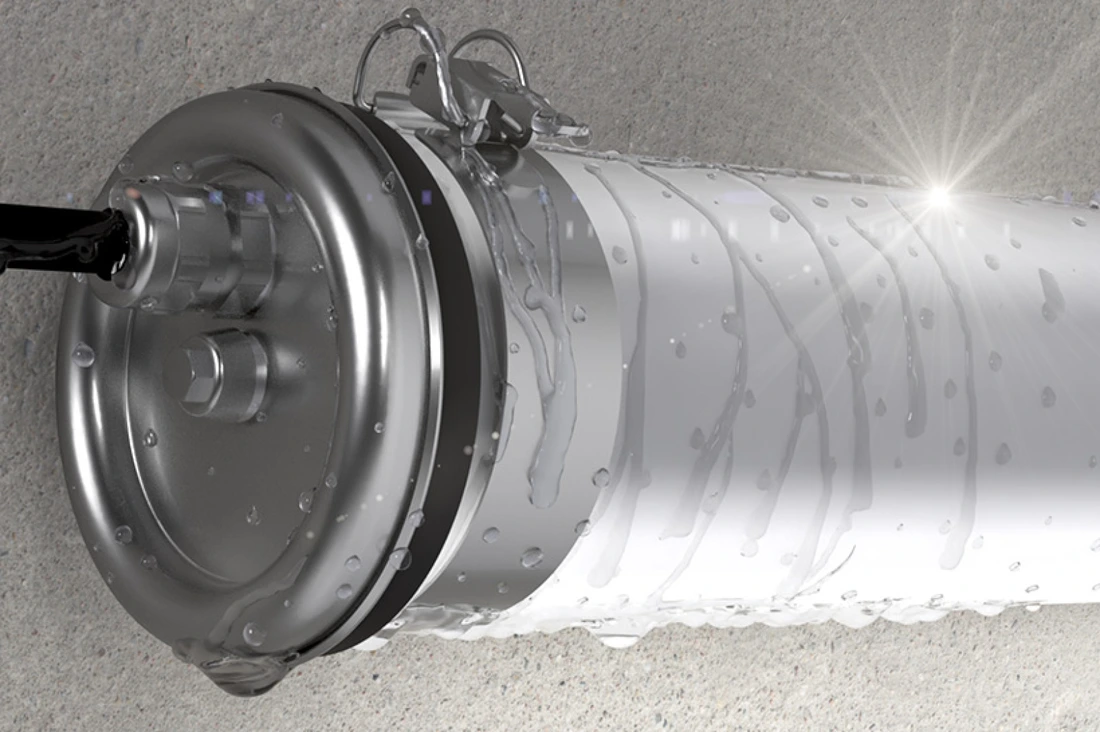

Benefit from the full range of Sammode know-how, based on our expertise in industrial environments, deployed in the Géricault luminaire. This unique design guarantees optimal sealing against dust, direct water splashes and vapour. By opting for sustainable materials, stainless steel and a composite diffuser (IK10), this luminaire is designed to last, even in the face of UV radiation and vandalism. Benefit from the full range of Sammode know-how, based on our expertise in industrial environments, deployed in the Géricault luminaire. This unique design guarantees optimal sealing against dust, direct water splashes and vapour. By opting for sustainable materials, stainless steel and a composite diffuser (IK10), this luminaire is designed to last, even in the face of UV radiation and vandalism.

Ranging from 800 to 12,500 lumens: select an ideal luminous flux for each environment

The Géricault LED luminaire, with its wide range of lengths, comes with 2 flux options to ensure visual comfort and efficiency. Small and compact, with a comfortable luminous flux, this model can light up the smallest spaces. The Géricault can also make its presence felt, with reinforced flux, to limit the required number of light points in large open areas.

Style and performance for all spaces

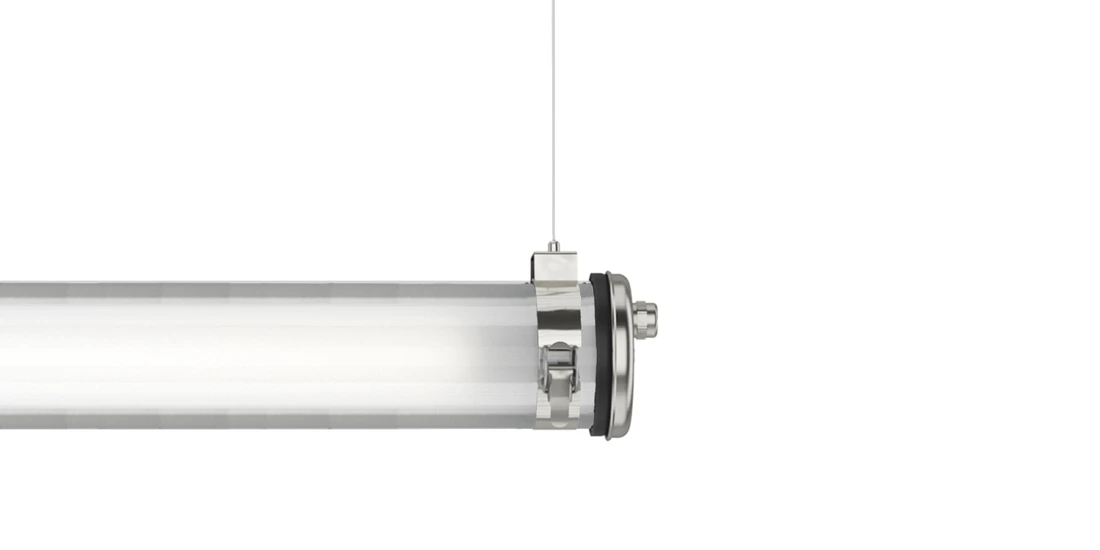

Sleek lines and luxury finishes for this rather special satin-finish tubular luminaire. Whether you opt for the ceiling or suspended model, indoors or outdoors, this multifunctional model can light up any space with ease. The design of the luminaire can be customised with Coal black end-caps and fixing straps, or by integrating colour films inside the tube.

Smart lighting

Our lighting management options are selected specifically for their durability and reliability, meaning your luminaires are easy to control. With DALI 2 or Bluetooth Casambi dimming options, switch-off warning functions, motion sensors and the like, Sammode ensures you benefit from the light you need when you need it, and lighting management solutions which save energy while protecting both luminaires and the environment.

Upgradeable

Your Géricault LED tubular luminaire is easy to connect thanks to its patented smart sliding gear tray (SLIDE© system). This model is quick to install and easy to upgrade. The housing can contain and protect any future technological developments you opt for.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year indoor-outdoor warranty

Architectural projects look to the long term, which is why Sammode commits to a 5-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.

Our products can be fully repaired or upgraded at your site

Even after 15 or 20 years’ use, every single part we supply can be easily replaced, with no need to send it back to us. No one else offers a guarantee of lifelong lighting solutions!

Comfortable versions

T (K)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
3000 800 390 GERICAULT 100 400 800-830 15855089 9 Data sheet Plan STEP DS .TXT Download all
3000 1200 530 GERICAULT 100 500 1200-830 15855090 12 Data sheet Plan STEP DS .TXT Download all
3000 1600 708 GERICAULT 100 700 1600-830 15855091 14 Data sheet Plan STEP DS .TXT Download all
3000 2400 1018 GERICAULT 100 1000 2400-830 15855084 21 Data sheet Plan STEP DS .TXT Download all
3000 3200 1318 GERICAULT 100 1300 3200-830 15855083 28 Data sheet Plan STEP DS .TXT Download all
3000 4000 1618 GERICAULT 100 1600 4000-830 15855092 34 Data sheet Plan STEP DS .TXT Download all
3000 4800 1850 GERICAULT 100 1850 4800-830 15855093 41 Data sheet Plan STEP DS .TXT Download all
4000 800 390 GERICAULT 100 400 800-840 15855095 9 Data sheet Plan STEP DS .TXT Download all
4000 1200 530 GERICAULT 100 500 1200-840 15855096 12 Data sheet Plan STEP DS .TXT Download all
4000 1600 708 GERICAULT 100 700 1600-840 15855097 14 Data sheet Plan STEP DS .TXT Download all
4000 2400 1018 GERICAULT 100 1000 2400-840 15855098 21 Data sheet Plan STEP DS .TXT Download all
4000 3200 1318 GERICAULT 100 1300 3200-840 15855099 28 Data sheet Plan STEP DS .TXT Download all
4000 4000 1618 GERICAULT 100 1600 4000-840 15855100 34 Data sheet Plan STEP DS .TXT Download all
4000 4800 1850 GERICAULT 100 1850 4800-840 15855101 41 Data sheet Plan STEP DS .TXT Download all

Reinforced versions

T (K)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
3000 1150 390 GERICAULT 100 400 1150-830 15855102 11 Data sheet Plan STEP DS .TXT Download all
3000 1725 530 GERICAULT 100 500 1725-830 15855114 16 Data sheet Plan STEP DS .TXT Download all
3000 2300 708 GERICAULT 100 700 2300-830 15855103 19 Data sheet Plan STEP DS .TXT Download all
3000 3450 1018 GERICAULT 100 1000 3450-830 15855104 28 Data sheet Plan STEP DS .TXT Download all
3000 4600 1318 GERICAULT 100 1300 4600-830 15855105 38 Data sheet Plan STEP DS .TXT Download all
3000 5750 1618 GERICAULT 100 1600 5750-830 15855106 46 Data sheet Plan STEP DS .TXT Download all
3000 6900 1850 GERICAULT 100 1850 6900-830 15855107 56 Data sheet Plan STEP DS .TXT Download all
4000 1150 390 GERICAULT 100 400 1150-840 15855108 11 Data sheet Plan STEP DS .TXT Download all
4000 1725 530 GERICAULT 100 500 1725-840 15855115 16 Data sheet Plan STEP DS .TXT Download all
4000 2300 708 GERICAULT 100 700 2300-840 15855109 19 Data sheet Plan STEP DS .TXT Download all
4000 3450 1018 GERICAULT 100 1000 3450-840 15855110 28 Data sheet Plan STEP DS .TXT Download all
4000 4600 1318 GERICAULT 100 1300 4600-840 15855111 38 Data sheet Plan STEP DS .TXT Download all
4000 5750 1618 GERICAULT 100 1600 5750-840 15855112 46 Data sheet Plan STEP DS .TXT Download all
4000 6900 1850 GERICAULT 100 1850 6900-840 15855113 56 Data sheet Plan STEP DS .TXT Download all

Fixing straps

Fixing straps -
Fixing straps with HSHC screw BRV
Fixing straps with tamper-resistant Torx screw BRVT

Materials

Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°) -
Polycarbonate housing (960°C) PO
End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

2700K 827
3000K 830
4000K 840

Electrical class

Class I CL1
Class II -

Lighting management

Electronic gear unit for DALI dimming RD
Electronic gear unit for push button RS
Switch-off warning function (for sensor/timer) RC

Presence sensor

Built-in presence sensor (length increased by 85mm) SI

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 50 000 h L80/B10 at 25°C
  • Photobiological hazard : None (RG0)
Optics
  • Light mixing chamber
  • Special satin-finish housing for LED
Lighting comfort
  • Controlled glare: UGR ≤25
Control gear
  • Constant current driver (non-dimmable)
Supply voltage
  • 220-240V 50/60Hz
Electrical class
  • Class II
Operating temperature
  • -20°C to +35°C

Connection
  • With nickel-coated brass cable gland for cable Ø 5-14 mm
  • To a 3 x 2,5 mm² disconnectable terminal block
Opening and closing
  • Quick, with just one screw
Mounting
  • 2 stainless steel fixing straps (with variable centre distance)
LED engine maintenance
  • Patended sliding maintenance system
  • Easily removable LED modules and driver

Housing
  • Ø100 Co-extruded polycarbonate/PMMA for inside/outside use
End caps and fixing straps
  • 304L stainless steel

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C

ULR = 10%
