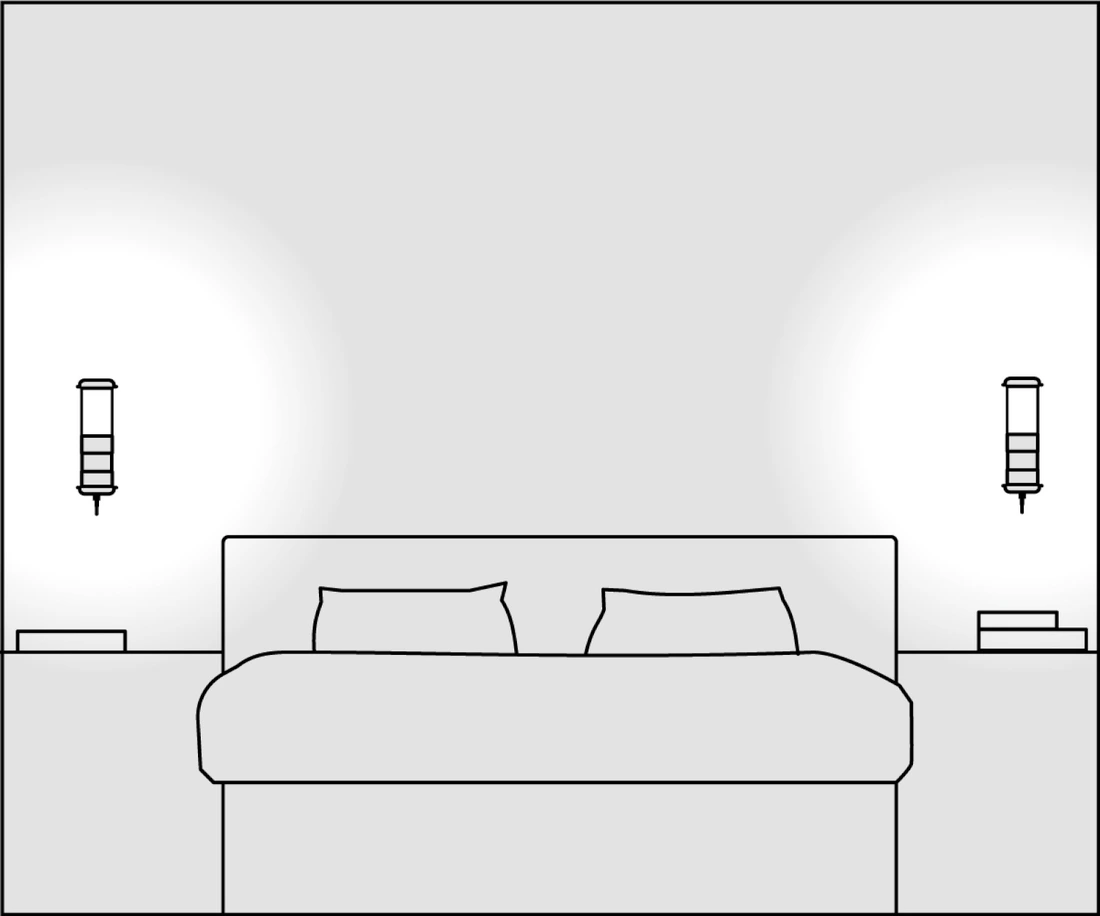

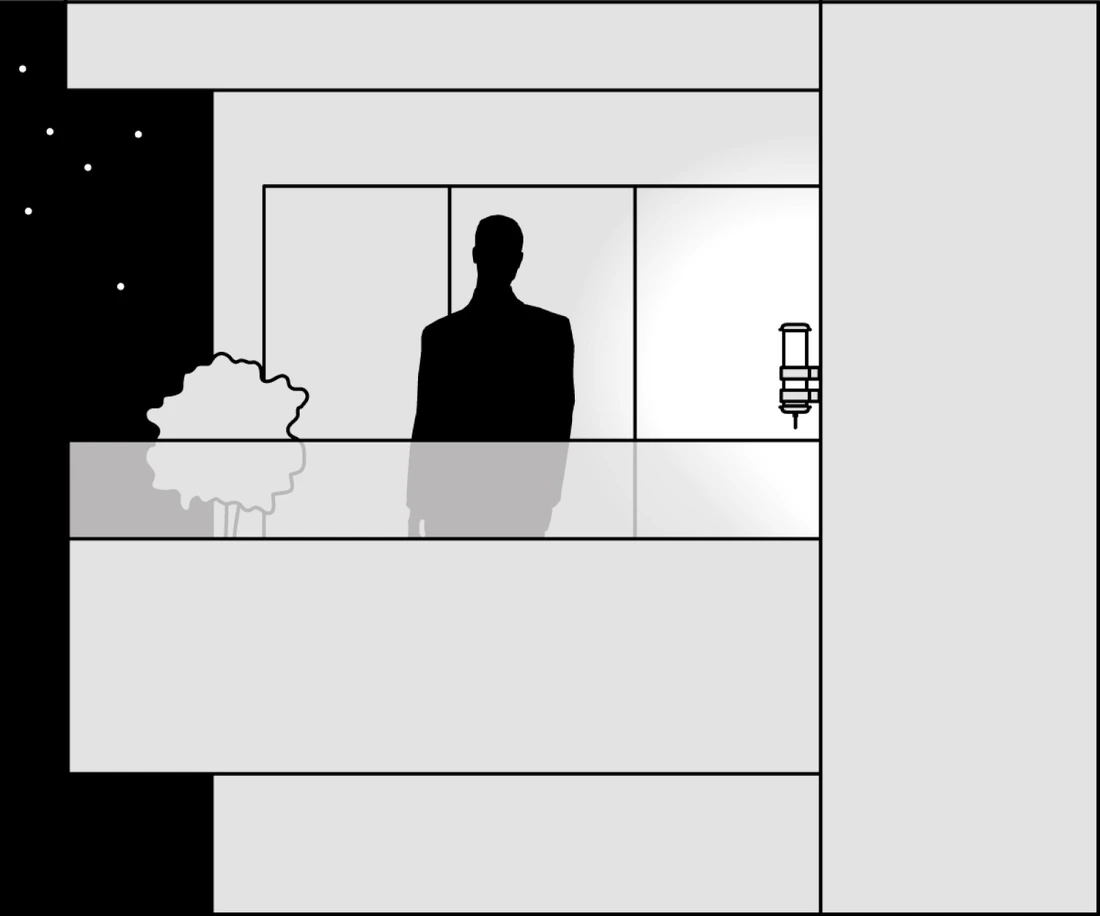

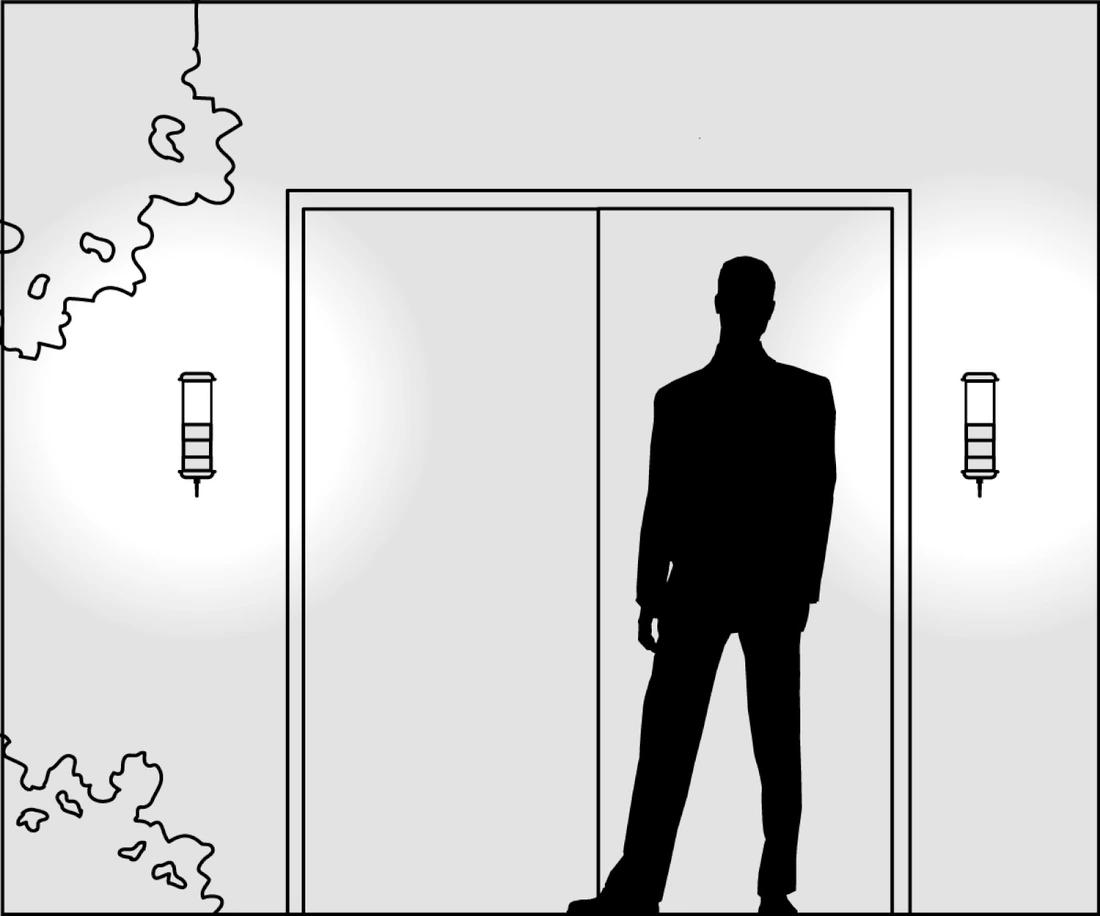

The Bendz wall light can illuminate a hotel room headboard, the entrance hall to a residential building or a villa, coffee shop or restaurant tables, the external façade of a foundation’s offices, a balcony of a holiday home, a Penthouse patio, and so on.

Compact LED wall light, ø70

This stainless steel wall light with its industrial finish plays on transparency, subtly revealing the light source. This luminaire is also available with a satin-finish body, offering mellow diffuse light. This compact model (27 cm) is easy to install on a headboard, on a balcony or to lead the way to a residential entrance door.

Sober, industrial, but unique design

A pure industrial style, drawing on noble and hard-wearing materials. Thanks to its simple sleek lines, the Bendz luminaire will pair with a wide range of materials, whether concrete, wood, stone or metal walls, indoors or outdoors.

A luminaire built to last, whatever the weather – both indoors and outdoors

The Bendz fixture is renowned for its outstanding reliability and sealing, just like the entire Sammode tubular luminaire range, and is ideal both outdoors and indoors. The durable materials used (stainless steel and composite diffusers) ensure ultra-long-lasting luminaires and prevent premature yellowing due to UV radiation.

Strength and durability

Benefit from the full range of Sammode know-how, based on our expertise in industrial environments, applied here to the Bendz. Robust materials were selected to produce a luminaire designed to last, even in the face of impacts and vandalism. Try the fixing straps with the optional Torx tamper-resistant screws to benefit from a long-lasting installation.

An easy-to-replace LED.

Could it get any simpler? The standard E27 cap means you can easily fit and replace your preferred bulbs. To gain access, loosen the cable gland nut and open the luminaire. This operation is easy for anyone, and ensures the luminaire stays hermetically sealed.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year indoor-outdoor warranty

Architectural projects look to the long term, which is why Sammode commits to a 5-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Bendz

HousingDesignationCode Data sheet Plan STEP DS .TXT Download all
Clear BENDZ 70 300 CL1 POME BCV 14415020 Data sheet Plan STEP DS .TXT Download all

Bendz SA

HousingDesignationCode Data sheet Plan STEP DS .TXT Download all
Satin BENDZ SA 70 300 CL1 POME BCV 14320020 Data sheet Plan STEP DS .TXT Download all

End caps & fixing straps finish

End caps & straps painted Coal RAL7021 COAL

Fixing straps

Fixing straps with HSHC screw BCV
Fixing straps with tamper-resistant Torx screw BCVT

Materials

Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°) -
Polycarbonate housing (960°C) PO
End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Technical specifications

Light source
  • E27 lamp, 11W max, not included
Supply voltage
  • 220-240V 50/60Hz
Electrical class
  • Class I
Operating temperature
  • -20°C to +30°C

Connection
  • With nickel-coated brass cable gland for cable Ø 5-12 mm
  • To 3x2.5mm² automatic terminal block
  • Installation in vertical position: cable gland positioned downwards
Opening and closing
  • Closing by tightening the nut on the cable gland
Mounting
  • 2 stainless steel fixing straps with HSHC screw (with variable centre distance)
Maintenance
  • By removal of the end cap with lampholder

Housing
  • Coextruded polycarbonate/PMMA diameter 70 for indoor and outdoor use
End caps, fixing straps and gear unit cover
  • 304L stainless steel

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C

Bendz ULR = 50%
Bendz SA ULR = 50%
