Mondrian

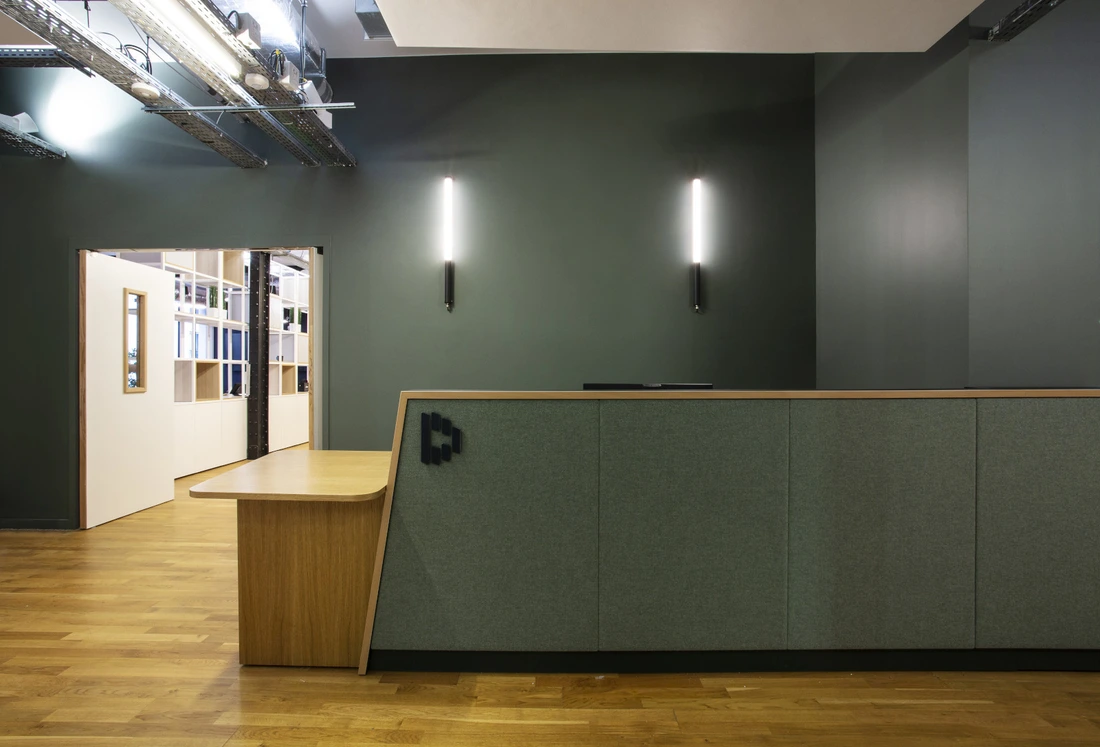

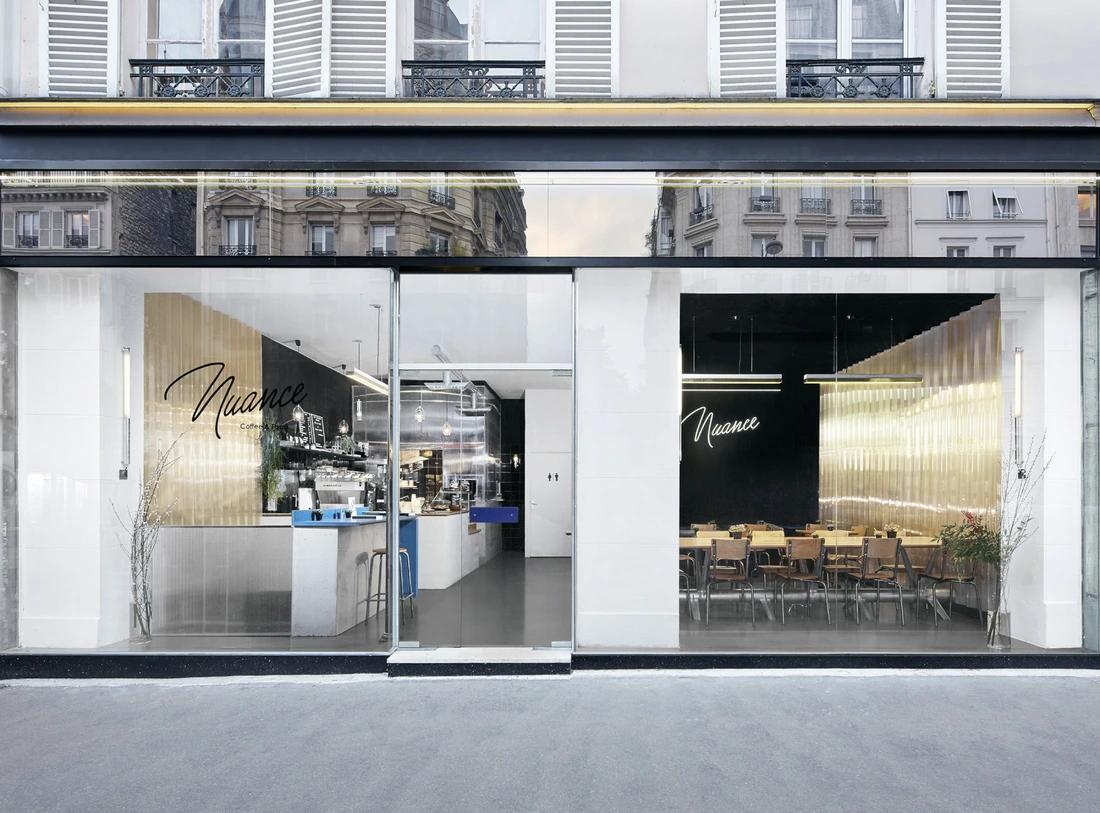

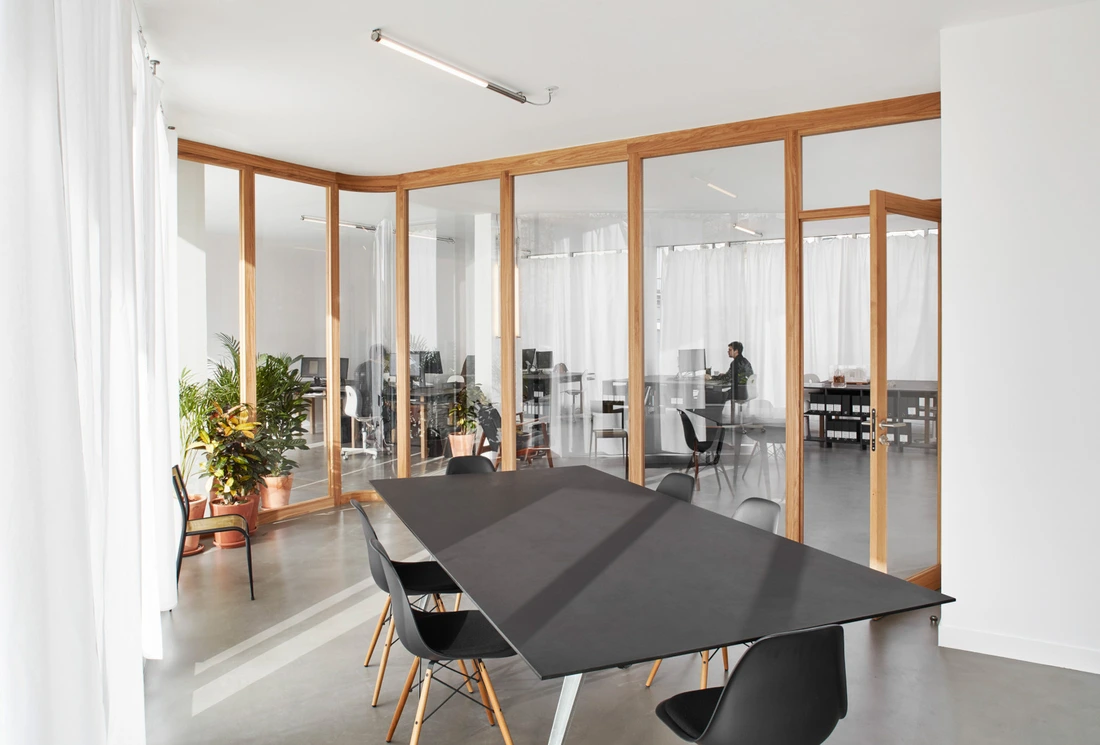

The Mondrian luminaire could light up a bathroom mirror, a youth hostel corridor, the lift landing area in an office block, school toilets or a hotel spa.

Wall light model for ø40 diffused lighting

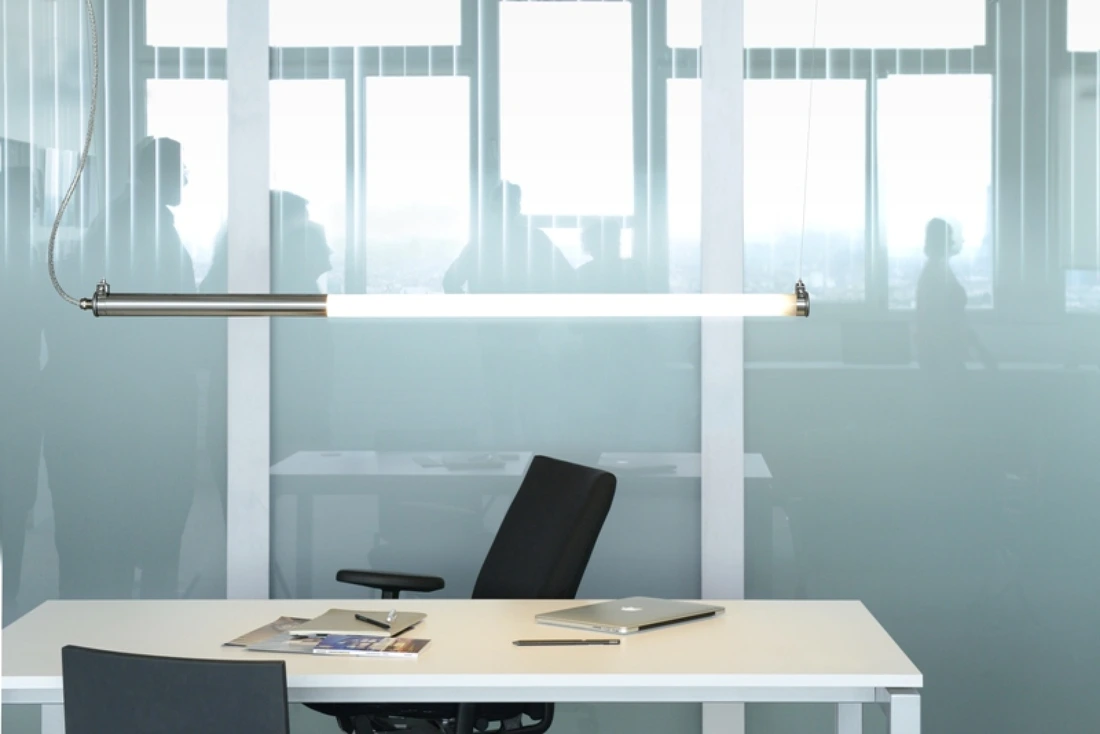

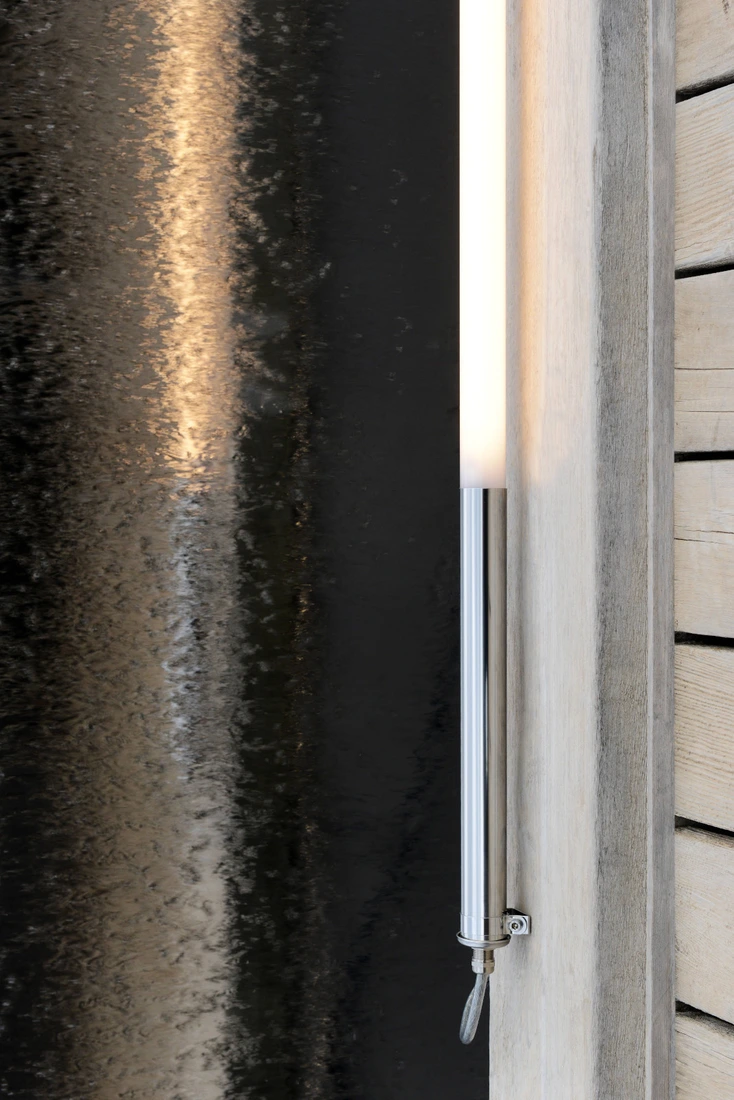

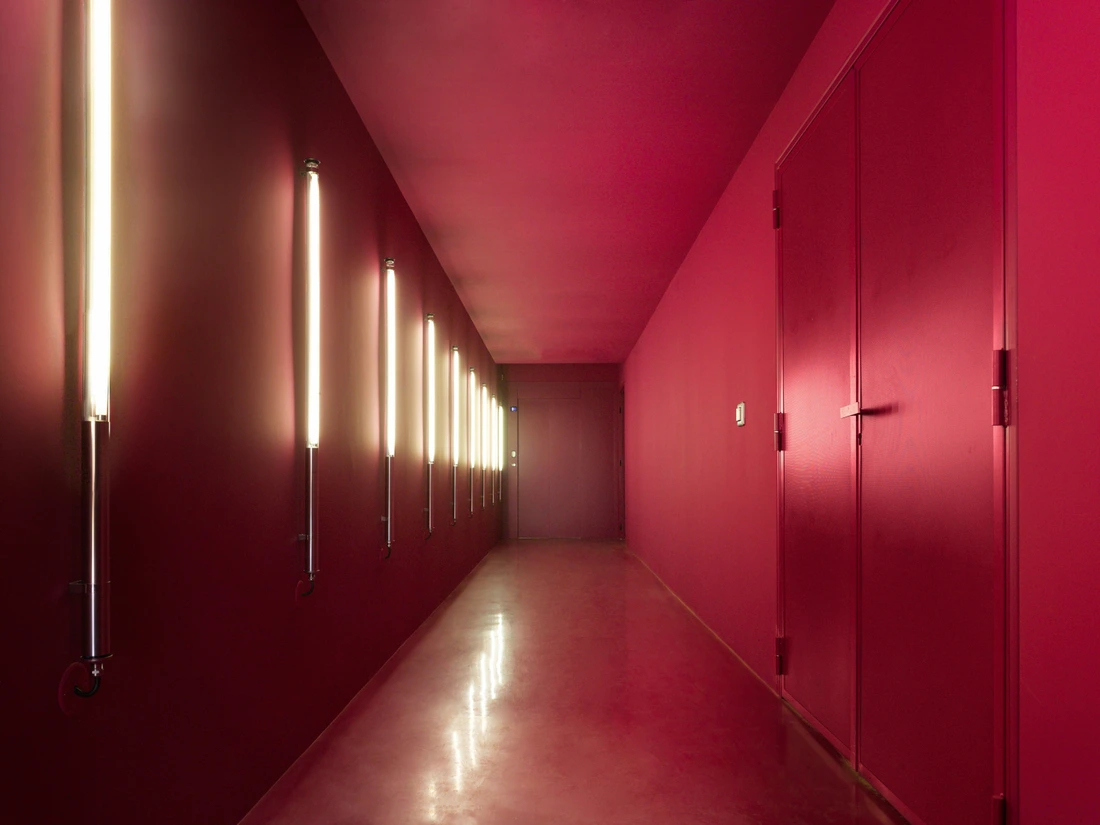

The sleek graphic style lines of the Mondrian luminaire offer great long-term lighting for both indoor and outdoor areas. The multi-purpose design and unrivalled visual comfort are ideal for corridor lighting or in entrance halls. This compact model fits in nicely either mounted horizontally or vertically on a wall, on the ceiling or suspended thanks to the reinforced flux version. The Mondrian model both looks great and is convenient for adding a touch of light with a futuristic feel.

Access to product information

Try an ideal flux for any application.

The Mondrian luminaire can adapt to its environment, guaranteeing optimal glare-free visual comfort. Two versions are available, leaving you free to pick the ideal model for your architectural project: a comfortable flux (< 1500 lm) for wall lights and a reinforced flux (< 2000 lm) for ceiling lights. The “Home” version could provide mellow ambient lighting to create a cosy indoor feel.

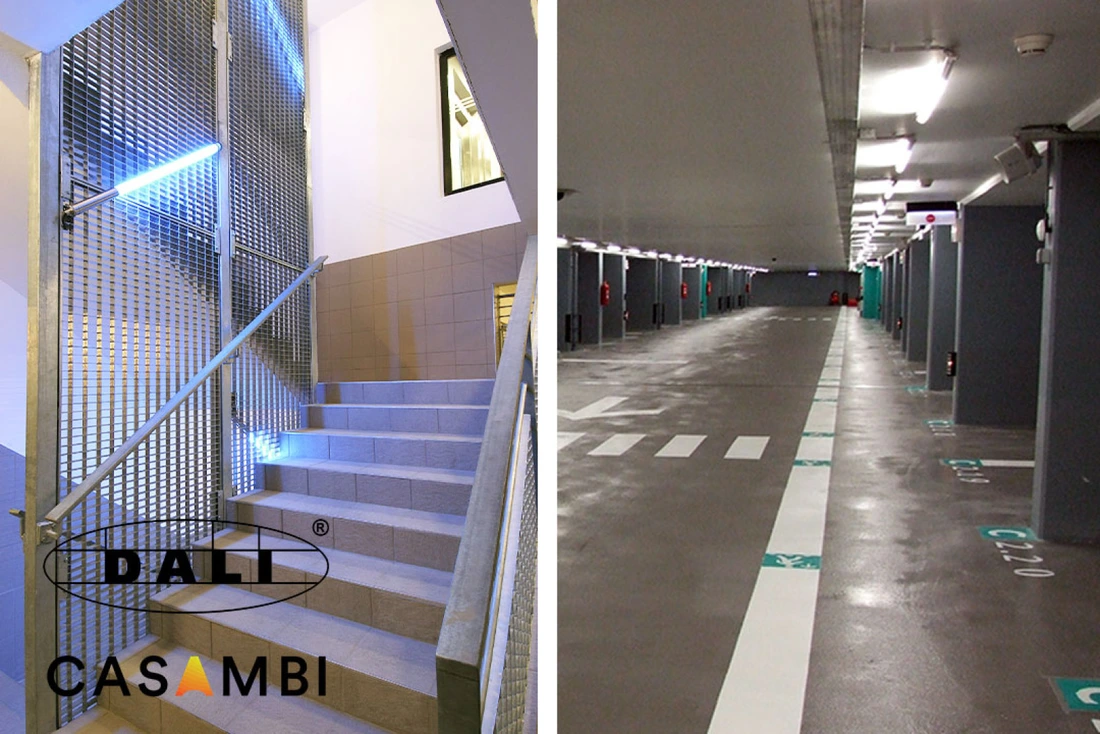

Smart light management

Opt for easy total lighting management with remote control settings. The Mondrian luminaire comes with the hard-wired control unit operating under the DALI protocol or Bluetooth wireless options thanks to Casambi technology. This model also offers a permanent stand-by mode, providing minimal room lighting when combined with a motion sensor. The luminaire comes on when you need it, ensuring users feel safe while saving on energy costs.

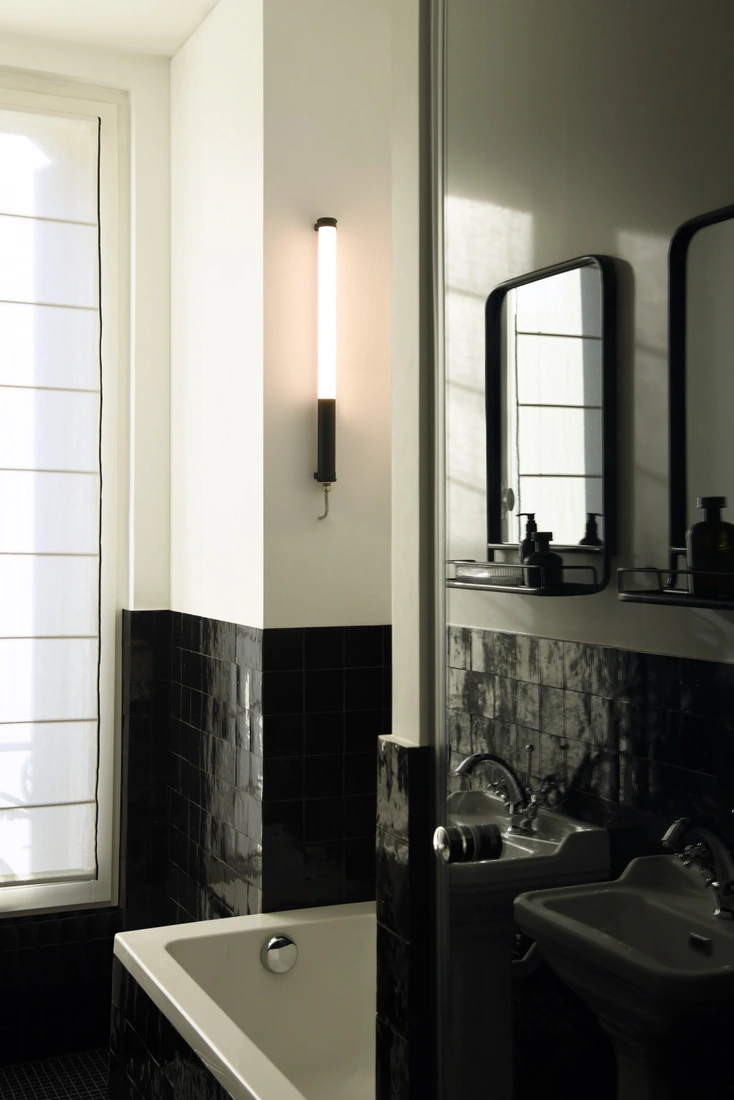

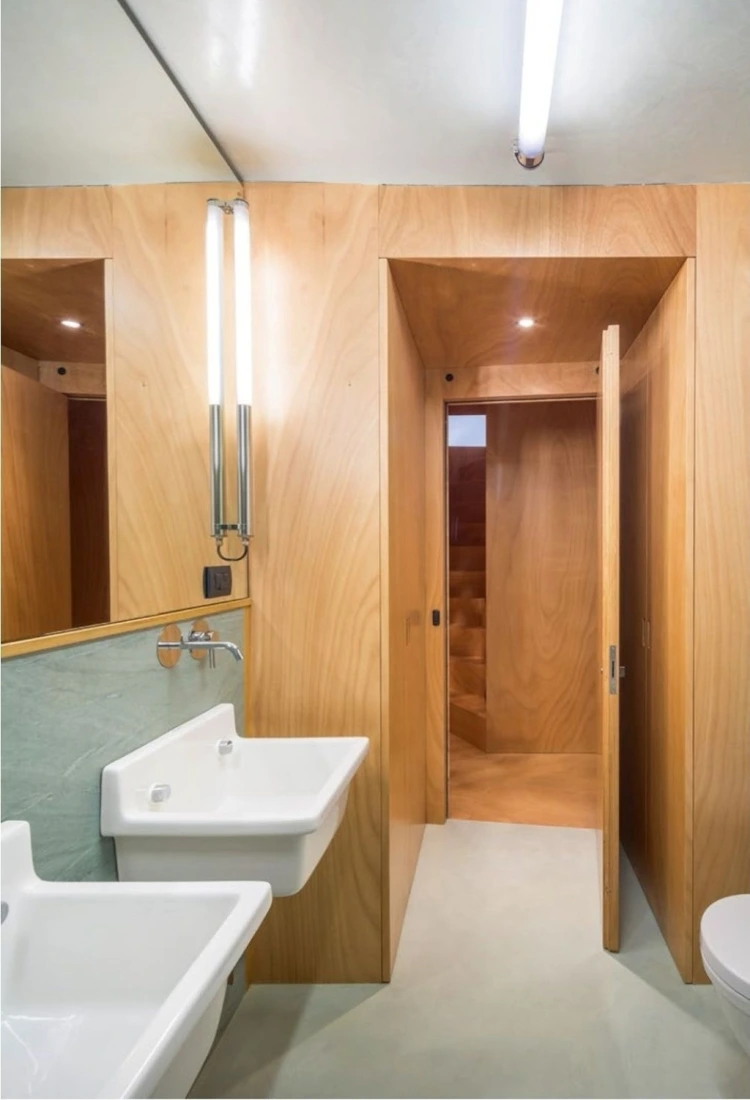

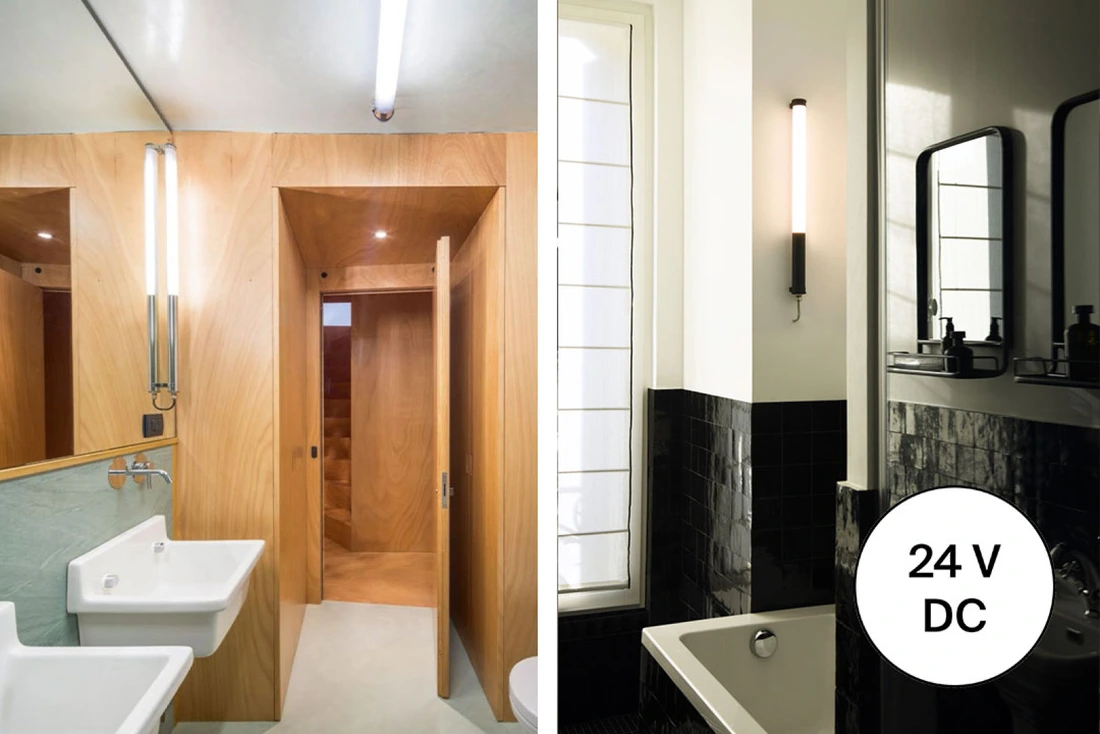

A low-voltage version is available for bathroom lighting

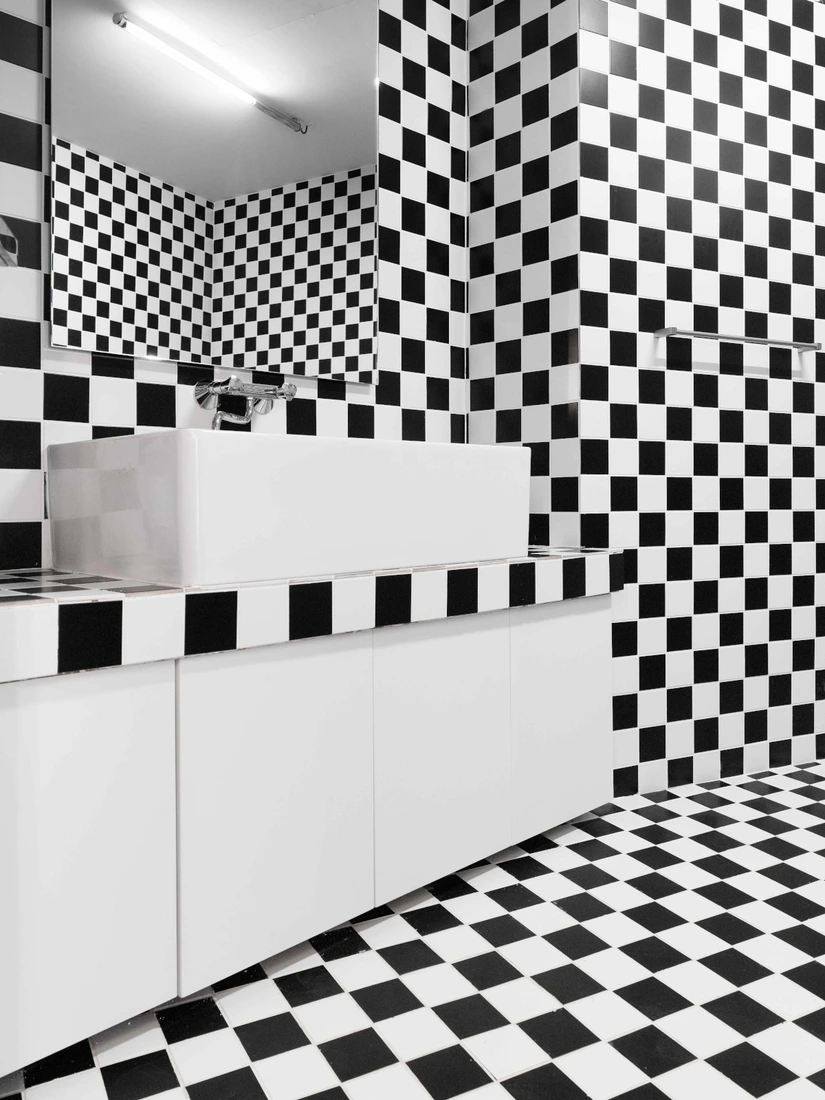

Opt for the very low voltage (24 V) version of the Mondrian luminaire, specifically designed as ultra-safe bathroom lighting1. Just take a second to admire the elegant design of this model, while enjoying visual comfort and guaranteed compliance with safety standards. This luminaire comes in wall or ceiling versions, and can be mounted next to the bath or shower, even below 2.25 m.

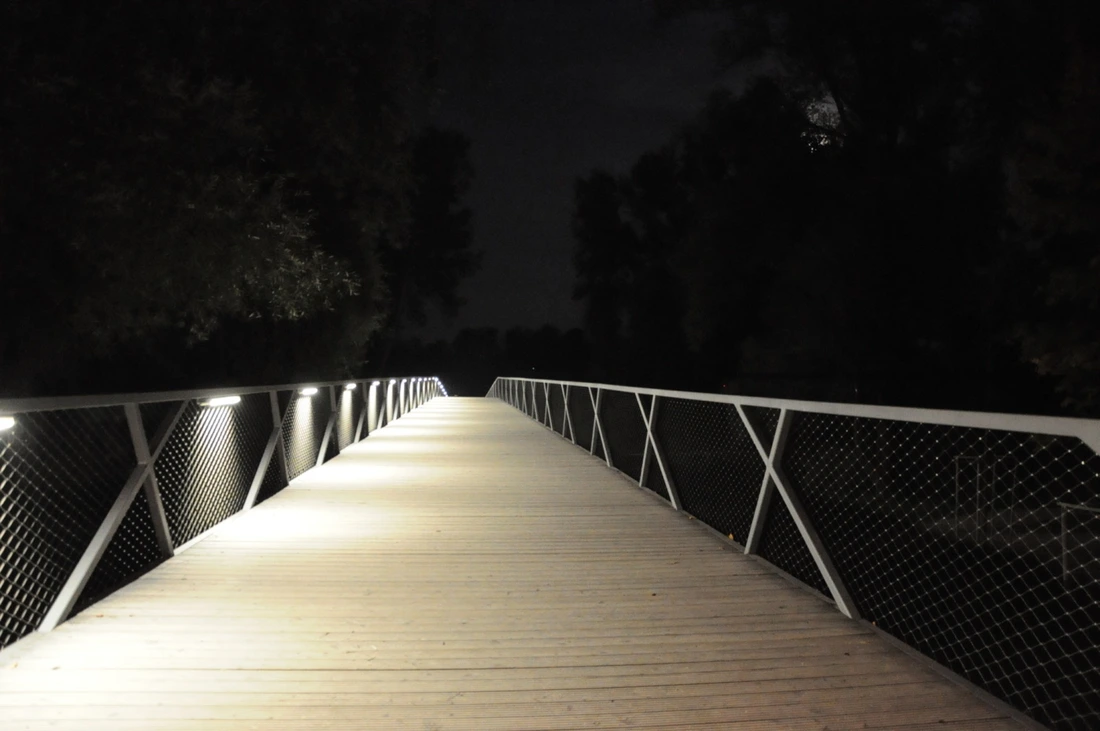

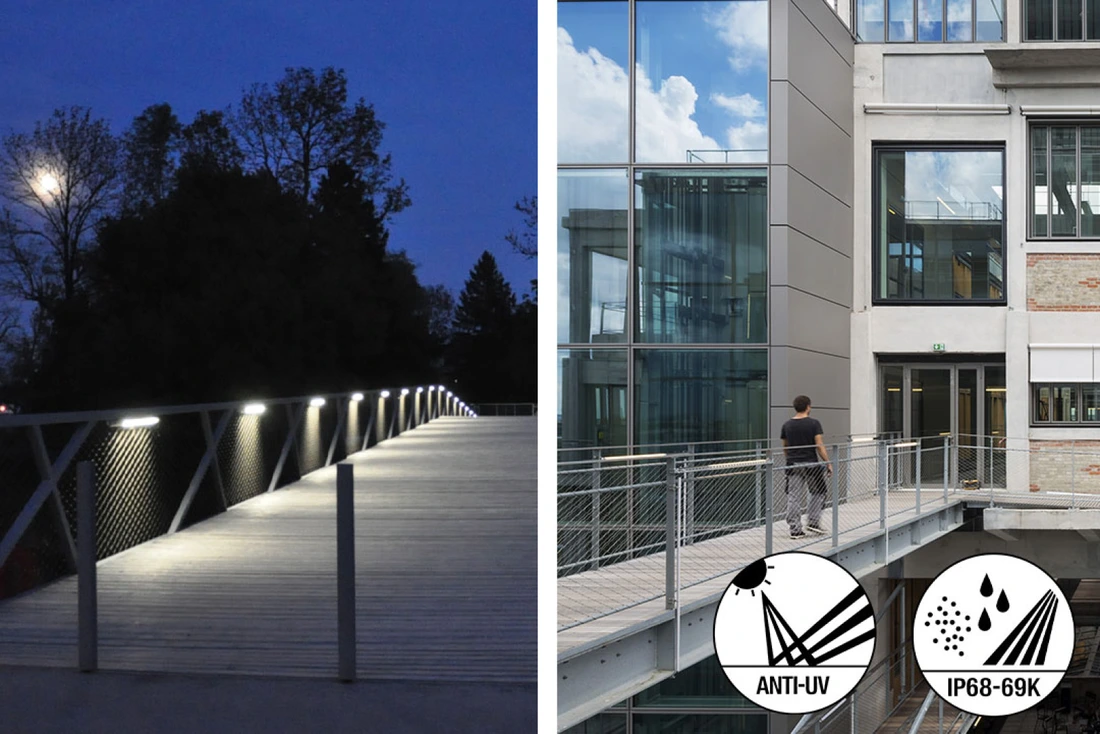

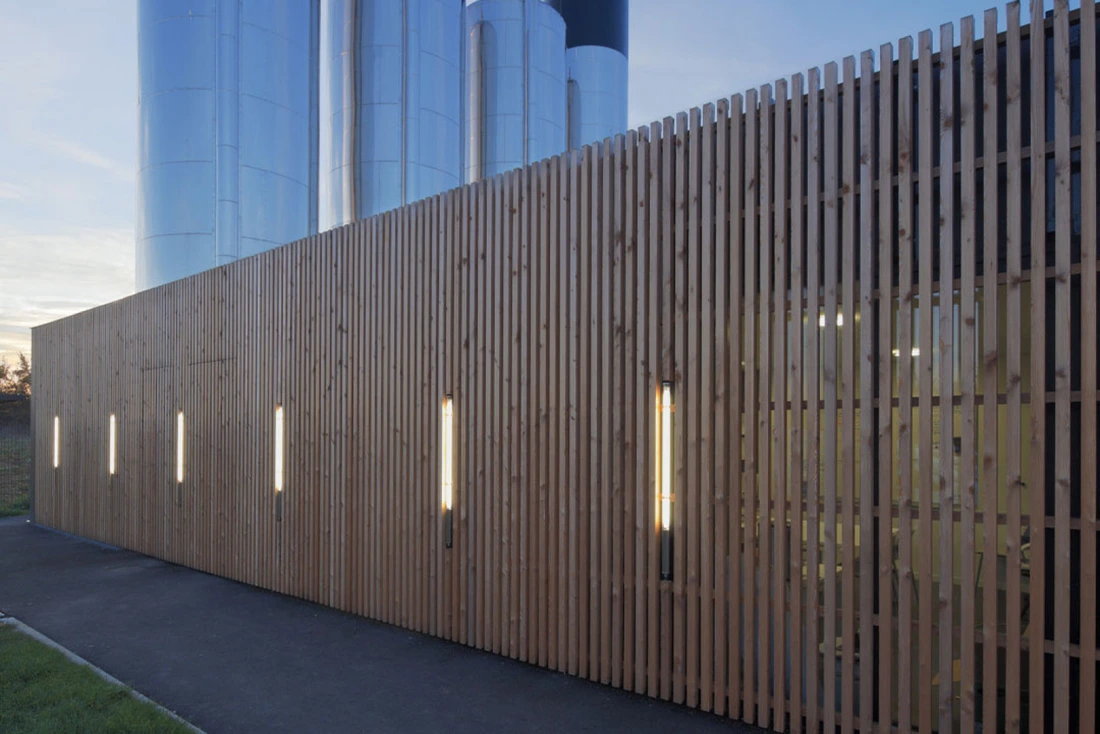

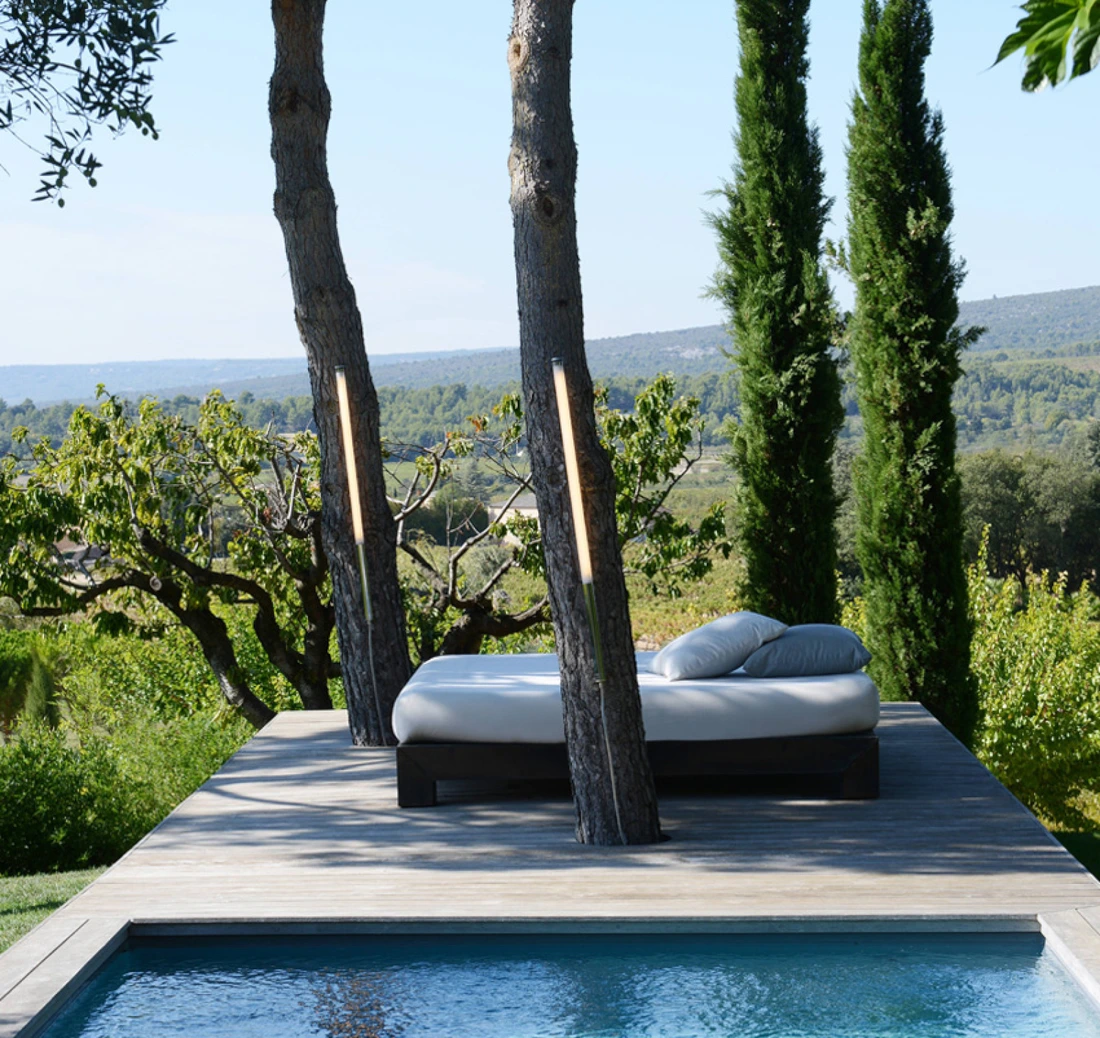

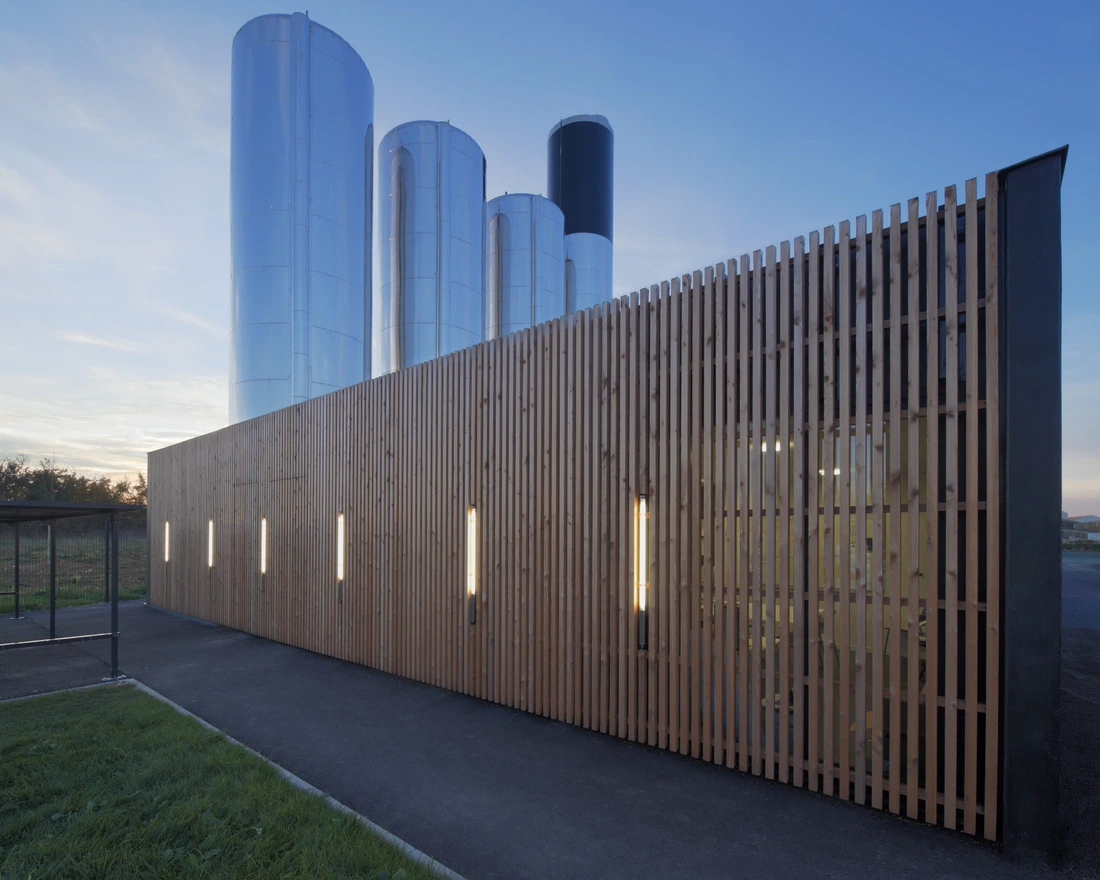

Indoor/outdoor : a multi-purpose watertight luminaire

Just like the full range of Sammode products, the Mondrian model is suitable for outdoor or indoor use. The Mondrian housing is designed to keep its colours under UV radiation and can boast a leaktightness rating (IP 66, 68, 69K), guaranteeing a reliable long-lasting luminaire for any type of architectural structure. A designer luminaire 100% compatible with outdoor use.

A great design, long-lasting… and solid!

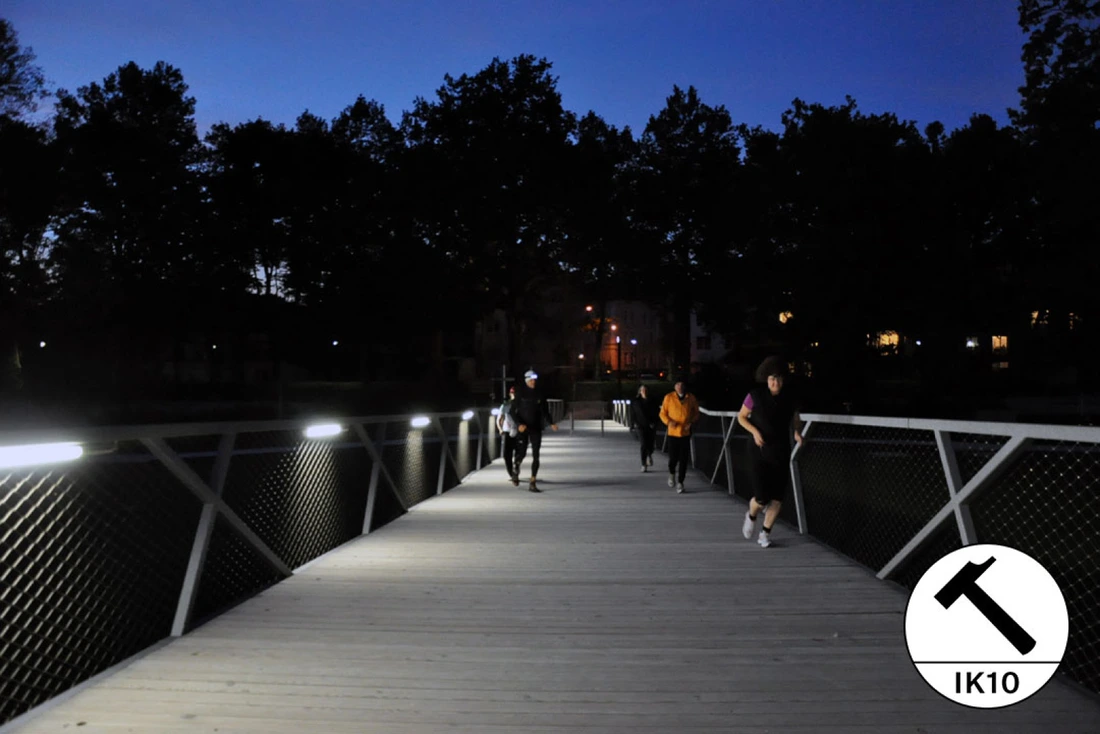

The Mondrian follows on in the Sammode tradition, combining great design with convenience and a solid finish. Thanks to its IK10 rating and tamper-proof attachment system and fixing straps with Torx screws, this luminaire is ideal for busy sites. Opt for a solid designer luminaire compatible with the most demanding environments.

A luminaire built to last

Here at Sammode, we invest our industrial expertise in the design and manufacture of our designer luminaires. Just like all of our lighting solutions, the Mondrian is ageing well thanks to a combination of elegance, leaktightness, solidity and performance. Give your architectural project a boost with a quality luminaire designed to last.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year indoor-outdoor warranty

Architectural projects look to the long term, which is why Sammode commits to a 5-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Références principales et téléchargements

Plaquette produit

Eulumdat

Notice

Certificat

Tout télécharger

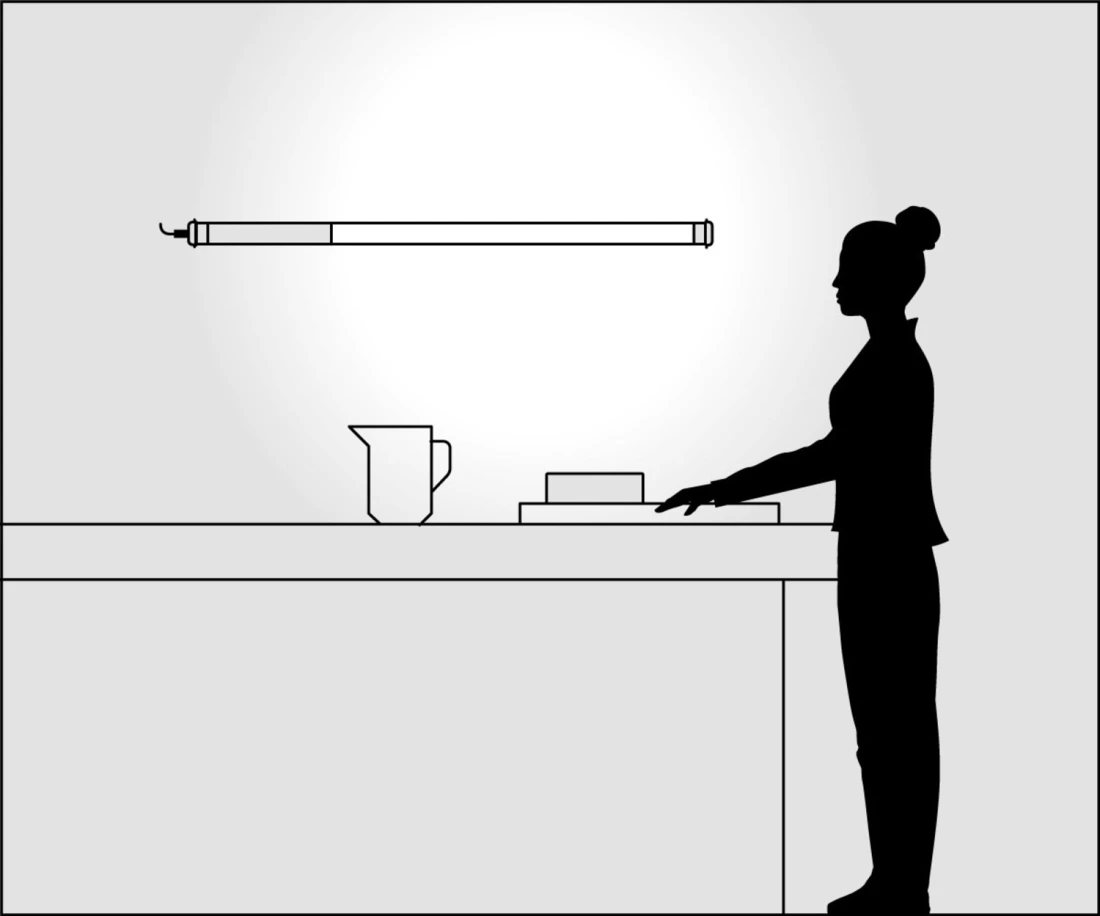

Wall light

260° task lighting

T (K)	Flux (lm)	L (mm)	Designation	Code	Watt	Data sheet	Plan	STEP DS	.TXT	Download all
2700	350	629	MONDRIAN 40 B2C 700 350-927 MR	80175021	5	Data sheet	Plan	STEP DS	.TXT	Download all
2700	500	994	MONDRIAN 40 B2C 1000 500-927 MR	80175022	10.5	Data sheet	Plan	STEP DS	.TXT	Download all
2700	900	1293	MONDRIAN 40 B2C 1300 900-927 MR	80175024	12	Data sheet	Plan	STEP DS	.TXT	Download all

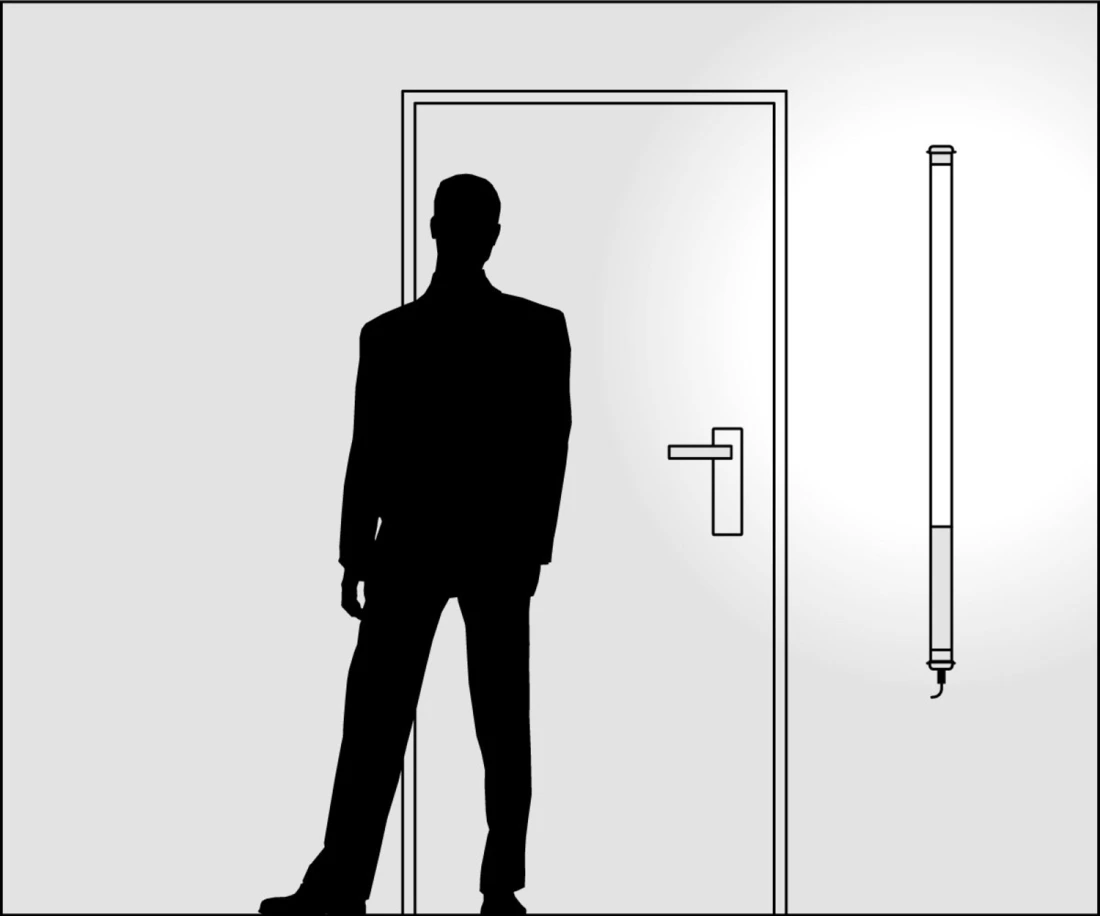

Wall light

Comfortable 180° flux

T (K)	Flux (lm)	L (mm)	Designation	Code	Watt	Data sheet	Plan	STEP DS	.TXT	Download all
3000	1000	994	MONDRIAN 40 1000 1000-930	80175034	10.5	Data sheet	Plan	STEP DS	.TXT	Download all
3000	1500	1256	MONDRIAN 40 1300 1500-930	80175030	16	Data sheet	Plan	STEP DS	.TXT	Download all
4000	1000	994	MONDRIAN 40 1000 1000-940	80175035	10.5	Data sheet	Plan	STEP DS	.TXT	Download all
4000	1500	1256	MONDRIAN 40 1300 1500-940	80175031	16	Data sheet	Plan	STEP DS	.TXT	Download all

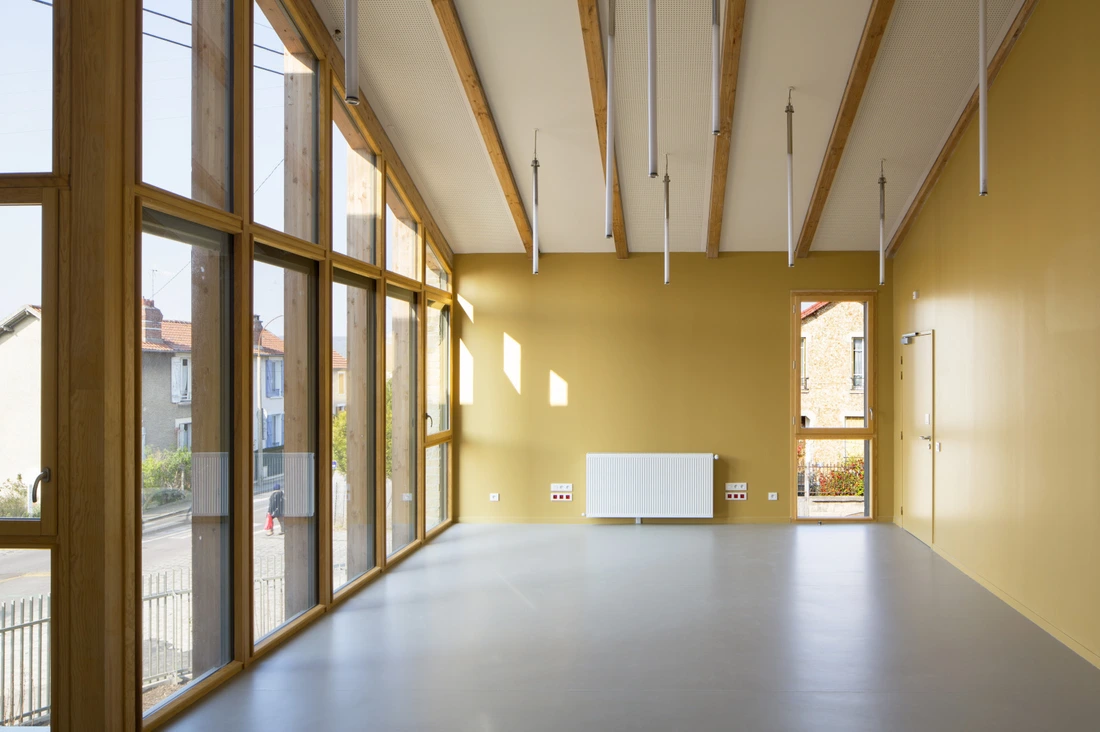

Ceiling light fitting

Reinforced 180° flux

T (K)	Flux (lm)	L (mm)	Designation	Code	Watt	Data sheet	Plan	STEP DS	.TXT	Download all
3000	1500	994	MONDRIAN 40 1000 1500-930	80175036	13.5	Data sheet	Plan	STEP DS	.TXT	Download all
3000	2000	1256	MONDRIAN 40 1300 2000-930	80175032	19.5	Data sheet	Plan	STEP DS	.TXT	Download all
4000	1500	994	MONDRIAN 40 1000 1500-940	80175037	13.5	Data sheet	Plan	STEP DS	.TXT	Download all
4000	2000	1256	MONDRIAN 40 1300 2000-940	80175033	19.5	Data sheet	Plan	STEP DS	.TXT	Download all

End caps & fixing straps finish

End caps & straps painted Coal RAL7021

COAL

Materials

Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°)	-
Polycarbonate housing (960°C)	PO
End caps & fixing straps 304L stainless steel	-
End caps & fixing straps 316L stainless steel	MR

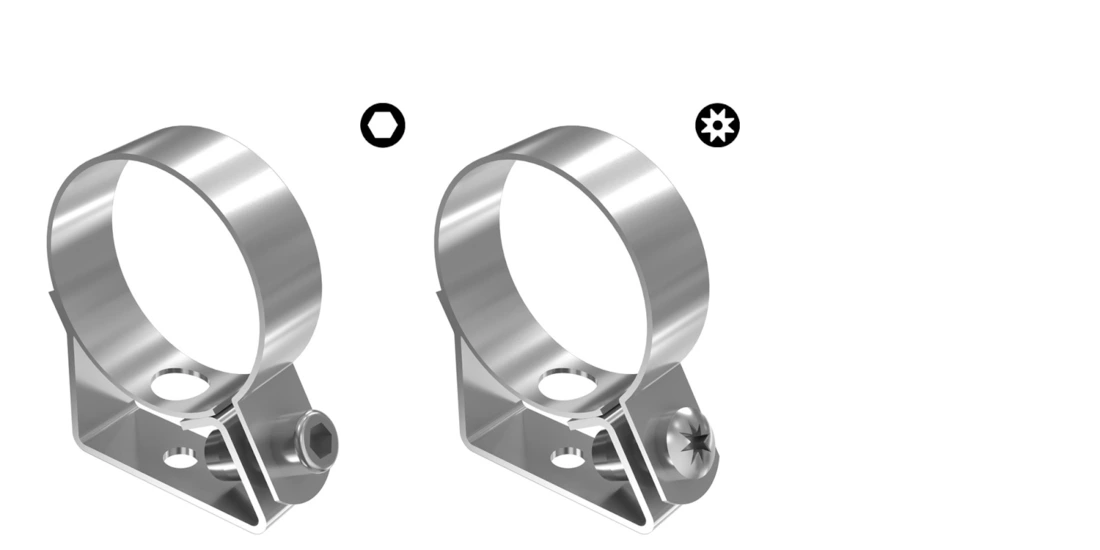

Fixing straps

Fixing straps with HSHC screw	-
Fixing straps with tamper-resistant Torx screw	BAVT
Fixing straps with HSHC screw for suspension	BCV
Torx T screw straps/bracket for suspension	BCVT

Color temperature

2700K	927
3000K	930
4000K	940

Lighting management

Electronic gear unit for DALI dimming	RD
Electronic gear unit for push button	RS
Switch-off warning function (for sensor/timer)	RC
Permanent standby mode 10% function	RCP
Casambi Bluetooth control	RB

Electrical class

Class I	CL1
Class II	-

Bathroom

Very low voltage for use in bathrooms

24V

Technical specifications

Light source

50 000 h L80/B10 at max. operating temperature
Photobiological hazard : None (RG0)

Optics

Special satin-finish housing for LED
Light mixing chamber

Lighting comfort

Controlled glare: UGR ≤25

Control gear

Constant current driver (non-dimmable)

Supply voltage

220-240V 50/60Hz

Electrical class

Class II

Operating temperature

-20°C to +30°C

Cabling

Task lighting version: supplied with a 1 m 3G1.5 cable with a tin-plated copper braid in a transparent sheath

Connection

With nickel-coated brass cable gland for cable Ø 5-10 mm
To a 2 x 2,5 mm² fixed terminal block
Installation in vertical position: cable gland positioned downwards

Opening and closing

By tightening the nut on the cable gland

Mounting

2 stainless steel fixing straps with HSHC screw (with variable centre distance)

LED engine maintenance

Task lighting version: Low energy LED strip lights, CRI > 90
Comfortable and reinforced flux versions: Easy-to-remove LED modules and driver

Housing

Coextruded polycarbonate/PMMA diameter 40 for indoor and outdoor use

End caps and fixing straps

Task lighting version: 304L stainless steel
Comfortable and reinforced flux versions: 316L stainless steel

Waterproofness

IP66, IP68, IP69K

Resistance to IK shocks

IK10

Fire resistance

650°C
