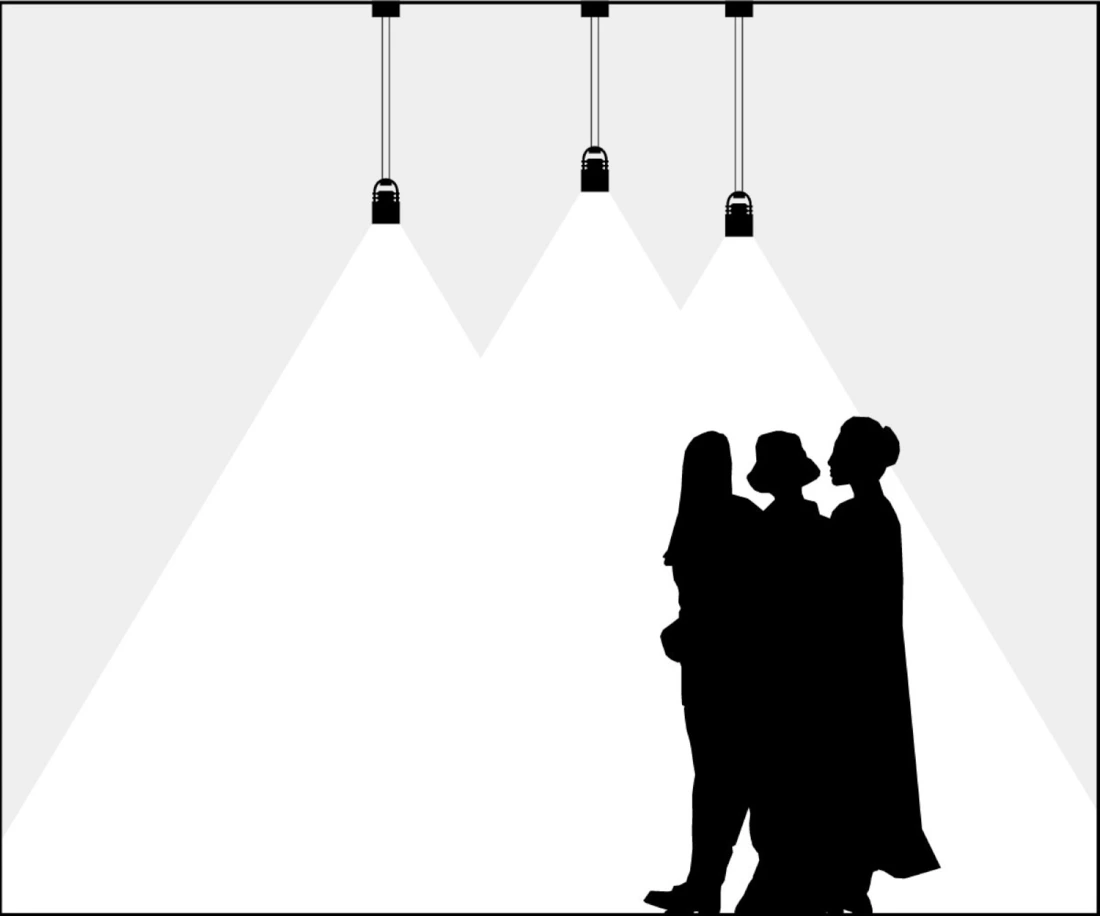

AIRMOD Mono can illuminate a theatre hall, the lounge space in a restaurant, tables in a coffee shop, the entrance to a villa, a reading corner in a chalet – you choose!

Pendant light on ceiling rose

The AIRMOD Mono suspended light fitting was created for Sammode by the German designer Stefan Diez and is easy to install, while offering some really smart features. The height-adjustable wires and lack of a power cable give this small suspended light fitting an astounding elegant look.

Access to product information

A fully modular system

Stefan Diez designed this collection to reflect Sammode’s long and rich heritage, producing an innovative system with widely adaptable architecture and state-of-the-art technology, or what he calls “The Universal Tool Box". The result? A luminaire that can incorporate a range of lenses and decorative rims that you can change at will.

Where technical prowess meets aesthetic style

The luminaire head does not have a separate power cable and is exclusively supplied via the suspension wires which gives this classy suspended light fitting, with its standout mechanical-style design, a surprisingly unobtrusive look. With its compact and elegant design, all you need is one head installed to give any space a touch of class.

Made-to-measure luminaires for a never-ending choice of atmosphere

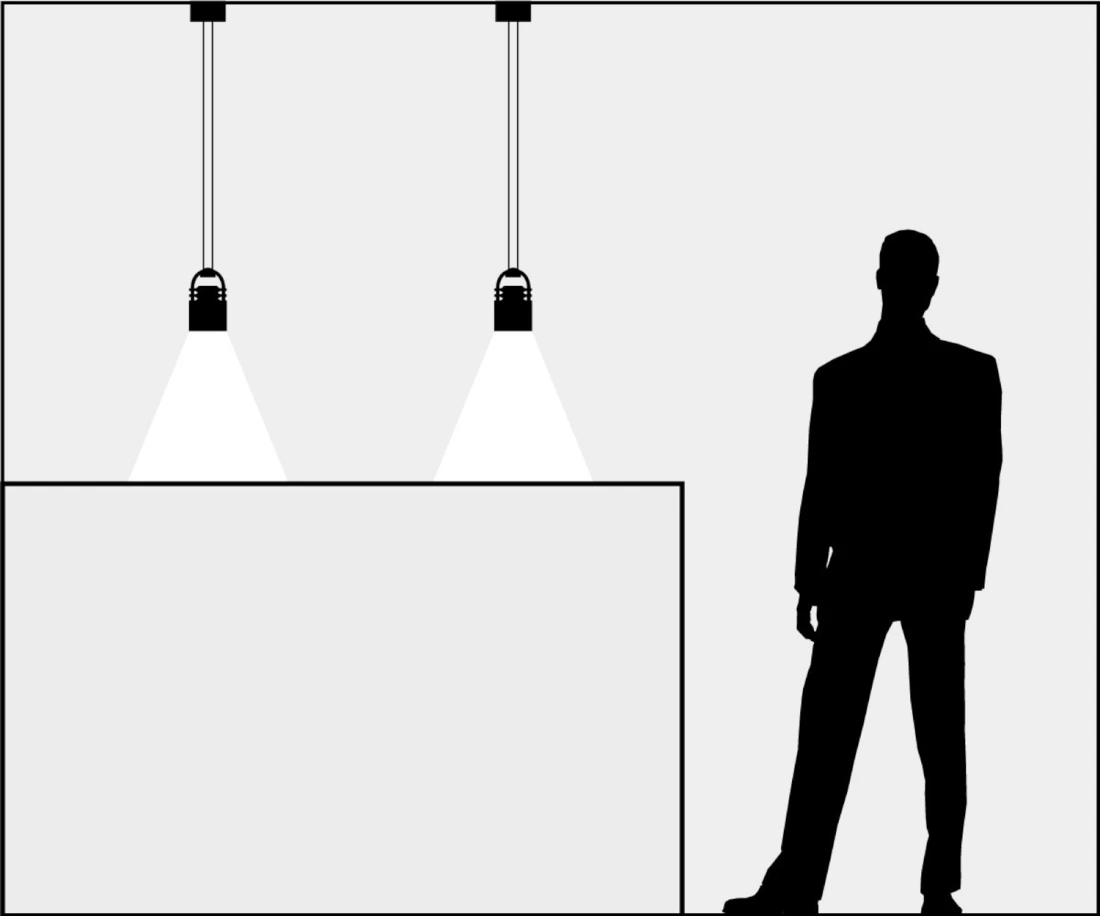

Mix and match your lenses and rims to create your preferred lighting and environment. The Black version with its perforated collimators will bring elegance and a modern feel to any sleek-looking hotel lobby. Installing a line of Champagne suspended light fittings over a bar with amber-tinted shades will exude subtle and warm lighting, ideal for the late evening mood.””

Easy to install

The AIRMOD Mono suspended light fitting is easy to install thanks to the rotating disk containing the LED driver, with or without a dimming function, depending on the selected model. The rotating disk can swivel 90° to achieve ideal results when secured on any type of ceiling, and if several models are installed in a line, you can rest assured they will match up. The adjustable suspension wires can be cut to the required height.

Sammode expertise

Designed in Germany with French expertise

Designed and manufactured in France and Germany, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year warranty

Our products are designed to be upgraded along with your set-up, which means that they come with a 5-year warranty and guaranteed availability for the accessories you need, today and into the future.

Designed to change as your building evolves

Have your preferences changed? MOD can change with you! Thanks to our interchangeable accessories, adjusting your atmosphere or set-up is child’s play. Sammode undertakes to supply the necessary parts over the long term. The MOD Recessed luminaire is specifically built to last and to adapt to changing tastes and trends.

Références principales et téléchargements

Plaquette produit

Eulumdat

Notice

Certificat
Tout télécharger

Perforated collimator version

900 lm, 2700 K

FinishingEndcapDesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
Silver Silver AIRMOD MONO S 900-927 GR-S 88200063 13 Data sheet Plan STEP DS .TXT Download all
Black Black AIRMOD MONO BK 900-927 GR-BK 88200066 13 Data sheet Plan STEP DS .TXT Download all
Champagne Champagne AIRMOD MONO CH 900-927 GR-CH 88200004 13 Data sheet Plan STEP DS .TXT Download all
Bronze Bronze AIRMOD MONO BZ 900-927 GR-BZ 88200005 13 Data sheet Plan STEP DS .TXT Download all

Frosted glass shade version

900 lm, 2700 K

FinishingEndcapDesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
Silver Frosted AIRMOD MONO S 900-927 GL-FR 88200064 13 Data sheet Plan STEP DS .TXT Download all
Black Frosted AIRMOD MONO BK 900-927 GL-FR 88200067 13 Data sheet Plan STEP DS .TXT Download all
Champagne Frosted AIRMOD MONO CH 900-927 GL-FR 88200008 13 Data sheet Plan STEP DS .TXT Download all
Bronze Frosted AIRMOD MONO BZ 900-927 GL-FR 88200009 13 Data sheet Plan STEP DS .TXT Download all

Glass version

900 lm, 2700 K

FinishingEndcapDesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
Silver Clear AIRMOD MONO S 900-927 GL-CL 88200065 13 Data sheet Plan STEP DS .TXT Download all
Black Green AIRMOD MONO BK 900-927 GL-GN 88200068 13 Data sheet Plan STEP DS .TXT Download all
Champagne Amber AIRMOD MONO CH 900-927 GL-AM 88200012 13 Data sheet Plan STEP DS .TXT Download all
Bronze Smoked AIRMOD MONO BZ 900-927 GL-SM 88200013 13 Data sheet Plan STEP DS .TXT Download all

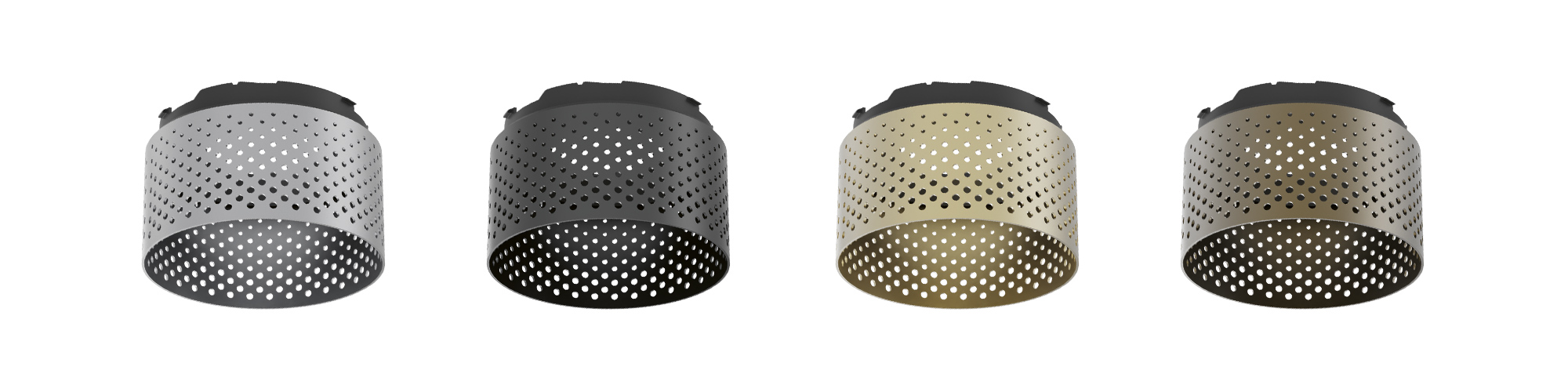

Perforated collimator in anodised aluminium

Silver GR-S
Black GR-BK
Champagne GR-CH
Bronze GR-BZ

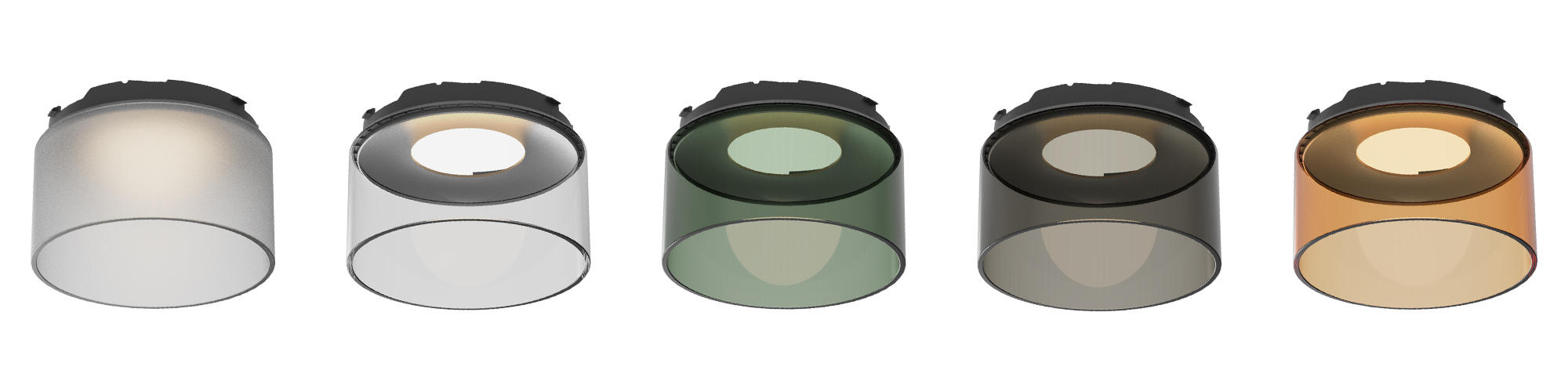

Tempered glass shade

Frosted GL-FR
Clear GL-CL
Green GL-GN
Amber GL-AM
Smoked GL-SM

Color temperature

2700K 927
3000K 930
4000K 940

Lighting management

Electronic gear unit for DALI dimming RD
Casambi Bluetooth control RB

Technical specifications

Designer
  • Stefan Diez

Light source
  • CoB LED Module 900 lm (without endcap, IRC>90, 3SDCM)
  • 50 000 h L80/B10 at 25°C
  • Photobiological hazard : Group 1
Control gear
  • Constant current driver (non-dimmable)
Supply voltage
  • 220-240V 50/60Hz
Electrical class
  • Class I
Operating temperature
  • -5 °C to +35 °C

Connection
  • To a 3 x 2,5 mm² terminal block
Mounting
  • Power supply box for surface mounting
Hanging height
  • Suspension wires adjustable in height, up to 3 m.

Head and device housing
  • Color anodizing Aluminium, nickel-plated copper hoop
Endcap
  • Perforated collimator : Color anodizing Aluminium
  • Glass : clear, tinted or frosted tempered glass, according to versions
Lens
  • Tempered glass

Waterproofness
  • IP20 (indoor use)
Fire resistance
  • 850°C

Perforated collimator + Wide Beam Lens
Clear, frosted or tinted glass shade + Medium Beam Lens
