Scorel

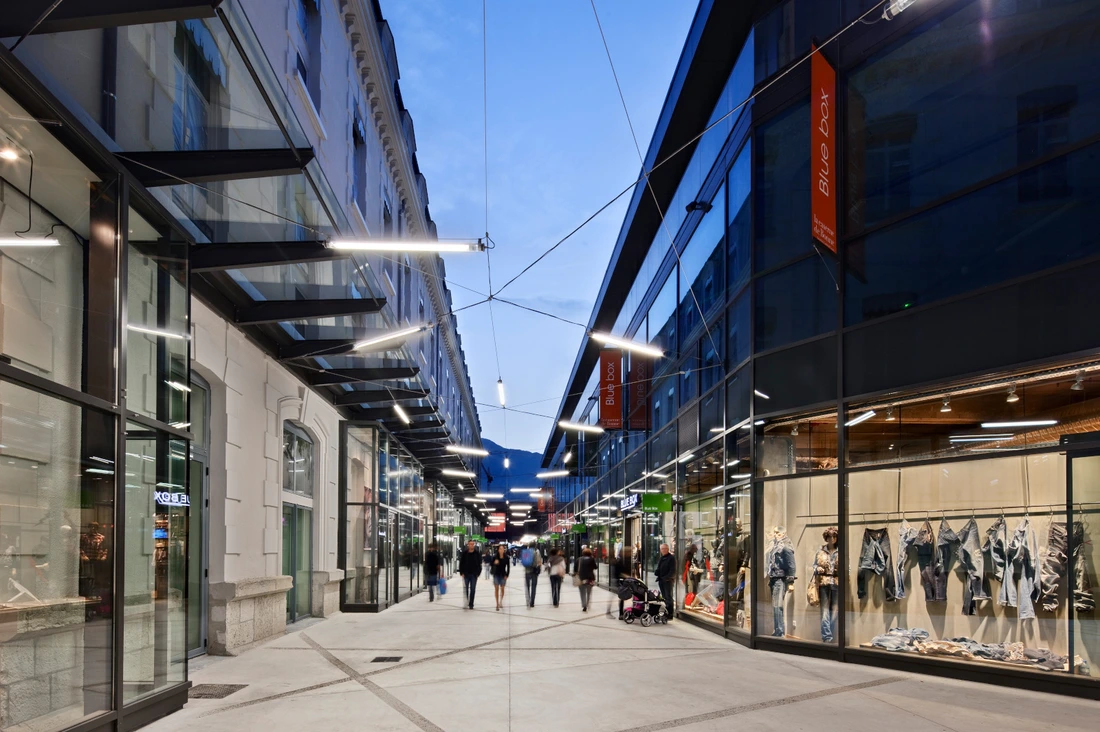

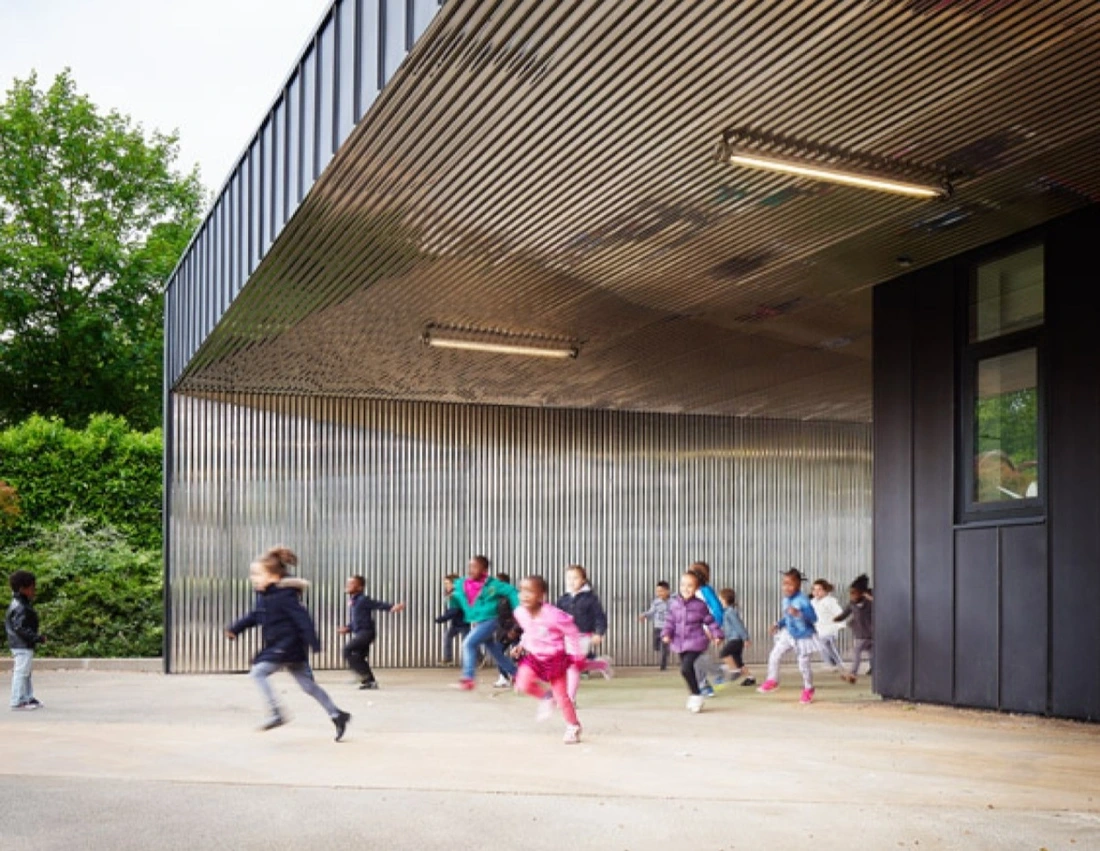

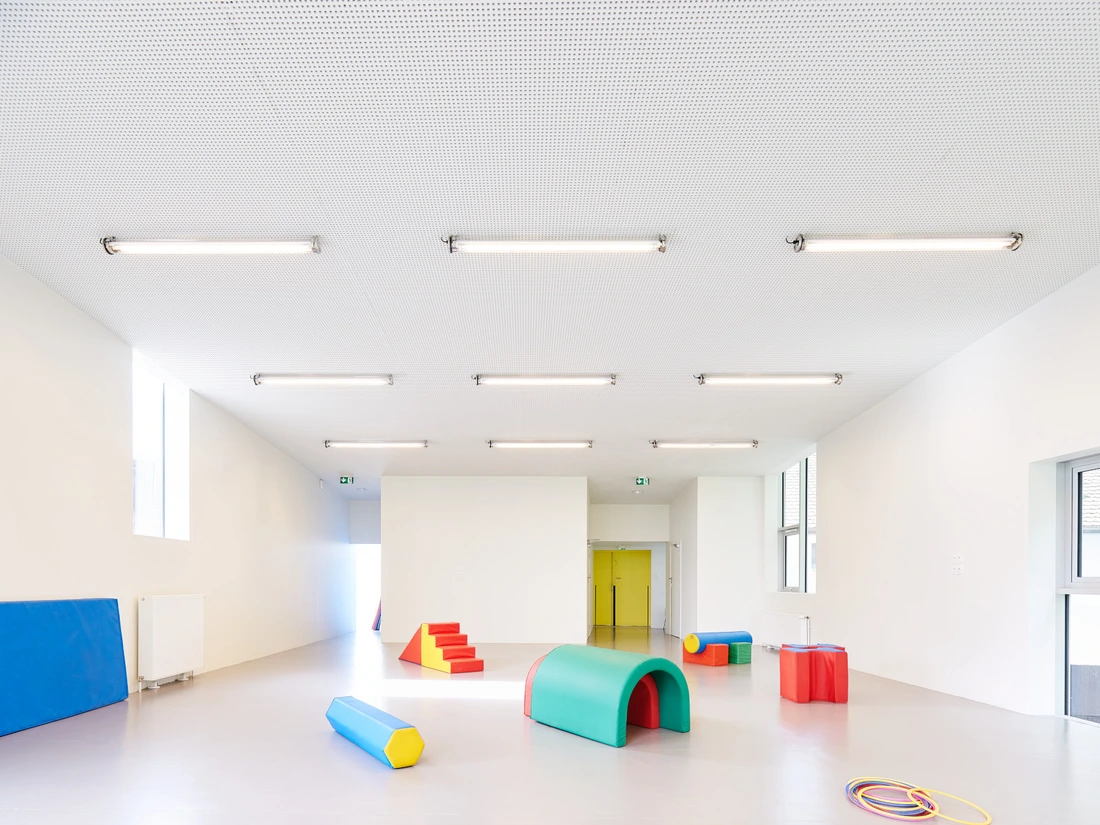

The Scorel ceiling light is ideal for lighting up the sales outlet of a crafts workshop, hotel hallways, changing rooms in a gymnasium or a school yard, a path through a public garden, a seaside walkway, and so on.

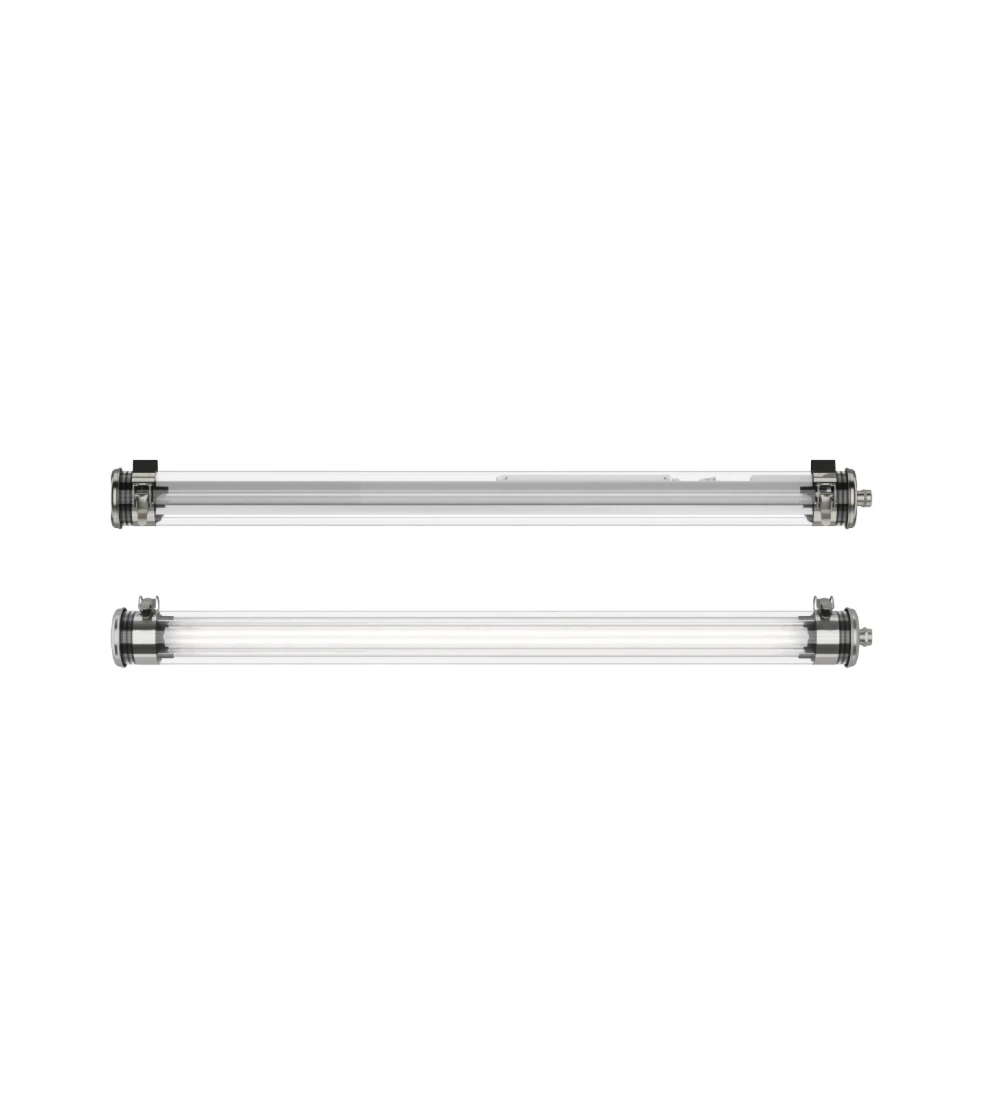

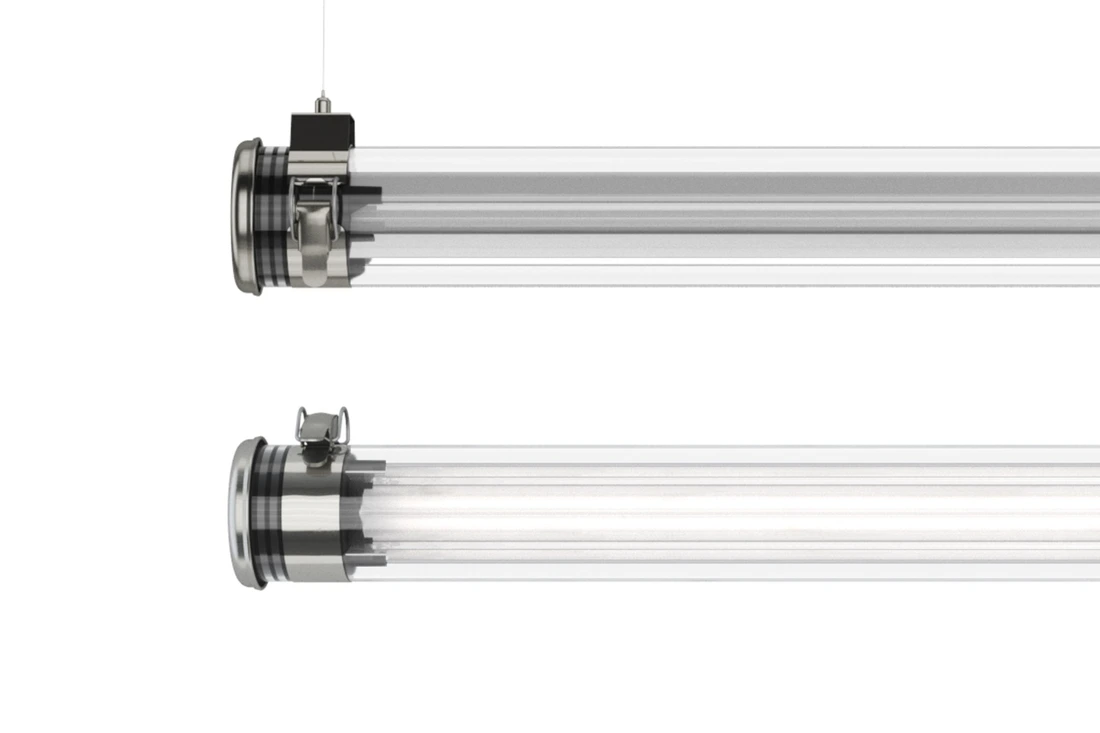

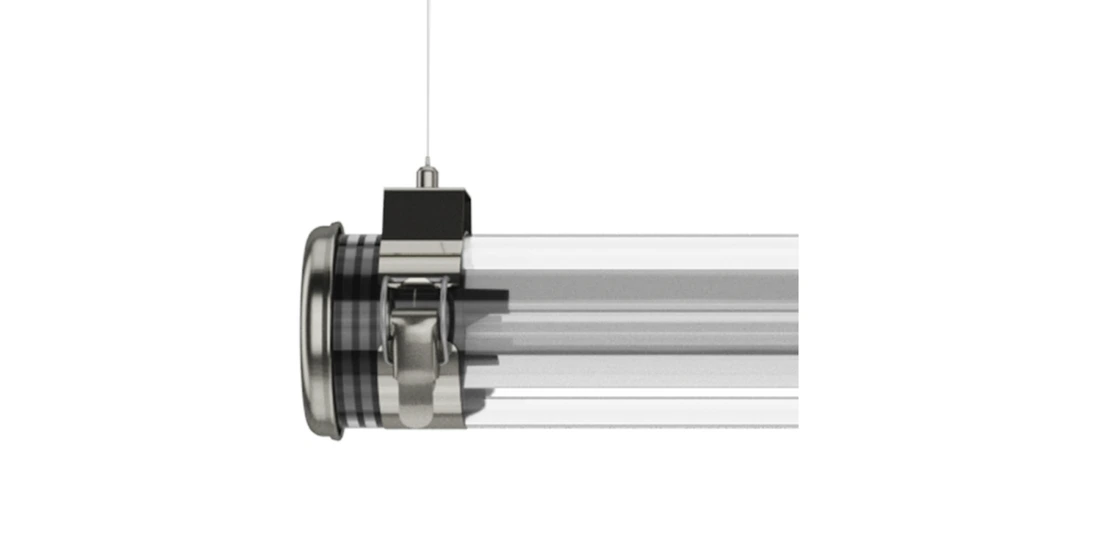

Directional LED ceiling light, ø70 pale body

The Scorel ceiling light is both functional and pleasing on the eye, standing out for its transparency and reflections. This luminaire can be trimmed with Coal-coloured end-caps and fixing straps with a Silver, copper, brass or Petrol finish gear unit cover for a more designer look.

Access to product information

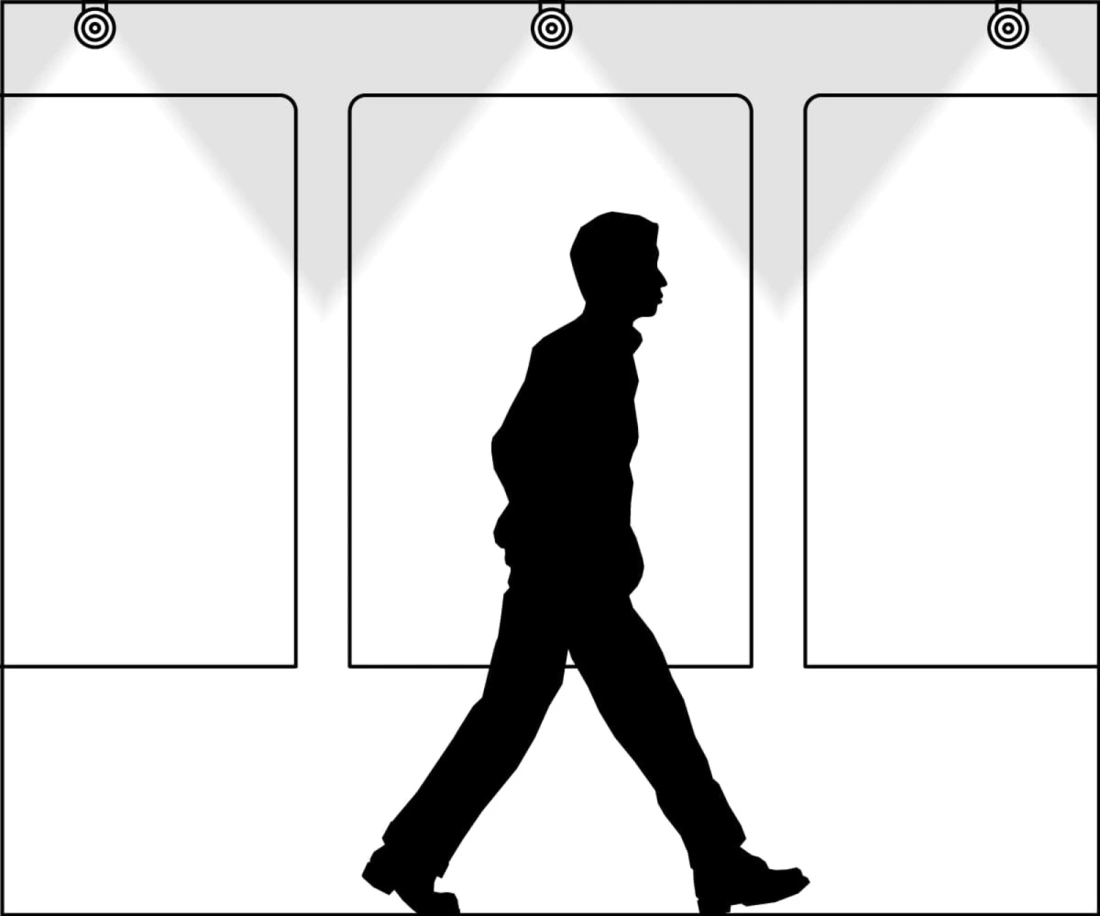

Lighting comfort: UGR <25 preventing glare

The secret behind the Scorel LED tubulaire luminare: a specific lighting feature, combined with reflectors for total beam control. Sammode has used this innovative lighting system based on powerful and glaring LED points to create a large and homogeneous surface diffusing uniform glare-free light. When viewing from the side, the source is completely concealed by the reflectors for unrivalled visual comfort.

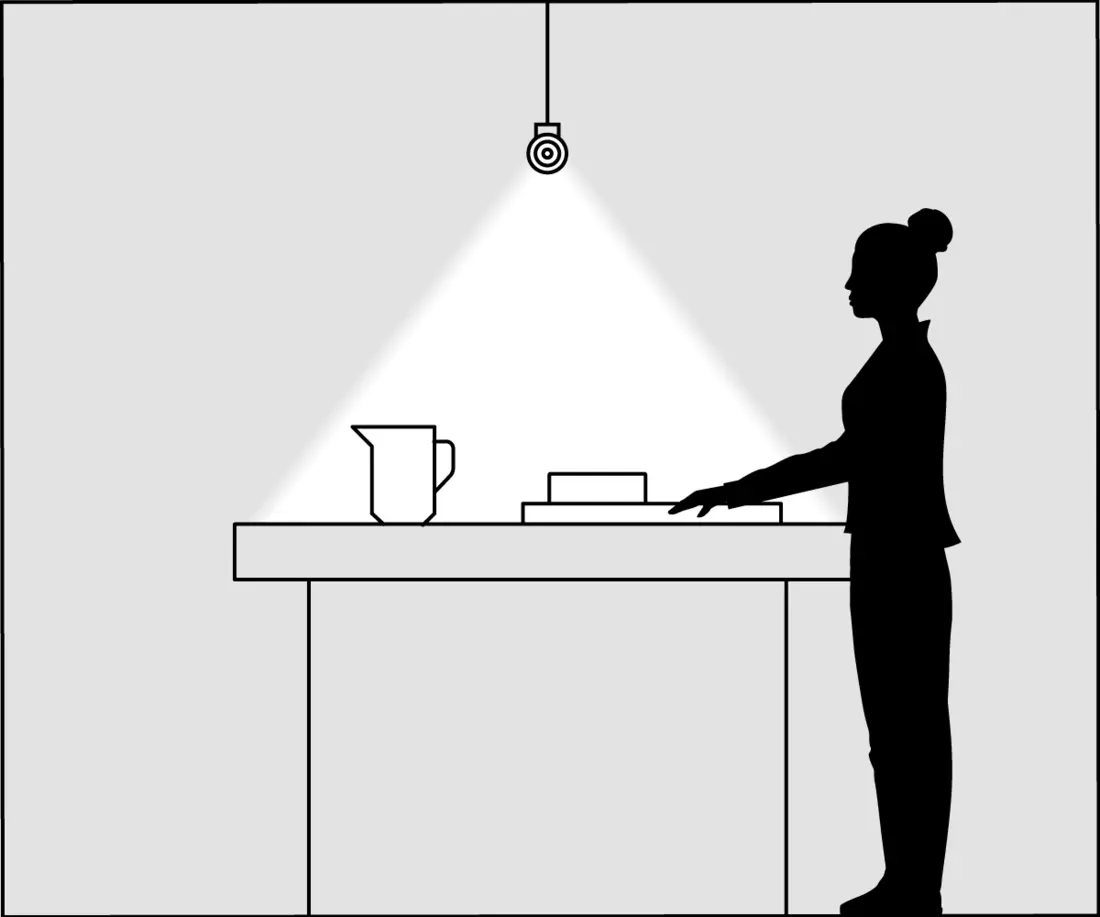

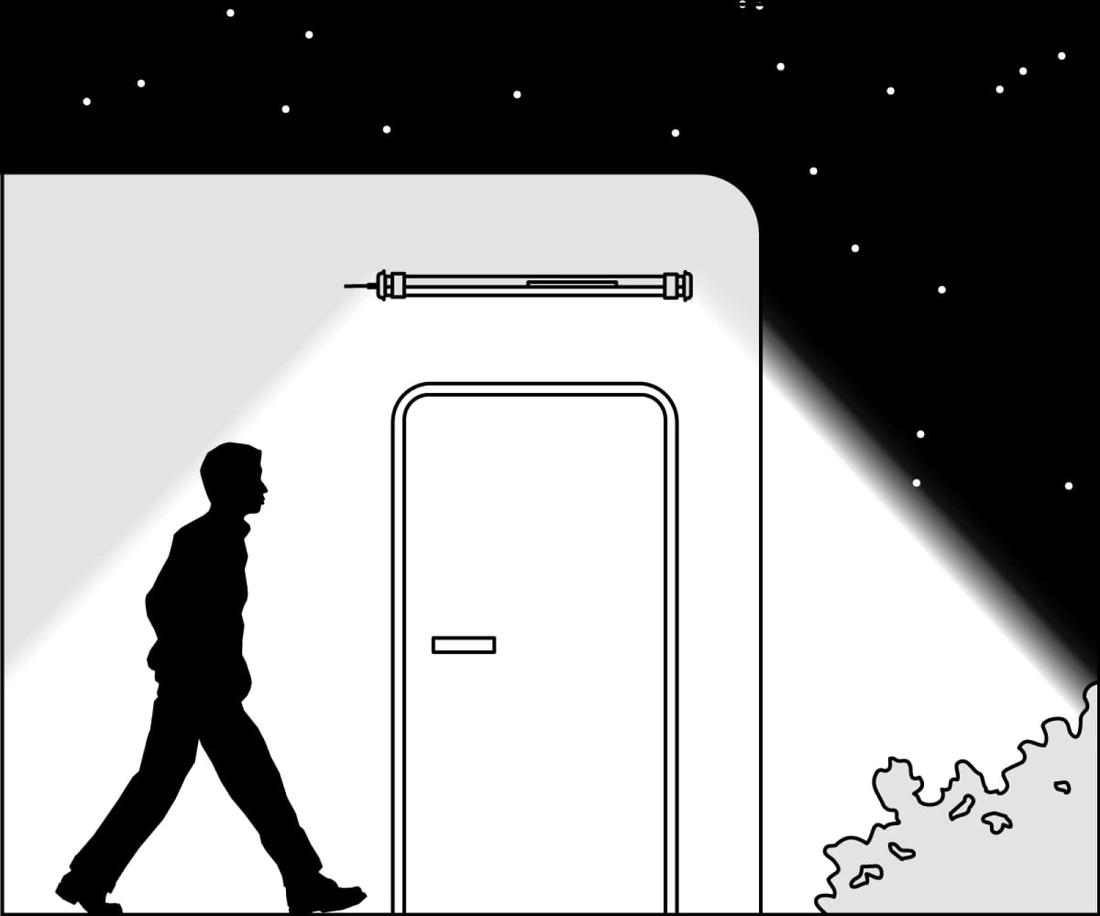

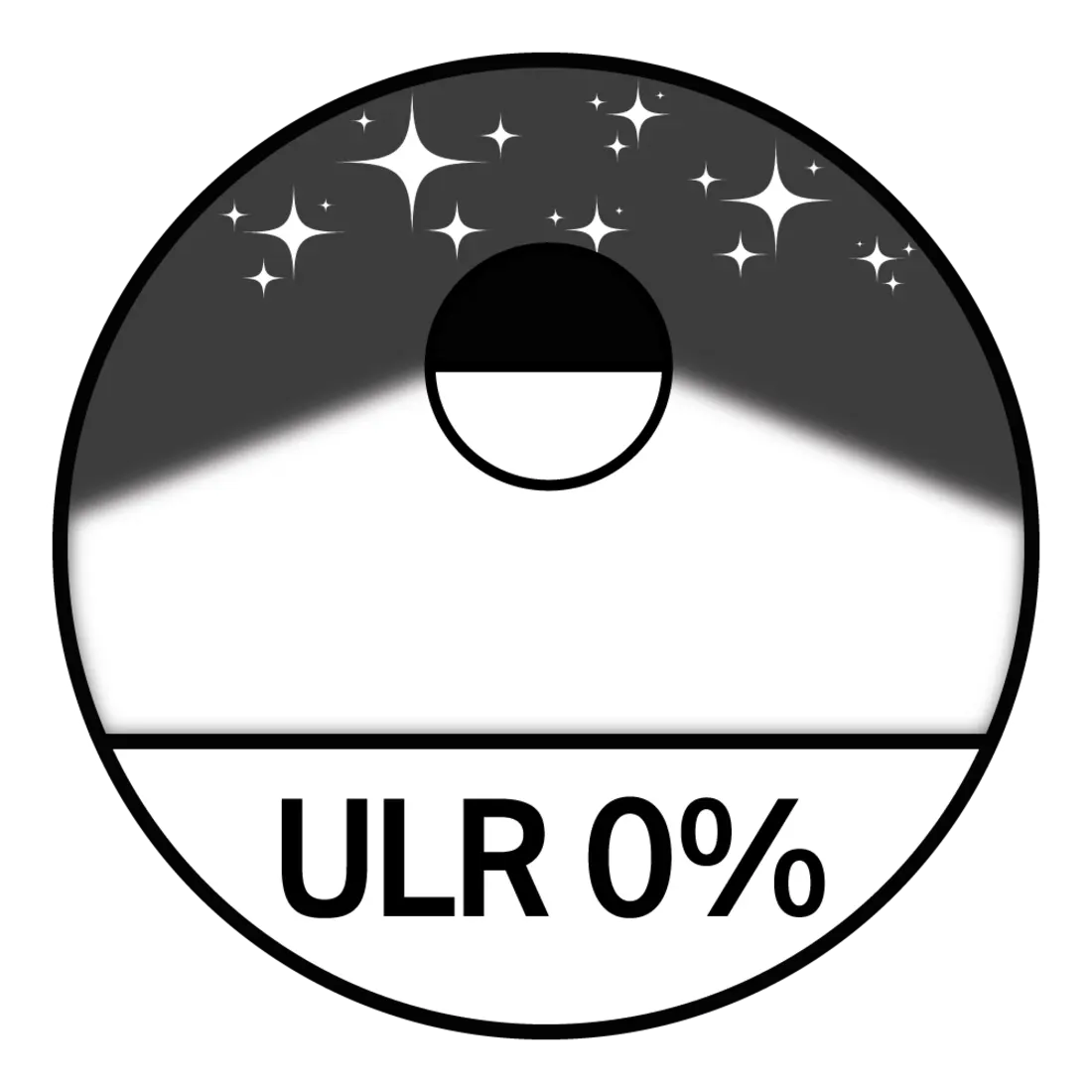

Zero light pollution

The Scorel luminaire is also suitable for outdoor use, and only emits light downwards. Its directional flux limits light pollution in compliance with new regulations to combat outdoor light pollution (ULR = 0%).

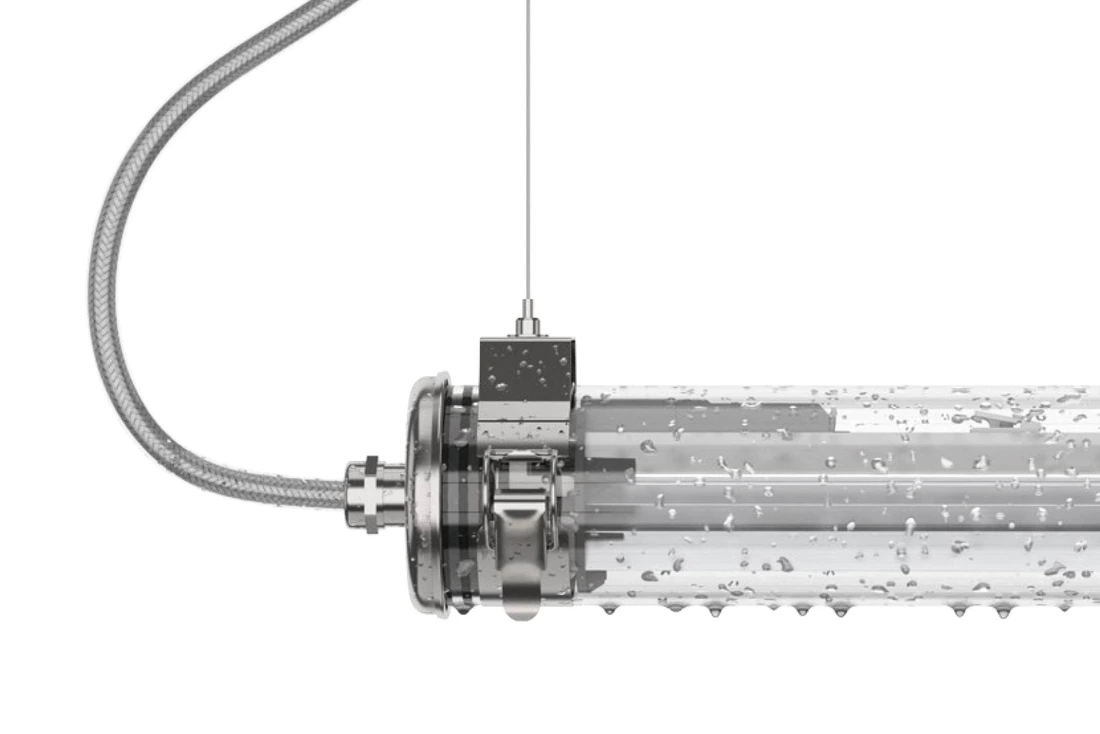

A luminaire built to last

The Scorel fitting is renowned for its outstanding reliability and sealing, just like the entire Sammode tubular luminaire range, and is ideal both outdoors and indoors. The robust materials used (stainless steel and IK10 composite diffusers) ensure that these fixtures are durable and able to resist both UV radiation and the worst acts of vandalism.

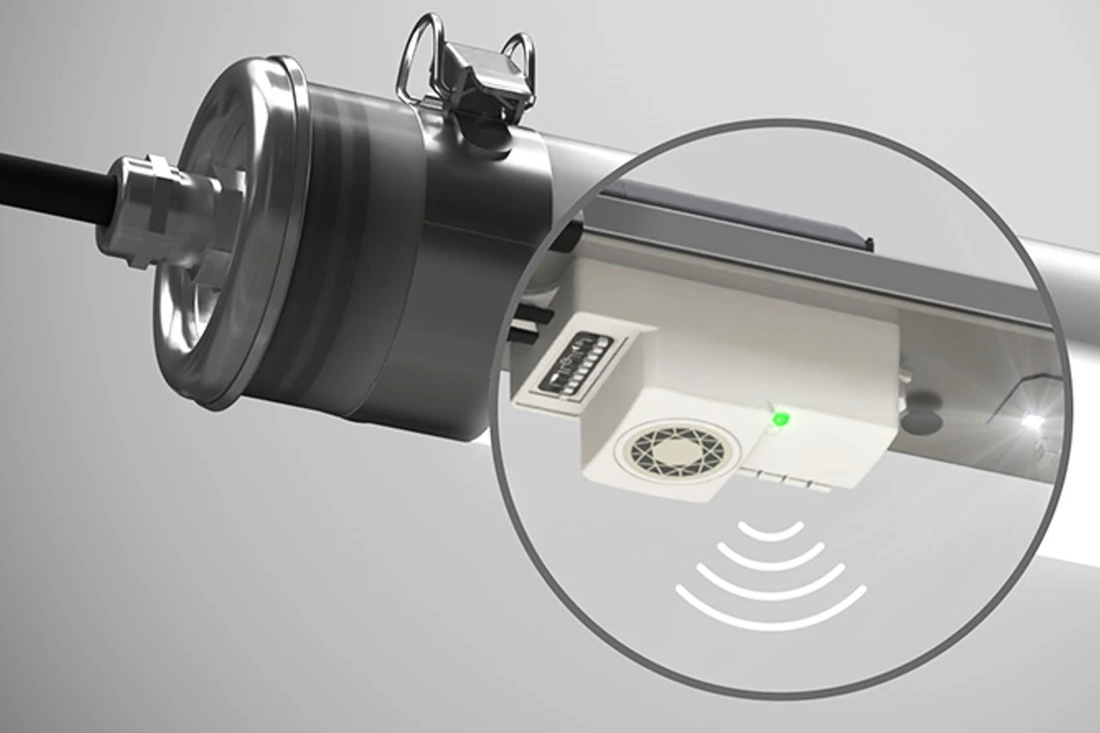

Built-in sensors & motion detection

Control systems are indispensable to fully benefit from the potential of an LED luminaire in terms of energy savings and equipment service life. Sammode can provide motion sensor systems, with or without switch-off warning functions, designed to ensure reliability and solidity. Sammode ensures you benefit from the light you need when you need it, with products that stand the test of time, which is great for both customers and the environment.

Smart and upgradable

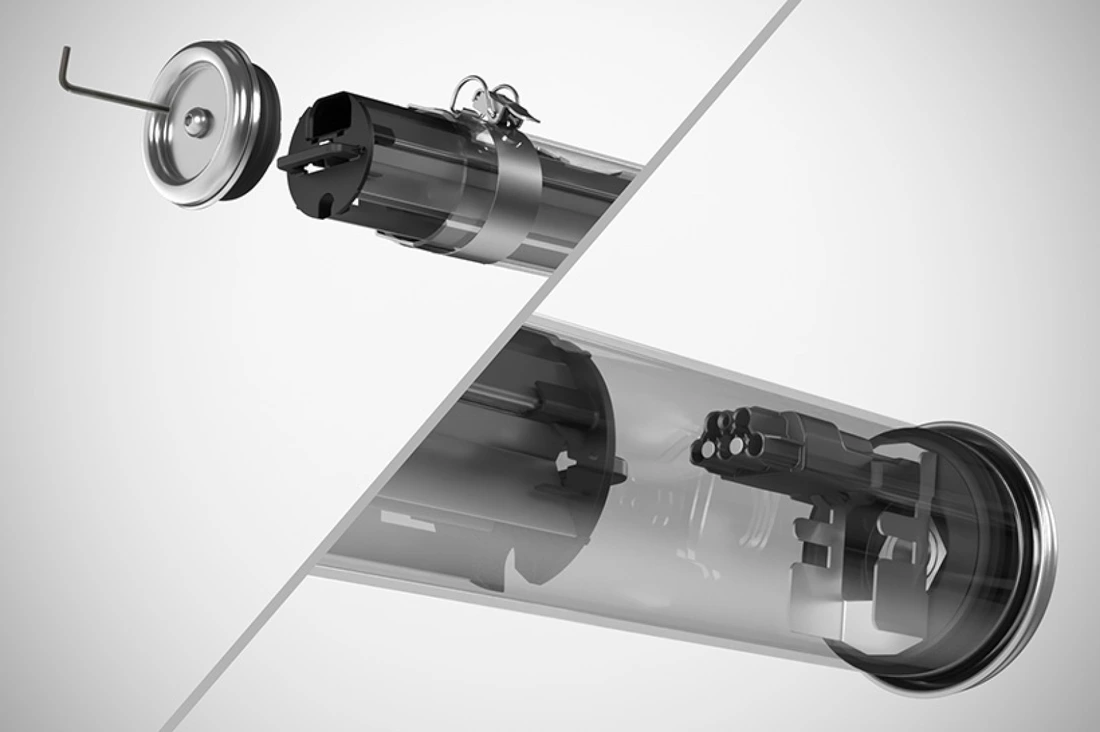

The Scorel ceiling lights incorporate a patented automatic gear tray connection system, allowing for swift and safe connections (the Close’n Connect© system). To update your internal gear tray and add the latest technology, it is now really easy to open the luminaire without touching the power cable to ensure the fixture remains sealed in the long-term. The secret to durability? We build robust, adaptable and upgradeable equipment.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year indoor-outdoor warranty

Architectural projects look to the long term, which is why Sammode commits to a 5-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Références principales et téléchargements

Plaquette produit

Eulumdat

Notice

Certificat

Tout télécharger

Comfortable versions

T (K)	Flux (lm)	L (mm)	Designation	Code	Watt	Data sheet	Plan	STEP DS	.TXT	Download all
3000	1000	715	SCOREL 70 S 700 1000-830	14895057	10	Data sheet	Plan	STEP DS	.TXT	Download all
3000	1500	995	SCOREL 70 S 1000 1500-830	14865048	14	Data sheet	Plan	STEP DS	.TXT	Download all
3000	2000	1275	SCOREL 70 S 1300 2000-830	14865056	18	Data sheet	Plan	STEP DS	.TXT	Download all
3000	2500	1560	SCOREL 70 S 1600 2500-830	14895060	22	Data sheet	Plan	STEP DS	.TXT	Download all
4000	1000	715	SCOREL 70 S 700 1000-840	14895061	10	Data sheet	Plan	STEP DS	.TXT	Download all
4000	1500	995	SCOREL 70 S 1000 1500-840	14895062	14	Data sheet	Plan	STEP DS	.TXT	Download all
4000	2000	1275	SCOREL 70 S 1300 2000-840	14895063	18	Data sheet	Plan	STEP DS	.TXT	Download all
4000	2500	1560	SCOREL 70 S 1600 2500-840	14895064	22	Data sheet	Plan	STEP DS	.TXT	Download all

Reinforced versions

T (K)	Flux (lm)	L (mm)	Designation	Code	Watt	Data sheet	Plan	STEP DS	.TXT	Download all
3000	1400	715	SCOREL 70 S 700 1400-830	14895245	14	Data sheet	Plan	STEP DS	.TXT	Download all
3000	2100	995	SCOREL 70 S 1000 2100-830	14895392	20	Data sheet	Plan	STEP DS	.TXT	Download all
3000	2800	1275	SCOREL 70 S 1300 2800-830	14895233	25	Data sheet	Plan	STEP DS	.TXT	Download all
3000	3500	1560	SCOREL 70 S 1600 3500-830	14895227	31	Data sheet	Plan	STEP DS	.TXT	Download all
4000	1400	715	SCOREL 70 S 700 1400-840	14895479	14	Data sheet	Plan	STEP DS	.TXT	Download all
4000	2100	995	SCOREL 70 S 1000 2100-840	14895280	20	Data sheet	Plan	STEP DS	.TXT	Download all
4000	2800	1275	SCOREL 70 S 1300 2800-840	14895480	25	Data sheet	Plan	STEP DS	.TXT	Download all
4000	3500	1560	SCOREL 70 S 1600 3500-840	14895219	31	Data sheet	Plan	STEP DS	.TXT	Download all

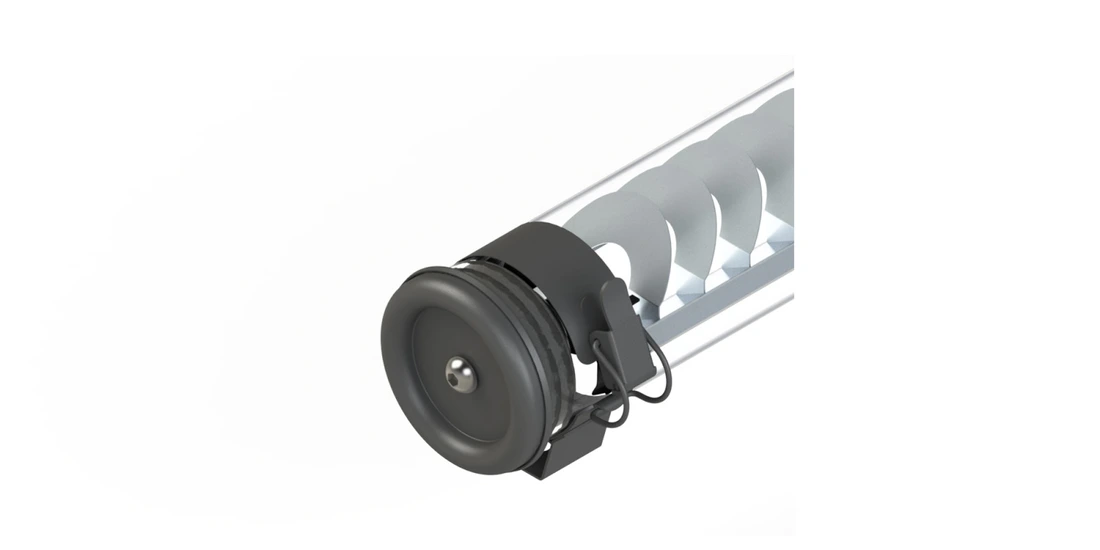

End caps & fixing straps finish

End caps & straps painted Coal RAL7021

COAL

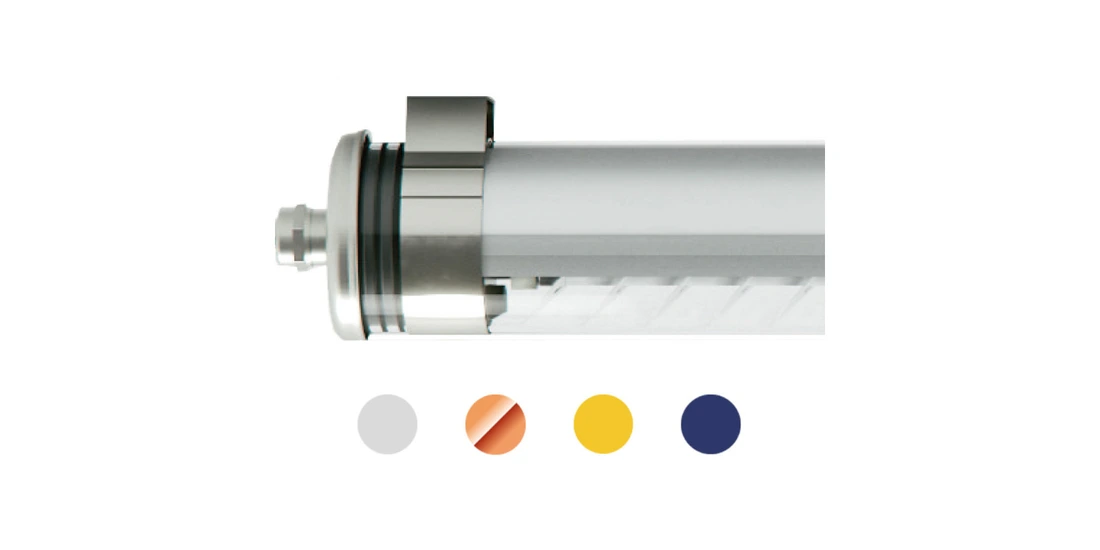

Aluminium gear unit cover

Silver	CRS
Copper	CRC
Brass	CRB
Petrol	CRP

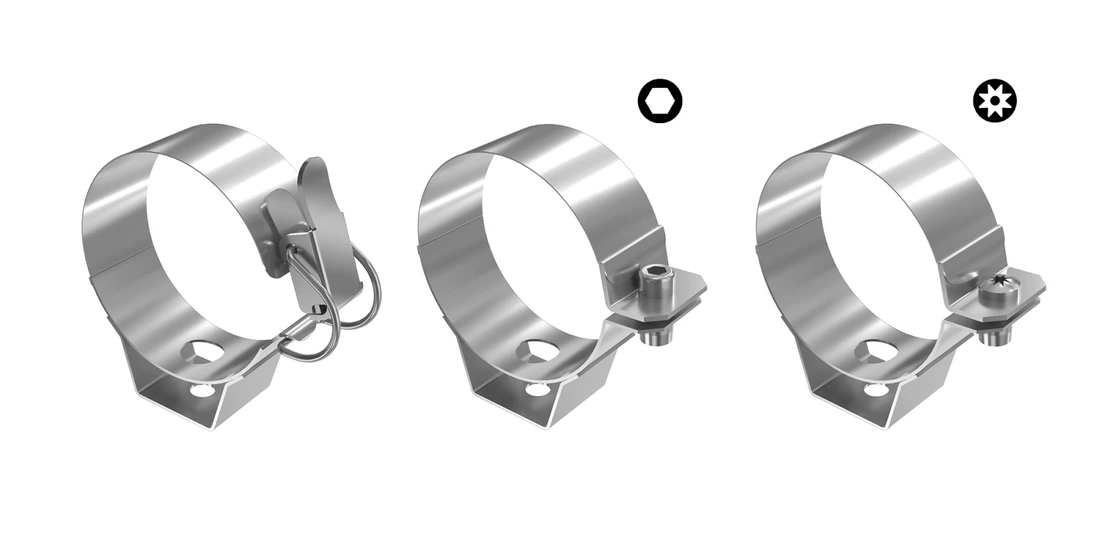

Fixing straps

Fixing straps	-
Fixing straps with HSHC screw	BCV
Fixing straps with tamper-resistant Torx screw	BCVT

Materials

Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°)	-
Polycarbonate housing (960°C)	PO
End caps & fixing straps 304L stainless steel	-
End caps & fixing straps 316L stainless steel	MR

Color temperature

2700K	827
3000K	830
4000K	840

Lighting management

Electronic gear unit for DALI dimming	RD
Electronic gear unit for push button	RS
Switch-off warning function (for sensor/timer)	RC
Casambi Bluetooth control	RB

Presence sensor

Built-in presence sensor (length increased by 85mm)

Electrical class

Class I	CL1
Class II	-

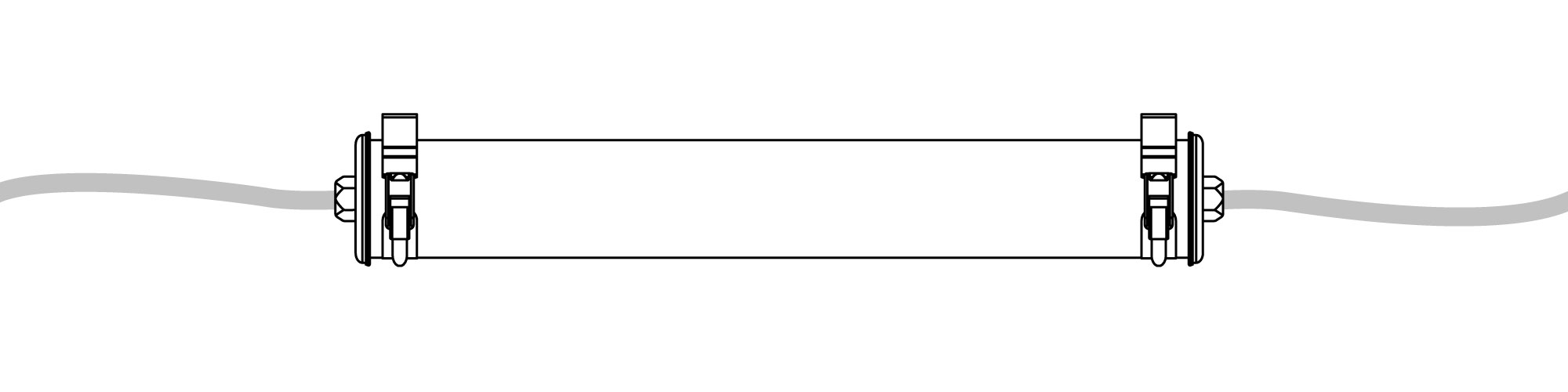

Through-wiring

For mounting with through-wiring

Technical specifications

Light source

High-efficiency removable LED module (CRI>80, 3 SDCM)
50 000 h L80/B10 at 25°C
Photobiological hazard : None (RG0)

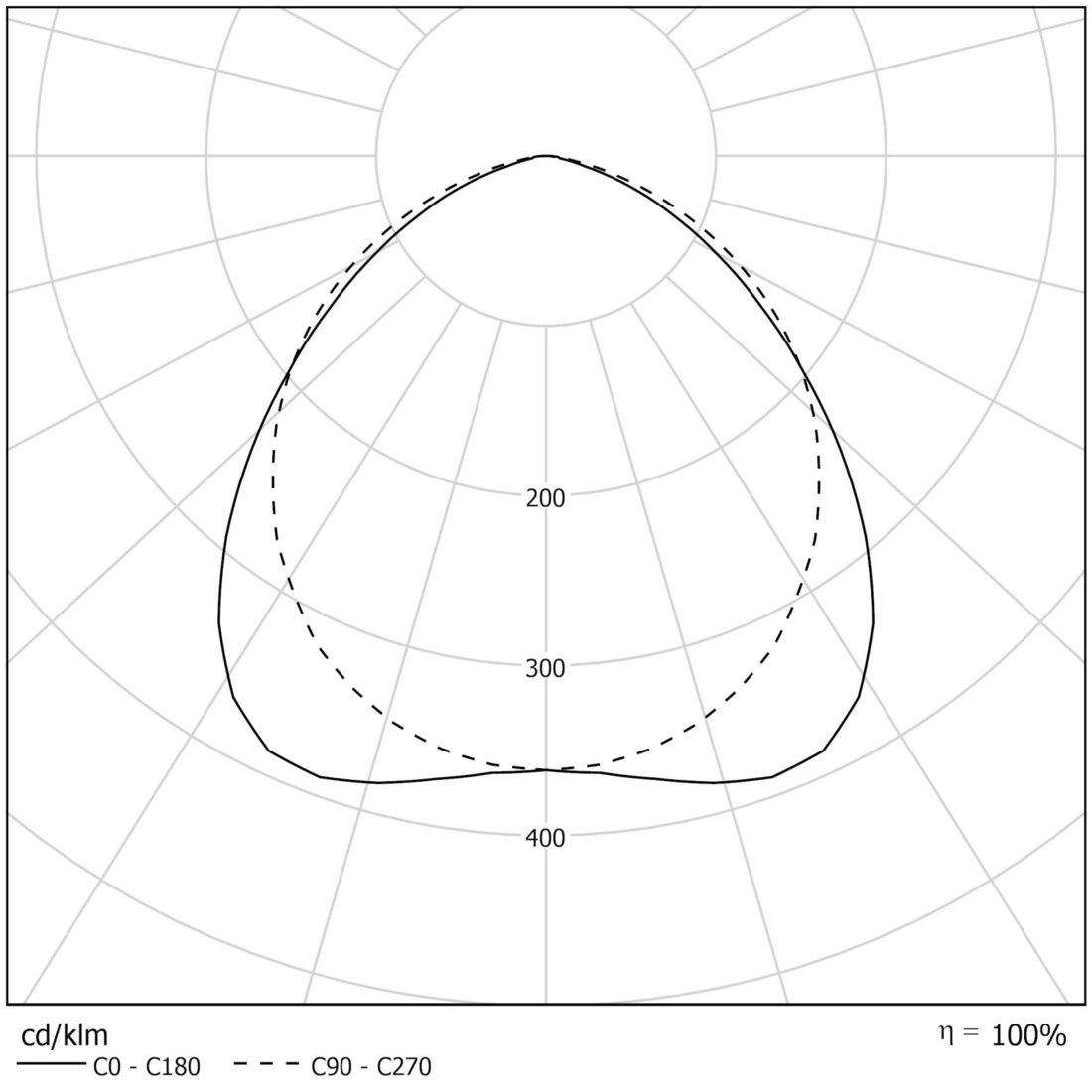

Optics

Extensive reflector in mirror-finish aluminium
Specific satin-finish primary diffuser optics reducing axial intensity

Lighting comfort

Brightness control
Transversal glare control : 10°
Controlled glare: UGR ≤25 for comfortable versions

Control gear

Constant current driver (non-dimmable)

Supply voltage

220-240V 50/60Hz

Electrical class

Class II

Operating temperature

-20°C to +35°C

LED engine maintenance

Maintenance without tampering with the cable by removal of the end cap without cable entry
Close'N Connect Patented system with automatic electrical connection/disconnection on closure
Easily removable LED modules and driver
Quick opening and closing with just one screw

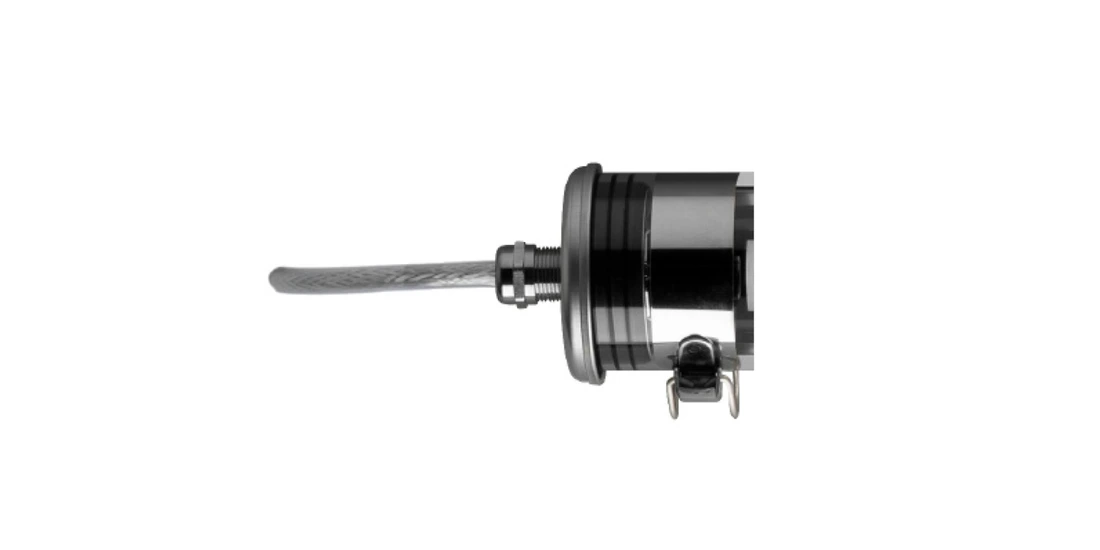

Connection

With nickel-coated brass cable gland for cable Ø 5-12 mm
To a 3 x 2,5 mm² disconnectable terminal block

Closing

Closing by tightening the nut on the cable gland

Mounting

2 stainless steel fixing straps (with variable centre distance)

Gear tray

Internal grey powder coated steel gear tray RAL 9006

Housing

Coextruded polycarbonate/PMMA diameter 70 for indoor and outdoor use

End caps and fixing straps

304L stainless steel

Waterproofness

IP66, IP68, IP69K

Resistance to IK shocks

IK10

Fire resistance

650°C
