Borosilicate glass high-temperature LED tubular light ø133 for highly corrosive environments

The Leslie X-Heat tubular luminaire is designed to light up every detail of the most extreme industrial processes. It is durably resistant to acid vapours, splashes of very hot corrosive liquids, thermal shocks and vibrations.

The Leslie X-Heat luminaire can withstand the most extreme industrial processing conditions.

Chemical and sealing conditions

Highly corrosive or abrasive environments

Splashes of very hot liquids

Flame-resistant, inflammable

Oils & hydrocarbons

Dust and extreme grime

Very hot, humid or dry atmosphere

Washing with a high-pressure jet

Thermal, mechanical and electrical stresses

Permanent use at temperatures of up to 70°C

Thermal shocks

Repeated turning on and off

Mechanical impacts Intense and repetitive vibrations

Voltage surges up to 4 kV, power surges

Tried and tested extra-long life with intensive use at 70°C

Benefit from a sturdy, fully sealed housing thanks to high-temperature silicone seals tightened axially, specifically configured electronics and optimised temperature management. This LED tubular light reflects the full extent of our expertise in extreme environments, offering a reliable, durable option, even when used 24/7 at 70°C.

100% stainless steel and glass, guaranteeing unfailing chemical resistance

Benefit from outstanding durability and sturdiness, no matter how tough the conditions, thanks to a corrosion- and abrasion-proof housing in IK07 borosilicate glass, and reinforced stainless steel (304 or 316L) mechanical parts, including a cable gland as an option!

Ultimate sealing and durability

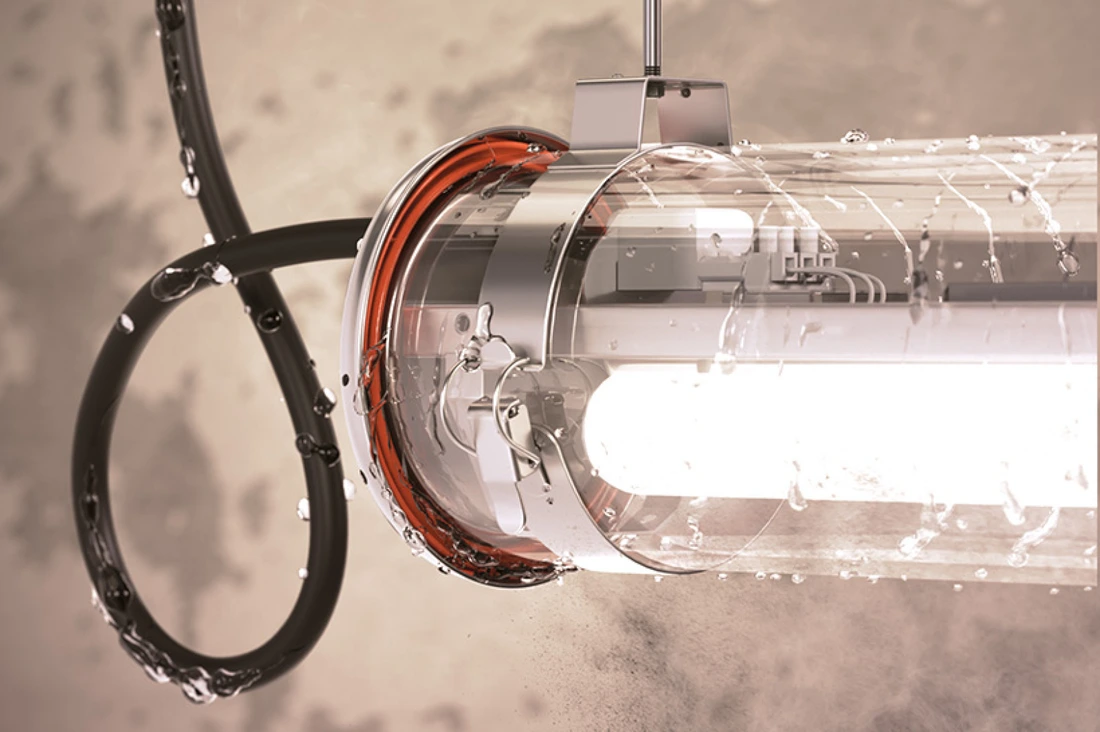

Forget fine dust, high-pressure jets, corrosive substances and the like. Thanks to its 3-seal system and uniform tightening with a central screw (the Screw© system), the housing remains firmly sealed, even when the temperature varies significantly. IP68, IP69K, everywhere and well into the future!

Reinforced industrial electronics

Even the very best housing cannot stand up to the potential effects of an at-risk network. With this in mind, Sammode has opted for the most reliable components available, designed to withstand electrical disturbance, voltage surges, extensive temperature variation and vibrations.

Divide your installed power by 3 with zero maintenance!

Unlike fluorescent bulbs, durable LEDs can be relied upon at high temperatures if duly calibrated and integrated. The results of our X-Heat models are spectacular: 100% light output from the second you hit the switch, equivalent to 2 x T8 tubes, while dividing your energy bills by 3!

Applications of luminaires by the name Leslie X-Heat

  • Lighting for industrial hoods and ovens
  • Paper mills: lighting in drying areas

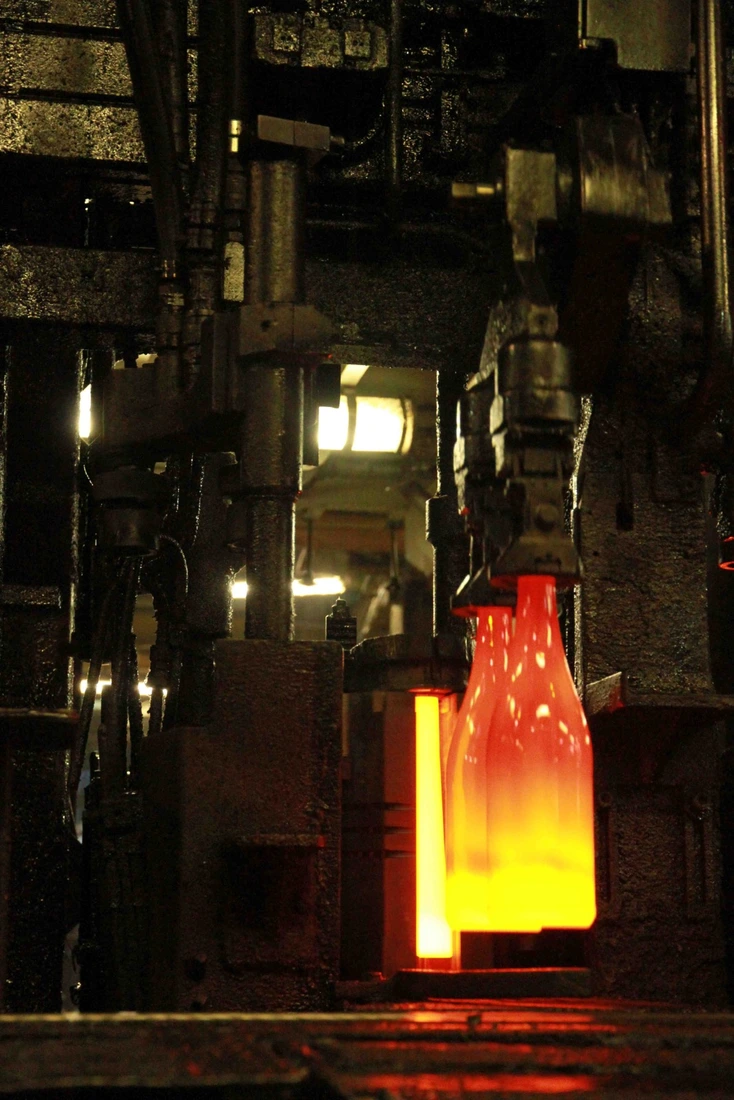

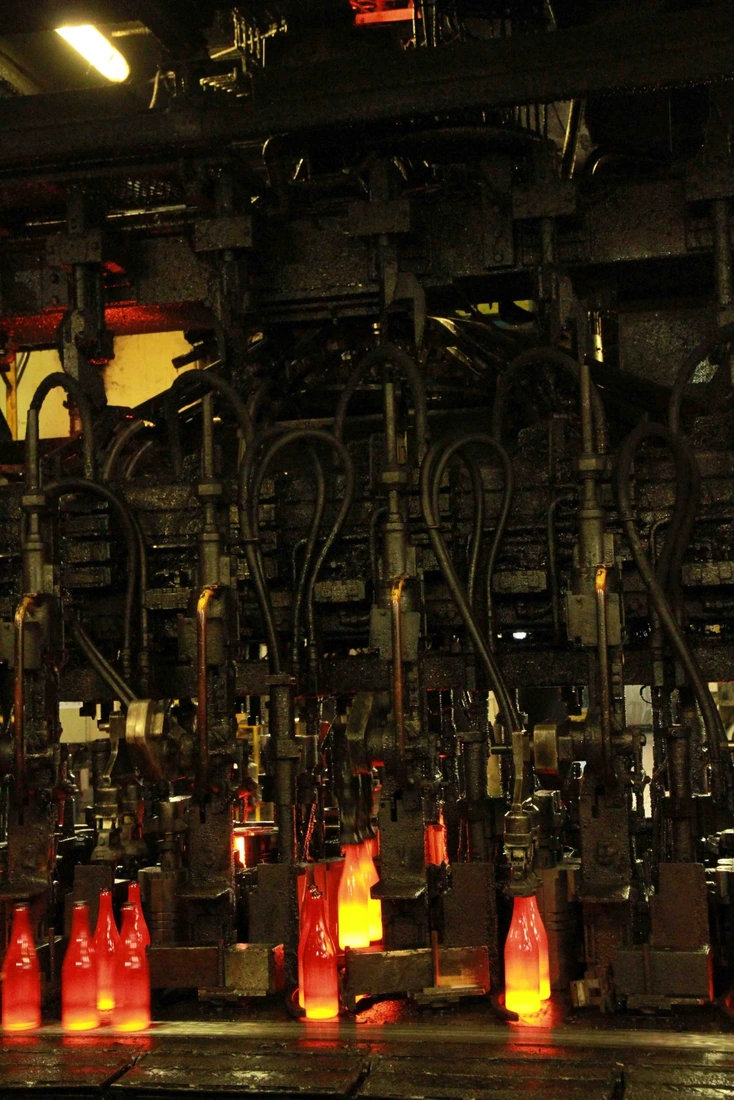

  • Glass works: lighting in glass casting areas

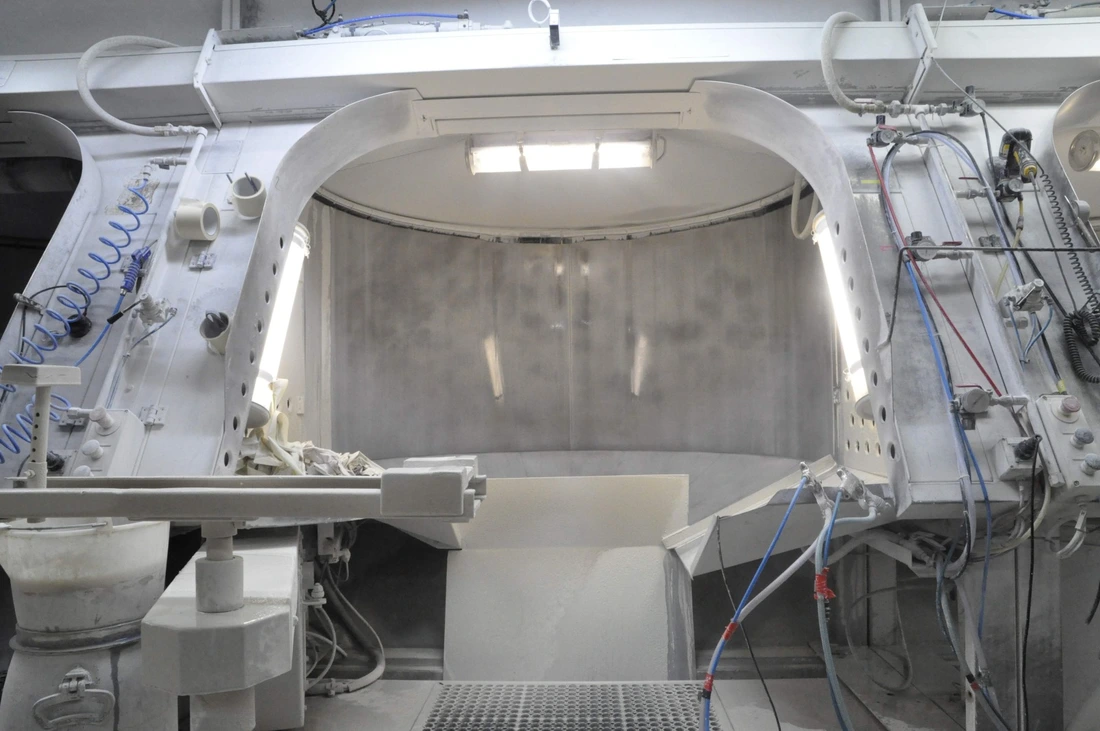

  • Ceramic works: lighting around firing areas

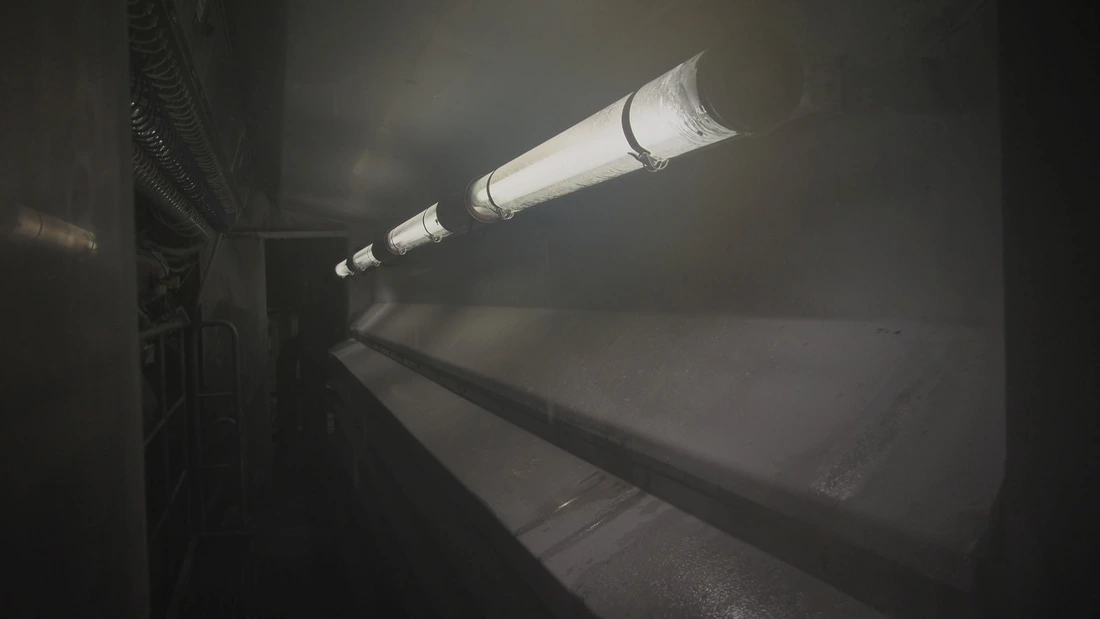

  • Subway station: smoke extraction duct lighting

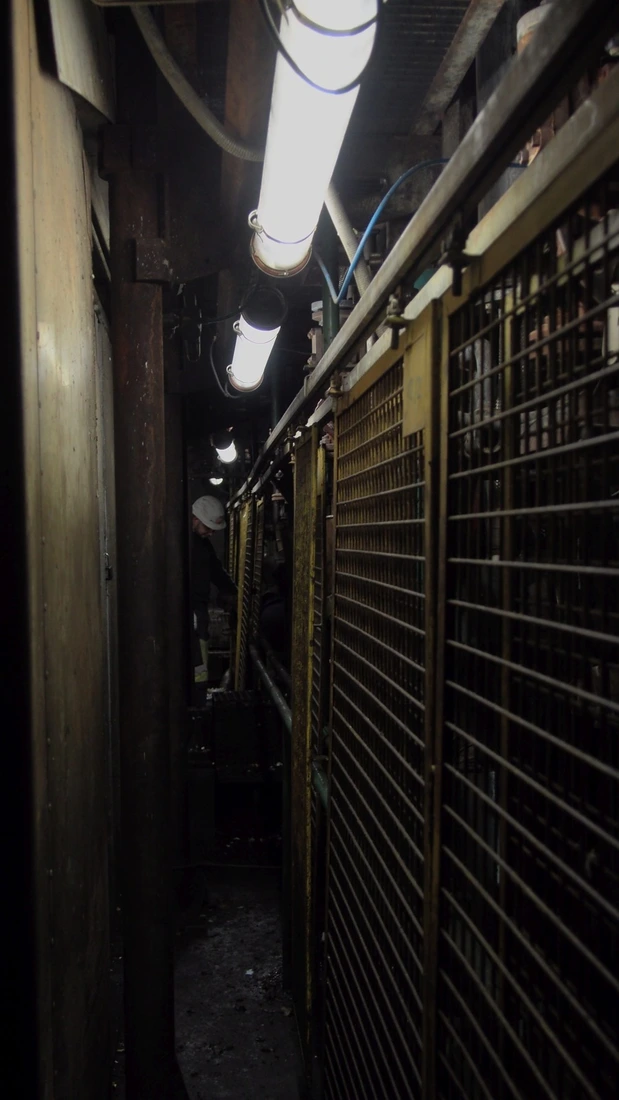

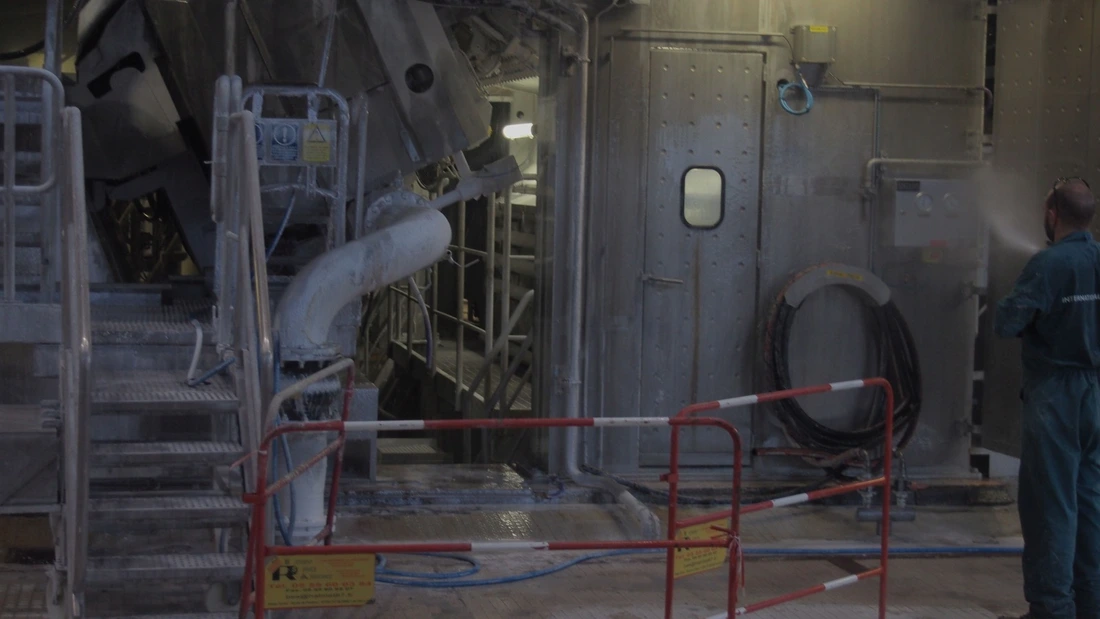

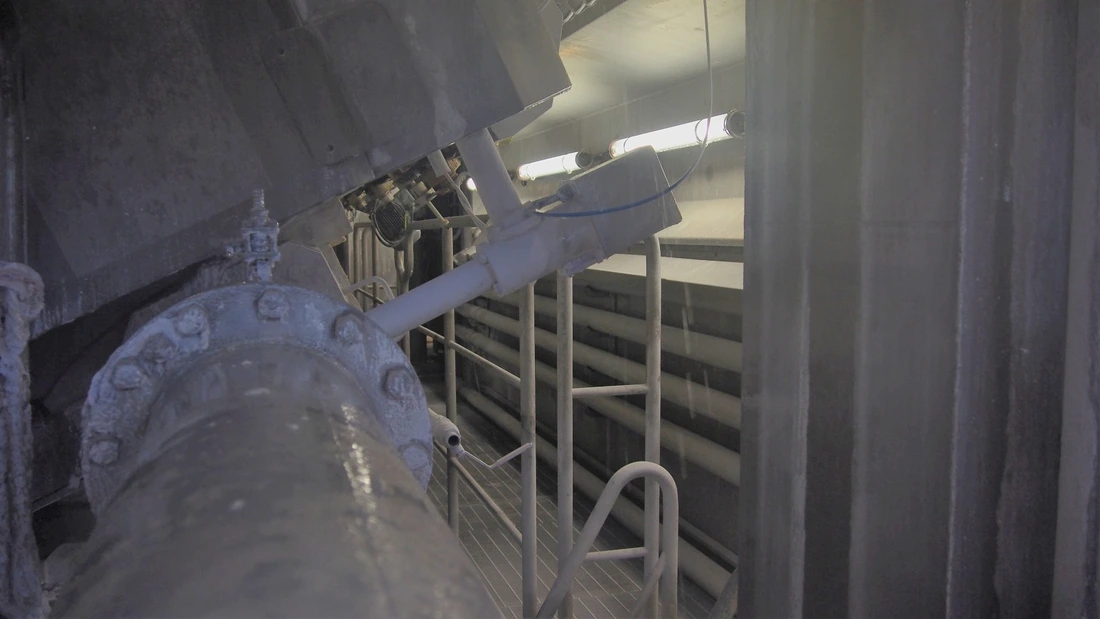

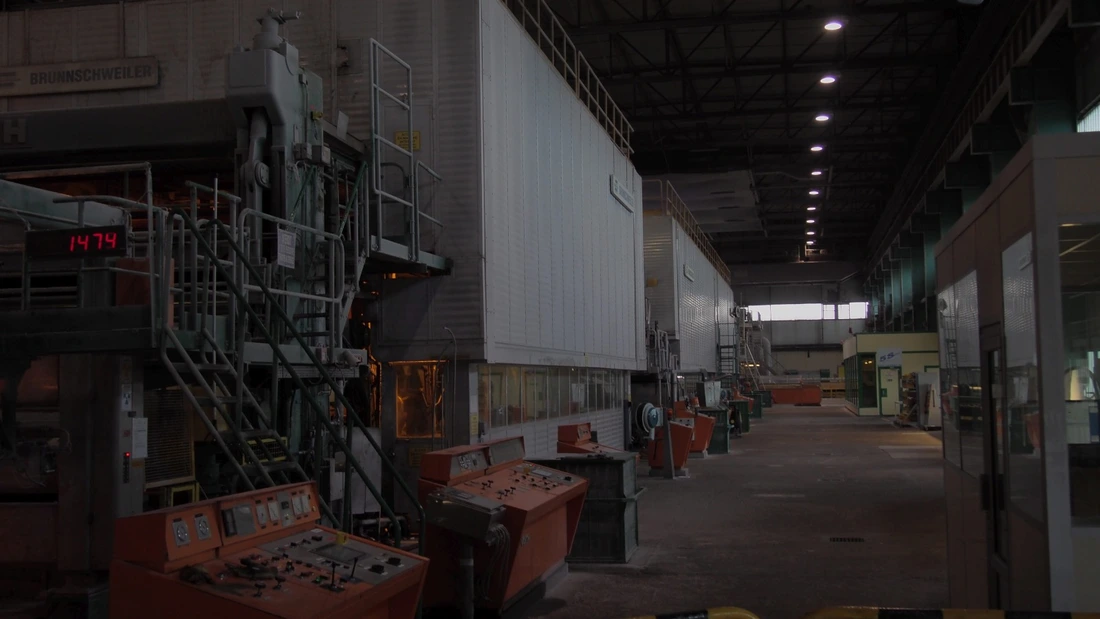

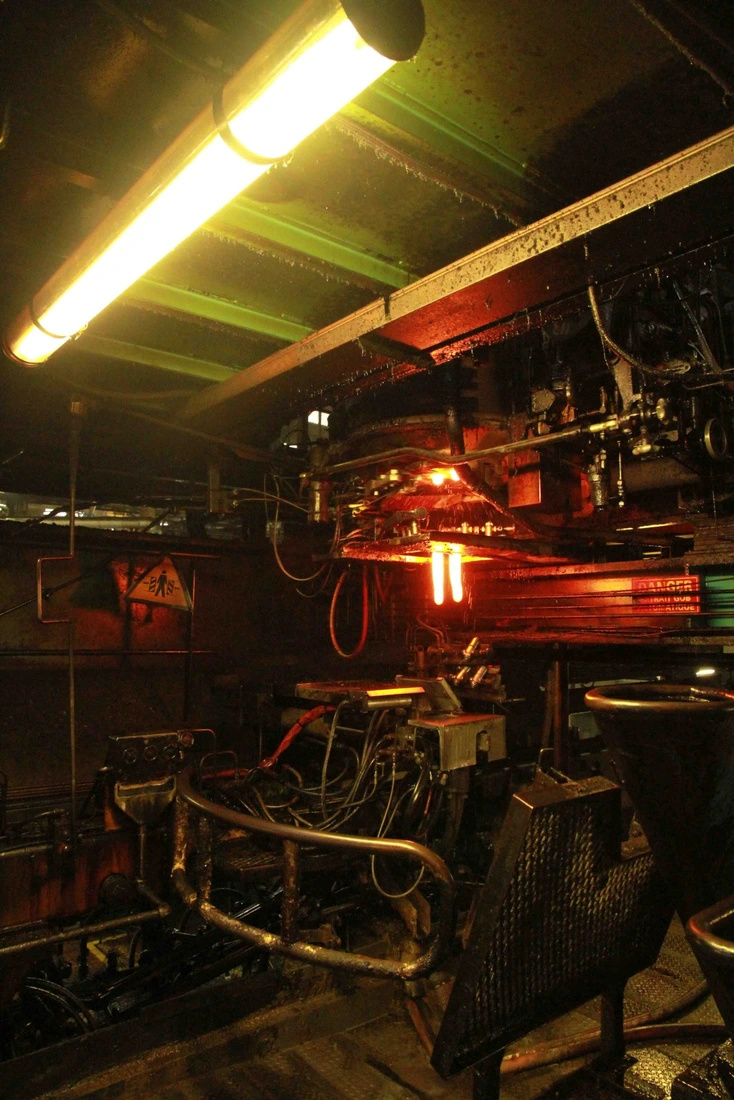

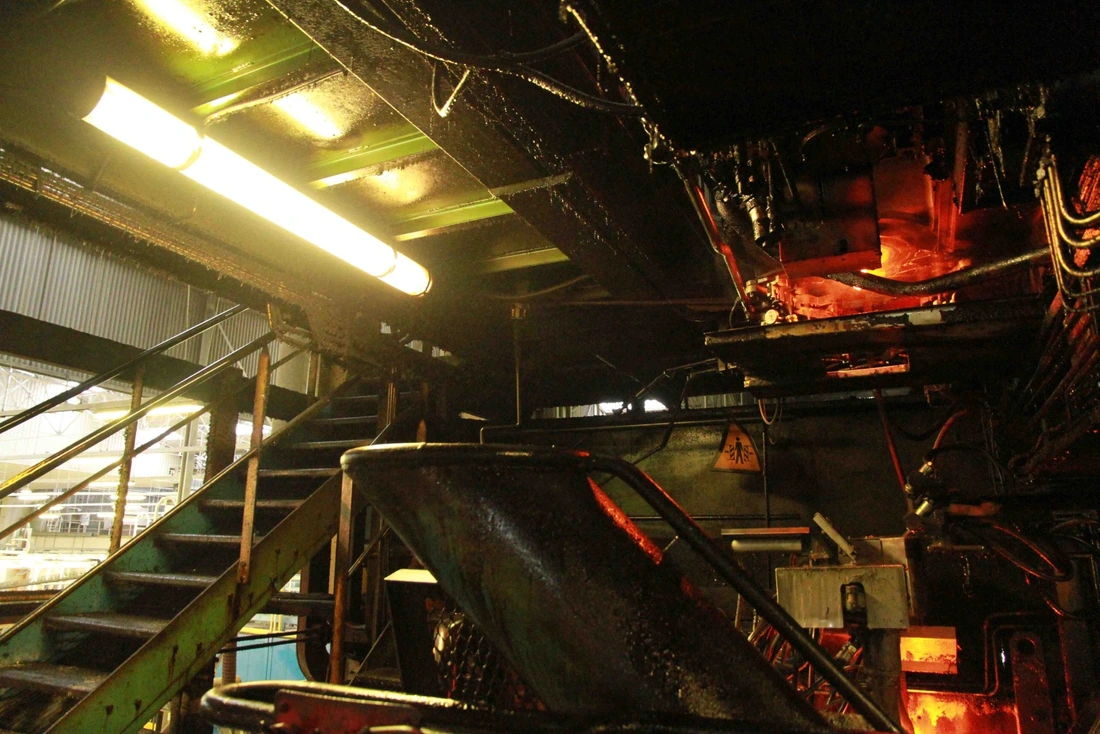

Product shown in situ

Our services

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year warranty, no matter how tough the conditions

Valid even for 24/7 use at the maximum operating temperature for the product, it reflects our unfailing commitment to our customers!

100% Removable and repairable on site

Even after 15 or 20 years’ use, every single part we supply can be easily replaced, with no need to send it back to us. No one else offers a guarantee of lifelong lighting solutions!

Références principales et téléchargements

Plaquette produit

Eulumdat

Notice

Certificat
Tout télécharger

Disconnectable quick-lock plug version

CRI80, 4000K

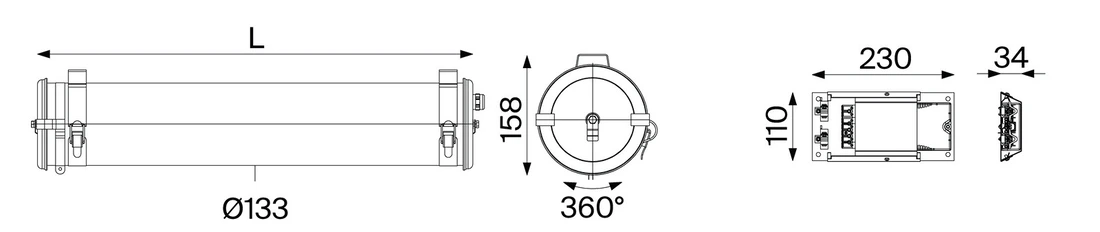

Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
1850 677 LES133 12H840 PY PS3 BRS 32075011 15 Data sheet Plan STEP DS .TXT Download all
2775 987 LES133 13H840 PY PS3 BRS 32075012 22 Data sheet Plan STEP DS .TXT Download all
3700 1287 LES133 14H840 PY PS3 BRS 32075013 35 Data sheet Plan STEP DS .TXT Download all
4625 1587 LES133 15H840 PY PS3 BRS 32075014 42 Data sheet Plan STEP DS .TXT Download all

All 316L stainless steel version, ultimate chemical resistance

CRI80, 4000K

Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
1850 677 LES133 12H840 PY 113INOX MR BRS 32075030 15 Data sheet Plan STEP DS .TXT Download all
2775 987 LES133 13H840 PY 113INOX MR BRS 32075023 22 Data sheet Plan STEP DS .TXT Download all
3700 1287 LES133 14H840 PY 113INOX MR BRS 32075031 35 Data sheet Plan STEP DS .TXT Download all
4625 1587 LES133 15H840 PY 113INOX MR BRS 32075028 42 Data sheet Plan STEP DS .TXT Download all

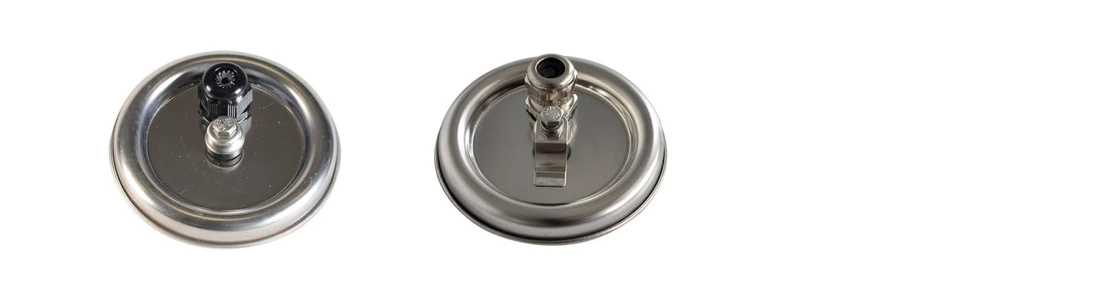

Cable entry

Cable gland

Polyamide capacity Ø5-12mm 113
Polyamide capacity Ø7-14mm 116
Nickel-coated brass capacity Ø5-14 mm 113LN
Stainless steel 316L capacity Ø7-13mm 113INOX

Disconnectable plugs

IP68/69K quick-lock plug with threaded ring (capacity: Ø8 to 10 mm) PS3

Fixing straps

Reinforced fixing straps BRS
Reinforced fixing straps with HSHC screw BRV

Materials

End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

3000K 830
4000K 840
5000K 850
1m HO7-RNF pre-wired high temperature cable 3G1,5²
Stripped free end CAB0076
Wieland® plug IP68/IP69K (capacity : Ø10-14mm) CAB0140
Wieland® plug and Y spliter for loop-in/out CAB0146
Folded 316L stainless steel protective cover
Length 800mm CP00565
Length 1100mm CP00596
Length 1400mm CP00566
Length 1700mm CP00567
316L stainless steel column mounting fixing strap
Adapter ø1"1/4 (=42mm) CP01239
Adapter ø1"1/2 (=49mm) CP01238
Adapter ø2" (=60mm) CP01237

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 50 000 h L80/B50 at max. operating temperature
  • Photobiological hazard : None (RG0)
Optics
  • Specific satin-finish primary diffuser optics
Lighting comfort
  • UGR ≤ 28
Heat management
  • Aluminium heat sink
Control gear
  • High reliability constant current output driver, mechanically and thermally reinforced.
  • Resistance to overload: 320 V AC, 48 h
  • Supports voltage spikes < 4 kV
  • Electronic compatible with central source
  • Compatible with neutral TN, TT and IT arrangements with no limitations
Supply voltage
  • 198-264V 0/50/60Hz
Electrical class
  • Class I
Operating temperature
  • -20°C to +70°C

Connection
  • Version with 3-pole plug : disconnectable plug for Ø 8 to 10 mm cable (3 × 1.5 mm²)
  • 113INOX version : 316L stainless steel cable gland for cable Ø 7-13 mm, to a 3 x 2,5 mm² disconnectable terminal block
Mounting
  • Attachement with 2 bolt-fitted stainless steel straps with variable center distance and 360° orientation
LED engine maintenance
  • Easily removable LED modules and driver
  • Opening by releasing the 2 closing screws, removing the end cap and extracting the gear tray

Housing
  • Borosilicate-glass
End caps and fixing straps
  • 304L stainless steel (except MR version in 316L stainless steel)
Gaskets
  • Silicone
Method of construction
  • Housing in one piece with high mechanical and chemical resistance
  • Long-lasting imperviousness by axial screw fitting

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK07
Fire resistance
  • Non-flammable
Vibration resistance
  • Meets the severe application requirements of standard EN 60598-1 (tested according to IEC 60068-2-6)
