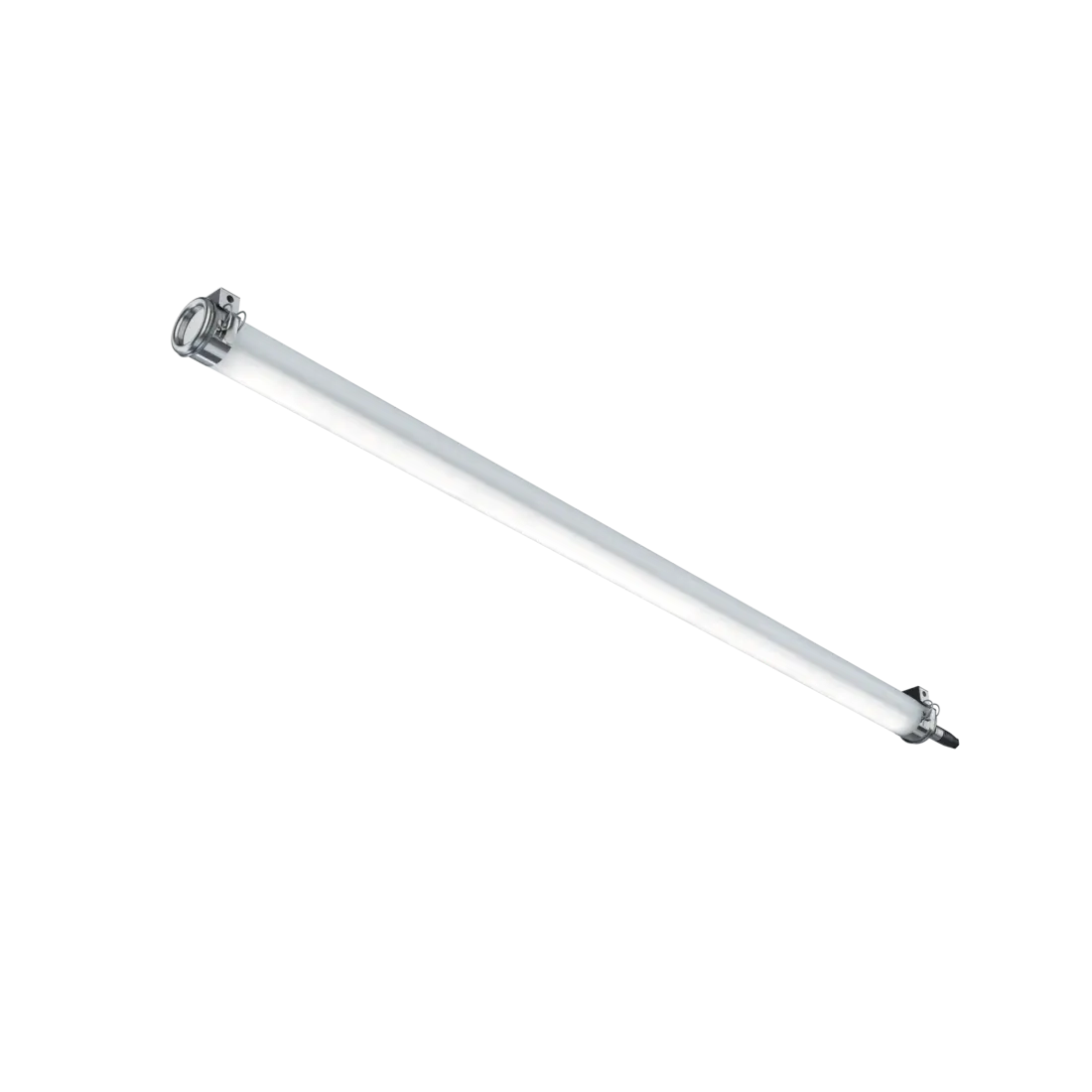

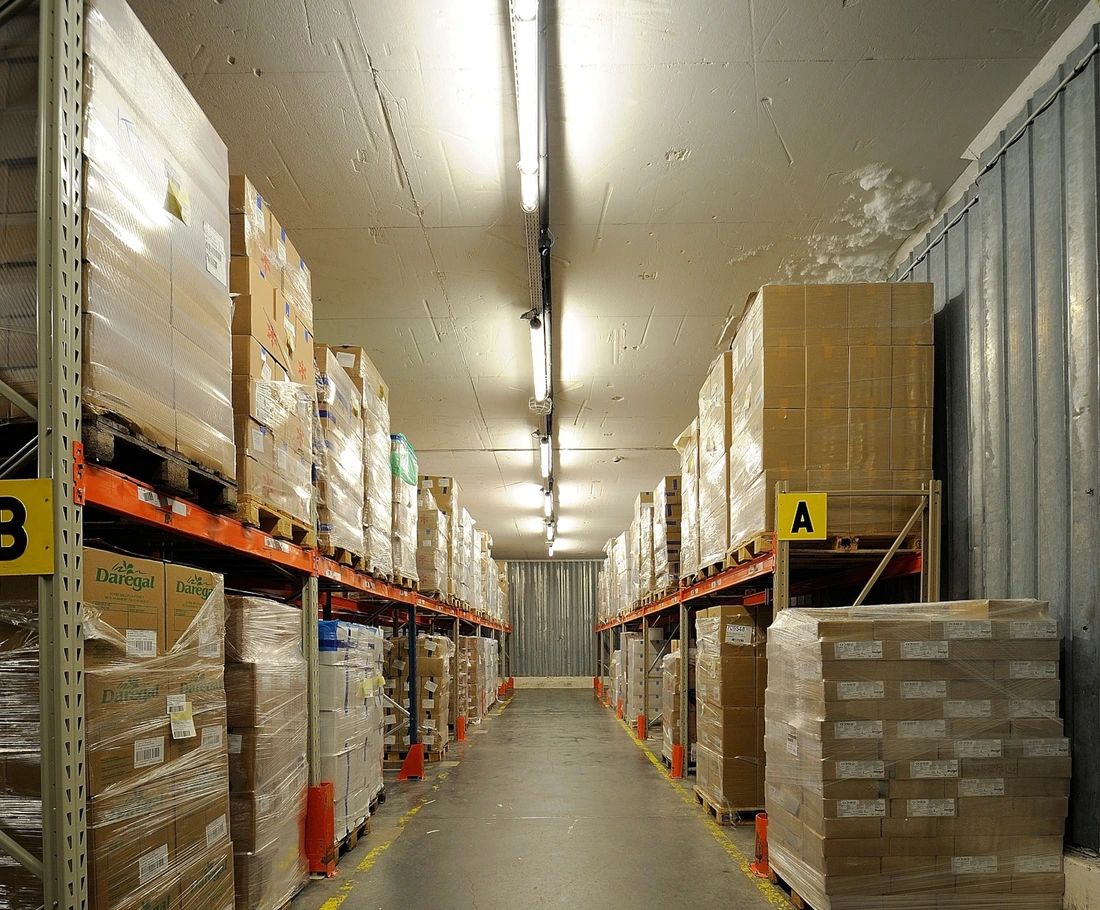

24 VDC LED tubular luminaire, ø70, for process and storage zones at extremely cold temperatures

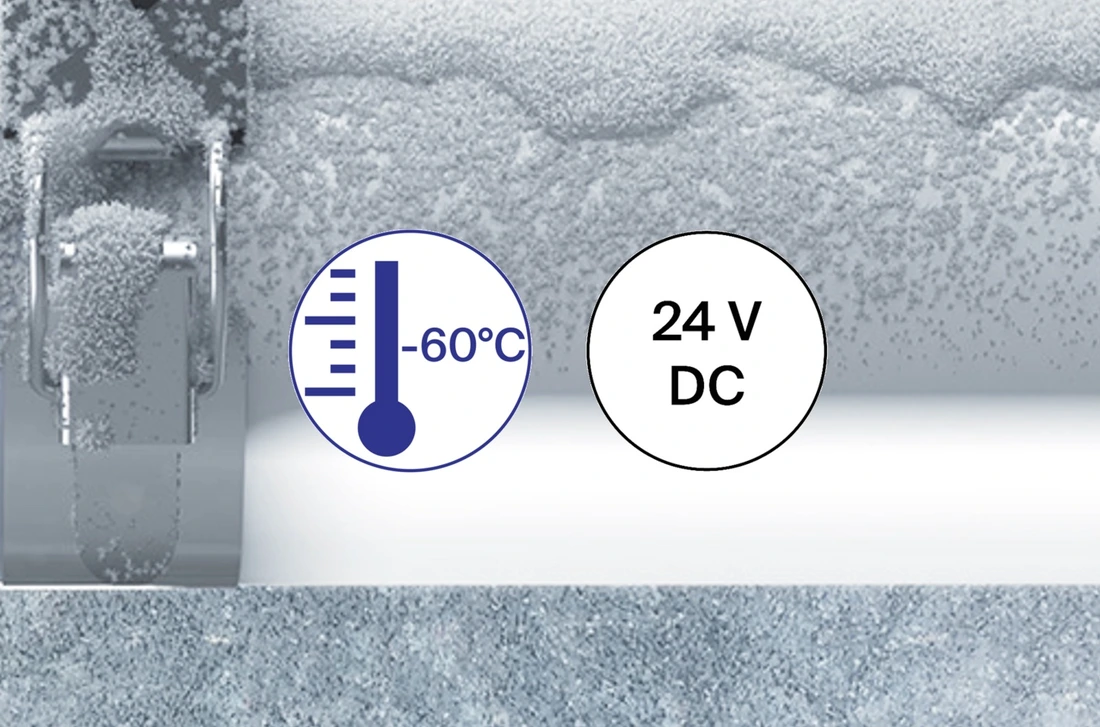

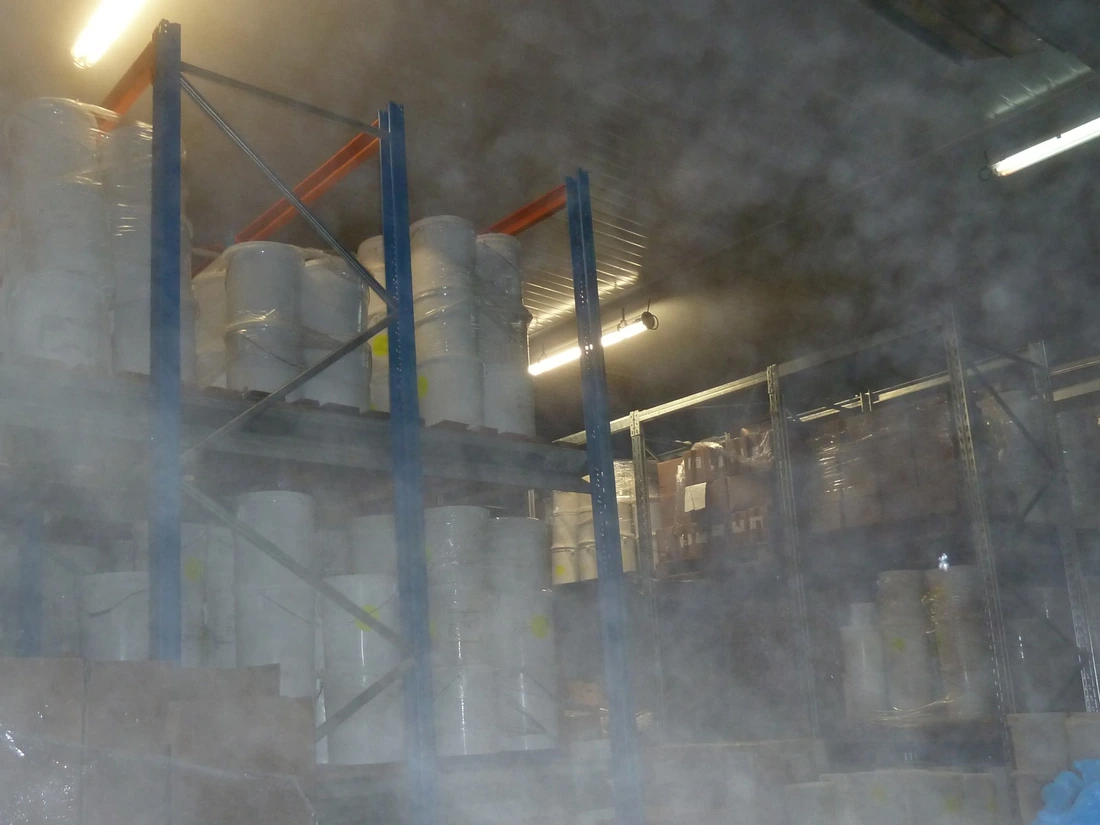

The Celsius luminaire is designed to light up spaces with extreme conditions at negative temperatures down to -60°C. This model is supplied with 24 VDC and can durably withstand thermal shocks and frequent turning on and off at -60°C.

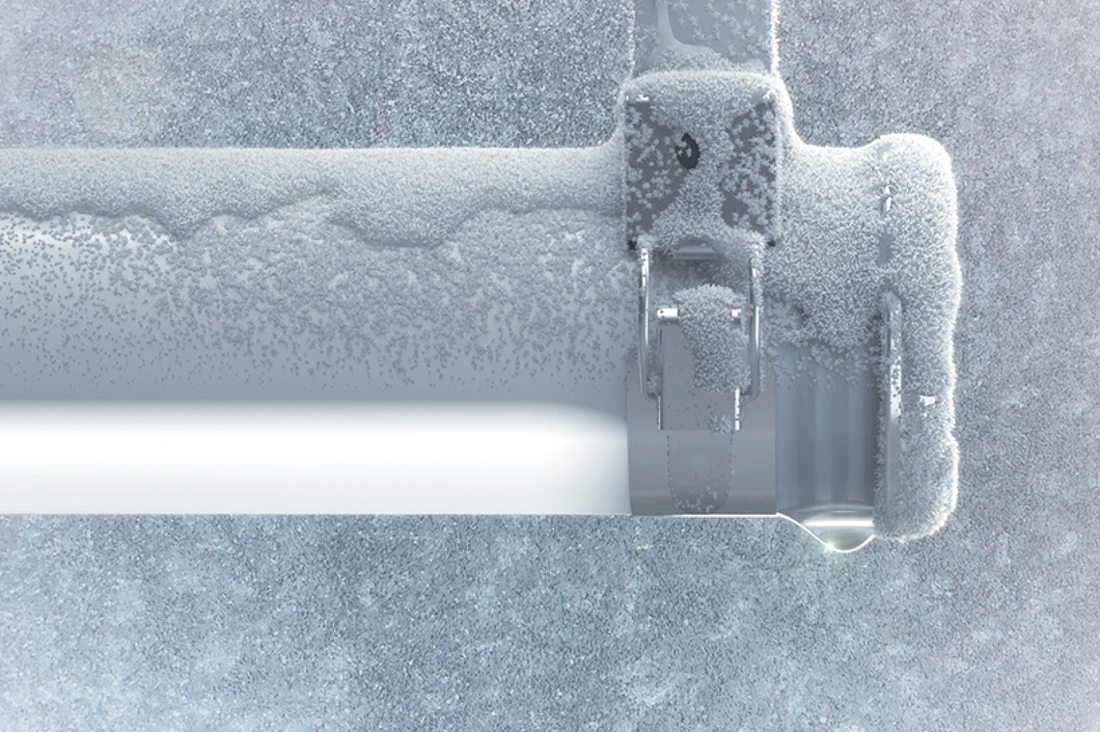

The Celsius X-Cold luminaire can withstand the conditions faced in extremely cold areas.

Chemical and sealing conditions

Corrosive substances, acid vapours

UV radiation and bad weather

Dust and humidity

Freezing temperatures, frost

Washing with a high-pressure jet

Health and safety requirements according to IFS, BRC and HACCP texts

Thermal, mechanical and electrical stresses

Permanent use at temperatures of up to -60°C

Thermal shocks

Repeated turning on and off

Heavy mechanical impacts

Ideal food sector lighting

This luminaire, with its composite diffuser and stainless steel end-caps and fixing straps, meets regulations on materials likely to come in contact with food. This luminaire is designed to avoid any risk of broken or lost parts, and helps to ensure compliance with IFS, BRC and HACCP requirements for food sites.

Specific LED technology, qualified to -60°c

CELCIUS X-Cold incorporates customised LED circuit boards, for 24 VDC supply. Thanks to components which are specifically designed for use at -60°C, these fixtures are not affected by frequent turning on and off or significant temperature variations.

Insensitive to impacts at low temperatures

At very low temperatures, the mechanical strength and sealing of a poorly designed luminaire can be seriously degraded. Thanks to its 3-seal system and homogeneous materials with no mating surfaces, the Sammode housing stays sealed around the clock (IP68, IP69K), and withstands impacts (IK10) and vibrations, even at -60°C.

Materials able to withstand chemical attacks

Sammode opted for a composite diffuser, combining the mechanical solidity of polycarbonate with the chemical resistance of a thin layer of co-extruded and indissociable PMMA. This approach provides ideal protection from the detergents used for site cleaning or maintenance phases.

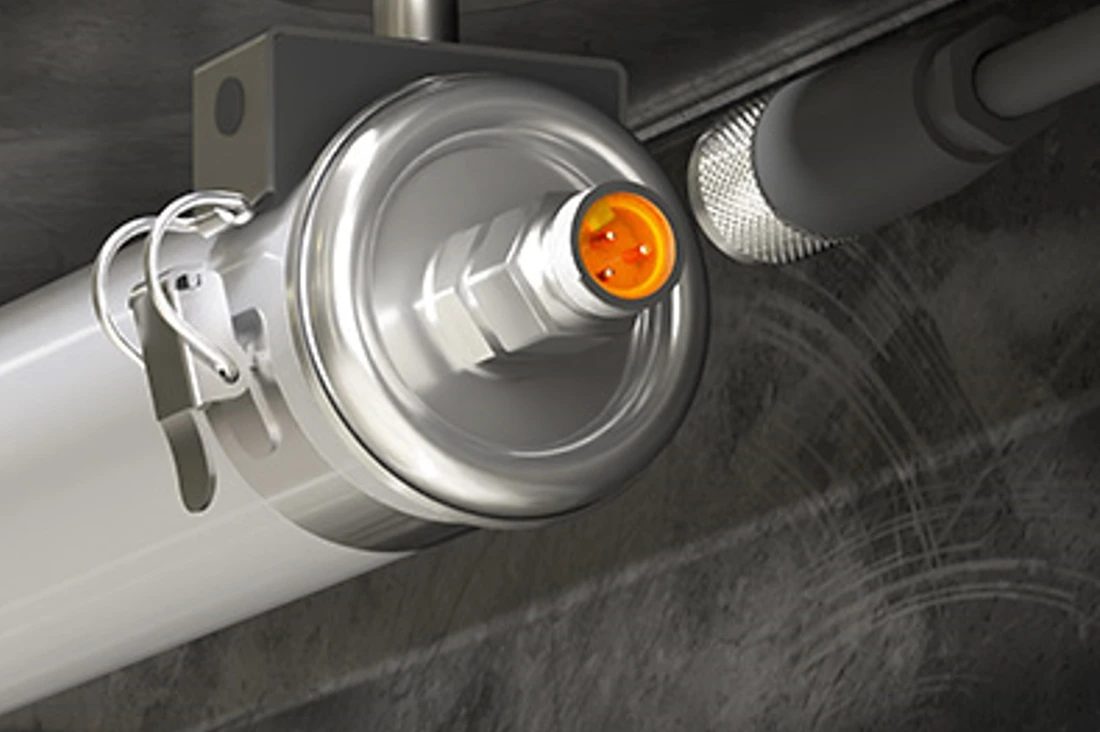

Plug & Play installation

Quick to install and reliable, with no risk of losing parts, with fixing straps and a pluggable connector with a quick locking system, protected against freezing temperatures and humidity thanks to resin-coated contacts in the terminal board. Stay cool, Sammode has everything covered!

Applications of luminaires by the name Celsius X-Cold

  • Medical biological laboratories: cryopreservation systems for biological materials
  • Pharmaceutical laboratories: lighting in production zones for blood derivatives
  • Preservation and transport of body organs

  • Lactic ferment production: lighting in processing areas
  • Manufacturing freeze dried products: vacuum freezing
  • Industrial chillers: lighting of cryogenic deep freezing zones

Our services

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

5-year warranty, no matter how tough the conditions

Valid even for 24/7 use at the product’s maximum operating temperature, reflecting our unfailing commitment to our customers!

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Top-up lighting versions

CRI80, 4000K, satin-finish housing

Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
750 613 CEL70 24DC 2M6L10 POME PS2 SA 64300050 18 Data sheet Plan STEP DS .TXT Download all

Version for general lighting

CRI80, 4000K, satin-finish housing

Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
2225 1613 CEL70 24DC 6M6L10 POME PS2 SA 64300060 55 Data sheet Plan STEP DS .TXT Download all

Version for shelf lighting

CRI80, 4000K, narrow beam 35°

Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
2500 1613 CEL70 24DC 6M6L10 POME PS2 W 64300080 55 Data sheet Plan STEP DS .TXT Download all

Fixing straps

Fixing straps -
Fixing straps with HSHC screw BAV


End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

4000K 840
Kits for APSAD compliance
2 x 20 cm  304L stainless steel extensions PU44277
2 x 5 cm  304L stainless steel extensions PU44278

Technical specifications

Light source
  • Specific removable LED modules for extreme cold conditions (IRC>80)
  • 50 000 h L80/B50 even at min. operating temperature
  • W" version : high-performance intensive lens"
  • SA" version : special LED-rated satin diffuser"
Lighting comfort
  • UGR ≤ 25
Heat management
  • Aluminium heat sink
Electrical class
  • Class III
Supply voltage
  • 24V DC min - 26V DC max
Operating temperature
  • -60°C to +25°C

  • With disconnectable plug Ø 8 to 10 mm cable (2 × 1,5 mm²)
  • 2 stainless steel fixing straps with spring clip and EPDM support pad, with variable center distance and 360° orientation
LED engine maintenance
  • Easily removable LED modules
  • Closing by tightening the nut on the cable gland

  • Special polycarbonate housing protected from UV, solvents, hydrocarbons and cleaning agents by a coextrusion of PMMA
End caps and fixing straps
  • 304L stainless steel
  • Peroxide-cured EPDM
Method of construction
  • One-piece housing with reinforced ingress protection by radial expansion of the seal

  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C
Vibration resistance
  • Meets the severe application requirements of standard EN 60598-1 (tested according to IEC 60068-2-6)

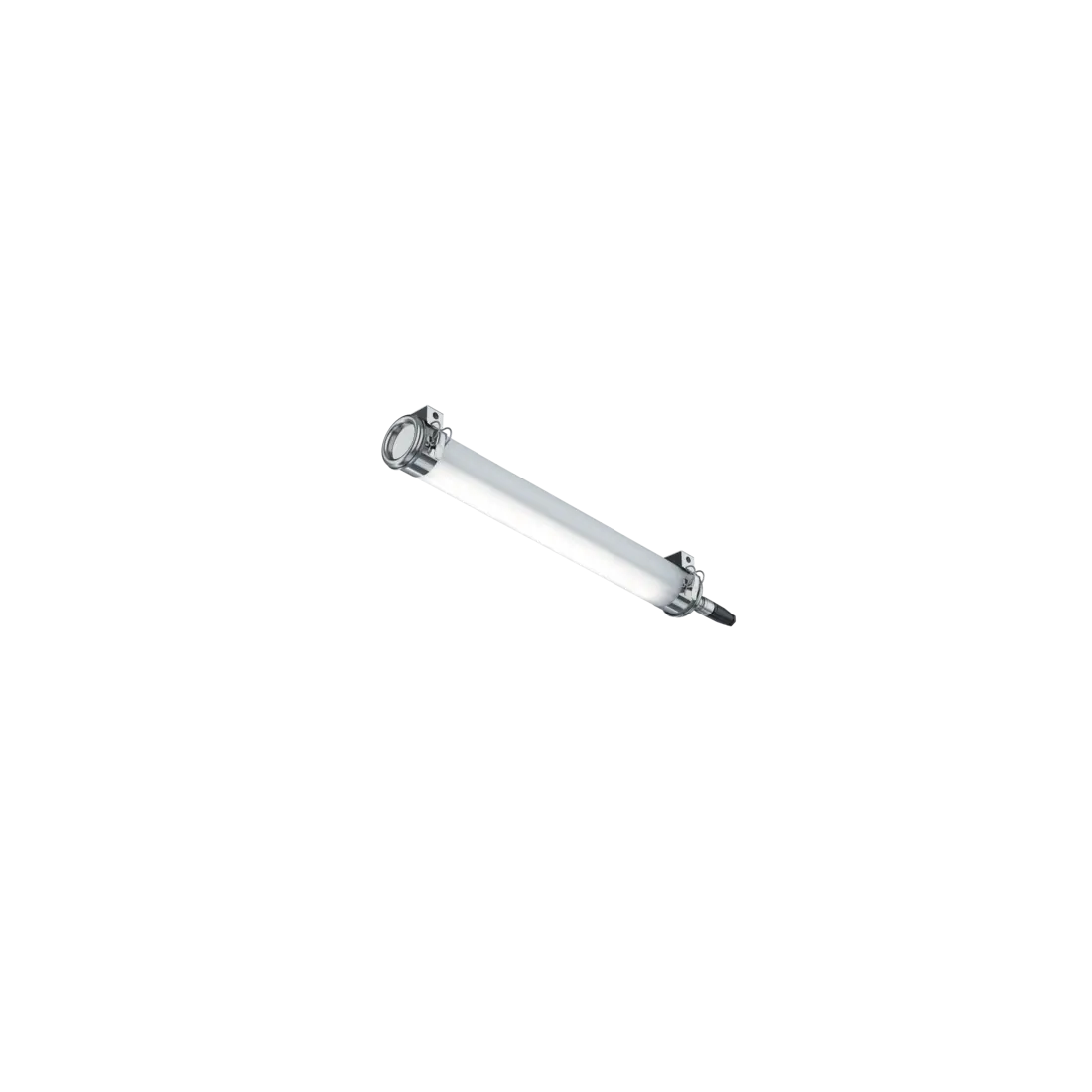

Satin-finish versions (SA)

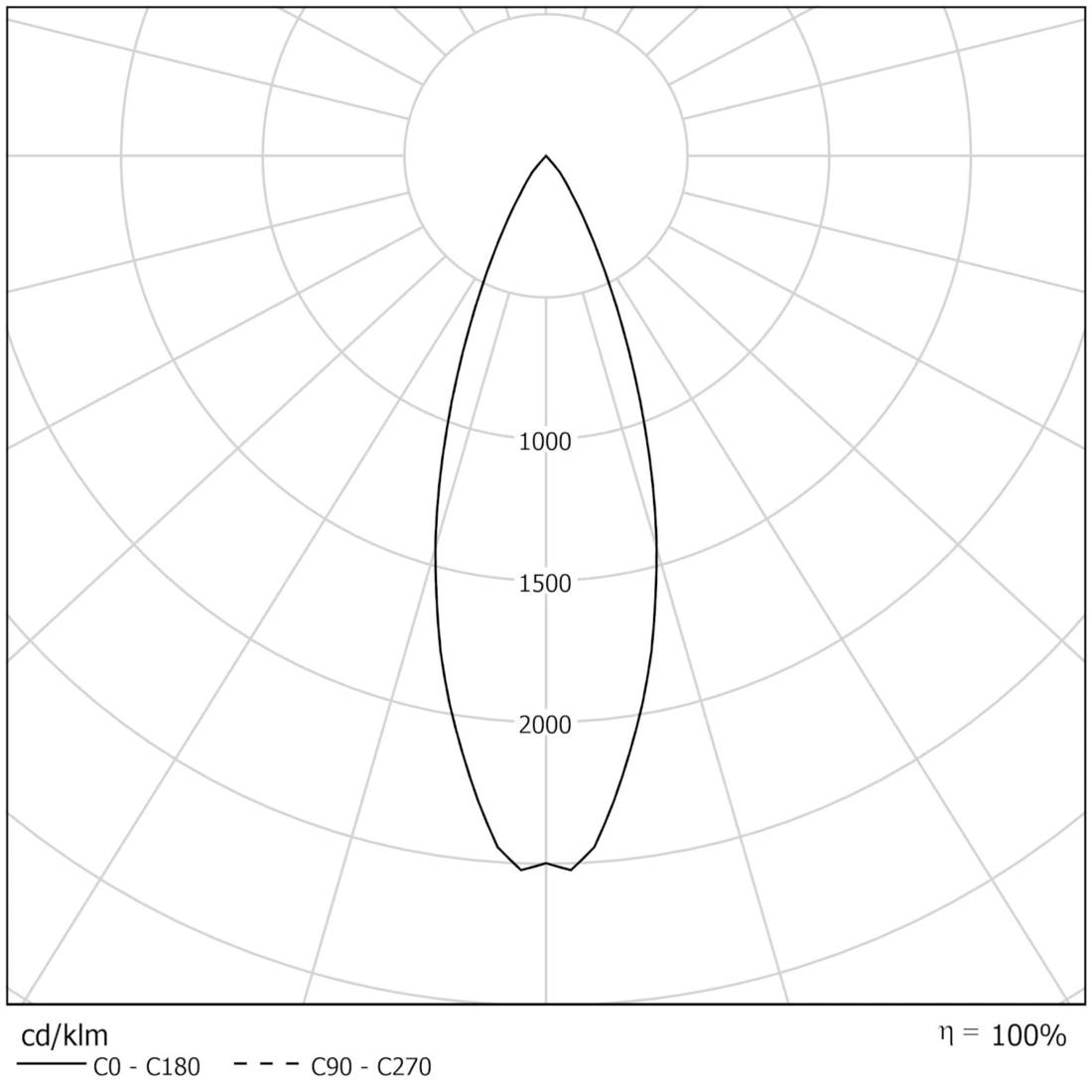

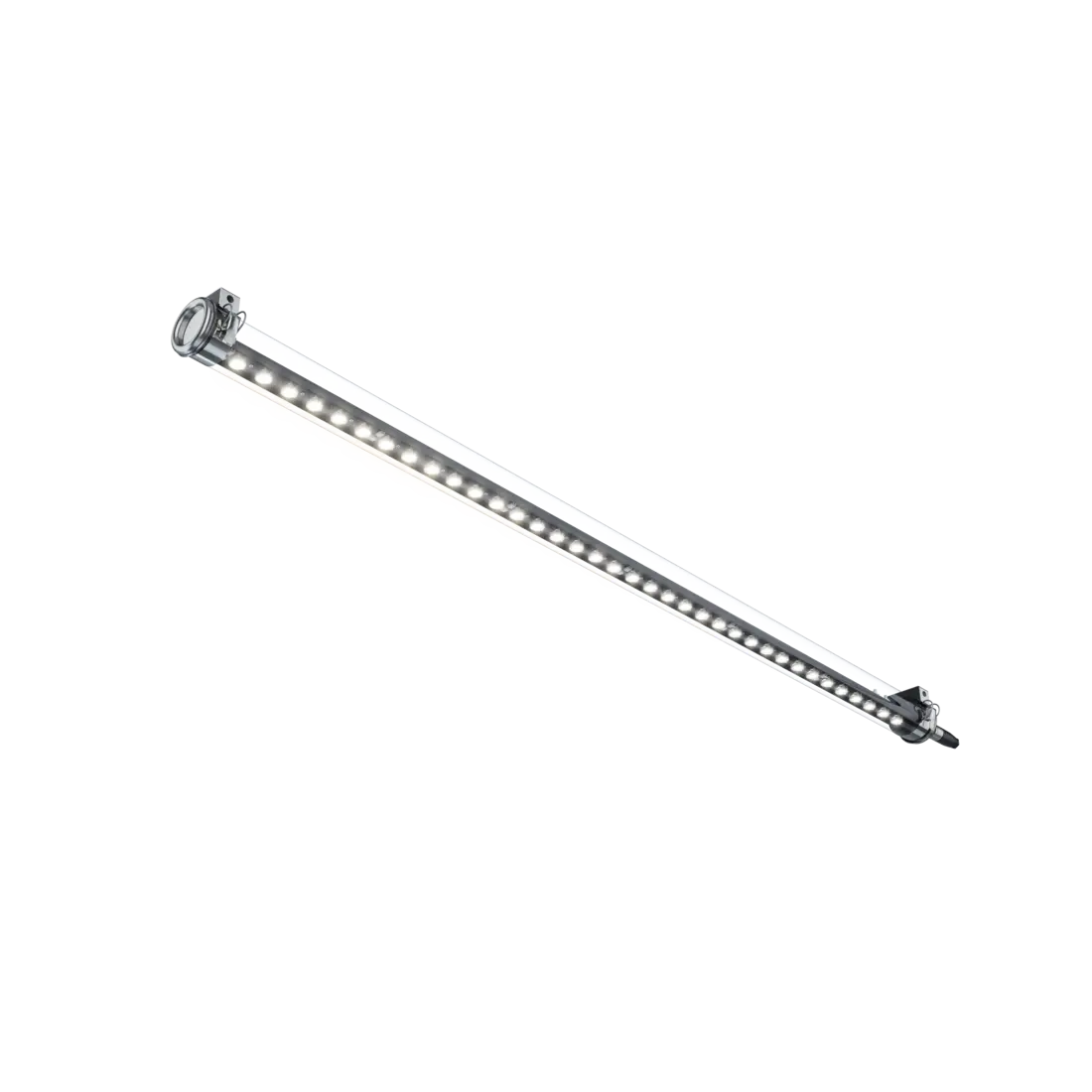

High-intensity version 35° (W)
