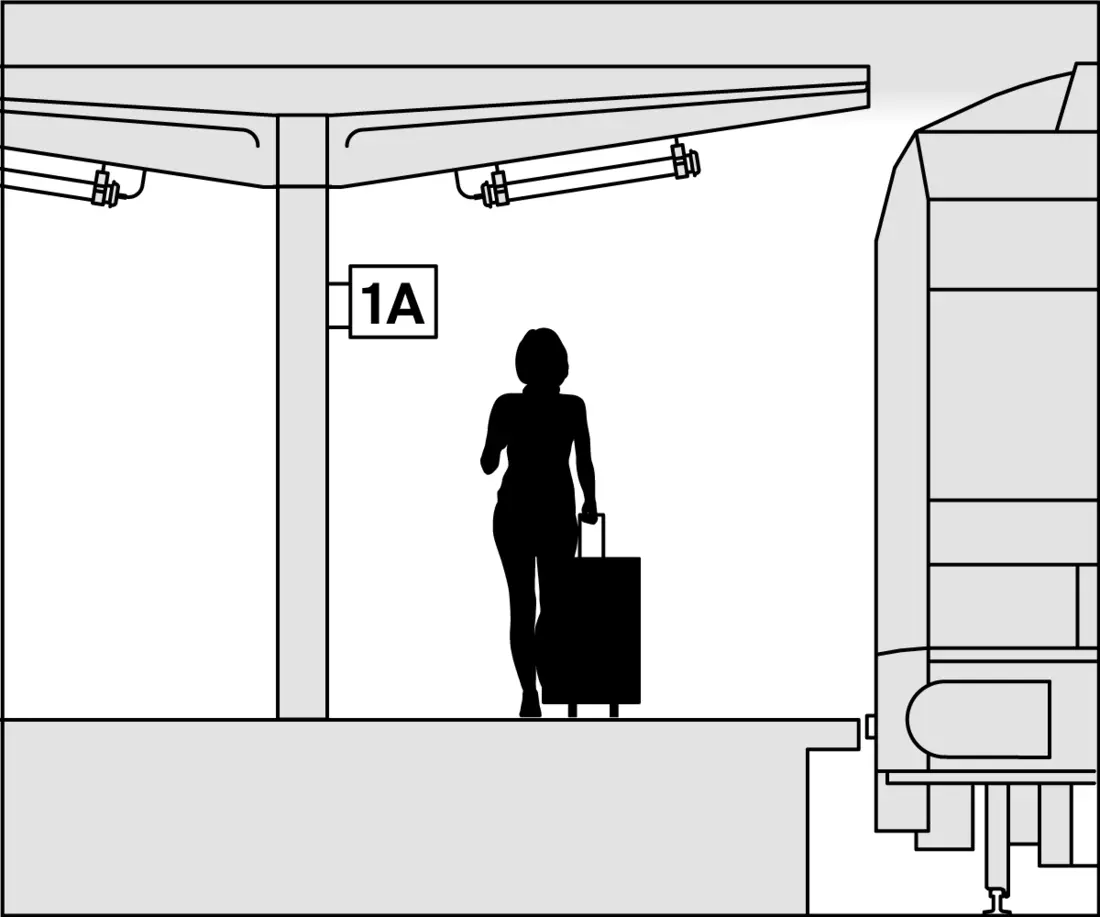

The Turner fixture is ideal for lighting up stairs in office blocks, platforms at stations, parking spaces and pathways in a car park, communal areas in apartment blocks, school playgrounds, passenger shelters at multi-model transport hubs, motorway cafeterias, and the like.

Wall or ceiling fixture for diffuse lighting, ø 70

The Turner tubular luminaire is a compact option offering the broadest possible range of uses. It is sleek and discreet, concealing an engineering marvel under its satin-finish body. It also comes with an optional built-in motion sensor.

Access to product information

A luminaire built to last

The Turner fixture is renowned for its outstanding reliability and sealing, just like the entire Sammode tubular luminaire range, and is ideal both outdoors and indoors. The robust materials used (stainless steel and co-extruded composite diffusers) ensure that these fixtures are durable and able to resist both UV radiation and the worst acts of vandalism.

Comprehensive range of dimensions available for lighting in all areas

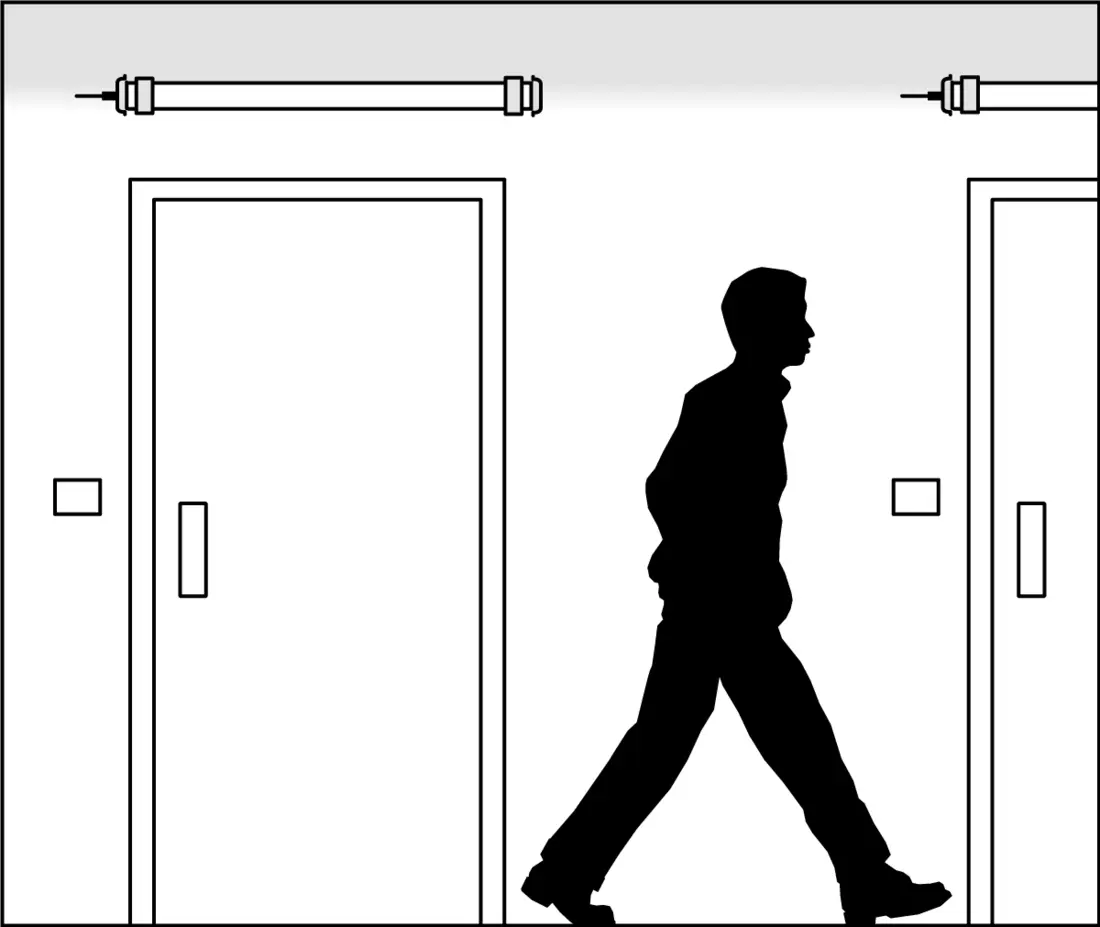

The Turner model comes in 6 lengths, available at 30 cm intervals, and is suitable for any location, providing lighting comfort and safety to all users. This compact design can fit into tight corners or add a sleek finish running down the length of a corridor.

Flexible set-up

Install your Turner tubular luminaire however you fancy, on the wall, ceiling or as a suspended fixture. Whether fitted as a single unit or as part of a line, it is easy to hook up thanks to the patented internal connections. To add a personal touch, opt for the Coal finish end-caps and fixing straps, or apply a tinted internal film to bring some colour into your life.

Smart lighting

Our lighting management options are selected specifically for their durability and reliability, meaning your luminaires are easy to control. With DALI 2 or Bluetooth Casambi dimming options, switch-off warning function, motion sensors and the like, Sammode ensures you benefit from the light you need when you need it, with products that stand the test of time, which is great for both customers and the environment.

Smart and upgradable

The Turner tubular luminaire incorporates a patented automatic gear tray connection system, allowing for swift and safe connections (the Close’n Connect© system). To update your internal gear tray and add the latest technology, open the opposite side, without touching the cable to ensure the fixture remains sealed. The secret to durability? We build robust, adaptable and upgradable equipment.

Sammode expertise

Designed and manufactured in France

Designed and manufactured in France, keeping supply chains short and using durable components and materials, primarily sourced in Europe. Each luminaire is manufactured, assembled and inspected by our teams with full traceability.

8-year indoor-outdoor warranty

Architectural projects look to the long term, which is why Sammode commits to a 8-year warranty covering both indoor and outdoor use. Our pledge means a solid, durable and reliable product, regardless of location and climatic conditions.

Our products can be fully repaired or upgraded at your site

Unlike the disposable world we live in, Sammode lights are designed as modular systems. New technology can be integrated in existing fixtures: simply replace the outdated parts!

Main references and downloads

Product brochure

Eulumdat (LDT)

Manual

Certificate
Download all

Comfortable versions

3000K, DALI dimmable

T (K)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
3000 750 575 TURNER 70 575 750-830 RD 14905168 8 Data sheet Plan STEP DS .TXT Download all
3000 1000 715 TURNER 70 700 1000-830 RD 14905746 10 Data sheet Plan STEP DS .TXT Download all
3000 1500 995 TURNER 70 1000 1500-830 RD 14905072 14 Data sheet Plan STEP DS .TXT Download all
3000 2000 1275 TURNER 70 1300 2000-830 RD 14905184 18 Data sheet Plan STEP DS .TXT Download all
3000 2500 1560 TURNER 70 1600 2500-830 RD 14905365 22 Data sheet Plan STEP DS .TXT Download all
3000 3000 1840 TURNER 70 1850 3000-830 RD 14905358 27 Data sheet Plan STEP DS .TXT Download all

Reinforced versions

3000K, DALI dimmable

T (K)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
3000 1050 575 TURNER 70 575 1050-830 RD 14905593 10 Data sheet Plan STEP DS .TXT Download all
3000 1400 715 TURNER 70 700 1400-830 RD 14905762 12 Data sheet Plan STEP DS .TXT Download all
3000 2100 995 TURNER 70 1000 2100-830 RD 14905963 17 Data sheet Plan STEP DS .TXT Download all
3000 2800 1275 TURNER 70 1300 2800-830 RD 14905475 22 Data sheet Plan STEP DS .TXT Download all
3000 3500 1560 TURNER 70 1600 3500-830 RD 14905588 27 Data sheet Plan STEP DS .TXT Download all
3000 4200 1840 TURNER 70 1850 4200-830 RD 14905704 33 Data sheet Plan STEP DS .TXT Download all

Built-in sensor versions programmable DALI 2

3000K, DALI, light and motion sensor for connected 5G1.5 DALI systems

T (K)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
3000 1050 660 TURNER 70 575 +85 SI 1050-830 RD 14906359 11 Data sheet Plan STEP DS .TXT Download all
3000 1400 800 TURNER 70 700 +85 SI 1400-830 RD 14906349 13 Data sheet Plan STEP DS .TXT Download all
3000 2100 1080 TURNER 70 1000 +85 SI 2100-830 RD 14905298 18 Data sheet Plan STEP DS .TXT Download all
3000 2800 1360 TURNER 70 1300 +85 SI 2800-830 RD 14906360 23 Data sheet Plan STEP DS .TXT Download all
3000 3500 1645 TURNER 70 1600 +85 SI 3500-830 RD 14906361 28 Data sheet Plan STEP DS .TXT Download all
3000 4200 1925 TURNER 70 1850 +85 SI 4200-830 RD 14906362 34 Data sheet Plan STEP DS .TXT Download all

Built-in sensor versions with switch-off warning

3000K, ready-to-use, motion sensor for automatic switch-off after a 30 min. time delay at 10%. Ideal for pathways with 3G1.5

T (K)Flux (lm)L (mm)DesignationCodeWatt Data sheet Plan STEP DS .TXT Download all
3000 1050 660 TURNER 70 575 +85 SI 1050-830 RC 14906363 11 Data sheet Plan STEP DS .TXT Download all
3000 1400 800 TURNER 70 700 +85 SI 1400-830 RC 14906364 13 Data sheet Plan STEP DS .TXT Download all
3000 2100 1080 TURNER 70 1000 +85 SI 2100-830 RC 14906365 18 Data sheet Plan STEP DS .TXT Download all
3000 2800 1360 TURNER 70 1300 +85 SI 2800-830 RC 14906197 23 Data sheet Plan STEP DS .TXT Download all
3000 3500 1645 TURNER 70 1600 +85 SI 3500-830 RC 14906366 28 Data sheet Plan STEP DS .TXT Download all
3000 4200 1925 TURNER 70 1850 +85 SI 4200-830 RC 14906367 34 Data sheet Plan STEP DS .TXT Download all

Fixing straps

Fixing straps -
Fixing straps with HSHC screw BCV
Fixing straps with tamper-resistant Torx screw BCVT

Materials

Coextruded polycarbonate/PMMA housing for Indoor/Outdoor use (650°) -
Polycarbonate housing (960°C) PO
End caps & fixing straps 304L stainless steel -
End caps & fixing straps 316L stainless steel MR

Color temperature

2700K 827
3000K 830
4000K 840

Electrical class

Class I CL1
Class II -

Through-wiring

For mounting with through-wiring TR

Lighting management

Electronic gear unit for DALI 2 dimming RD
Electronic gear unit for push button RS
Switch-off warning function (for sensor/timer) RC
Non dimmable -

Presence sensor

Built-in presence sensor (length increased by 85mm) SI
Stainless steel cable plate kit (IP40) 17500020
Horizontal suspension kit (3m ropes) 17500050
Pre-cabling 3m 3G1.5 (3 wires) Braided tinned copper cable CAB0008
Pre-cabling 3m 5G1.5 (5 wires) Braided tinned copper cable CAB0011

Technical specifications

Light source
  • High-efficiency removable LED module (CRI>80, 3 SDCM)
  • 70 000 h L80/B10 at 25°C
  • Photobiological hazard : None (RG0)
Optics
  • Special satin-finish housing for LED
  • Light mixing chamber
Lighting comfort
  • Controlled glare: UGR ≤22 or ≤25 depending on model
Control gear
  • Dimmable Constant Current Driver
  • RD versions : according to DALI 2 protocol
  • RC versions : with switch-off warning, the time delay and sensitivity levels adjustable directly on the sensor
  • SI versions : built-in motion sensor
  • Electronic compatible with central source (except versions incorporating a motion sensor: SI)
Supply voltage
  • 220-240V ±10% 0/50/60Hz (except versions with integrated sensor: 50/60Hz only)
Electrical class
  • Class II
Operating temperature
  • -25°C to +35°C

Connection
  • With nickel-coated brass cable gland for cable Ø 8-12 mm
  • To a 5 x 2,5 mm² disconnectable terminal block
  • 5-wire power supply (except for version with integrated presence detector + switch-off warning when used in isolated luminaire: 3-wire power supply
Closing
  • Closing by tightening the nut on the cable gland
Mounting
  • 2 stainless steel fixing straps (with variable centre distance)
LED engine maintenance
  • Maintenance without tampering with the cable by removal of the end cap without cable entry
  • Close'N Connect Patented system with automatic electrical connection/disconnection on closure
  • Easily removable LED modules and driver
  • Quick opening and closing with just one screw

Housing
  • Coextruded polycarbonate/PMMA diameter 70 for indoor and outdoor use
End caps and fixing straps
  • 304L stainless steel

Waterproofness
  • IP66, IP68, IP69K
Resistance to IK shocks
  • IK10
Fire resistance
  • 650°C

ULR = 6%
